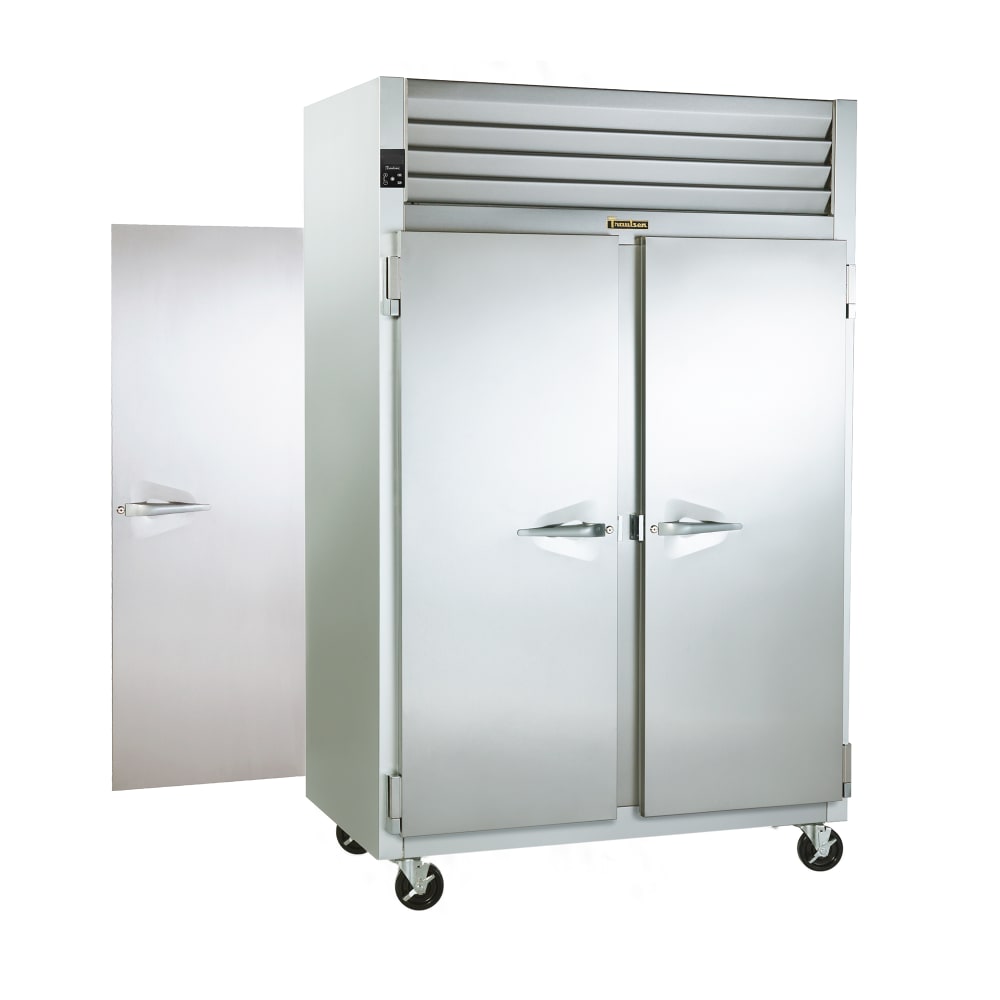

Traulsen AHF232WP-HHS Full Height Insulated Heated Cabinet w/ (6) Pan Capacity, 208v/1ph
Typically ships in 4 - 6 weeks
$23,018.99 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Traulsen AHF232WP-HHS Description
The ducted fan air distribution system in the Traulsen AHF232WP-HHS insulated heated cabinet effectively circulates air to keep product warm. This unit operates in the range of 135 to 180 degrees Fahrenheit, which can be adjusted using microprocessor controls. Because it has half-height doors, particular sections of the cabinet can be accessed without unnecessary energy loss. Product can be accessed from either side of the pass-thru cabinet to streamline quick use in foodservice operations.
The Traulsen AHF232WP-HHS full-height heated cabinet measures 58 inches wide by 3715/16 inches deep by 831/4 inches high. Its exterior features a stainless steel construction for durability, and its interior is made of corrosion-resistant aluminum. To save energy, the cabinet is insulated with high-density polyurethane. It comes with six shelves to hold product, and its incandescent lights automatically power on when one of the doors is opened.
Product Details
- Part of the Spec line
- Microprocessor controls
- Temperature range: 135-180 degrees F
- Half-height solid doors
- Self-closing door design with stay-open feature
- Pass-thru construction
- Standard-depth cabinet
- 2 sections
- 6 wire shelves are adjustable
- Incandescent lights illuminate the cabinet
- Exterior made of rust-resistant stainless steel
- Corrosion-resistant aluminum interior
- Ducted fan air distribution system
- 6-in. adjustable legs
Dimensions & Utilities
- 58 in. W x 3715/16 in. D x 831/4 in. H
- 15.5 A, 3000 W
- 208 V/60 Hz/1 ph, 9-ft. cord with plug
*Free shipping on Traulsen AHF232WP-HHS within the 48 contiguous states.
From The Manufacturer
Spec-Line Heated Cabinet, Pass-thru, two-section, stainless steel exterior, aluminum interior, standard depth cabinet, half-height doors, with EZ-Clean Gaskets, (3) clear coated adjustable shelves per section, microprocessor controls, 6' adjustable stainless steel legs, cETLus, ETL-Sanitation, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Traulsen AHF232WP-HHS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Application | Heat Only |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Digital |
| Cubic Feet | 52.8 |
| Depth (in) | 37.94 |
| Door Design | Dutch |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 83.25 |
| Hertz | 60 |
| Hinge Configuration | Left/Right |
| kW | 3 |
| Load Type | Pass Thru |
| No. of Doors | 8 |
| Pan Capacity | 6 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 2 |
| Series | Spec-Line |
| Size | Full Height |
| Slide Type | Shelves |
| Special Features | All Stainless Exterior |
| Type | Insulated |
| Voltage | 208 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 58 |
| Weight | 645.00 |
Important Prop 65 information for California residents.
