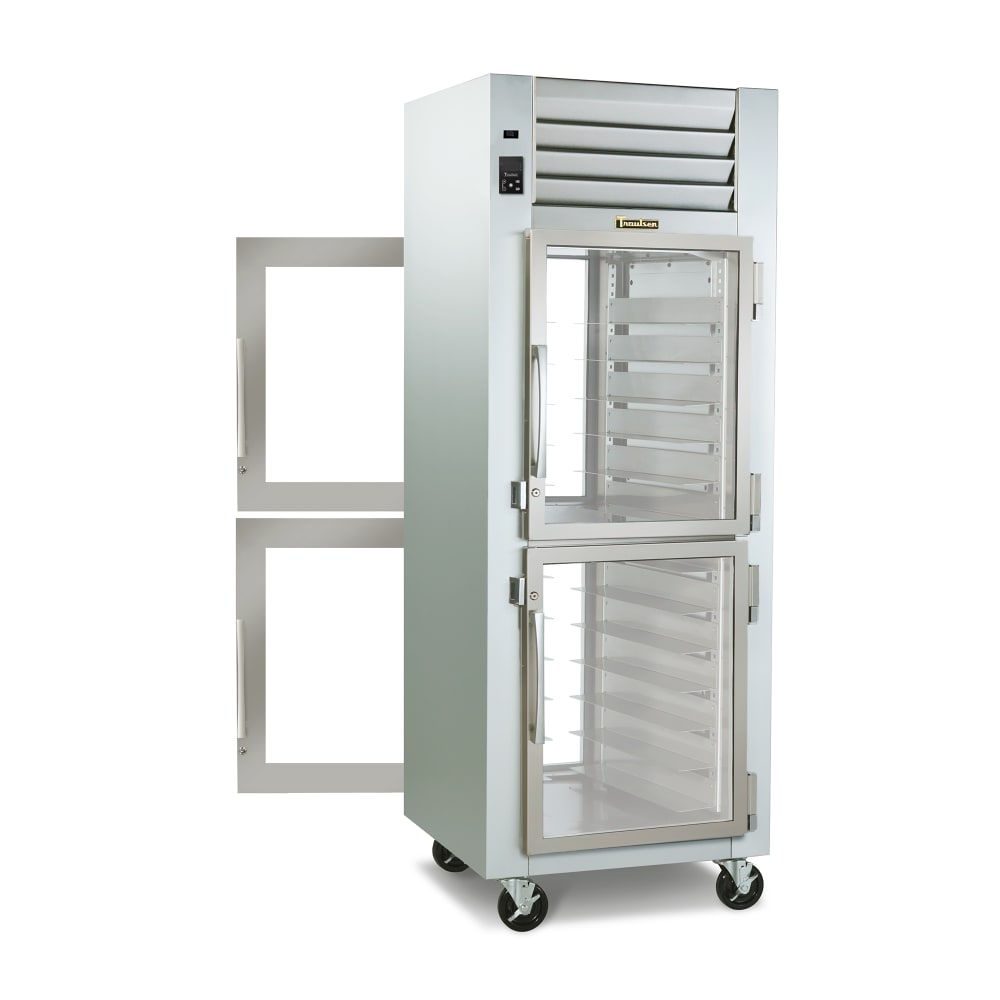

Traulsen AHF132WP-HHG Full Height Insulated Heated Cabinet w/ (3) Pan Capacity, 208v/1ph
Typically ships in 4 - 6 weeks
$15,821.69 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Need an Energy Star® Heated Cabinet?
See our selection of Traulsen Energy Star® certified Heated Cabinet products below
Traulsen AHF132WP-HHG Description
The Traulsen AHF132WP-HHG insulated heated cabinet operates using a ducted fan air distribution system, and the temperature is adjustable from 135 to 180 degrees Fahrenheit. Both sides of the cabinet have half-height doors for pass-thru use, and they're made of glass to provide a look inside the unit. Made of wire, the shelves enable air to circulate through gaps and around product for uniform heating. This cabinet comes with three shelves that can be adjusted to hold a variety of items.
Durable for heavy-duty applications, the Traulsen AHF132WP-HHG full-height heated cabinet has a rust- and corrosion-resistant stainless steel exterior and an aluminum interior. The interior contains high-density polyurethane insulation, and the doors self-close to preserve heat and energy. While the shelves are loaded and unloaded, the doors can be propped open 120 degrees. This unit is built with 6-inch legs, which are adjustable to ensure stabilization.
Product Details
- Part of the Spec line
- 1-section, pass-thru cabinet
- Standard depth
- Microprocessor controls
- Temperature range: 135-180 degrees F
- 3 adjustable shelves
- Wire shelves promote even airflow
- Incandescent cabinet lights
- Exterior constructed of durable stainless steel
- Corrosion-resistant aluminum interior
- Ducted fan air distribution system
- Half-height glass doors with stay-open feature
- Self-closing doors
- Insulated with polyurethane
- Fitted with 6-in. adjustable stainless steel legs
Dimensions & Utilities
- 29.88 in. W x 37.94 in. D x 83.25 in. H
- 7.8 A, 1500 W
- 208 V/60 Hz/1 ph, 9-ft. cord with plug
From The Manufacturer
Spec-Line Heated Cabinet, Pass-thru, one-section, stainless steel exterior, aluminum interior, standard depth cabinet, half-height glass door or doors with Santoprene® EZ-Clean Gaskets, (3) clear coated adjustable shelves per section, microprocessor controls, 6" adjustable stainless steel legs, NSF, UL
*Image may not depict product color, inclusions or accessories.
Cord Attached
This product includes a cord and plug
Traulsen AHF132WP-HHG Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Application | Heat Only |
| Construction | Stainless Steel |
| Controls | Digital |
| Cubic Feet | 24.8 |
| Depth (in) | 37.94 |
| Door Design | Dutch |
| Door Type | Glass |
| Heat | Electric |
| Height (in) | 83.25 |
| Hertz | 60 |
| kW | 1.5 |
| Pan Capacity | 3 |
| Sections | 1 |
| Size | Full Height |
| Slide Type | Shelves |
| Type | Insulated |
| Voltage | 208 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 29.88 |
| Series | Spec-Line |
| Control Location | Top |
| Load Type | Pass Thru |
| No. of Doors | 4 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| NEMA | L14-20P |
| Hinge Configuration | Right |
| Weight | 385.00 |
