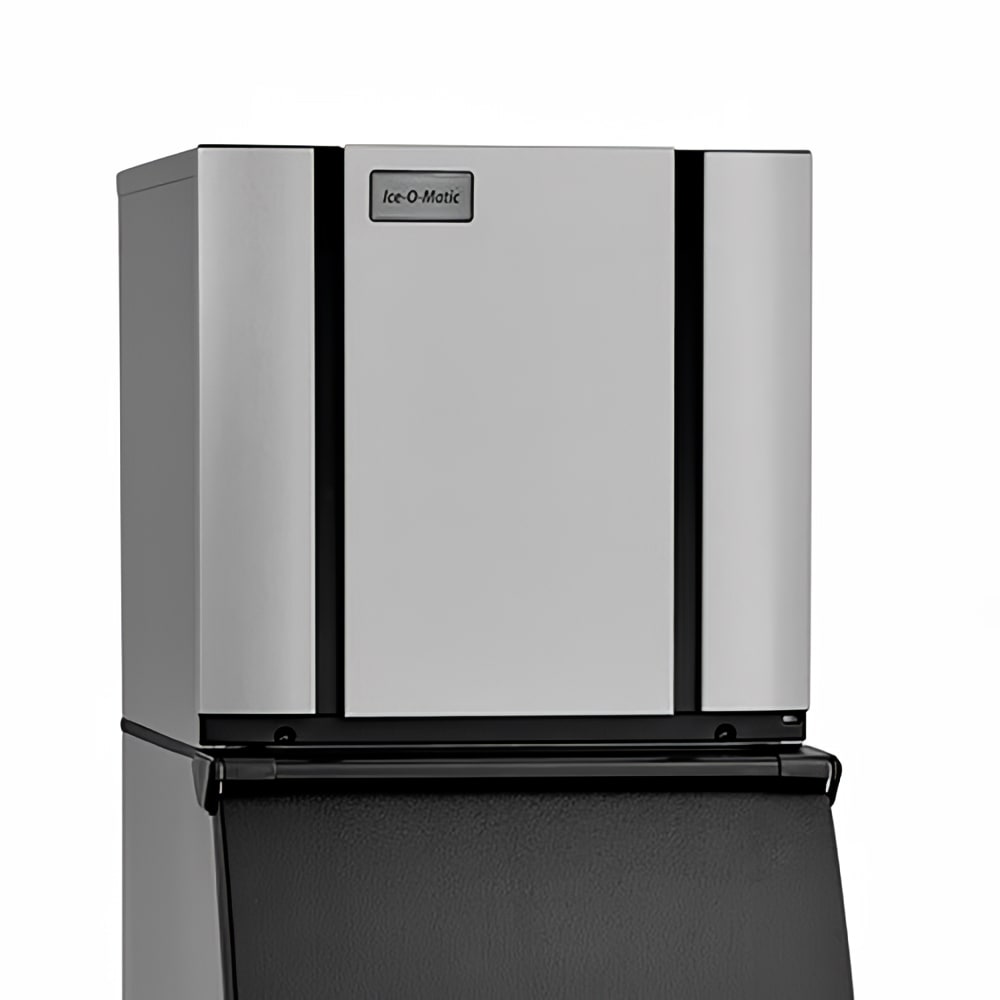

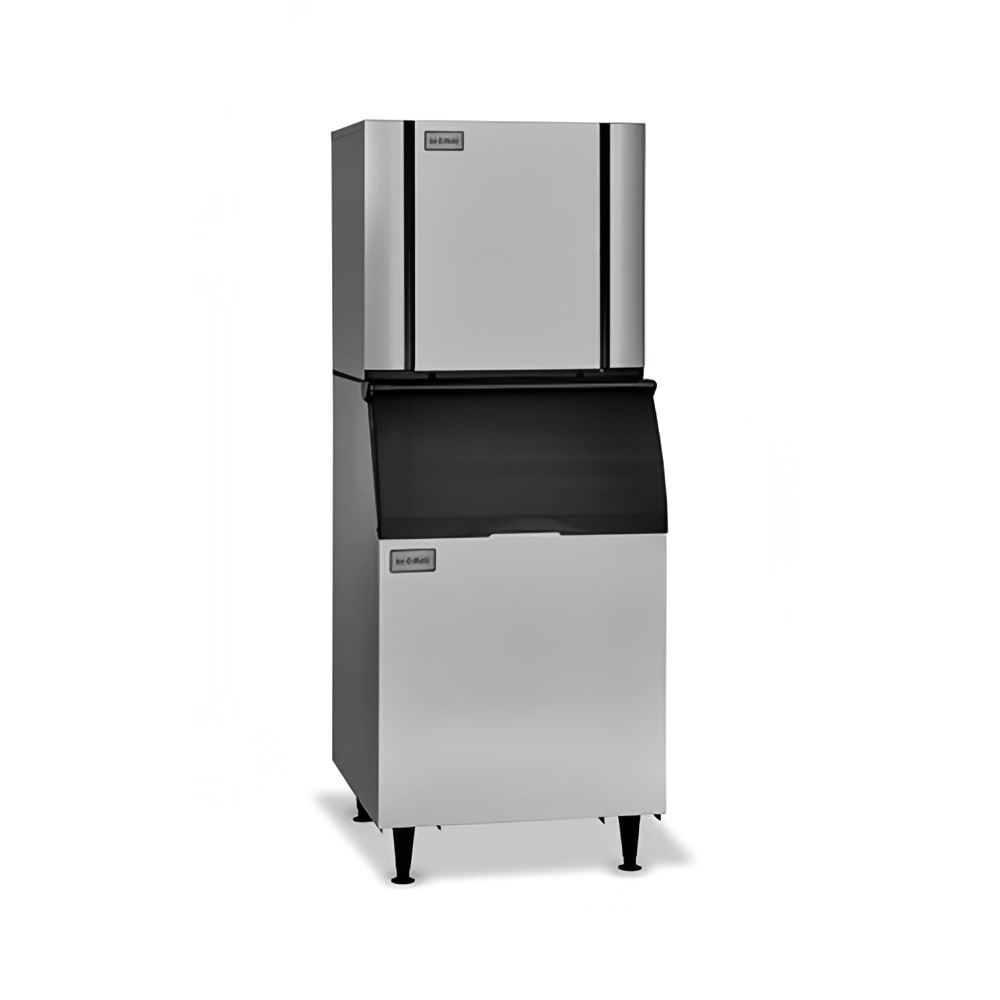

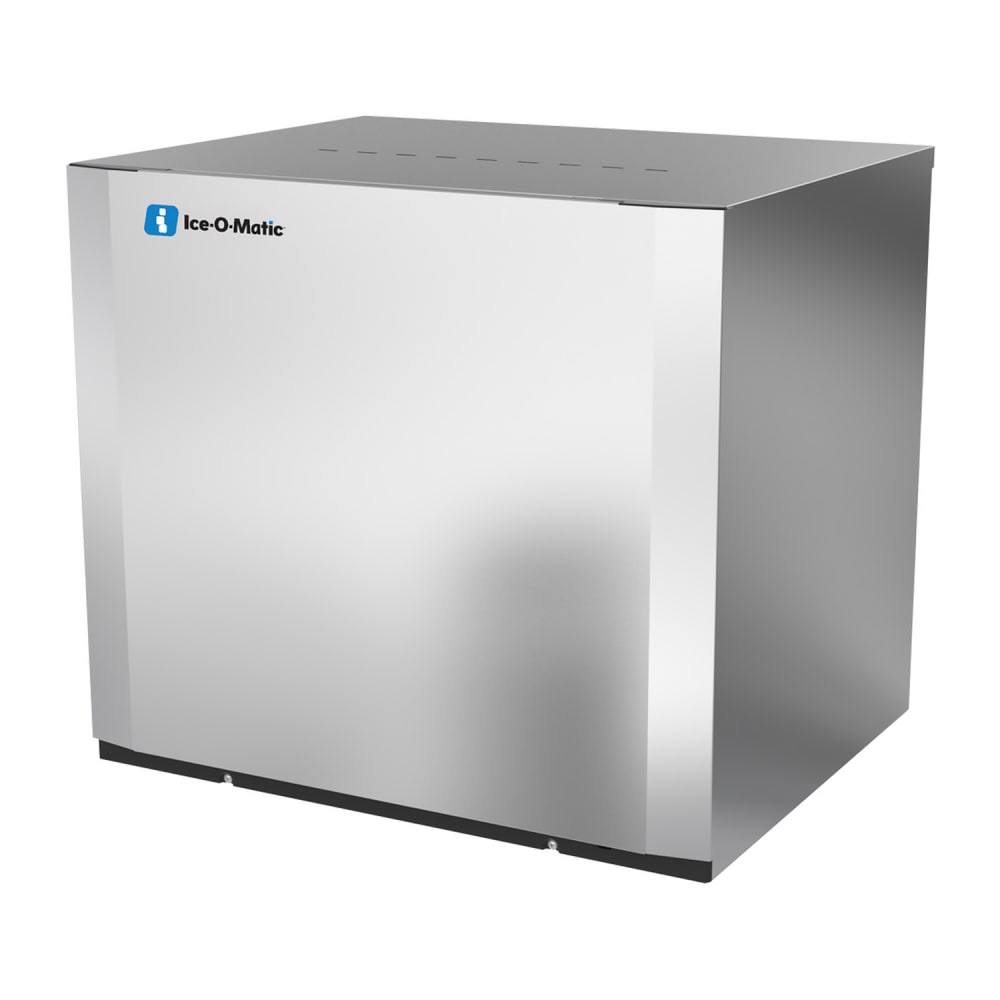

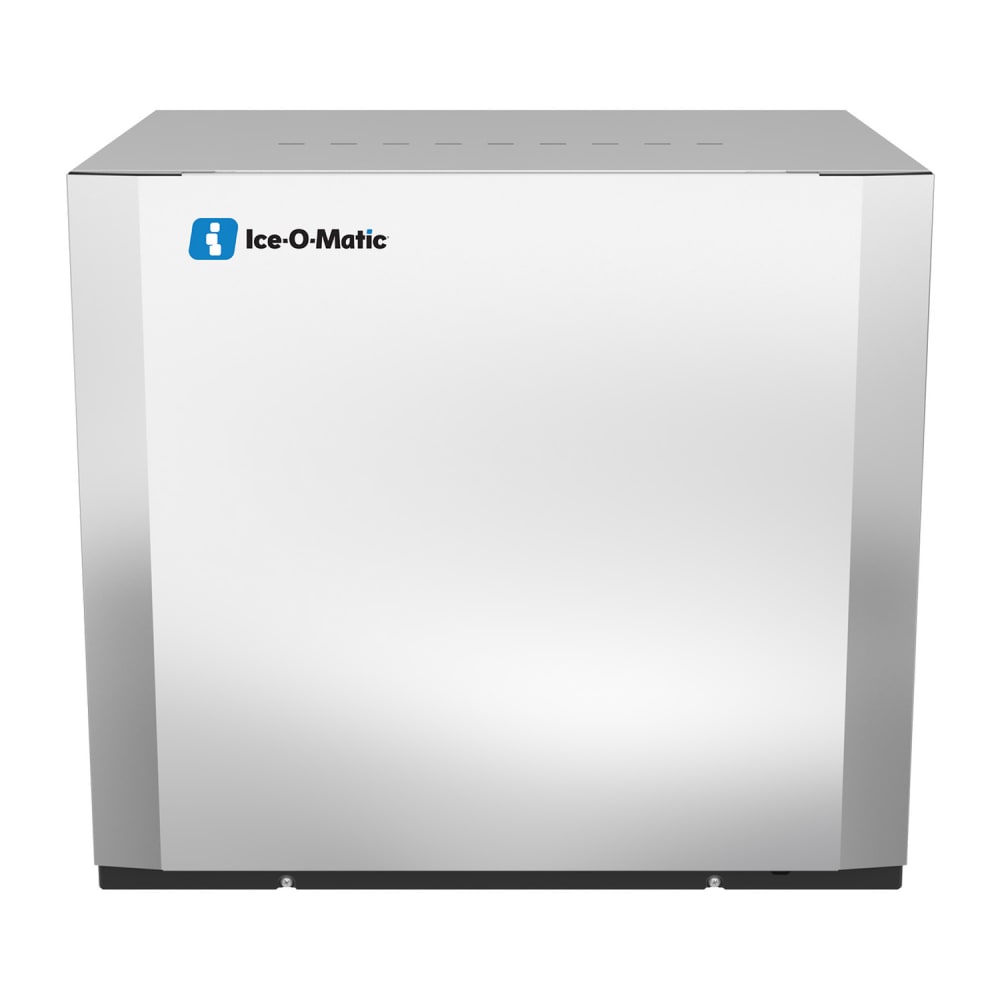

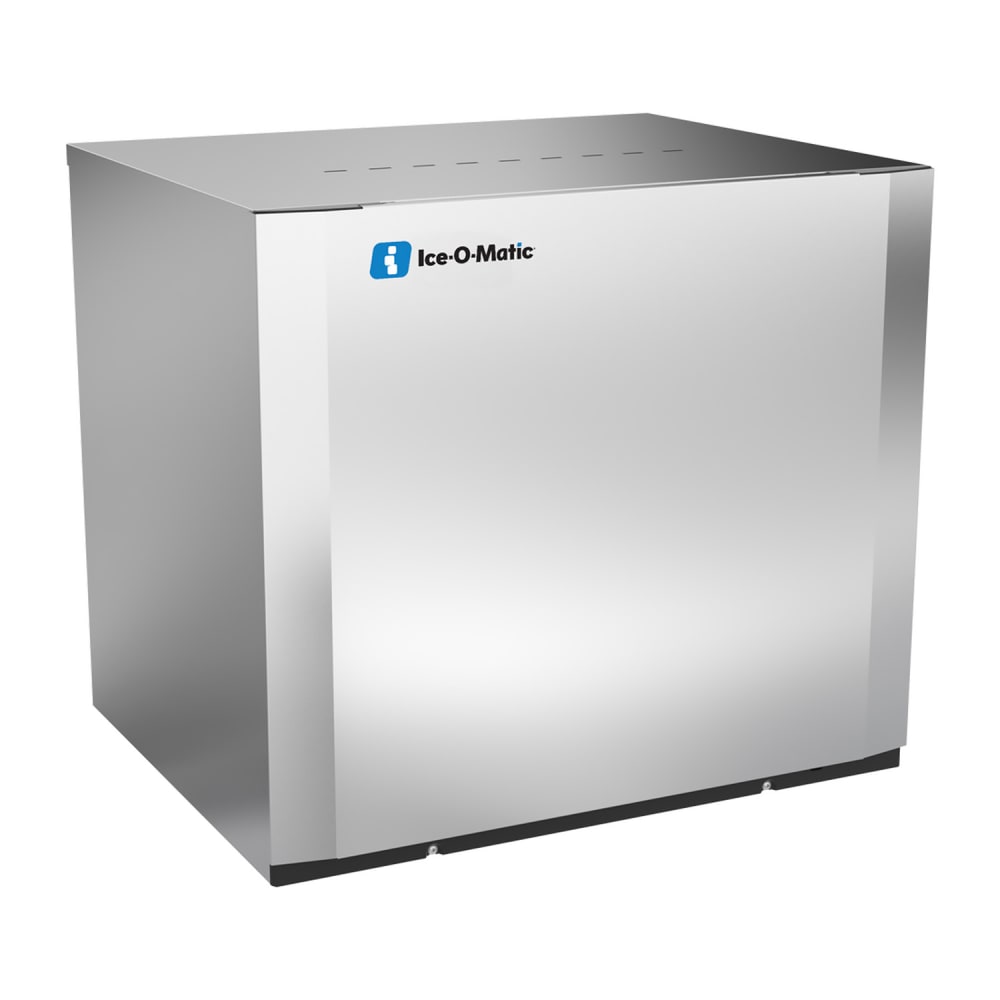

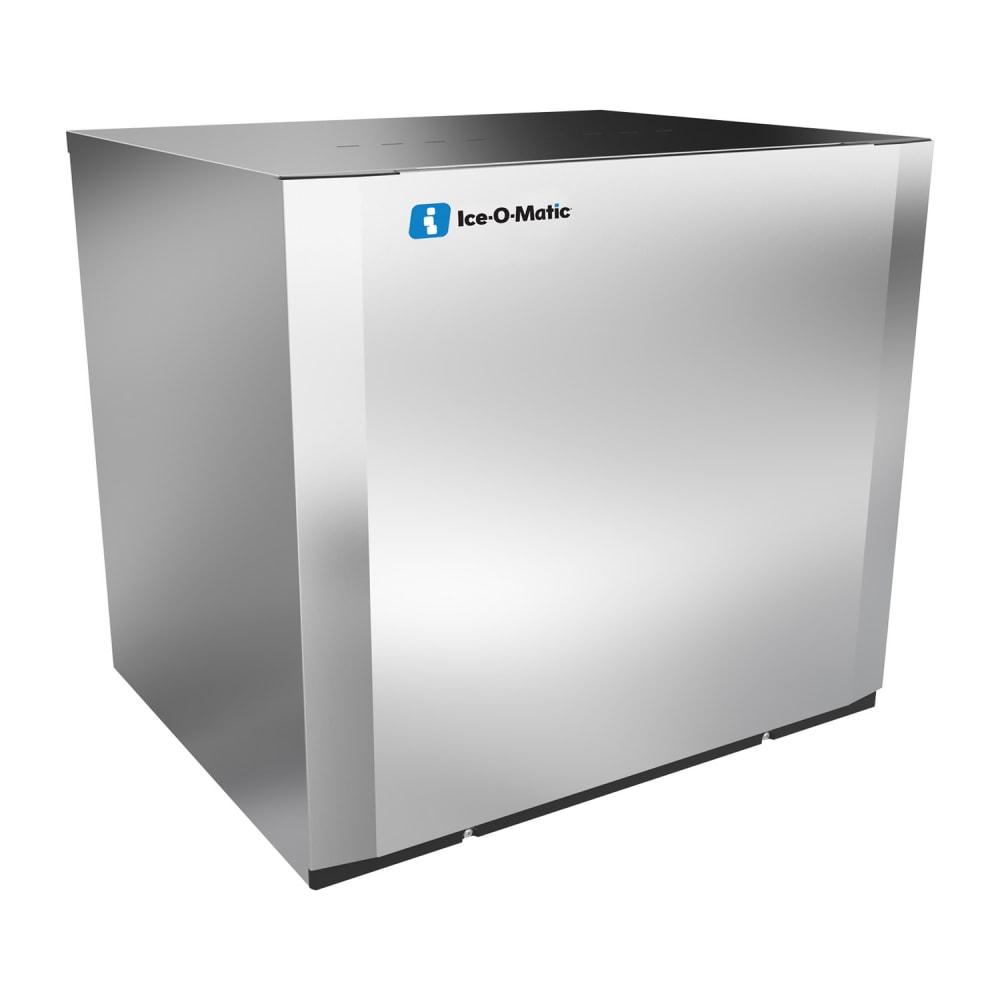

Ice-O-Matic CIM0836HR49 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 906 lb/24 hr, Remote Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$6,298.00 /Each
Selected Ice Type: Half Cube
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIM0836HR49 Description

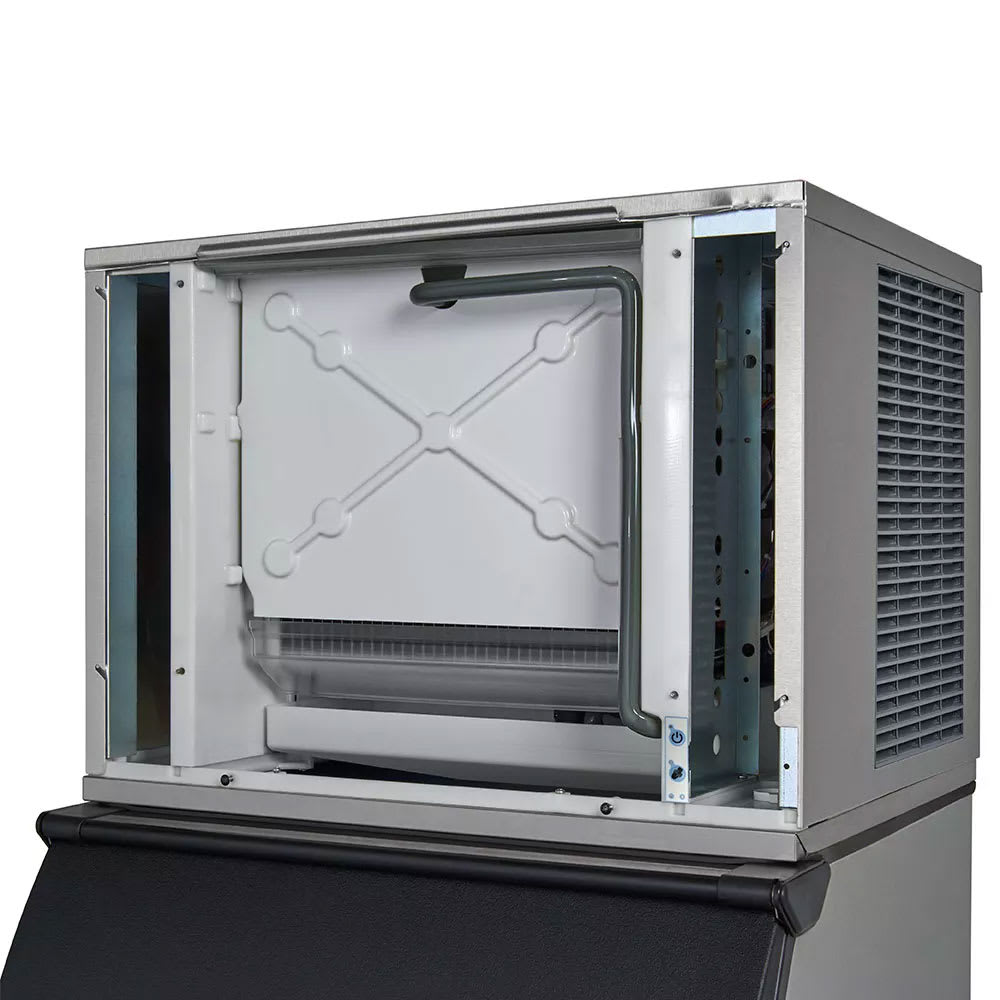

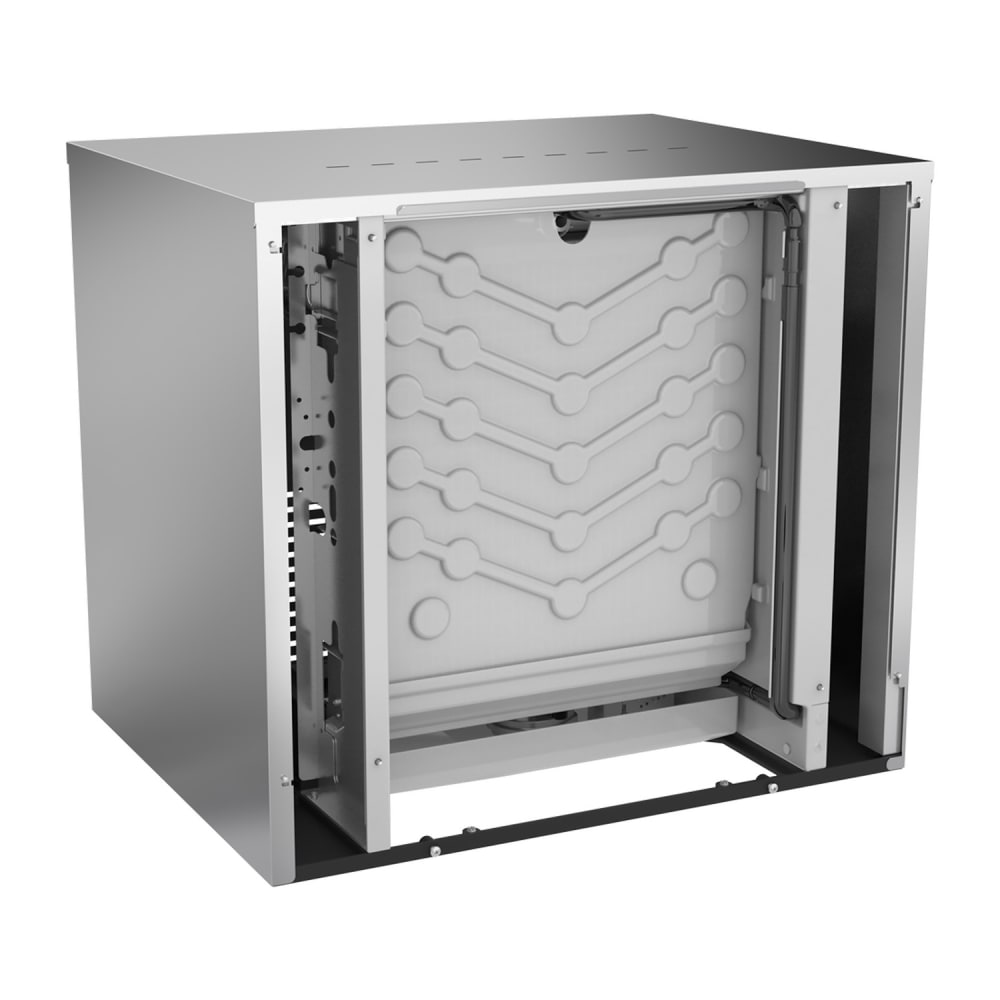

Because the food zone in the Ice-O-Matic CIM0836FR49 ice machine head is made of plastic, it can be wiped clean without harboring bacteria in any seams. Its components snap out for dishwasher placement, providing streamlined cleaning. To perform sanitizing and descaling measures, users can just push a button, and to slow bacteria growth, the unit has built-in PURE ICE® antimicrobial protection. This unit makes half-size cubes of ice, which are great for serving in soft drinks.
The Ice-O-Matic CIM0836FR49 half-cube ice machine has a remote condenser that's air cooled. It makes as much as 906 pounds of ice per day, and when conditions are less than ideal, it still makes close to 793 pounds of ice daily. To monitor operating conditions throughout the day, it has an LED screen that provides a readout. This unit doesn't come with a dispenser or bin, so one will need to be purchased separately for use.
- Part of the Elevation Series™
- 906-lb. daily ice production
- 793-lb. AHRI-certified daily ice production
- Makes half-size cubes of ice
- Half-size cube dimensions: 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Bacterial growth inhibited with PURE ICE antimicrobial
- Monitoring enabled on an LED screen
- Remote, air-cooled condenser

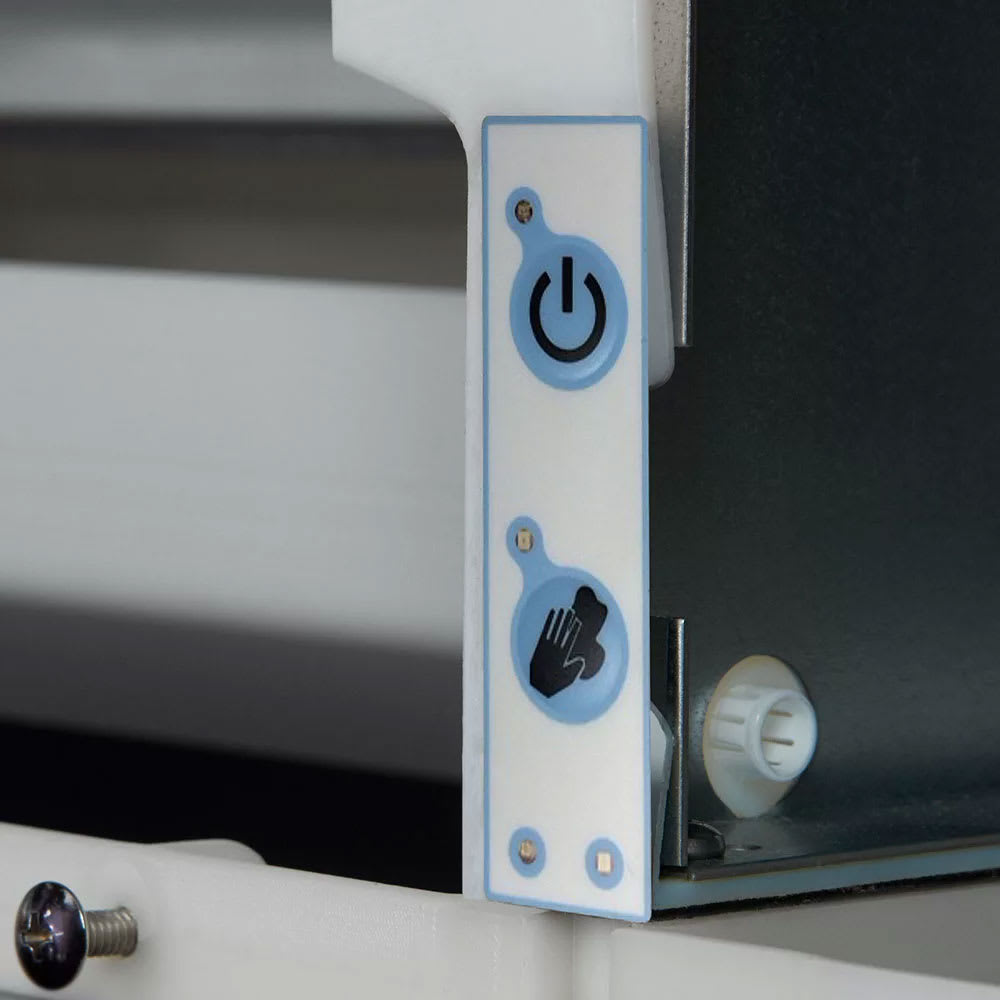

- Single-touch sanitizing and descaling

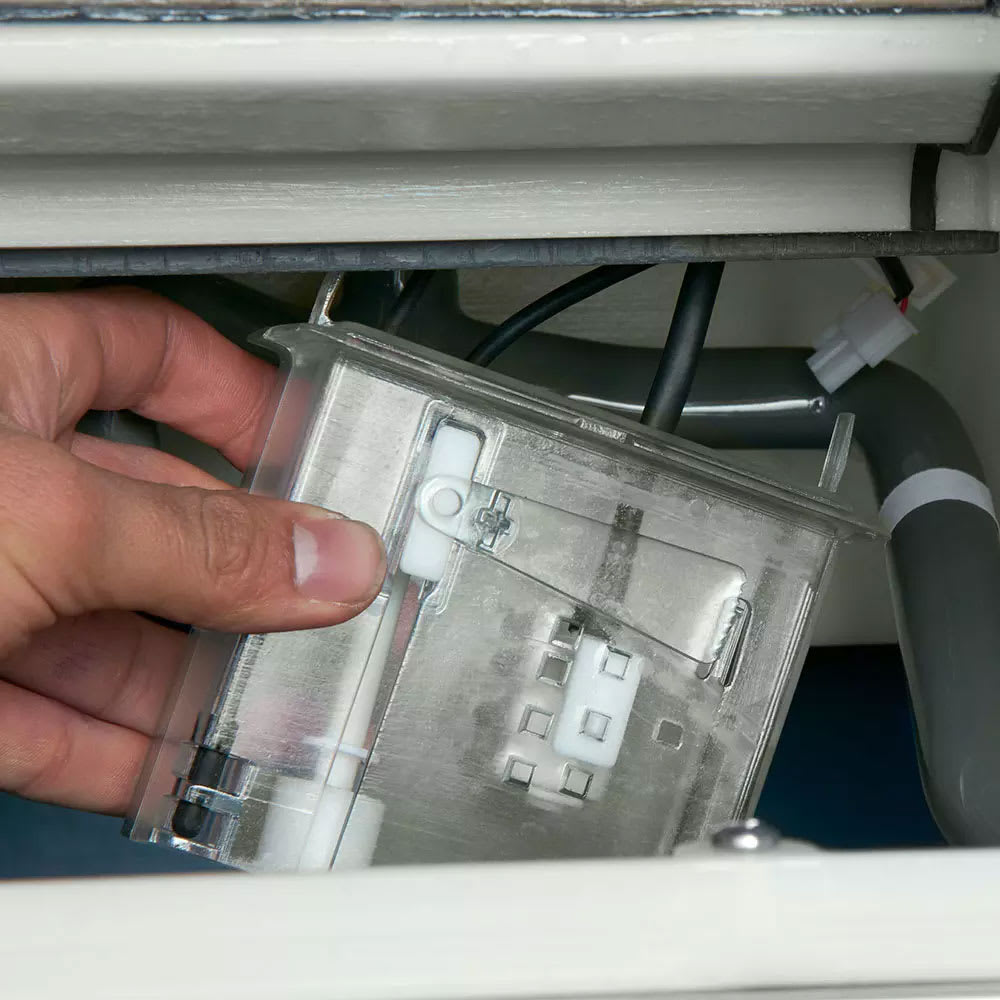

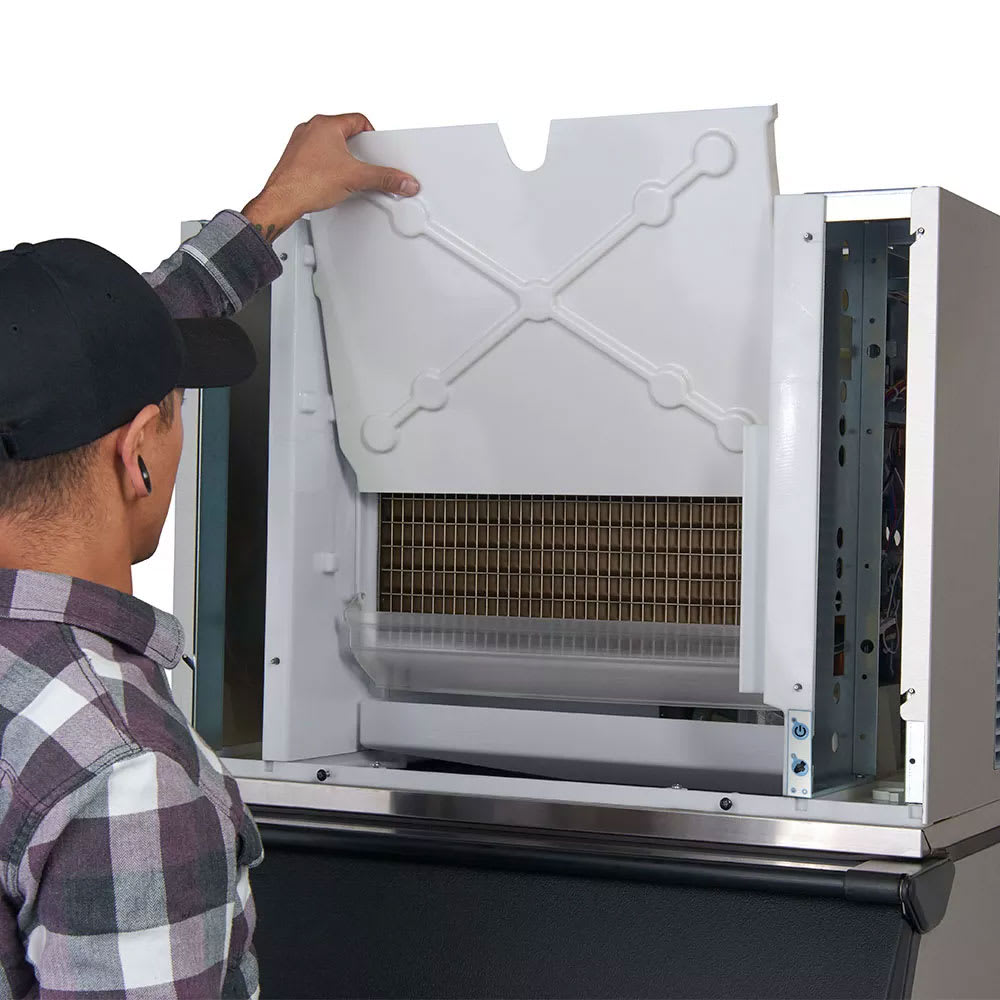

- Plastic food zone with removable components for dishwasher cleaning
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient air temperature: 50-100 degrees F
- 15,100-BTU heat transfer capacity
- Ice maker: 30 1⁄4 in. W x 24 1⁄4 in. D x 26 9⁄10 in. H
- 12.3 A, 4.9 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0836HR49 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, remote condenser, 30 1/4"W, approximately 906 lb production/24 hours at 70°/50° (793 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Ice-O-Matic CIM0836HR49 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 906 |
| Also Known As | CIM0836HR |
| Compressor Type | Remote Cooled |
| Depth (in) | 24.25 |
| Height (in) | 26.9 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R449A |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 220.00 |
- Ice-O-Matic ICE0806HR
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0836HR49 Ice-O-Matic CIM0836HR49 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 906 lb/24 hr, Remote Cooled, 208-230v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $6,298.00 / Each | $6,840.00 / Each | $6,860.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 906 | 900 | 967 |
| Ice Type | Half Cube | Crescent Cube | Crescent Cube |
| Compressor Type | Remote Cooled | Remote Cooled | Remote Cooled |
| Width (in) | 30.25 | 30 | 30 |
| Rating | Better | Best | Best |
| Voltage | 208/230 | 208/230 | 208/230 |
| Series | Elevation Series™ | KM EDGE | KM EDGE |
| Refrigerant | R449A | R404A | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
