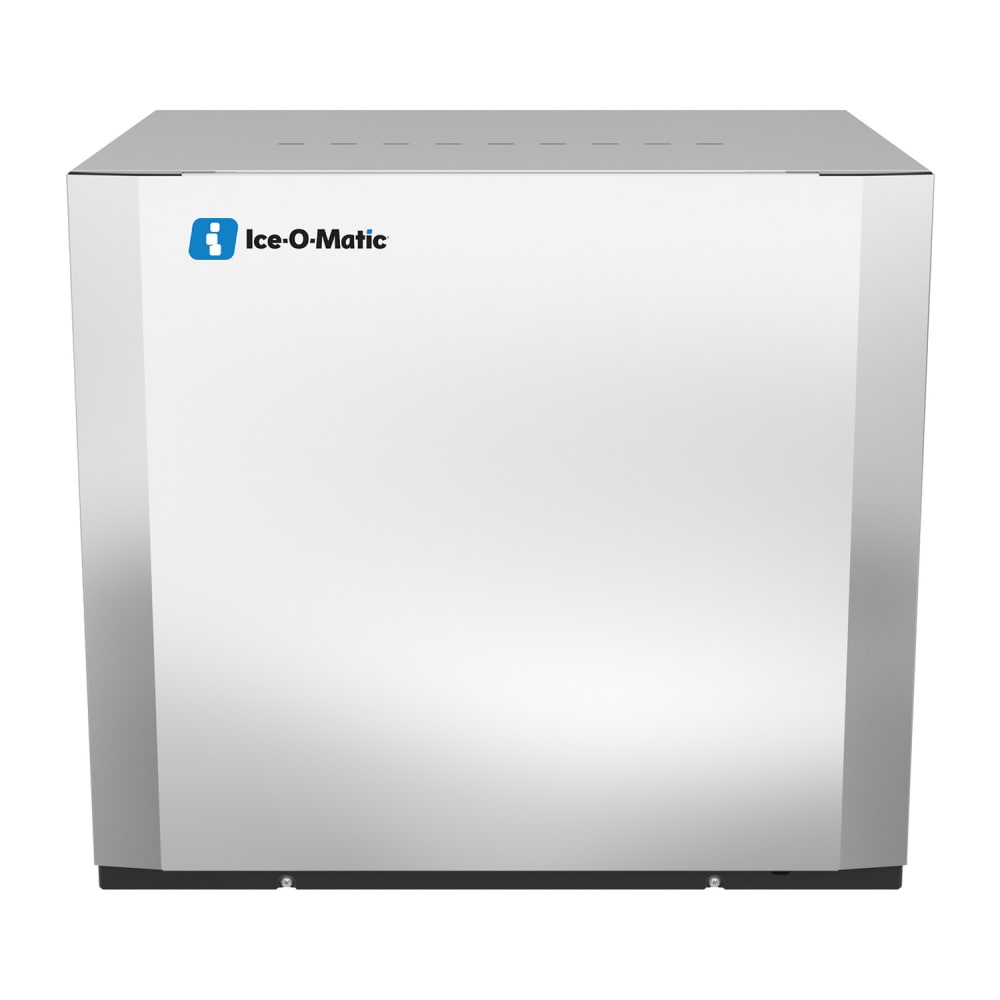

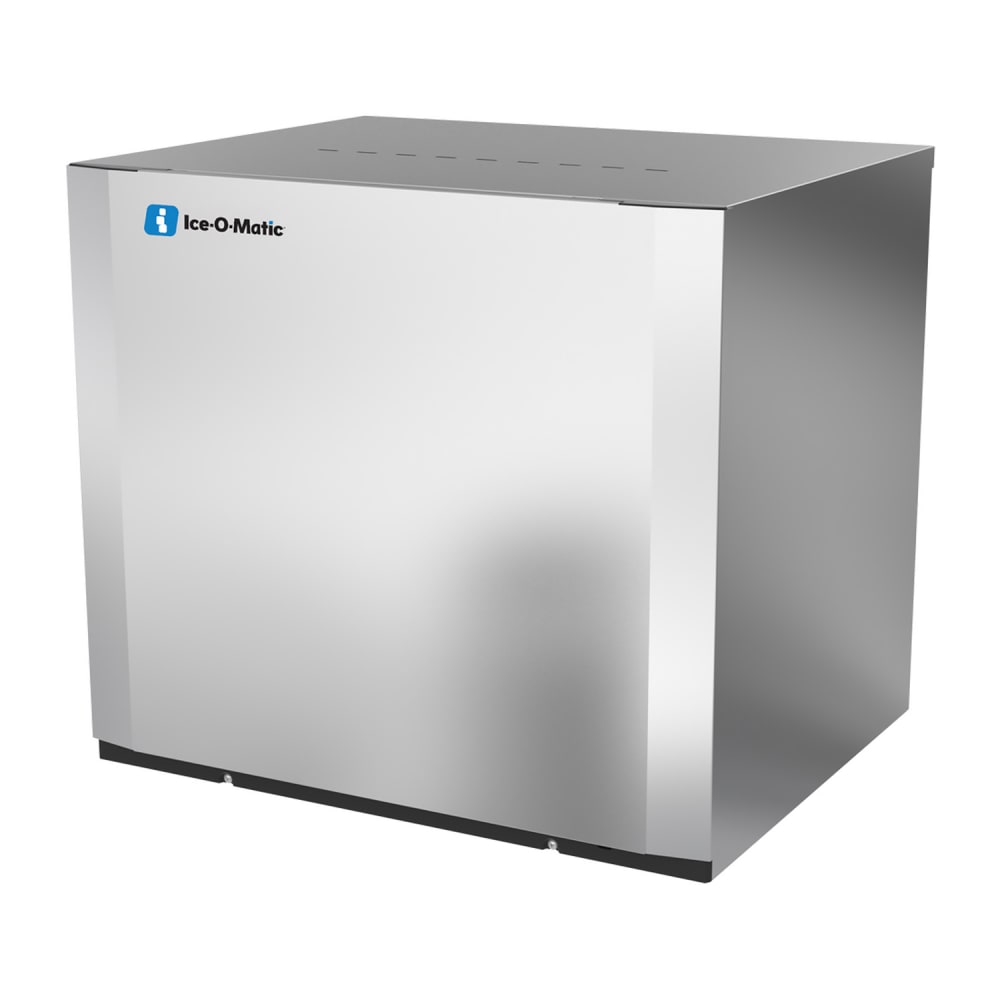

Ice-O-Matic CIM0836FR49 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 906 lb/24 hr, Remote Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$6,298.00 /Each
Selected Ice Type: Full Cube
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIM0836FR49 Description
The Ice-O-Matic CIM0836FR49 full-cube ice machine provides system updates on an LED status display screen so employees can ensure the unit is operating efficiently. It operates with an air-cooled, remote condenser, and it creates from 793 to 906 pounds of ice each day depending on environmental factors. To inhibit the growth of bacteria and slow the spread of germs, it's protected with Agion® antimicrobial that's built into the unit. Facilitating maintenance, this unit can also be sanitized and descaled with the touch of a button.

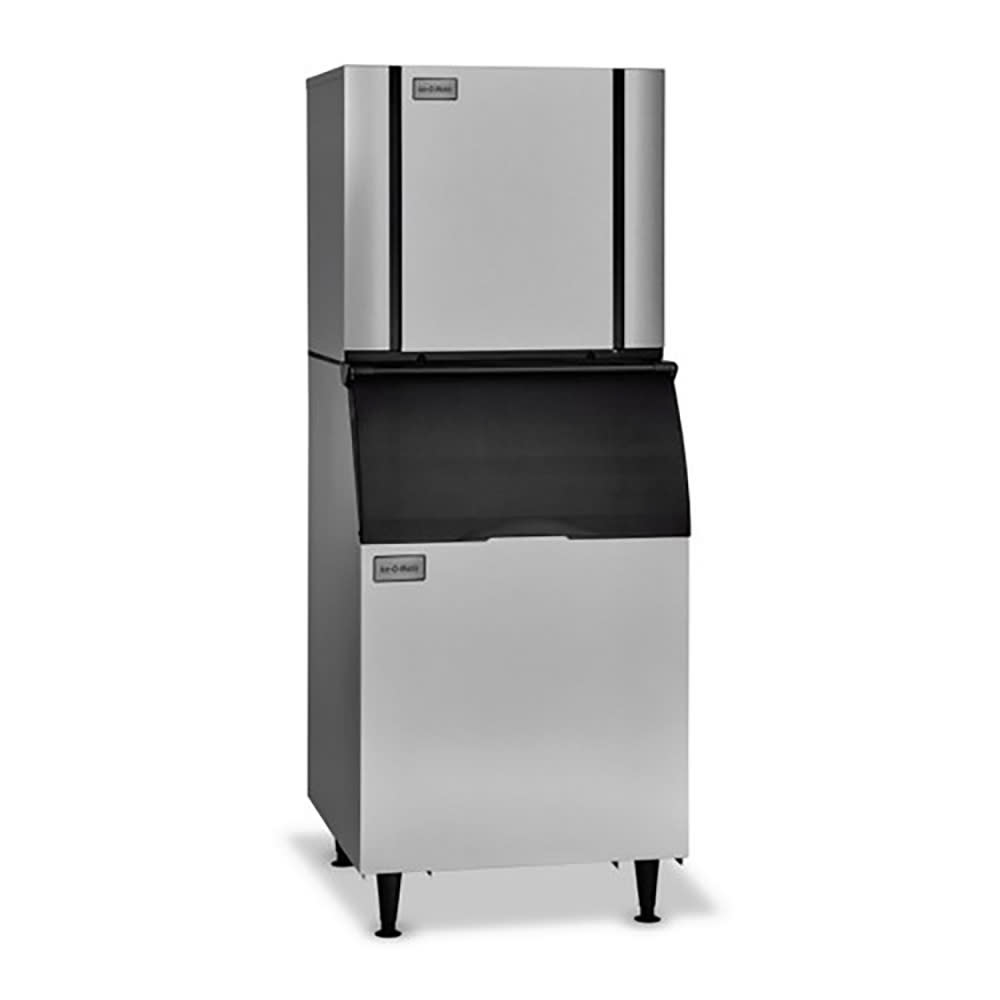

Creating full-size cubes of ice, the Ice-O-Matic CIM0836FR49 ice maker is a great choice for establishments serving soft drinks and alcoholic beverages. It doesn't include a bin or dispenser, so one must be purchased separately for use with this unit. The plastic food zone has snap-out components that can be placed in the dishwasher to streamline cleaning.
- Part of the Elevation Series™
- 906-lb. daily ice production
- 793-lb. AHRI-certified daily ice production
- Makes full-size cubes of ice
- Full-size cube dimensions: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Air-cooled, remote condenser
- Agion antimicrobial is built in to slow bacterial growth
- Updates provided with LED status display

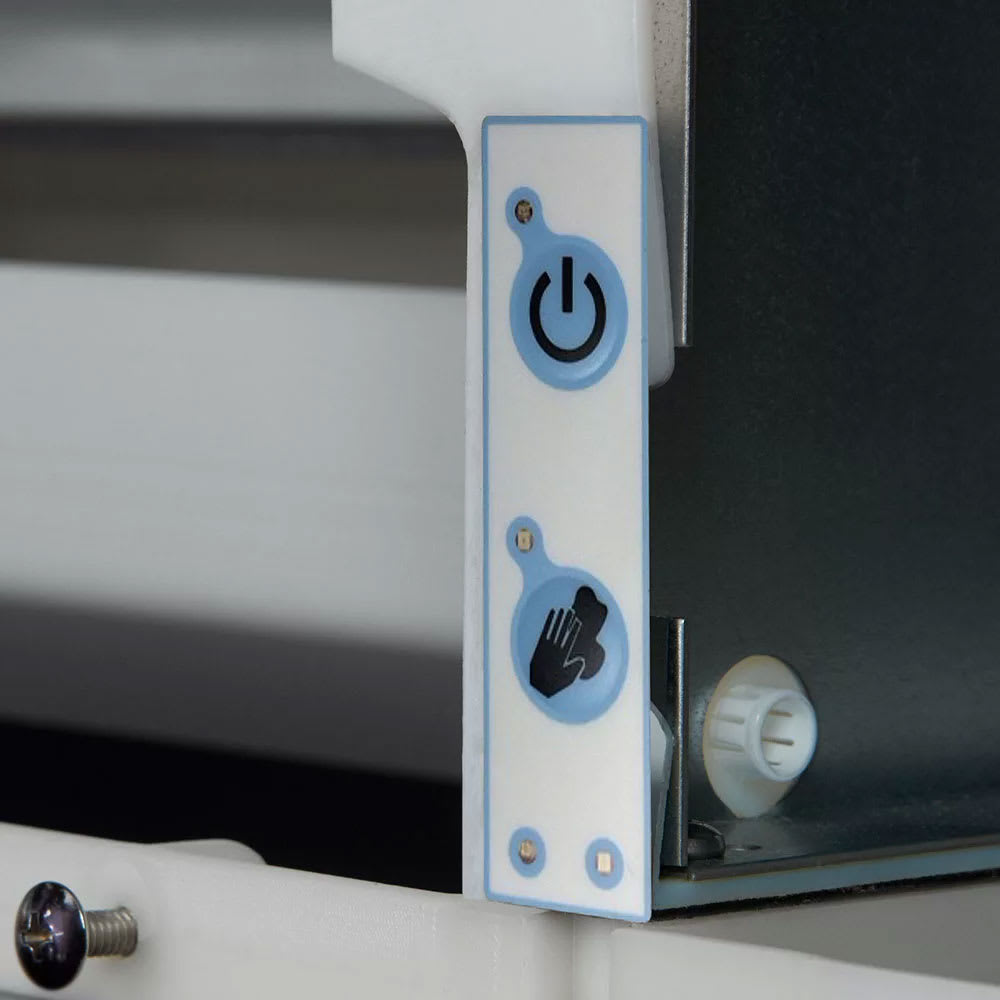

- Sanitizing and descaling performed with 1 touch

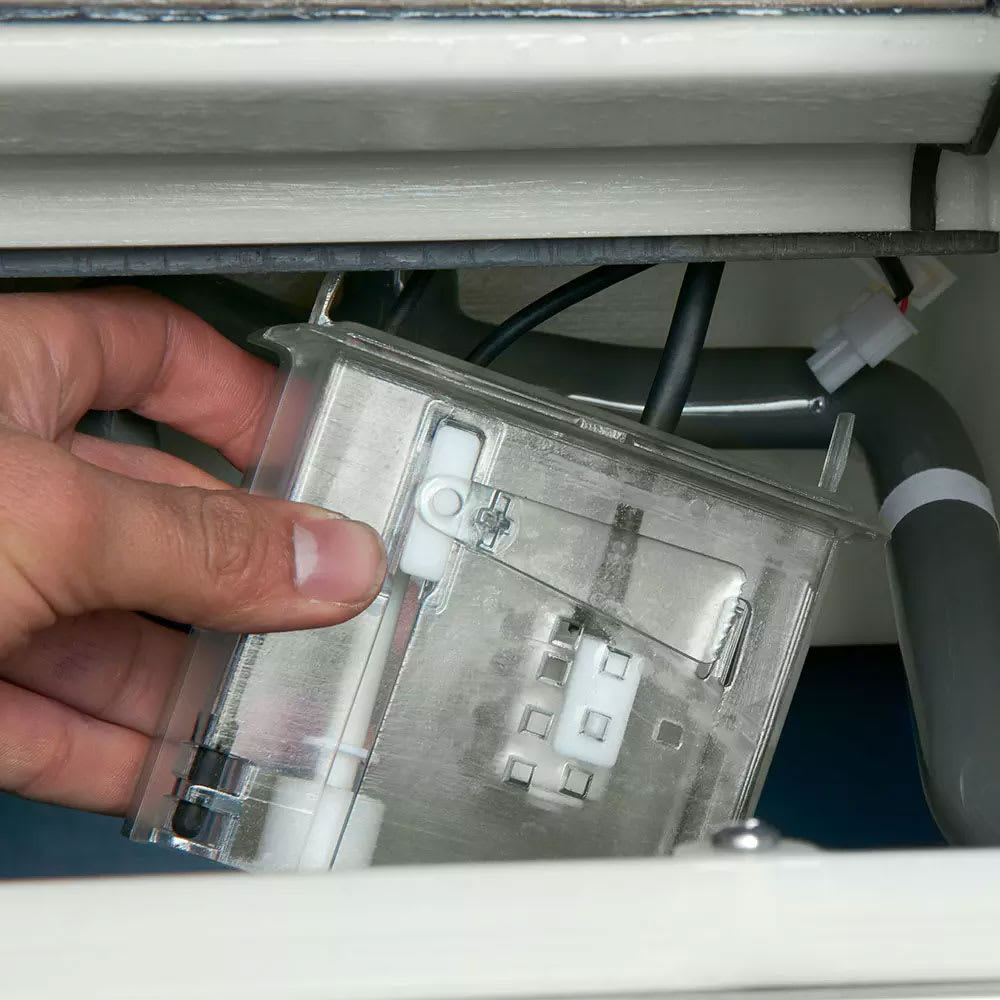

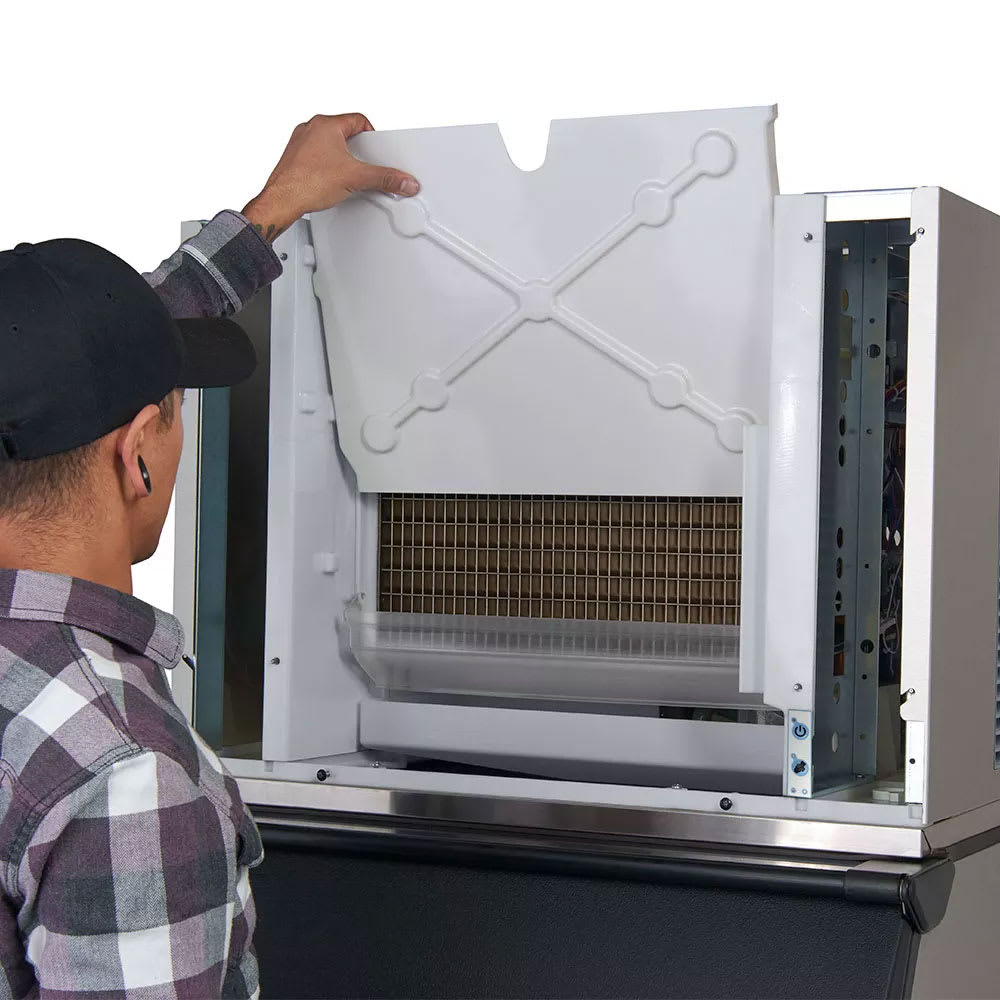

- Dishwasher-safe food zone components can snap out
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient air temperature: 50-100 degrees F
- 15,100-BTU heat transfer capacity
- Ice maker: 30 1⁄4 in. W x 24 1⁄4 in. D x 26 9⁄10 in. H
- 12.3 A, 4.9 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0836FR49 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, remote condenser, 30 1/4"W, approximately 906 lb production/24 hours at 70°/50° (793 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Ice-O-Matic CIM0836FR49 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 906 |
| Also Known As | CIM0836FR |
| Compressor Type | Remote Cooled |
| Depth (in) | 24.25 |
| Height (in) | 26.9 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R449A |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 220.00 |
- Ice-O-Matic ICE0806FR
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0836FR49 Ice-O-Matic CIM0836FR49 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 906 lb/24 hr, Remote Cooled, 208-230v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $6,298.00 / Each | $6,840.00 / Each | $6,202.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | QUICK SHIP: Typically ships in 1 - 3 Business Days | |
| 24 Hr. Production (lb) | 906 | 900 | 870 |
| Ice Type | Full Cube | Crescent Cube | Full Cube |
| Compressor Type | Remote Cooled | Remote Cooled | Remote Cooled |
| Width (in) | 30.25 | 30 | 30 |
| Rating | Better | Best | Best |
| Voltage | 208/230 | 208/230 | 208/230 |
| Series | Elevation Series™ | KM EDGE | Prodigy ELITE® |
| Refrigerant | R449A | R404A | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
