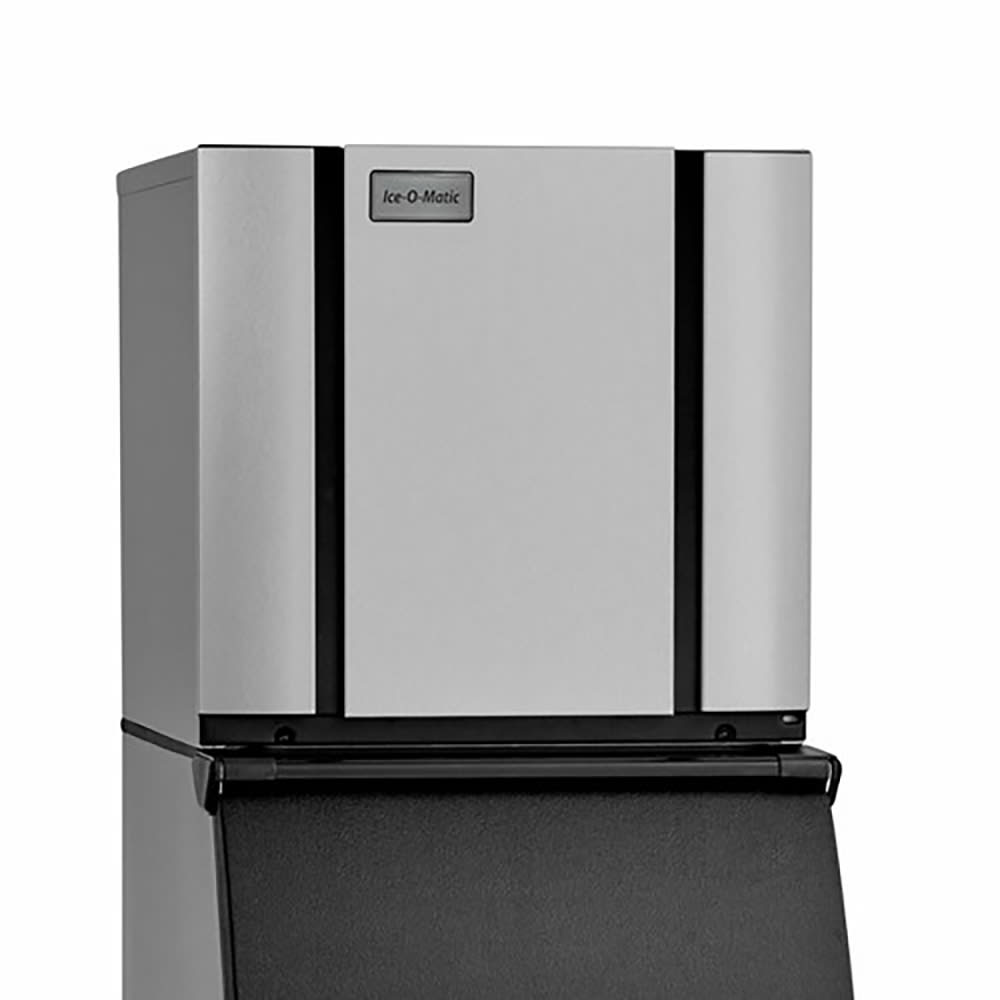

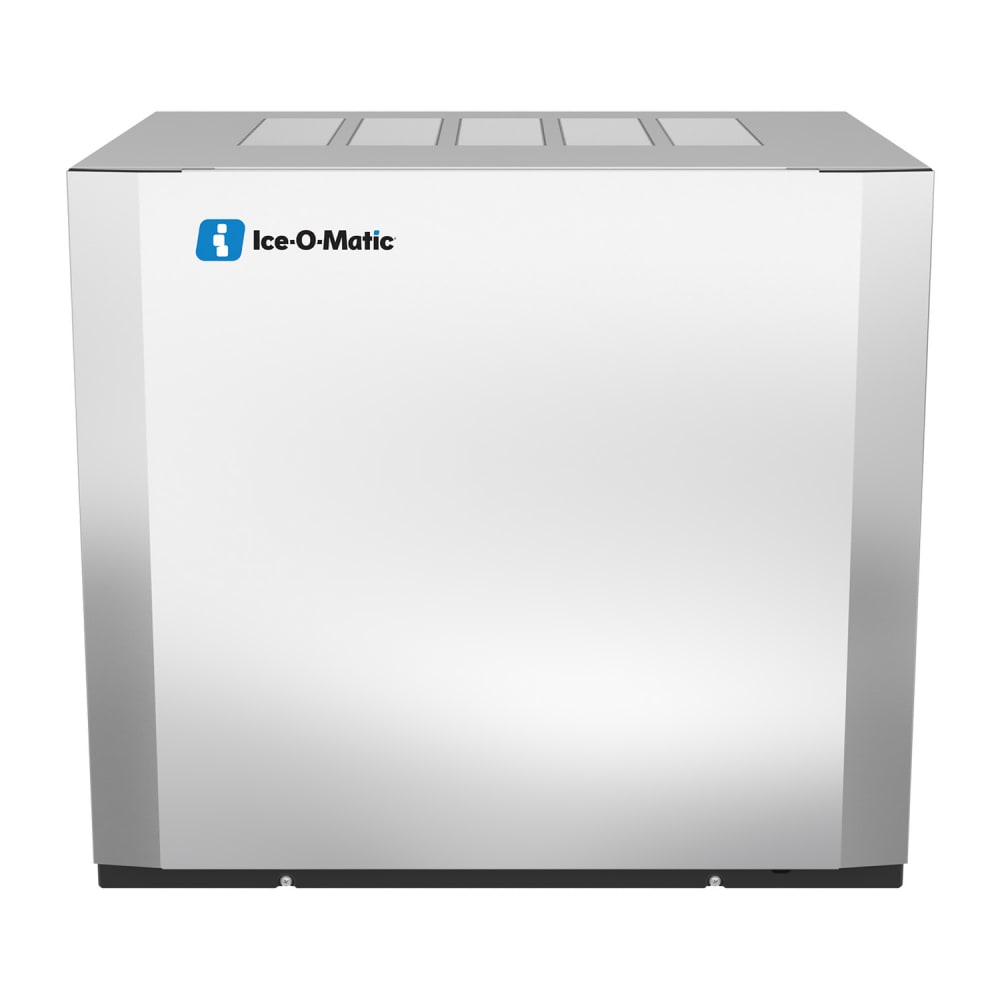

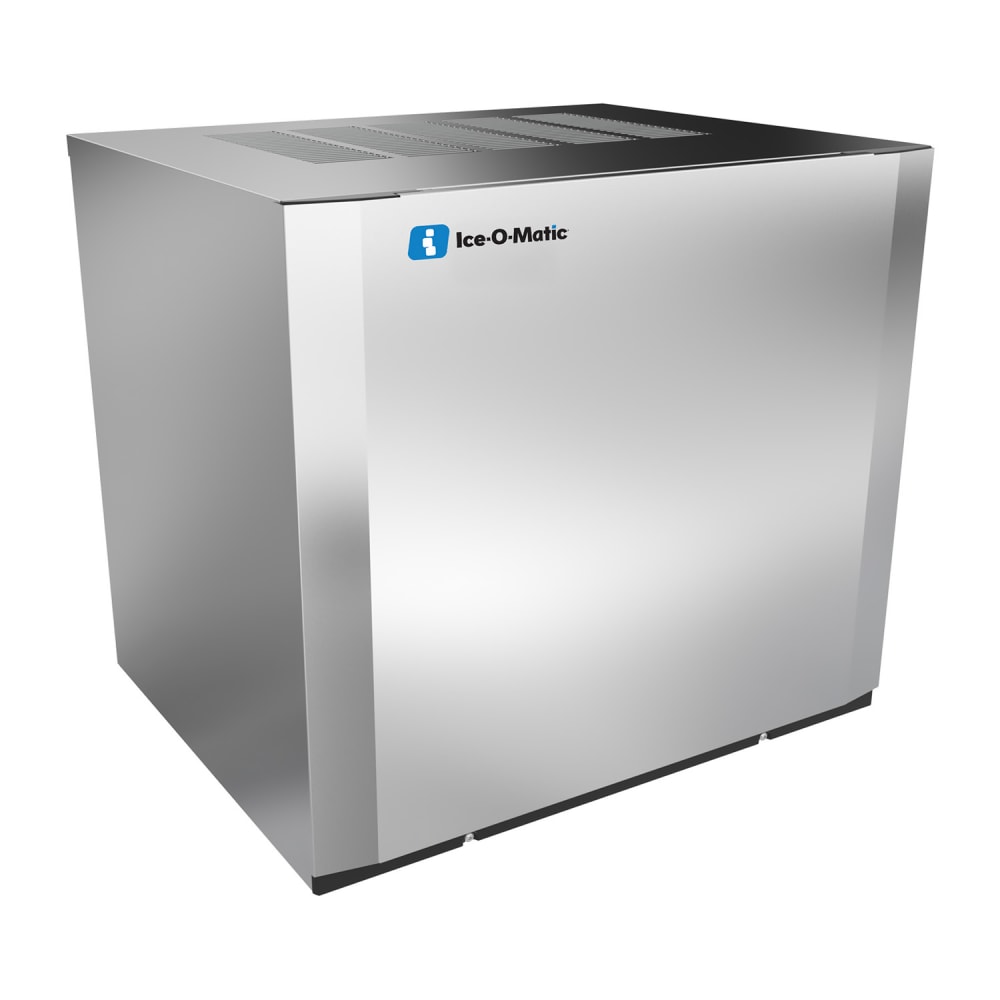

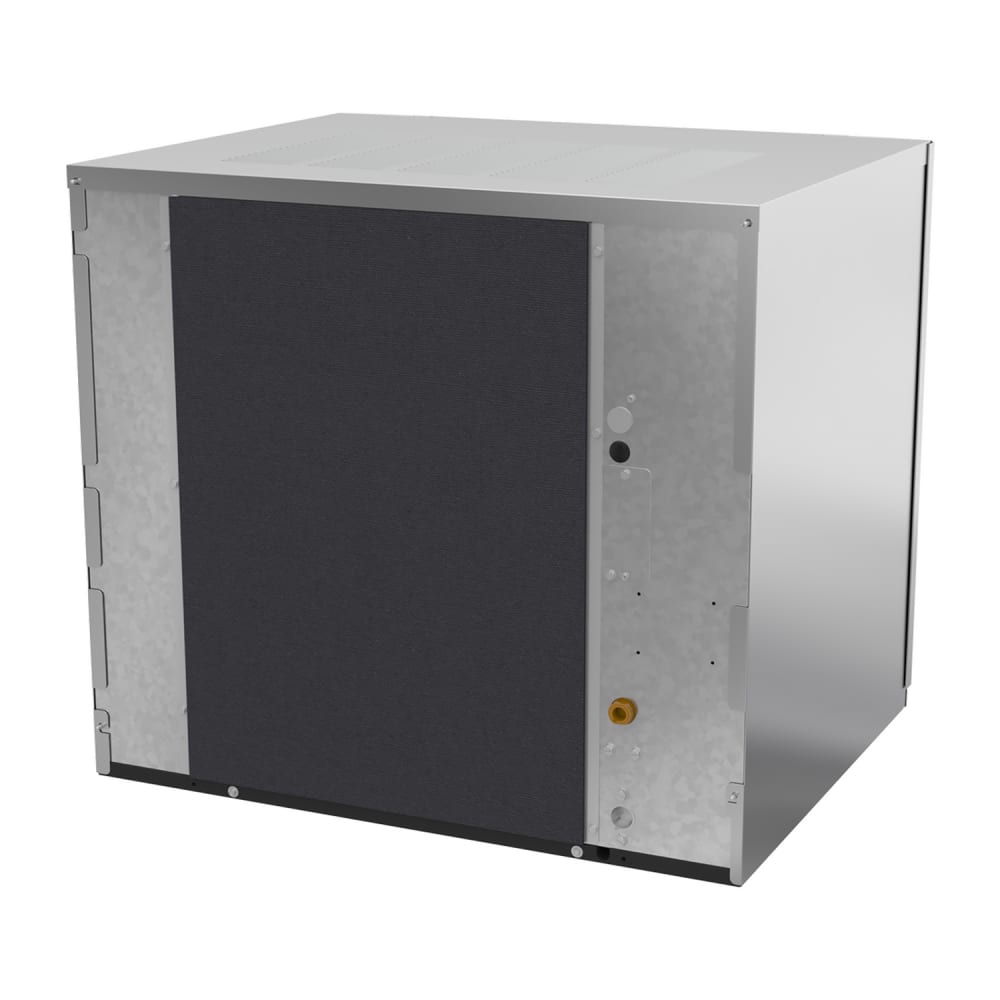

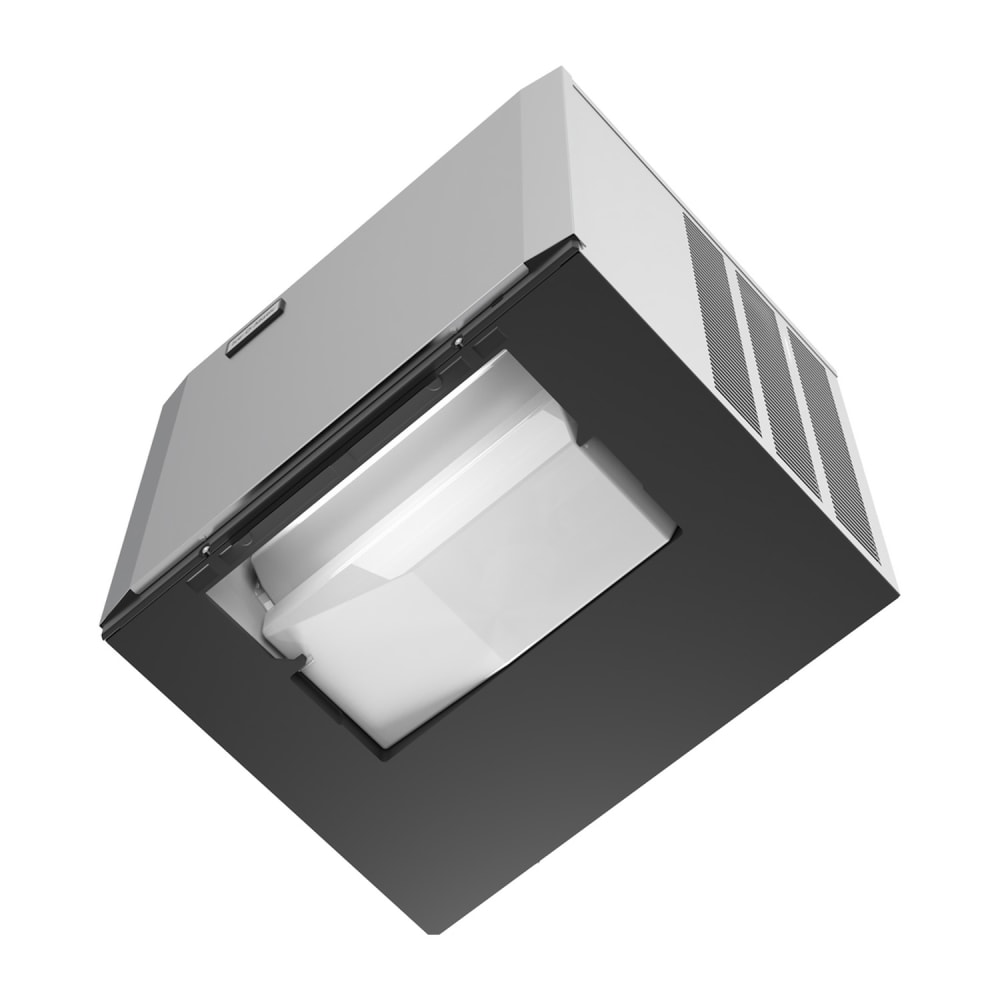

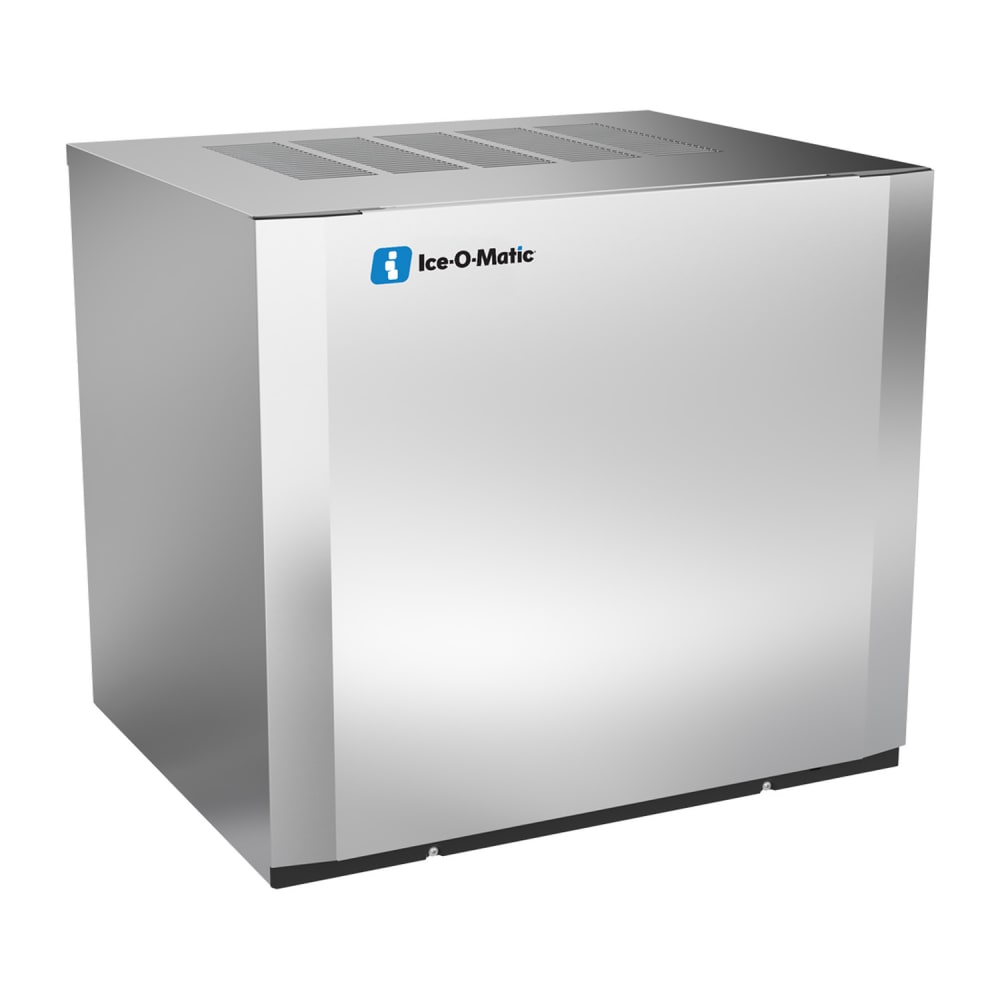

Ice-O-Matic CIM0836FA49 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 896 lb/24 hr, Air Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$6,043.00 /Each
Selected Ice Type: Full Cube
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIM0836FA49 Description
The Ice-O-Matic CIM0836FA49 Elevation Series™ ice machine head produces full-cube ice, which is perfect for cocktails, beverages, and bagged applications. Its large surface area prevents ice from melting quickly, but it does not cool beverages as fast as half-cube ice. This unit can produce 645 to 800 pounds of ice in 24 hours, depending on the conditions.

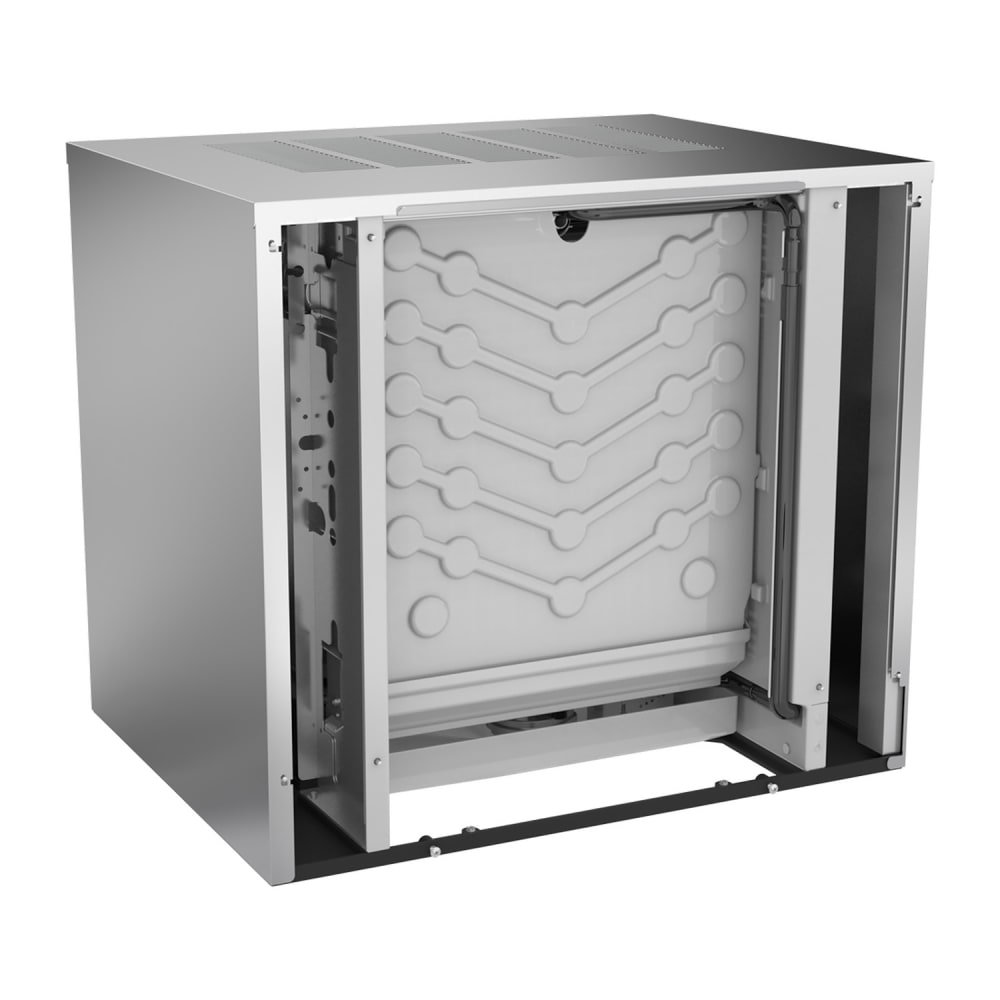

The plastic food zone does not have corners, eliminating areas where bacteria could be harbored, and its removable major components are built with an antimicrobial agent to slow bacteria growth between cleanings. For sanitizing and descaling, the unit has one-touch controls on a digital control board with various diagnostics. The Ice-O-Matic CIM0836FA49 ice maker takes in and discharges air at the top and side.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 896-lb. ice production capacity
- 711-lb. AHRI-certified ice production capacity
- Uses BPA-free plastic
- Bacteria is reduced in the plastic food zone since it is built without crevices
- Agion® antimicrobial agent is built into major components to slow bacteria growth between cleanings
- Dishwasher-safe components are removable
- Smart Harness™ control board has digital diagnostics
- 1-touch controls are used for sanitizing and descaling

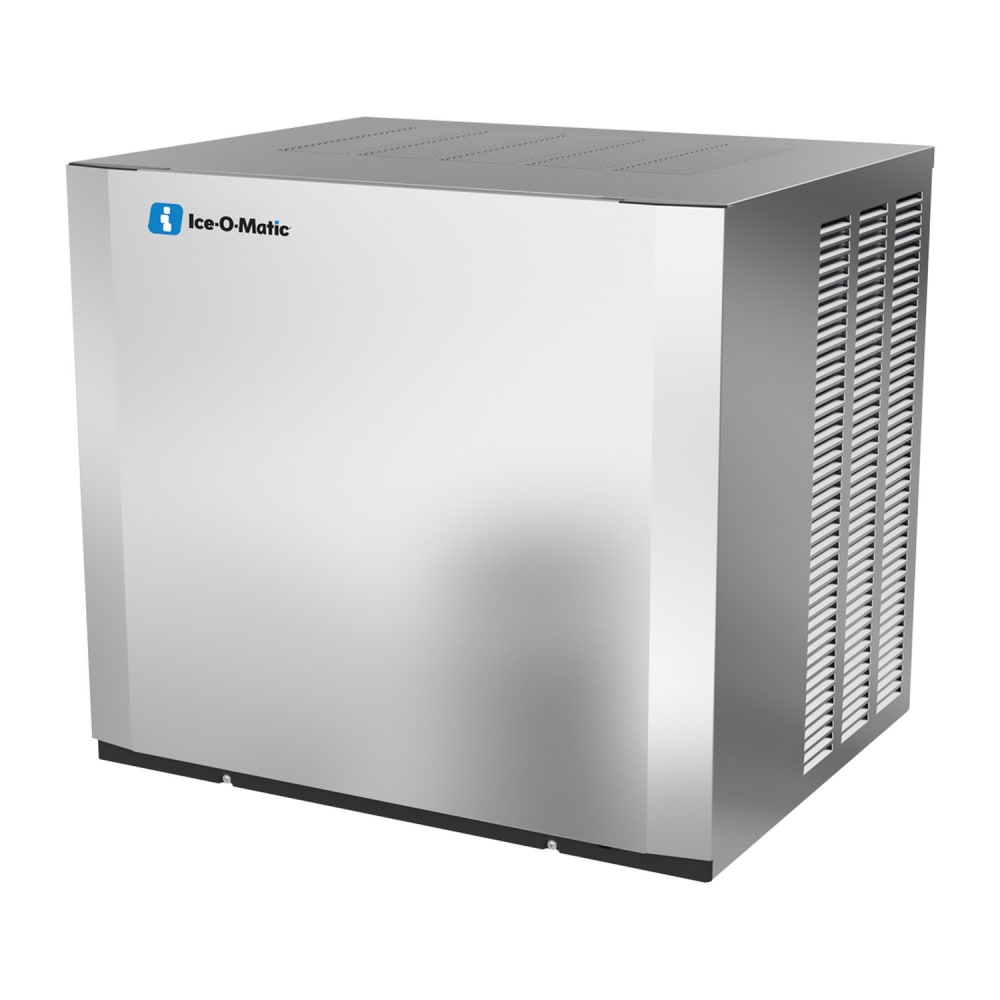

- Side and top air intake and discharge
- 6-in. clearance is required for air intake and exhaust
- Full-cube ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.

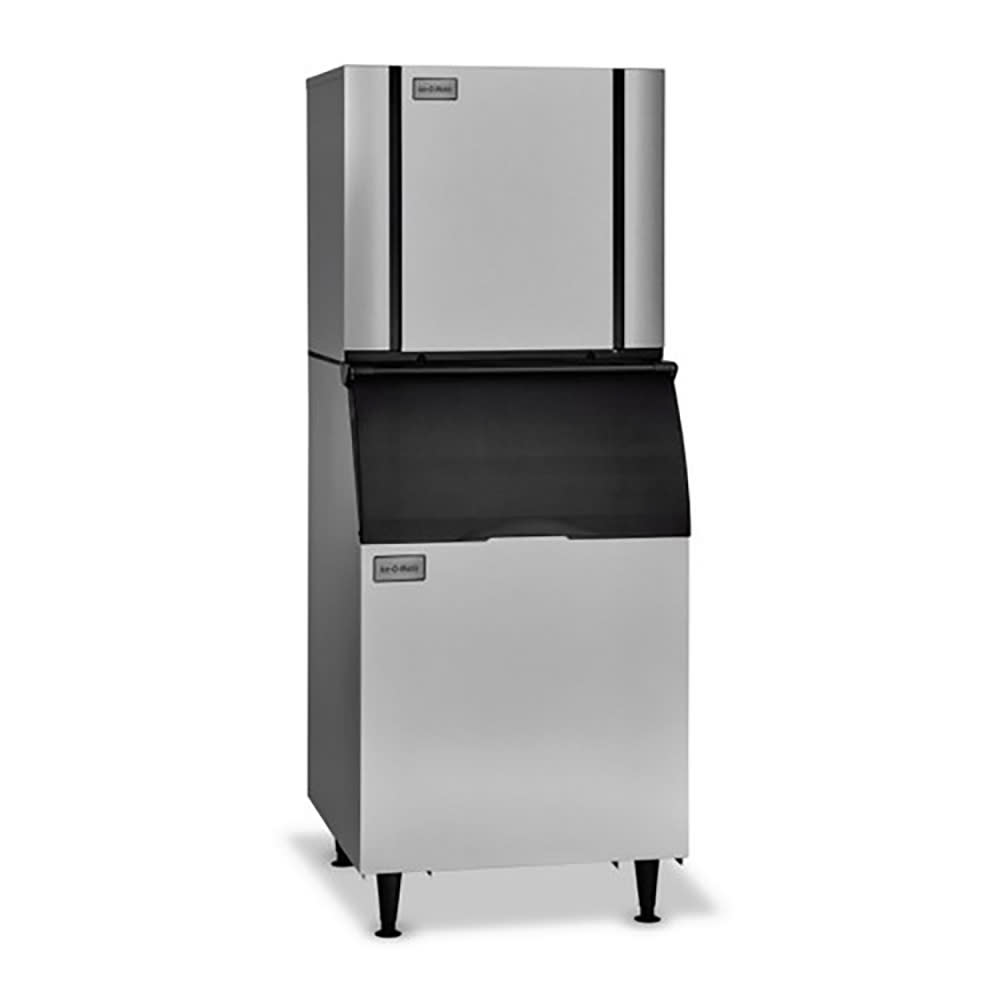

- Can use with the Ice-O-Matic B55PS ice bin to save ice (bins sold separately
- Ambient air temperature range: 50-100 degrees F
- Incoming water temperature range: 40-100 degrees F
- Incoming water pressure range: 20-80 PSIG
- Part of the Elevation series
- 30 1⁄4 in. W x 24 1⁄4 in. D x 26 9⁄10 in. H
- 5 kW, 11.8 A
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0836FA49 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30 1/4"W, approximately 896 lb production/24 hours at 70°/50° (711 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Ice-O-Matic CIM0836FA49 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 896 |
| Also Known As | CIM0836FA |
| Compressor Type | Air Cooled |
| Depth (in) | 24.25 |
| Height (in) | 26.9 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R449A |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 220.00 |
- Ice-O-Matic ICE0806FA
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0836FA49 Ice-O-Matic CIM0836FA49 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 896 lb/24 hr, Air Cooled, 208-230v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $6,043.00 / Each | $6,243.00 / Each | $7,040.00 / Each | $6,454.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | QUICK SHIP: Typically ships in 1 - 3 Business Days | Typically ships in 4 - 8 Business Days | QUICK SHIP: Ships in 1 Business Day |
| 24 Hr. Production (lb) | 896 | 921 | 905 | 851 |
| Ice Type | Full Cube | Full Cube | Crescent Cube | Full Cube |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 30.25 | 30 | 30 | 30 |
| Rating | Better | Best | Best | Best |
| Voltage | 208/230 | 208/230 | 208/230 | 208/230 |
| Series | Elevation Series™ | Prodigy ELITE® | KM EDGE | Indigo NXT™ |
| Refrigerant | R449A | R290 (Hydrocarbon) | R404A | R410A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
