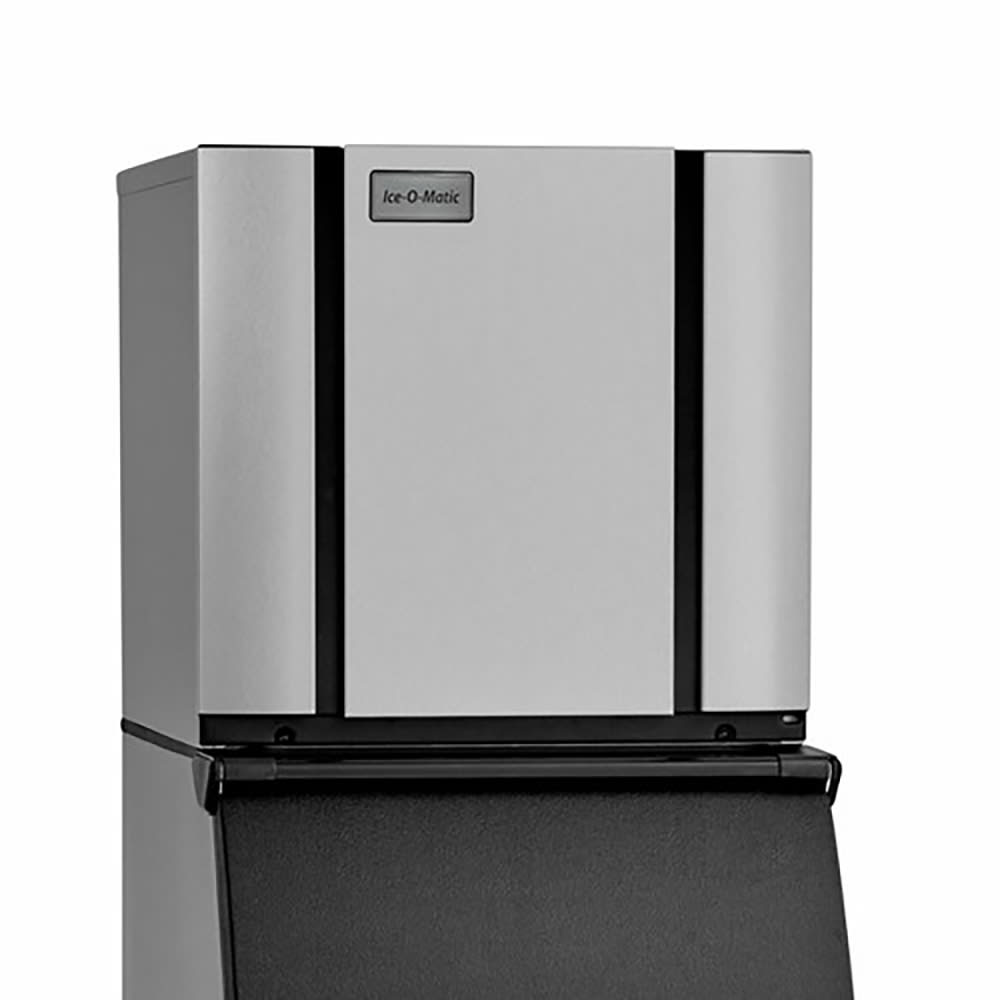

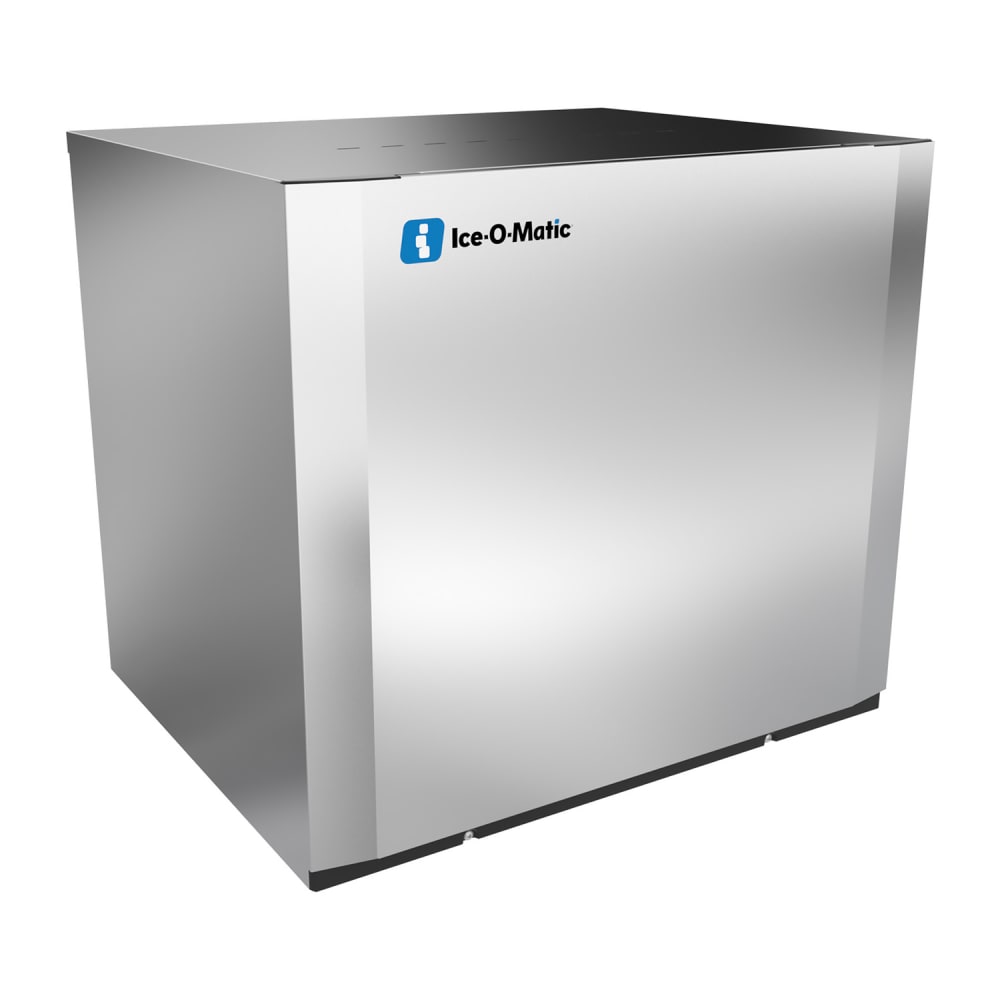

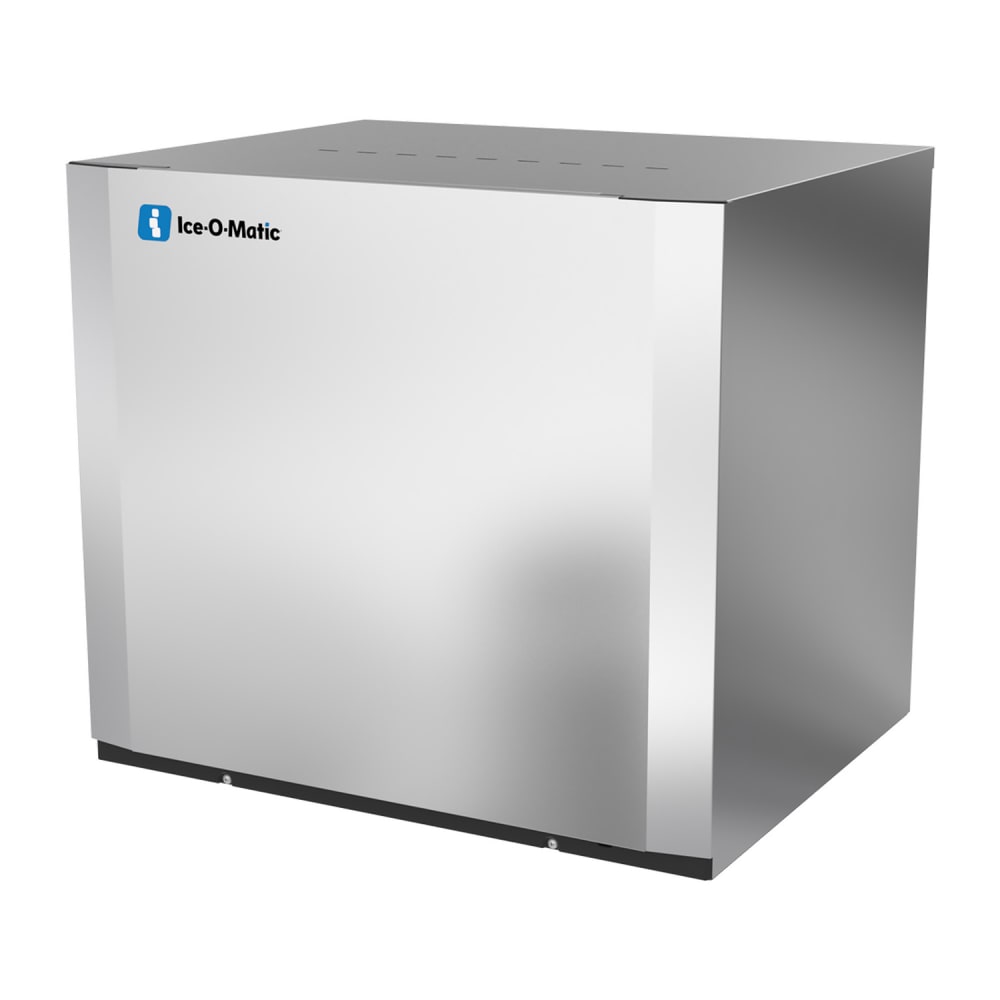

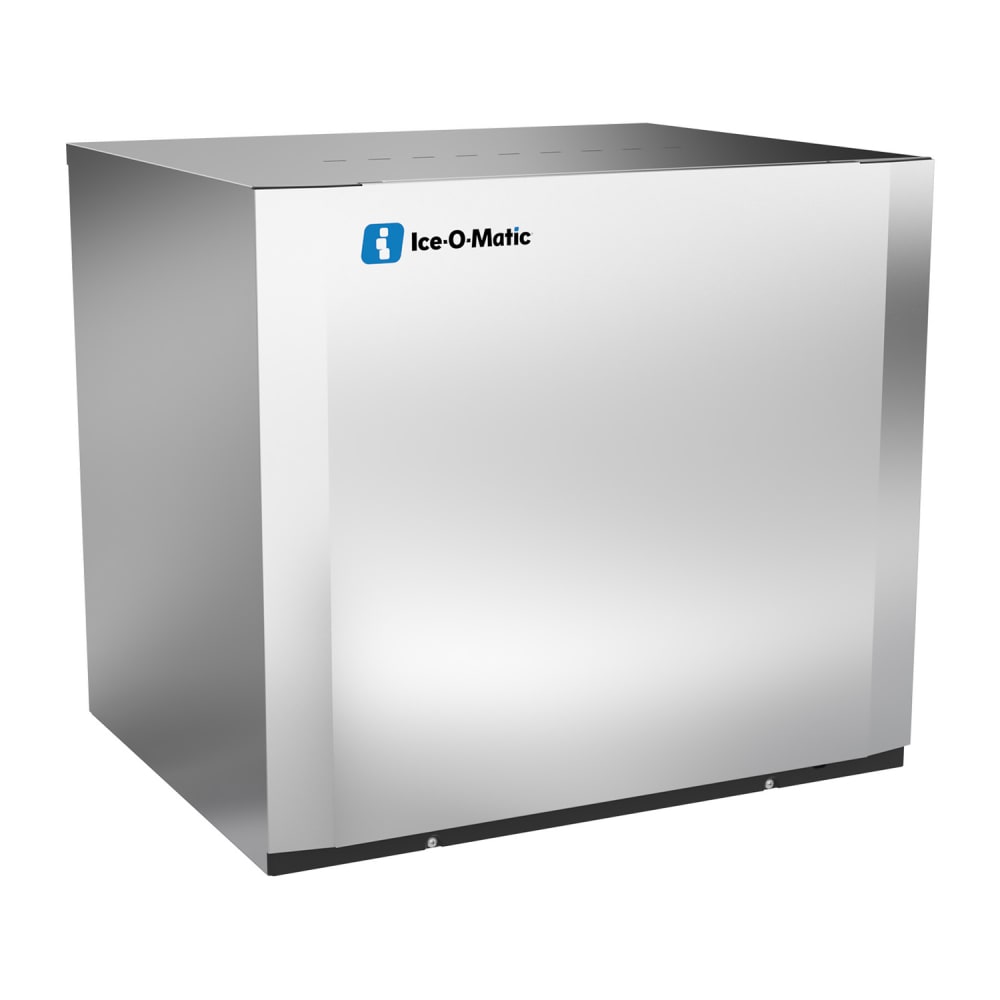

Ice-O-Matic CIM0836FW90 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 896 lb/24 hr, Water Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$6,489.00 /Each
Selected Ice Type: Full Cube
Ice-O-Matic CIM0836FW90 Description

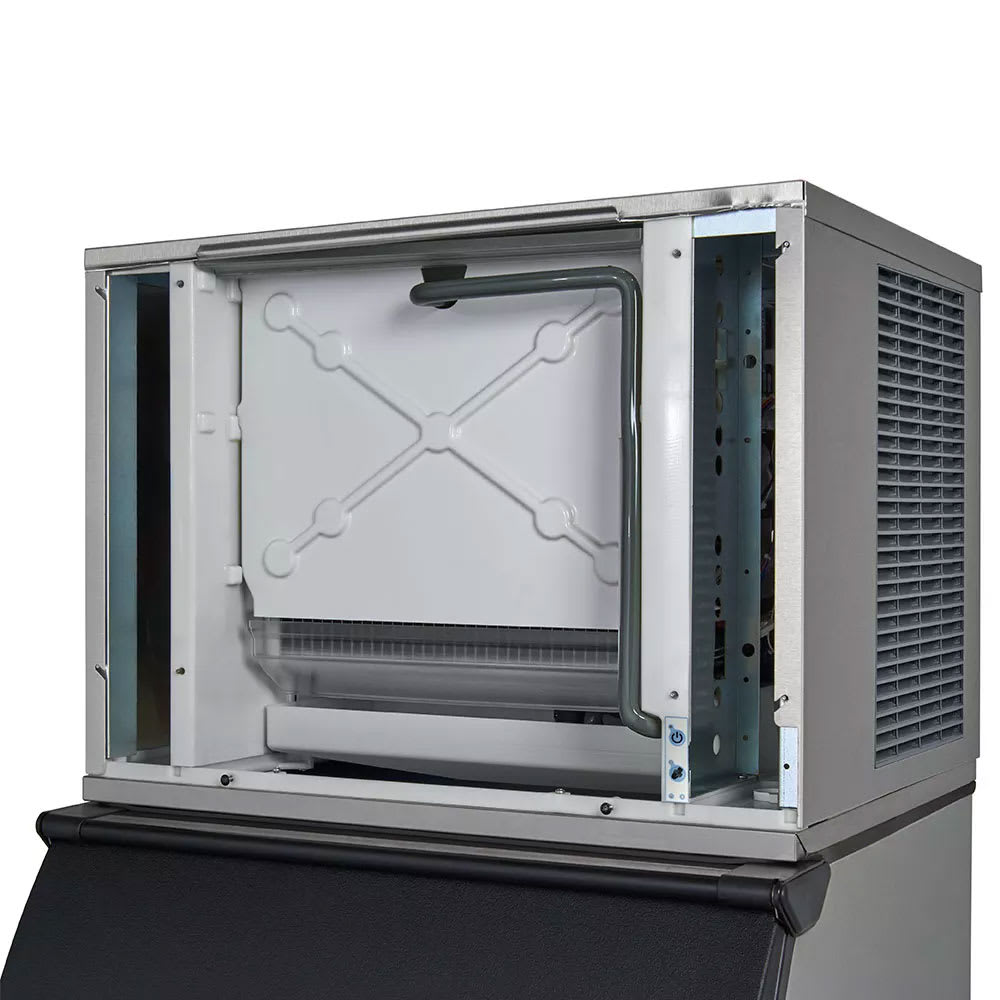

To provide sanitizing and descaling, the Ice-O-Matic CIM0836FW90 ice machine head has a single button that employees can push. It's protected with PURE ICE® antimicrobial to slow the growth of bacteria, ensuring minimal germ spread in a busy environment. The food zone is made of plastic that minimizes crevices that debris can get stuck in, and it has snap-out components that can be placed in the dishwasher to streamline cleaning.
The Ice-O-Matic CIM0836FW90 full-cube ice maker head makes a maximum of 896 pounds of ice per day. When environmental conditions are less than ideal, it makes closer to 798 pounds of ice daily. Providing operation updates throughout the day, it has an LED status display that can be monitored. Great for soft drinks and alcoholic beverages, it produces full-size cubes of ice, and its condenser is water cooled and self-contained to streamline installation.
- Part of the Elevation Series™
- 896-lb. daily ice production
- 798-lb. AHRI-certified daily ice production
- Makes full-size cubes of ice
- R290 refrigerant
- Full-size cube dimensions: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Condenser is self-contained and water cooled
- Bacterial growth slowed with PURE ICE antimicrobial
- LED display enables status monitoring

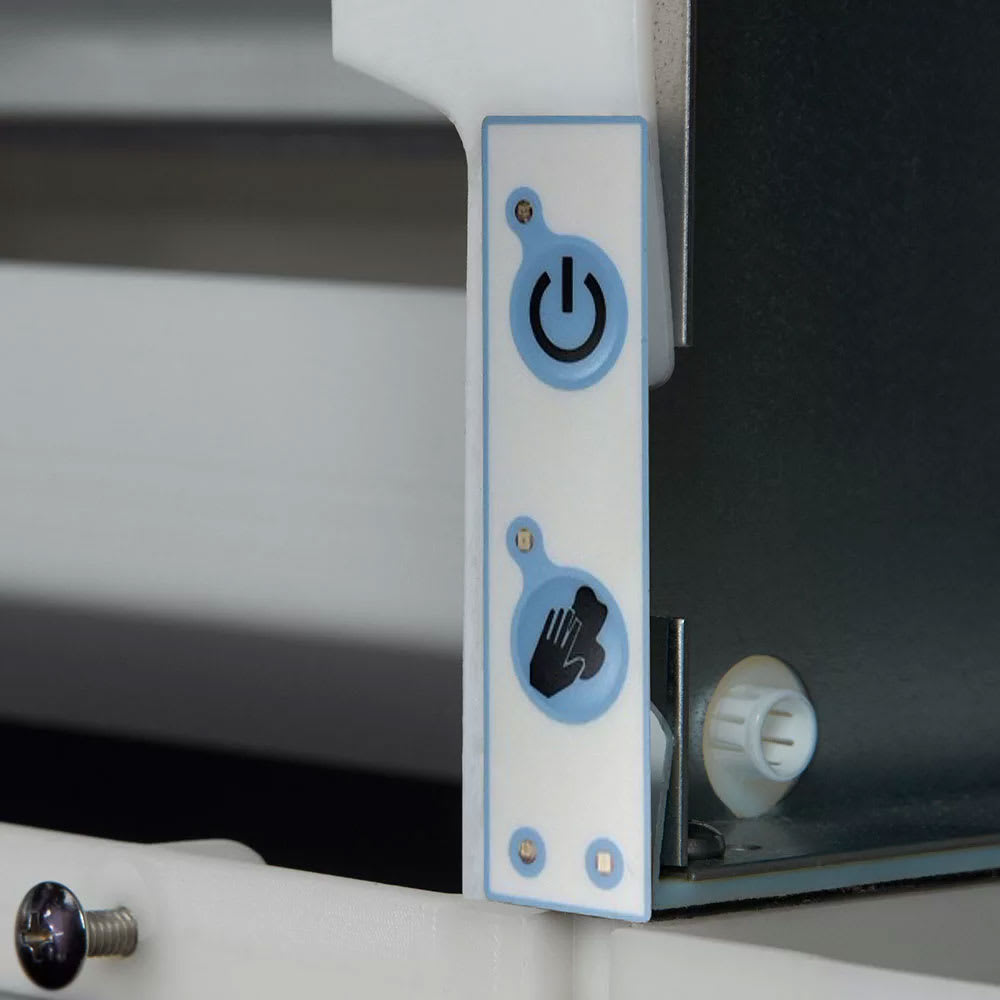

- Sanitizing and descaling performed with a single touch

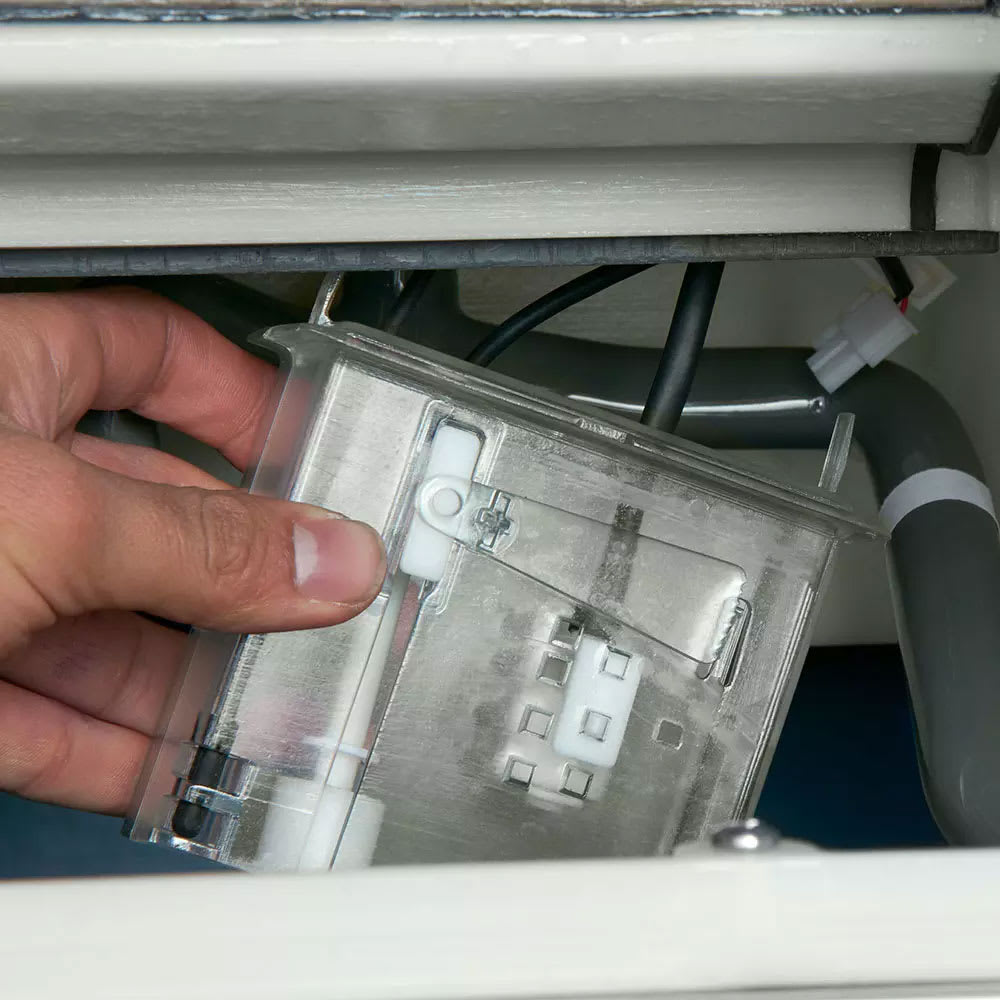

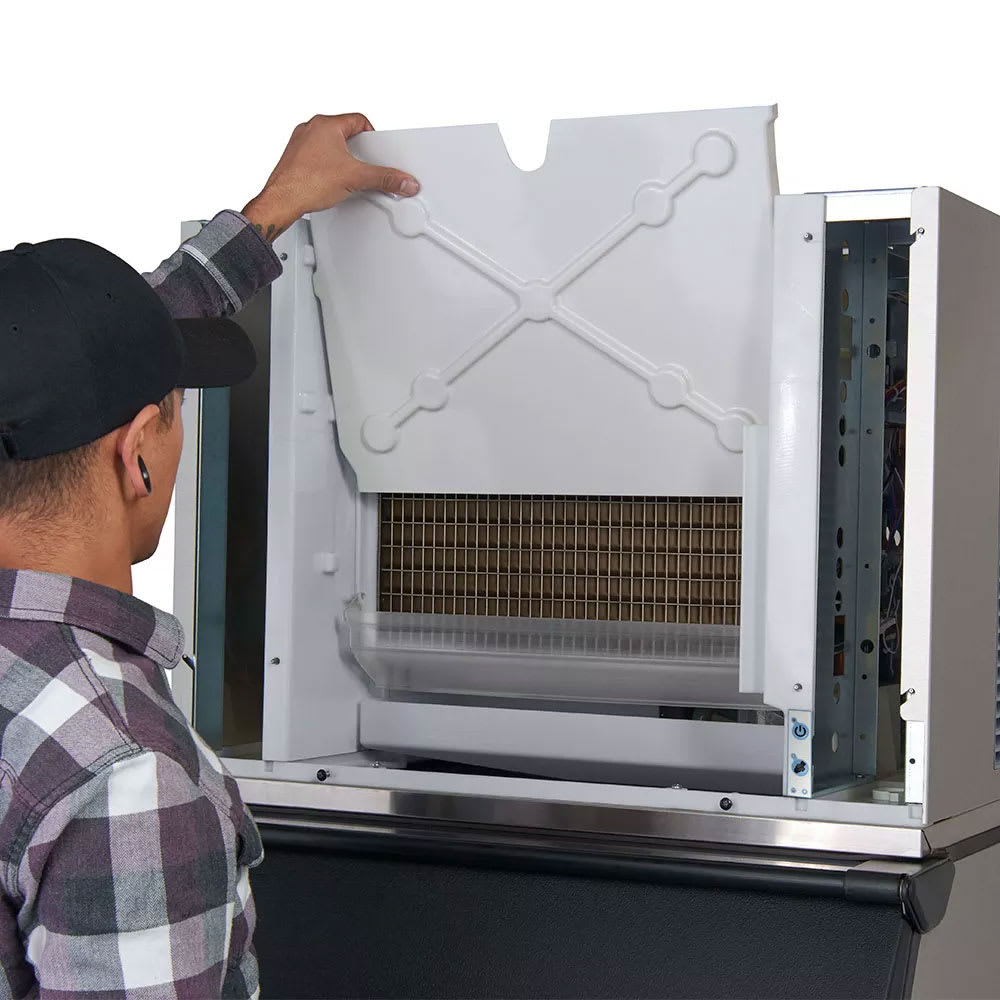

- Removable food zone components are dishwasher safe
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient air temperature: 50-100 degrees F
- 15,100-BTU heat transfer capacity
- 30.25 in. W x 24.25 in. D x 26.9 in. H
- 11.3 A, 4.3 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0836FW90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30 1/4"W, approximately 896 lb production/24 hours at 70°/50° (798 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Ice-O-Matic CIM0836FW90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 896 |
| Also Known As | CIM0836FW |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 26.9 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 210.00 |
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0836FW90 Ice-O-Matic CIM0836FW90 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 896 lb/24 hr, Water Cooled, 208-230v/1ph Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $6,489.00 / Each | $6,346.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | |
| 24 Hr. Production (lb) | 896 | 907 |
| Ice Type | Full Cube | Full Cube |
| Compressor Type | Water Cooled | Water Cooled |
| Width (in) | 30.25 | 30 |
| Rating | Better | Best |
| Voltage | 208/230 | 208/230 |
| Series | Elevation Series™ | Prodigy ELITE® |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
