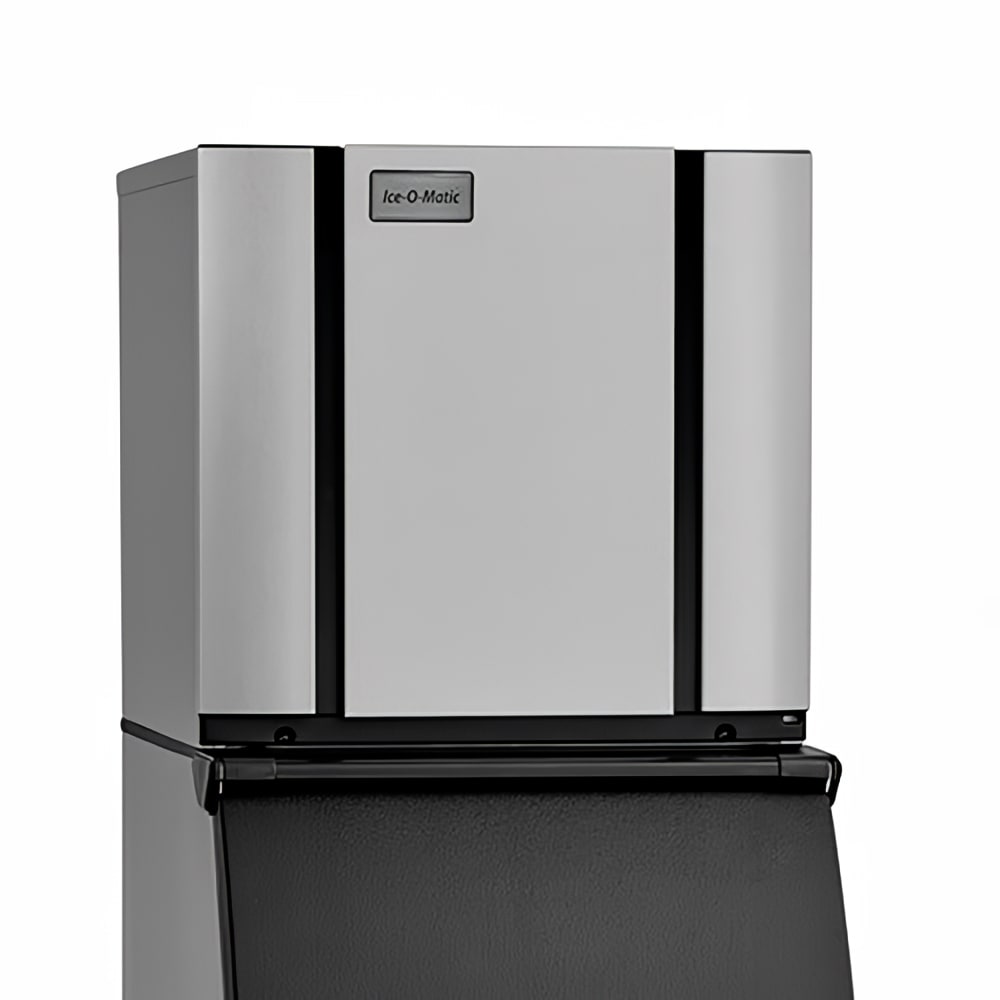

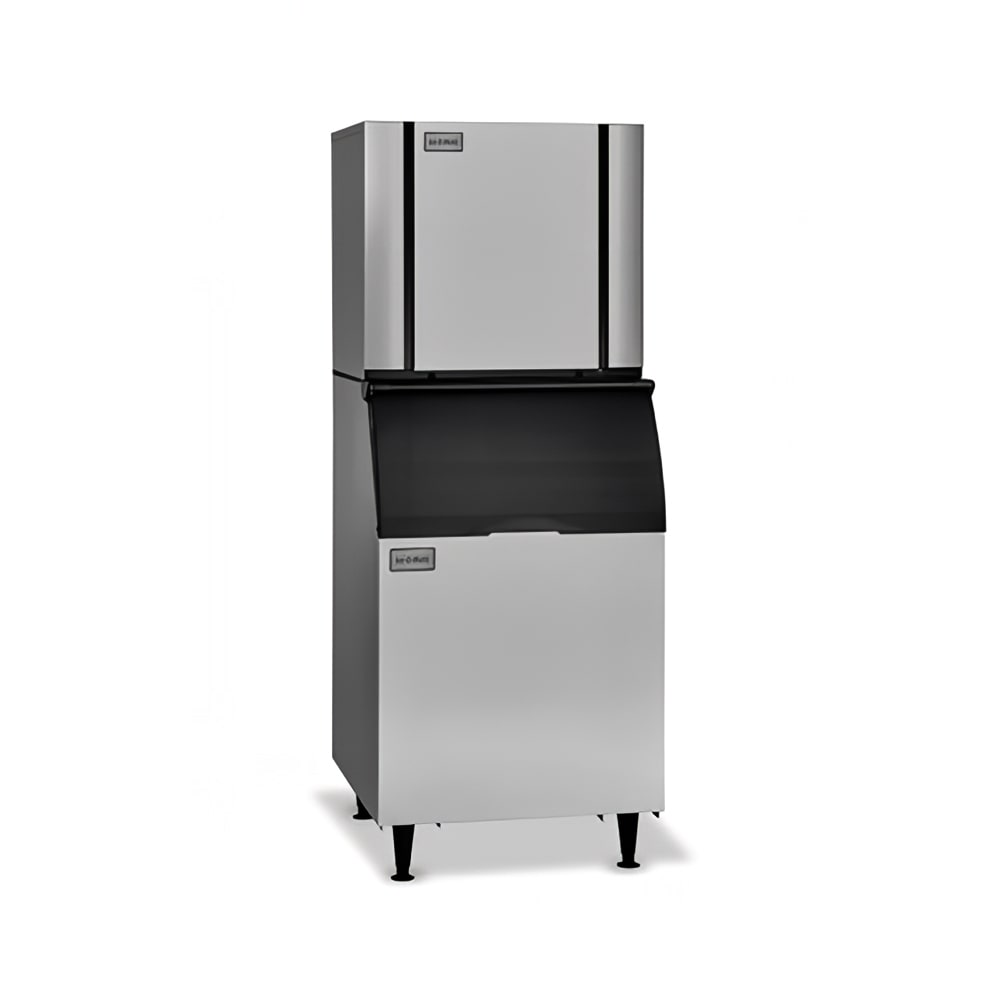

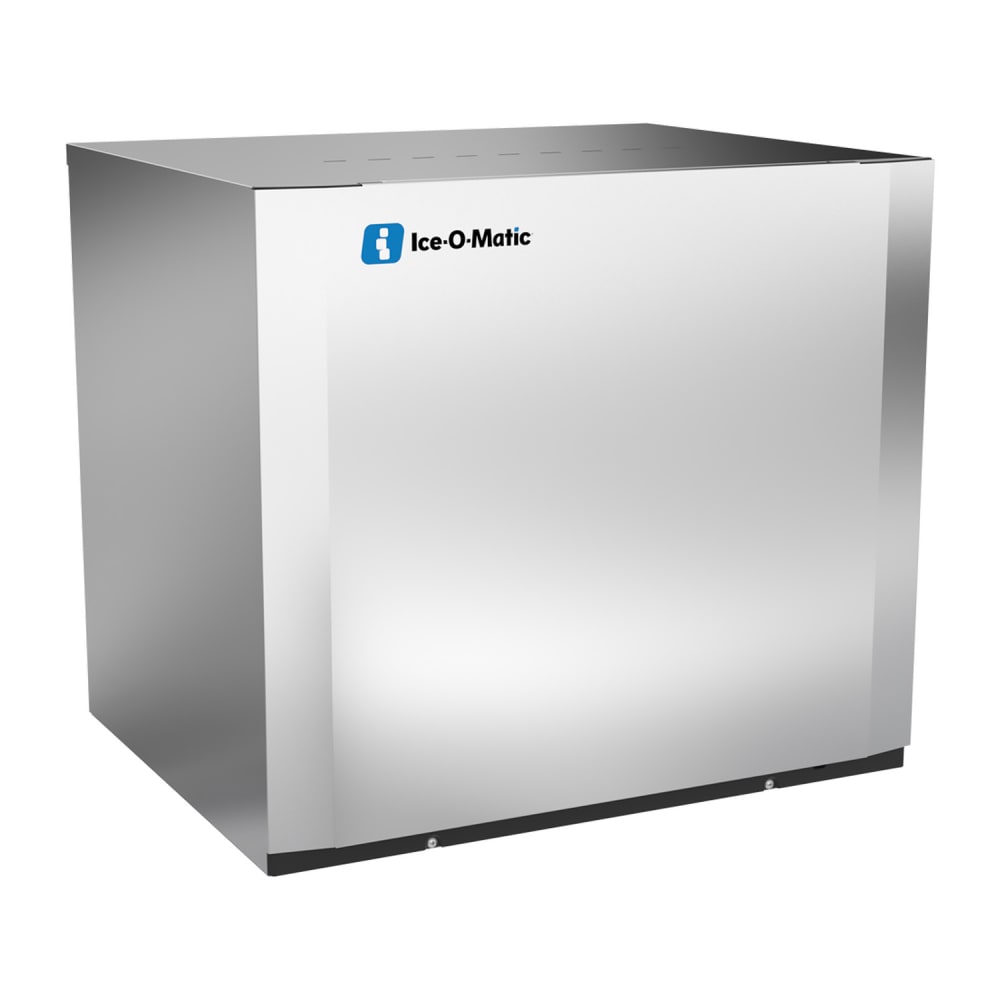

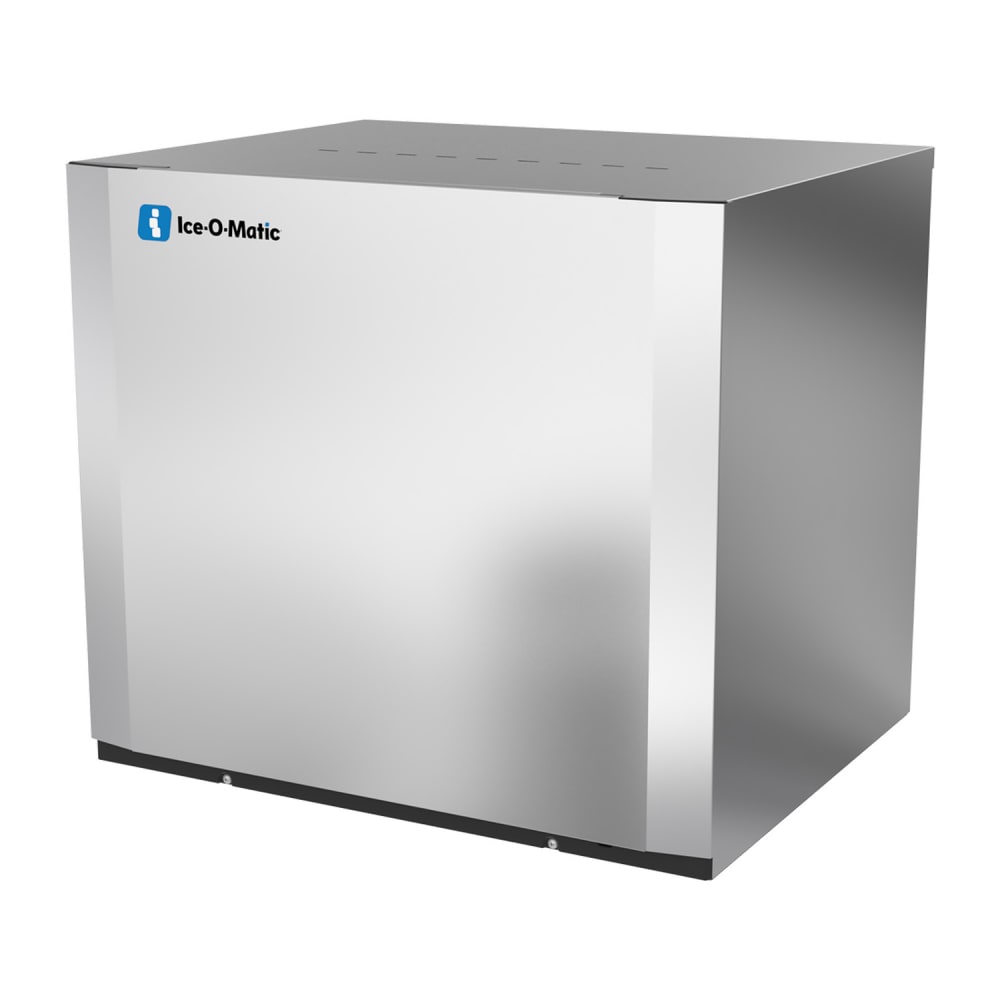

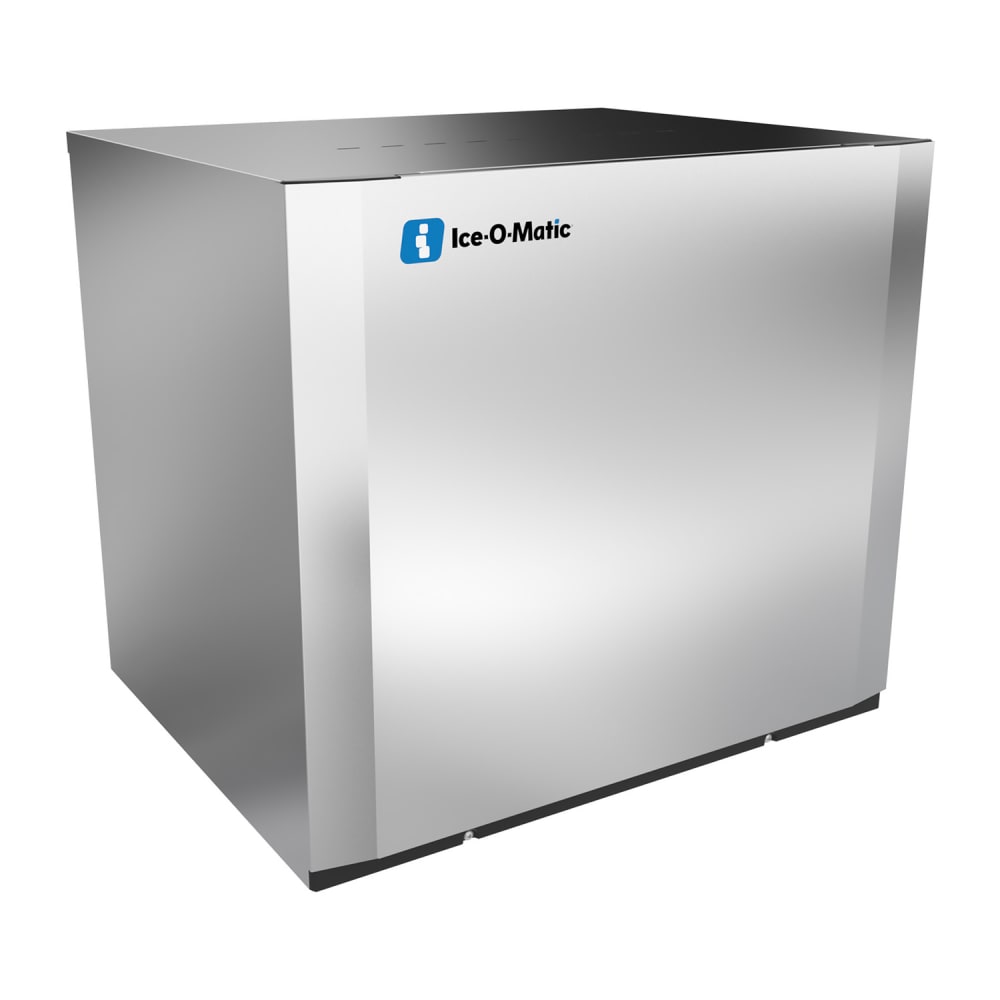

Ice-O-Matic CIM0836HW90 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 896 lb/24 hr, Water Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$6,489.00 /Each
Selected Ice Type: Half Cube
Ice-O-Matic CIM0836HW90 Description
The Ice-O-Matic CIM0836HW90 ice machine head has PURE ICE® antimicrobial that reduces the spread of germs and slows the growth of bacteria. Components in the food zone snap out for dishwasher cleaning, and the food zone is made of plastic to facilitate cleaning. By pushing a button, users can make the unit perform sanitizing and descaling measures. Using a self-contained, water-cooled condenser, the ice machine head makes anywhere from 798 to 896 pounds of ice daily.
Making half-size cubes of ice, the Ice-O-Matic CIM0836HW90 ice maker head is a great choice for establishments that serve frozen cocktails and soft drinks. An LED screen displays system updates so employees can ensure the unit is operating correctly. This unit doesn't include a bin or a dispenser, so users should be prepared to buy one separately.
- Part of the Elevation Series™
- 896-lb. daily ice production
- 798-lb. AHRI-certified daily ice production
- Makes half-size cubes of ice
- Half-size cube dimensions: 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Protected with PURE ICE antimicrobial to inhibit microbe growth
- LED display for status updates
- R290 refrigerant
- Self-contained, water-cooled condenser
- Single-touch sanitizing and descaling controls
- Plastic food zone facilities cleaning
- Food zone components are dishwasher safe
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient air temperature: 50-100 degrees F
- 15,100-BTU heat transfer capacity
- Ice maker: 30 1⁄4 in. W x 24 1⁄4 in. D x 26 9⁄10 in. H
- 11.3 A, 4.2 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0836HW90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30 1/4"W, approximately 896 lb production/24 hours at 70°/50° (798 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Ice-O-Matic CIM0836HW90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 896 |
| Also Known As | CIM0836HW |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 26.9 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 210.00 |
- Ice-O-Matic ICE0806HW
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0836HW90 Ice-O-Matic CIM0836HW90 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 896 lb/24 hr, Water Cooled, 208-230v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $6,489.00 / Each | $7,475.00 / Each | $6,346.00 / Each | $6,913.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | QUICK SHIP: Typically ships in 1 - 3 Business Days | Typically ships in 4 - 6 weeks | QUICK SHIP: Ships in 1 Business Day |
| 24 Hr. Production (lb) | 896 | 940 | 907 | 785 |
| Ice Type | Half Cube | Crescent Cube | Half Cube | Half Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 30.25 | 30 | 30 | 30 |
| Rating | Better | Best | Best | Best |
| Voltage | 208/230 | 208/230 | 208/230 | 208/230 |
| Series | Elevation Series™ | KM EDGE | Prodigy ELITE® | Indigo NXT™ |
| Refrigerant | R290 (Hydrocarbon) | R404A | R290 (Hydrocarbon) | R410A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
