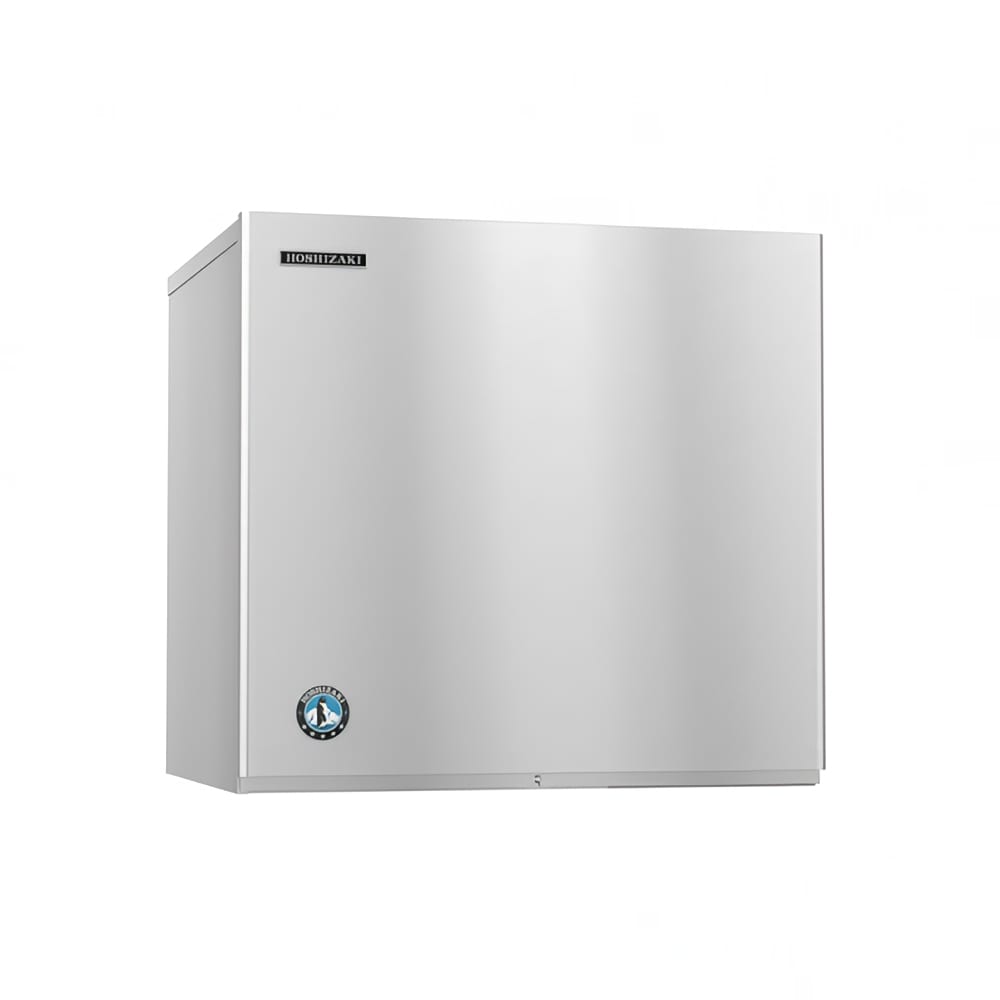

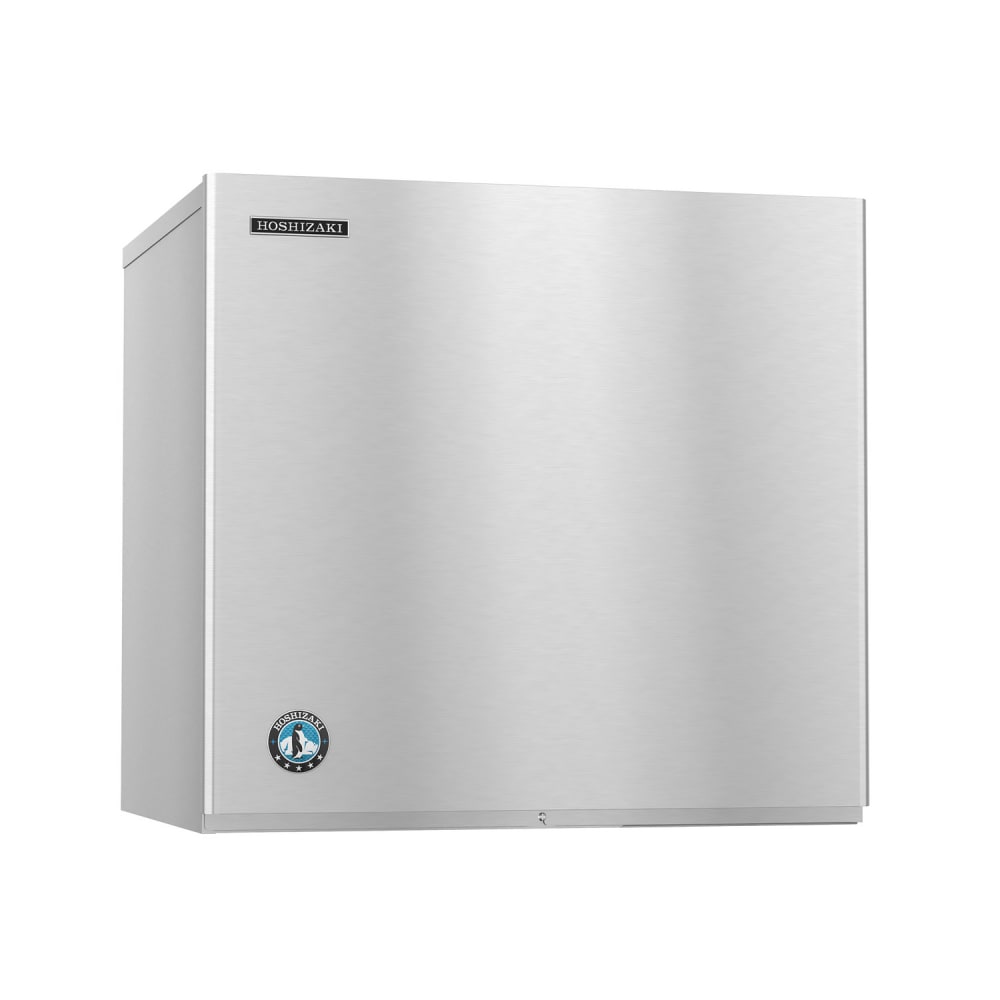

Hoshizaki KMD-860MWJ 30" Crescent Cube Ice Machine Head - 940 lb/24 hr, Water Cooled, 208-230v/1ph

The Hoshizaki KMD-860MWJ ice maker is convenient to install with its self-contained condenser. Because its condenser is water cooled, it's ideal for establishments that already have water-circulating chiller systems. This system uses R404A refrigerant and has a CycleSaver™ feature that conserves energy while efficiently creating ice.

Depending on ambient conditions, the Hoshizaki KMD-860MWJ ice machine head can make as much as 940 pounds of crescent cube ice in a single day. This style of ice blends smoothly into coffee beverages and can be used to cool glasses of water and soda. The machine's components are treated with H-Guard Plus® antimicrobial agent to inhibit the growth of bacteria that can affect the flavor of ice.

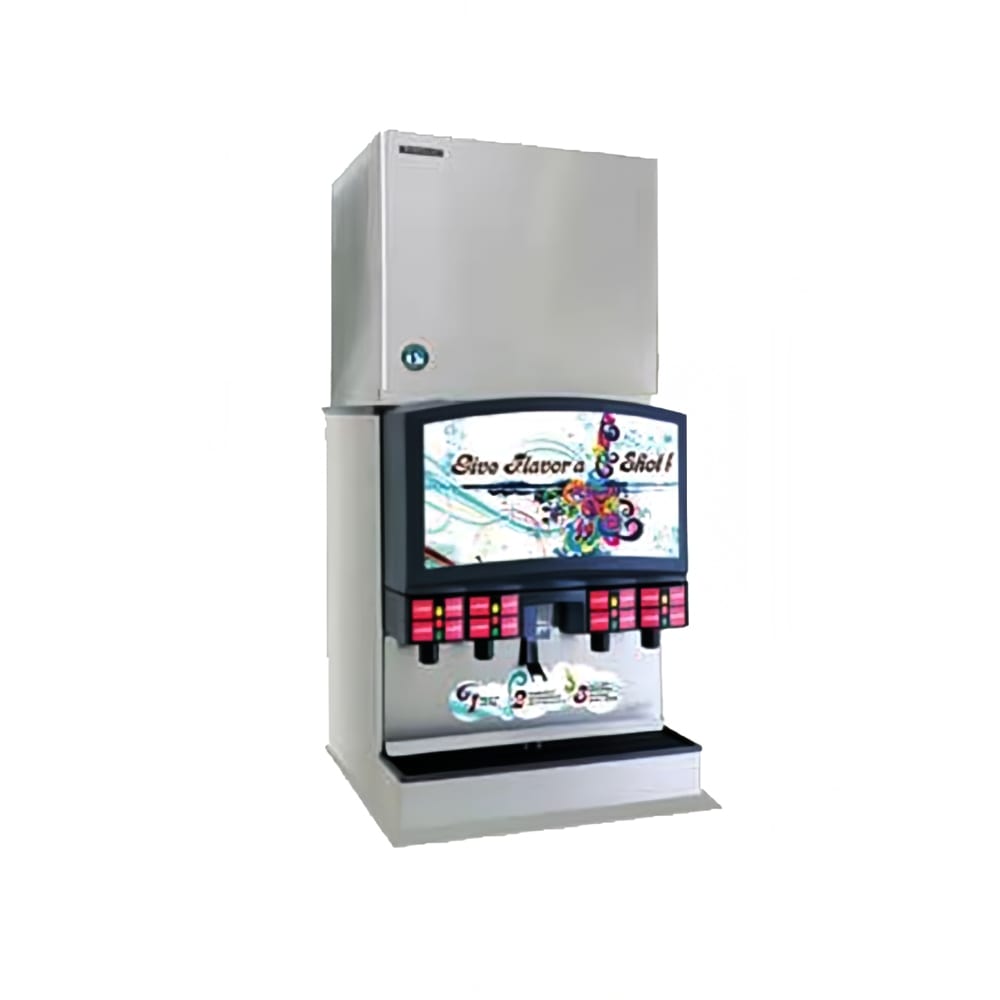

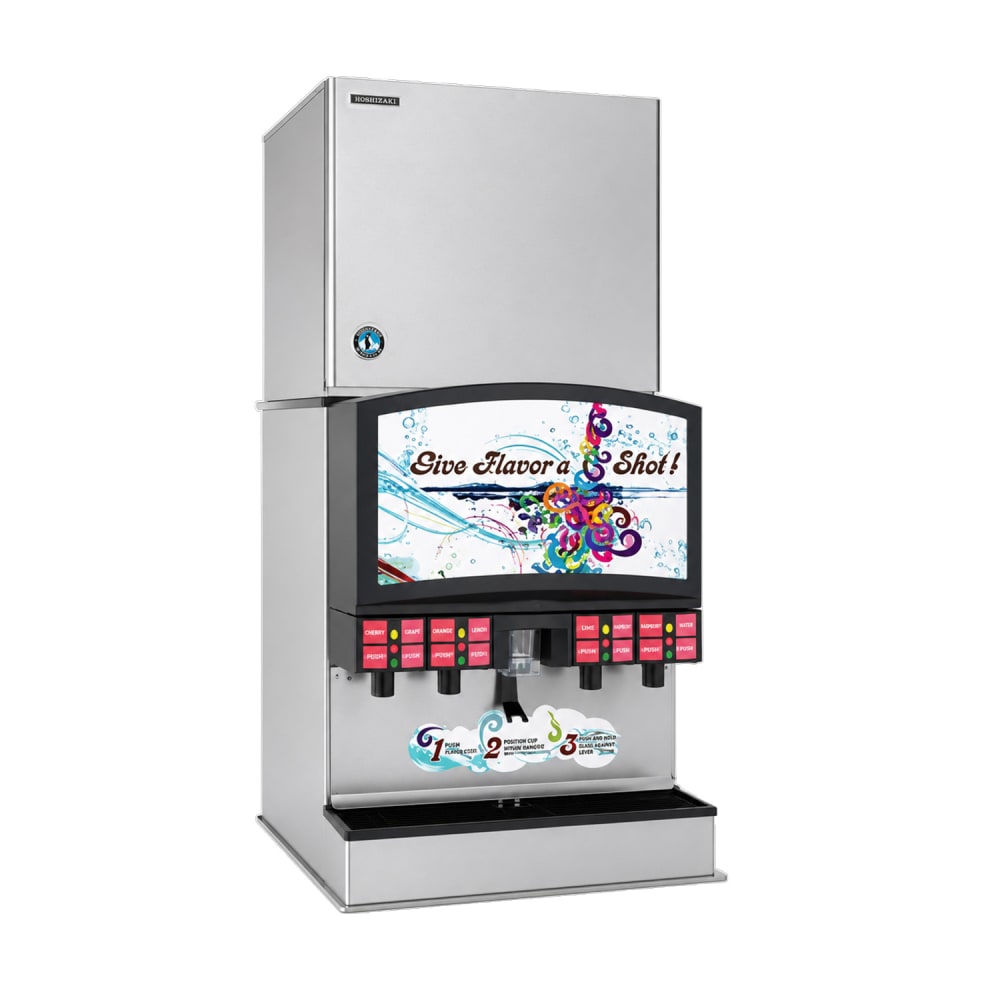

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• 940-lb. daily ice production
• 862-lb. daily AHRI-certified ice production
• Self-contained condenser is water cooled
• Makes versatile crescent cube ice
• Ice cube size: ¹⁄₂ in. W x 1¹⁄₈ in. D x 1¹⁄₂ in. H
• R404A refrigerant
• Rust- and dent-resistant stainless steel exterior
• H-Guard Plus antimicrobial agent halts the growth of mildew and bacteria
• CycleSaver efficiently creates ice without using excess energy
• EverCheck™ notifies users when component problems arise
• Ideal ambient temperature range: 45-100 degrees F
• Ideal water temperature range: 45-90 degrees F
• Ideal water pressure range: 10-113 PSIG
• 6-in. rear, top, and side clearance required
• 11,000-BTU transfer capacity

Product Features

Dimensions & Utilities

• 30 in. W x 24⁵⁄₈ in. D x 28 in. H
• 8.5 A, 3.90 kW
• 208-230 V/60 Hz/1 ph

*Free shipping on Hoshizaki KMD-860MWJ within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 30"W, water-cooled, self-contained condenser, production capacity up to 940 lb/24 hours at 70°/50° (862 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/1-ph, 8.5 amps, NSF, UL

*Image may not depict product color, inclusions or accessories.

Hoshizaki KMD-860MWJ Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure
