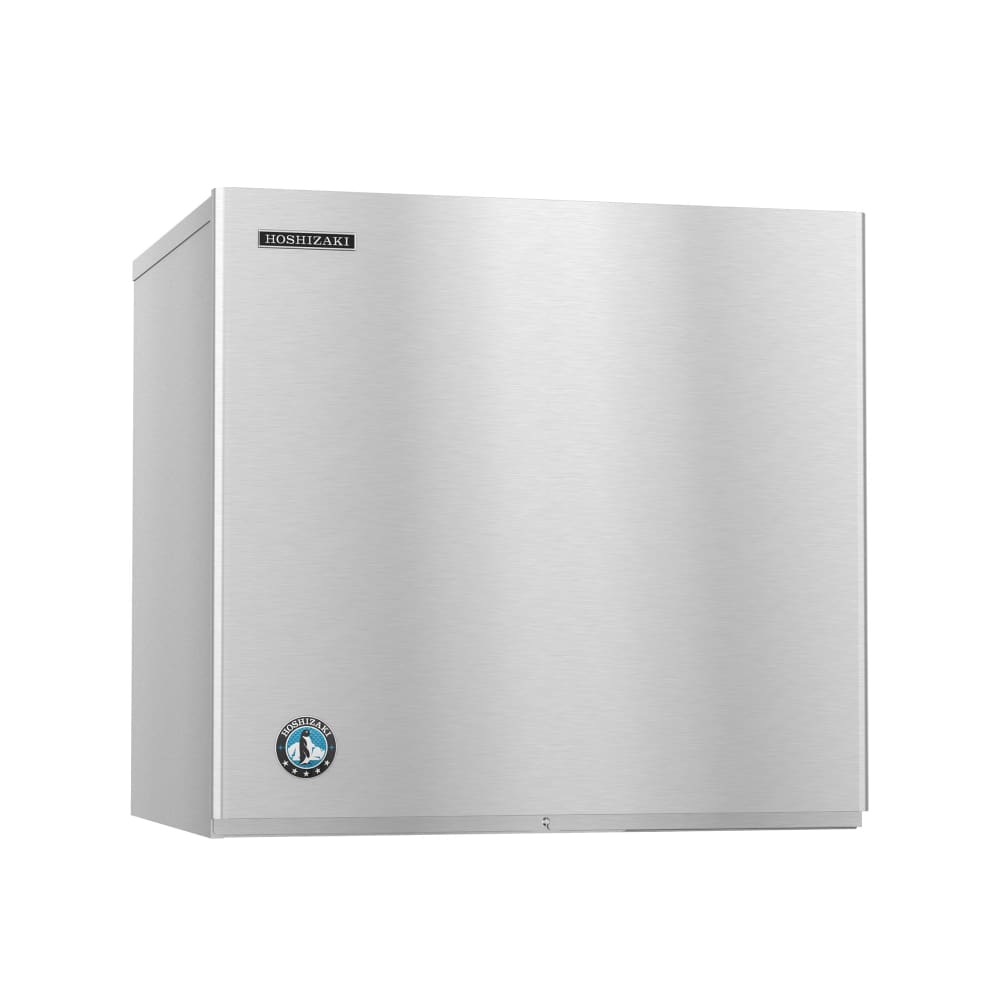

Hoshizaki KMD-860MRJZ 30" Crescent Cube Ice Machine Head - 967 lb/24 hr, Remote Cooled, 208-230v/1ph

The Hoshizaki KMD860MRJZ ice machine head can produce 967 pounds of crescent cube ice if the ambient temperature is 70 degrees and the incoming water temperature is 50 degrees Fahrenheit. For durability through repeated use, this unit has a stainless steel exterior and evaporator. To maintain clean internal components, this unit is designed with H-GUARD Plus antimicrobial agent. To ensure optimal air circulation, this unit requires a 6-inch clearance on both sides, the rear, and above the unit.

The Hoshizaki KMD860MRJZ ice maker head relies on R404A refrigerant which is eco-friendly and energy efficient. This unit is air-cooled and requires both a remote condenser and an ice bin for operation, both of which are sold separately. If this unit experiences a drastic change in temperatures, an EverCheck™ alert system with sound to alert users to address the issue.

Product Details

• KMD Series
• Remote, air-cooled unit
• 967-lb. production per 24-hrs. at 70 degrees F ambient and 50 degrees F incoming water
• 850-lb. production per 24-hrs. at 90 degrees F ambient and 70 degrees F incoming water
• Individual crescent cube ice shape
• Crescent-cube ice size: 1¹/₈ in. W x ¹/₂ in. D x 1¹/₂ in. H
• Removable air filters
• Exterior is made of stainless steel
• Stainless steel evaporator

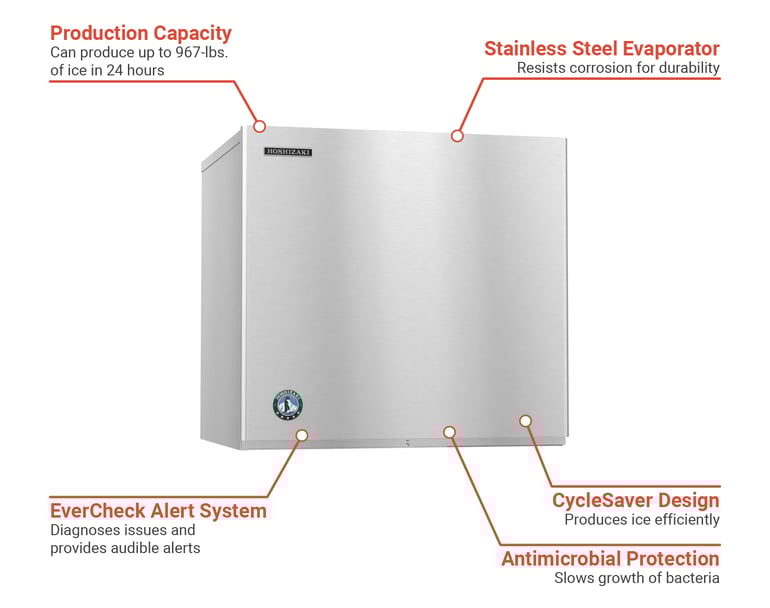

• H-GUARD Plus antimicrobial agent
• EverCheck™ alert system
• CycleSaver™ design
• R404A refrigerant
• Requires remote condenser (sold separately)
• Ice bin not included
• 13,000 BTU
• "Z" model ice machine must be paired with "Z" model remote condenser

Optimal Operating Conditions

• Ambient temperature holding range: 45-100 degrees F
• Water temperature holding range: 45-90 degrees F
• Water pressure: 10-113 PSIG
• Clearances: 6-in. on both sides, 6-in. in rear, and 6-in. above
• Water supply requires copper water tubingwith a minimum ¹/₄-in. inner diameter
• Drain requires a hard pipe with a minimum ³/₄-in. inner diameter

Dimensions & Utilities

• 30 in. W x 24⁵/₈ in. D x 28 in. H
• 12.5 A, 5.05 kW
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Hoshizaki KMD-860MRJZ within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 30"W, air-cooled, remote condenser (priced separately), production capacity up to 967 lb/24 hours at 70°/50° (850 lb AHRI certified at 90°/70°), crescent cube style, stainless steel finish, R-404A refrigerant, 208-230v/60/1-ph, 12.5 amps, protected with H-GUARD Plus Antimicrobial Agent, NSF, UL (always pair “Z” model ice machines with “Z” model remote condenser)

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KMD-860MRJZ Specifications

Documents

Spec Sheet

Warranty

Manual
