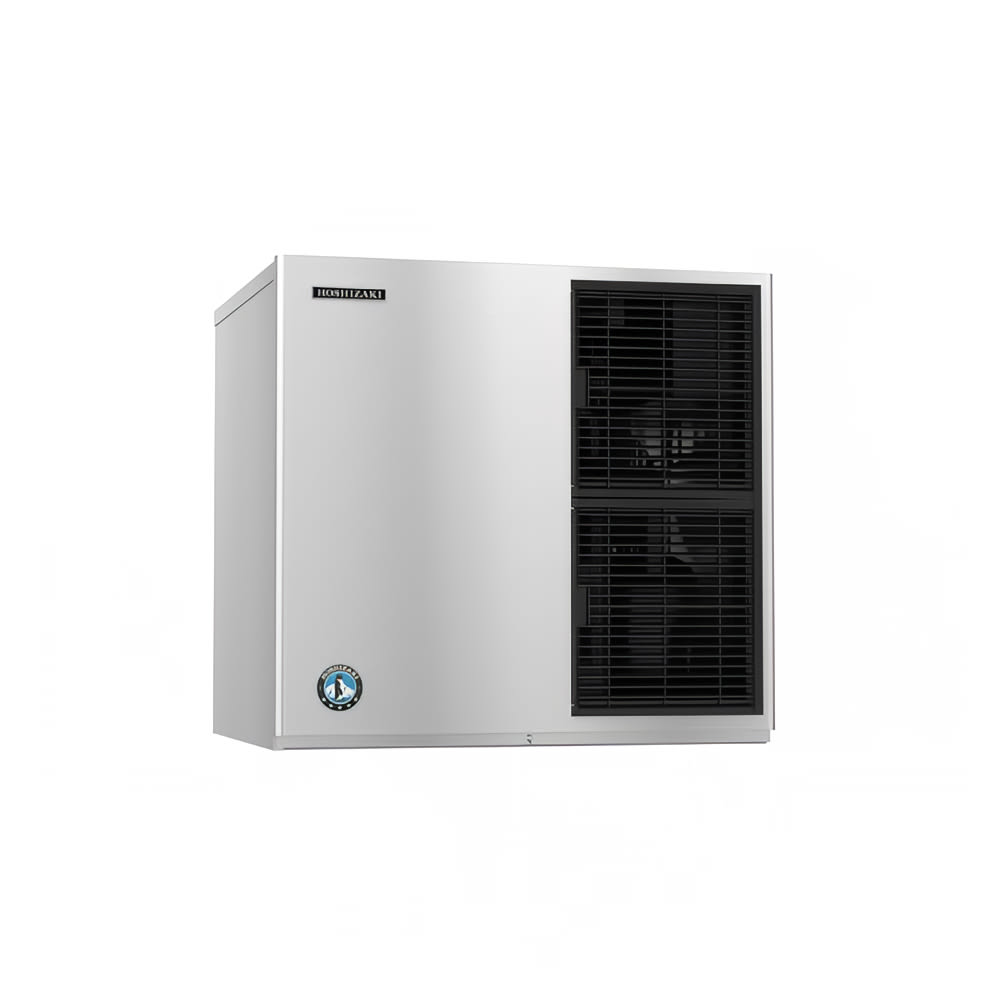

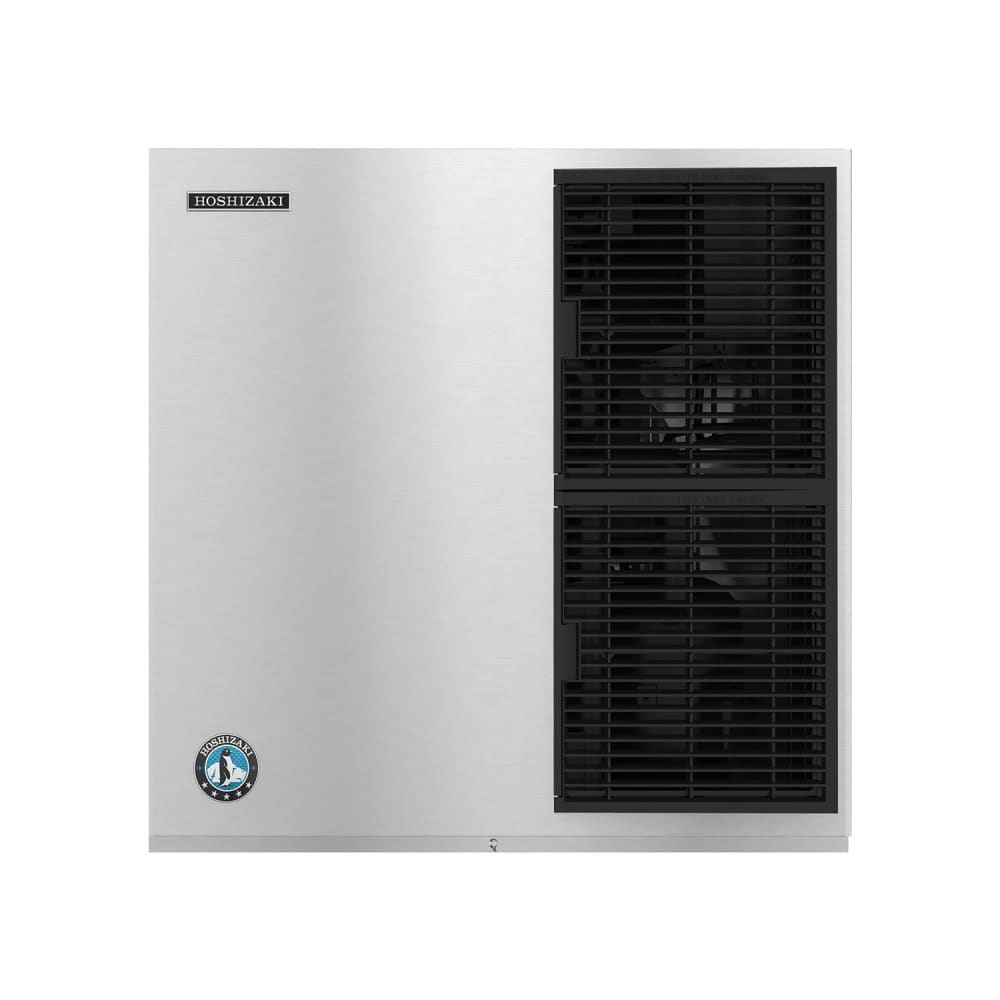

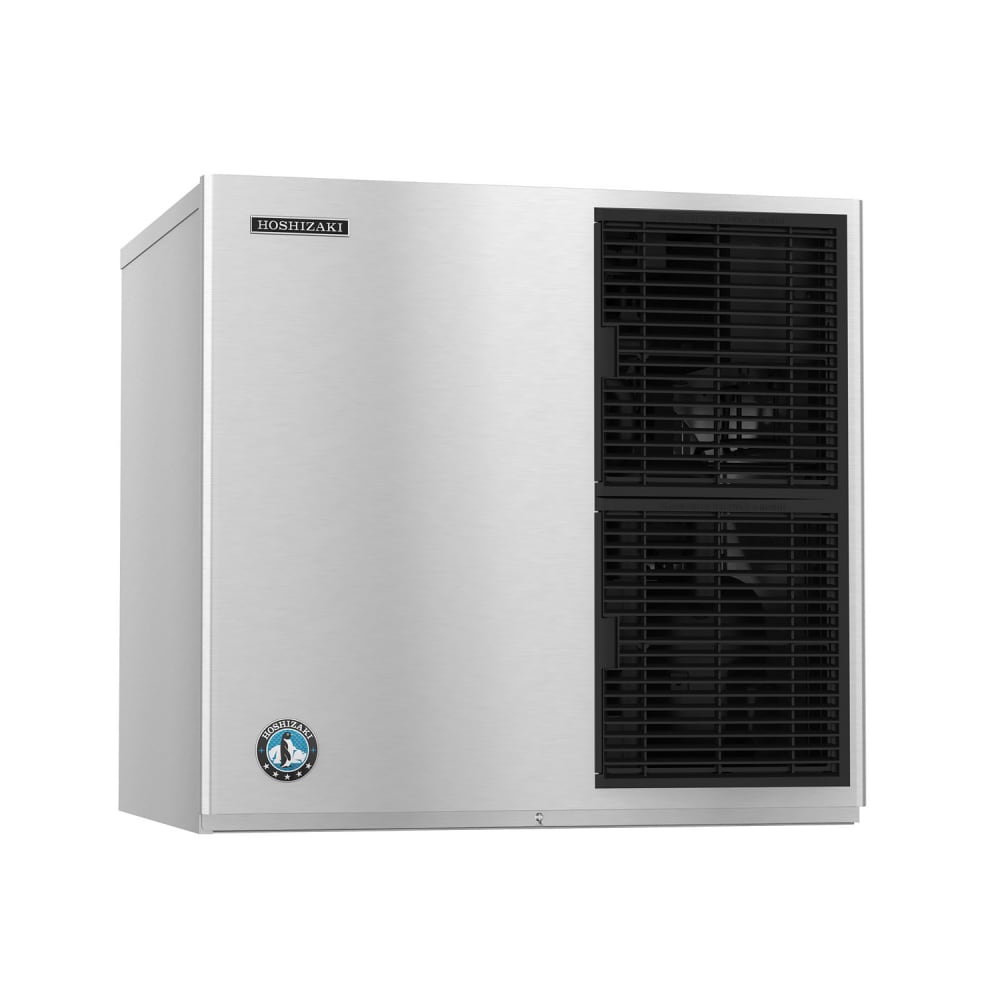

Hoshizaki KMD-860MAJ 30" Crescent Cube Ice Machine Head - 855 lb/24 hr, Air Cooled, 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$6,535.00 /Each
Contact us for details!
White Glove Delivery
Contact your sales rep for availability
Hoshizaki KMD-860MAJ Description
Using the Hoshizaki KMD-860MAJ ice maker, operators can make as much as 855 pounds of ice in a single day with optimal conditions. Because its condenser is self-contained and air cooled, this ice maker is convenient to install, and most establishments can accommodate its requirements. For ideal operation, this unit requires 6 inches of clearance around its sides and top.
The Hoshizaki KMD-860MAJ ice machine head makes crescent cube ice with a high ice-to-water ratio, making it great for cooling glasses of soft drinks and blending into smoothies. This machine is equipped with H-Guard Plus® antimicrobial agent, which inhibits the growth of mildew so ice doesn't take on an unpleasant flavor.
Note: This unit must be paired with an ice maker bin or ice dispenser.
Product Details
- 855-lb. daily ice production
- 665-lb. daily AHRI-certified ice production
- Self-contained, air-cooled condenser can be quickly installed
- R404A refrigerant
- Produces individual crescent cube ice
- Ice cube size: 1⁄2 in. W x 11⁄8 in. D x 11⁄2 in. H
- H-Guard Plus antimicrobial agent keeps ice tasting fresh by halting bacterial growth
- EverCheck™ system notifies users of maintenance issues
- CycleSaver™ design utilizes little energy to efficiently make ice
- Stainless steel exterior provides durability through intensive use
- Ideal ambient temperature range: 45-100 degrees F
- Ideal water temperature range: 45-90 degrees F
- Ideal water pressure range: 10-113 PSIG
- 6-in. rear, top, and side clearance required
- 13,100-BTU transfer capacity
Product Features
Dimensions & Utilities
- 30 in. W x 245⁄8 in. D x 28 in. H
- 9.9 A, 5.16 kW
- 208-230 V/60 Hz/1 ph
*Free shipping on Hoshizaki KMD-860MAJ within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 30"W, air-cooled, self-contained condenser, production capacity up to 855 lb/24 hours at 70°/50° (665 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/1-ph, 9.9 amps, NSF, UL
*Image may not depict product color, inclusions or accessories.
Watch a video about this product
Hoshizaki KMD-860MAJ Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 855 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 28 |
| Ice Type | Crescent Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Series | KM EDGE |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Width (in) | 30 |
| Weight | 248.00 |
