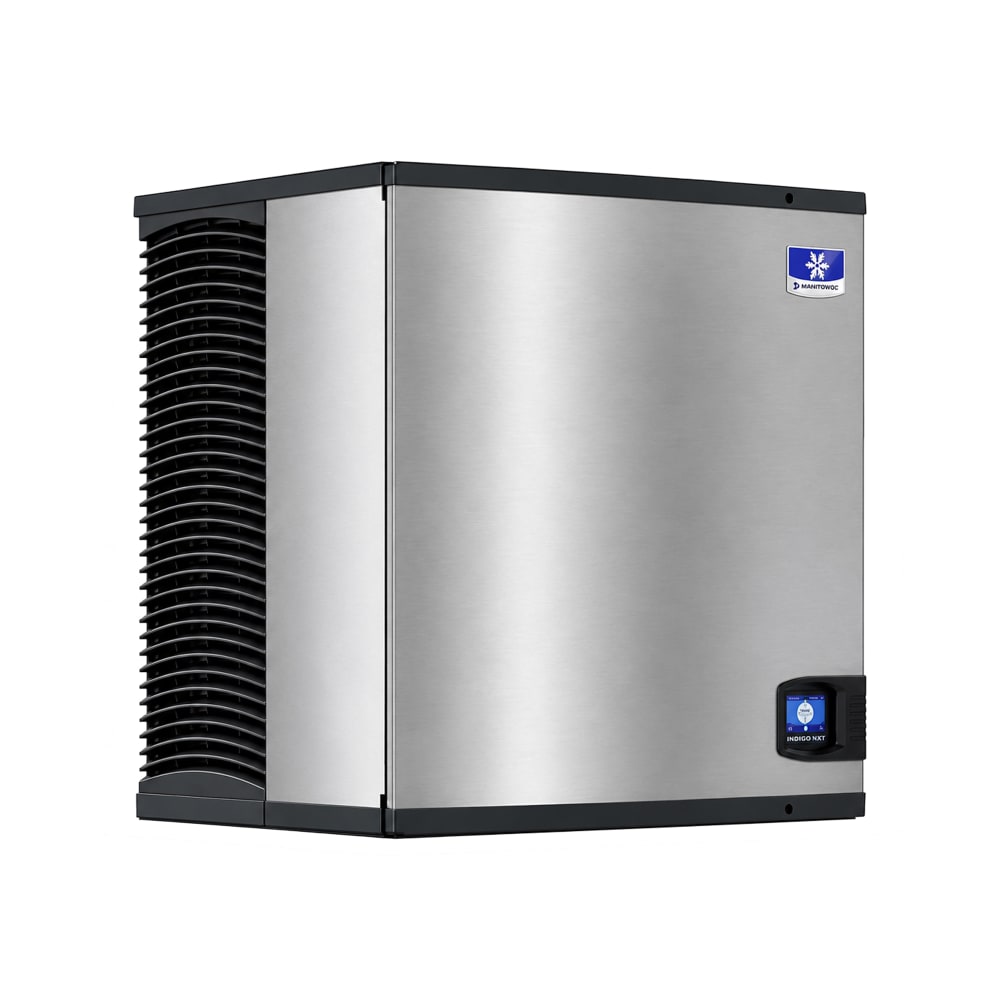

Manitowoc Ice IDP0800A 30" Indigo NXT™ Full Cube Ice Machine Head - 775 lb/24 hr, Air Cooled, 208-230v/1ph
Typically ships in 9 - 13 Business Days
$6,454.00 /Each
Contact us for details!
Selected Ice Type: Full Cube
Manitowoc Ice IDP0800A Description
The Manitowoc Ice IDP0800A Indigo NXT™ full-cube ice machine head produces as much as 775 pounds of full-cube ice per day using R290 refrigerant. This ice measures 7⁄8 inch by 7⁄8 inch by 7⁄8 inch, the perfect size for soft drinks and bagged ice. To detect ice thickness and provide uniform shapes, this unit uses an acoustical ice sensing probe and active sense hardware.
To help prevent the Manitowoc Ice IDP0800A ice maker from wearing out, intelligent diagnostics run 24 hours a day for preventive maintenance purposes. This ice machine head can be programmed to operate according to time and ice volume using an icon-based touchscreen. Because the exterior has a DuraTech® finish, it resists smudging and corrosion to maintain a professional appearance.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 775-lb. daily ice production capacity
- Full-cube ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Air-cooled, self-contained condensing unit
- easyTouch® display controls
- Time and ice-volume programmable
- Foodzone located behind hinged front door
- Removable sensing probes, distribution tube, curtain, and water trough
- 24-hr. diagnostics
- Acoustical ice sensing probe detects ice thickness
- Stainless steel with DuraTech exterior prevents smudges
- R290 refrigerant
- 12,700-BTU average heat transfer capacity; 14,800-BTU peak heat transfer capacity
- Ideal ambient air temperature: 40-100 degrees F
- Ideal incoming water temperature: 40-90 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- Ice storage bin or dispenser is sold separately
-
Dimensions & Utilities
- 30 in. W x 24.5 in. D x 26.5 in. H
- 9.5 A, 4.85 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IDP0800A within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Manitowoc Ice IDP0800A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 775 |
| Also Known As | IDT0900A |
| Compressor Type | Air Cooled |
| Depth (in) | 24.5 |
| Height (in) | 26.5 |
| Ice Type | Full Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 214.00 |
Important Prop 65 information for California residents.
- Manitowoc Ice ID0906A261
Compare to Similar Items
| Attributes |
Manitowoc Ice IDP0800A Manitowoc Ice IDP0800A 30" Indigo NXT™ Full Cube Ice Machine Head - 775 lb/24 hr, Air Cooled, 208-230v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $6,454.00 / Each | $6,493.00 / Each | $6,454.00 / Each | $6,043.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 9 - 13 Business Days | Typically ships in 9 - 13 Business Days | QUICK SHIP: Ships in 1 Business Day | Typically ships in 2 - 3 weeks |
| 24 Hr. Production (lb) | 775 | 921 | 745 | 900 |
| Ice Type | Full Cube | Full Cube | Half Cube | Full Cube |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 30 | 30 | 30 | 30.25 |
| Rating | Best | Best | Best | Better |
| Voltage | 208/230 | 208/230 | 208/230 | 208/230 |
| Series | Indigo NXT™ | Prodigy ELITE® | Indigo NXT™ | Elevation Series™ |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
The inlet requires 20 to 80 PSIG.
Yes. It displays cleaning steps through one-touch controls.
The probe, tube, curtain, and trough remove for cleaning.
No. This machine head requires a separately purchased bin.
It schedules production by time, ice weight, day, or night.
Yes. It runs self-diagnostics continuously.
The supply must stay between 40° F and 90° F.
The unit must be hardwired without a plug.
