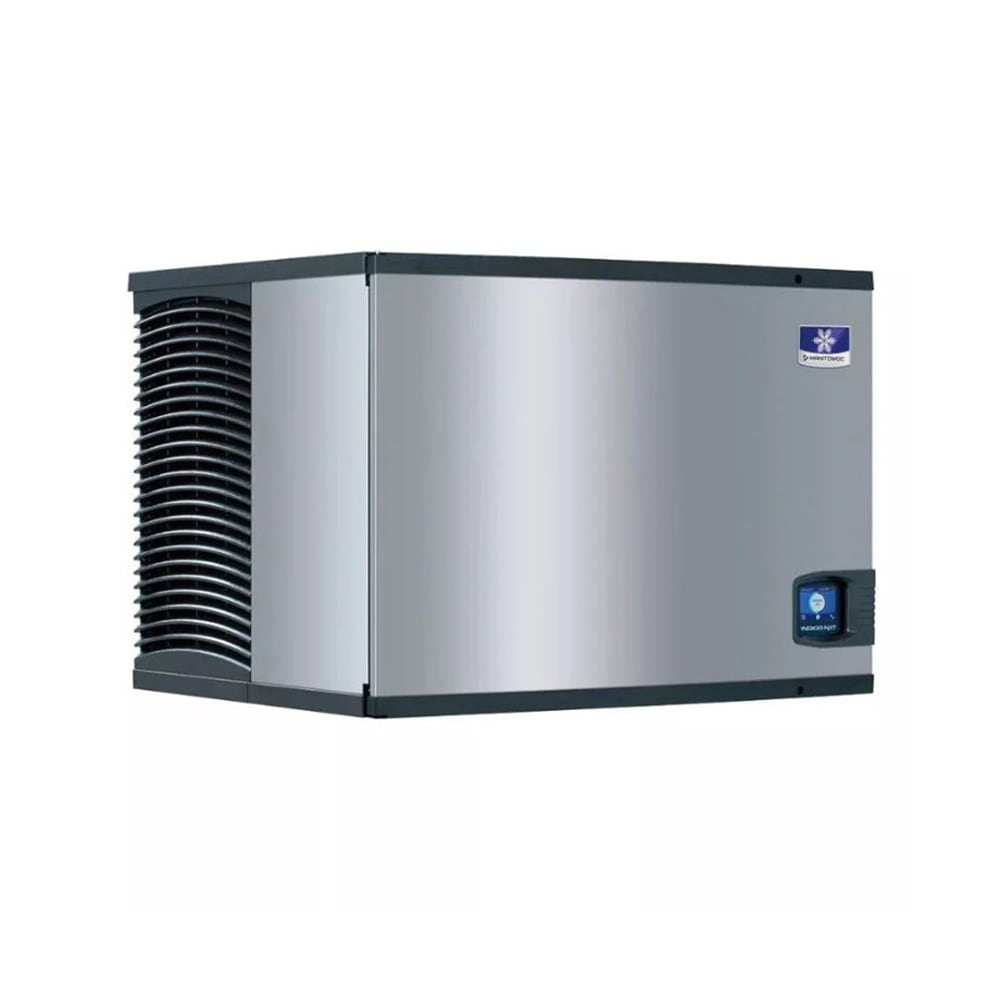

Manitowoc Ice IDT0900W 30" Indigo NXT™ Full Cube Ice Machine Head - 780 lb/24 hr, Water Cooled, 208-230v/1ph

The Manitowoc Ice IDT0900W Indigo NXT™ ice maker is designed to make large dice ice—a square cube that melts slowly to water down drinks to a lesser extent than half-size or pellet ice. Each piece measures ⁷/₈ inches on every side, and to ensure consistency, a sensor probe measures the cubes before harvesting. Over a 24-hour period, this unit produces as much as 780 pounds of ice in ideal operating conditions. The DuraTech™ exterior resists corrosion and features a clear coat that hides fingerprints and smudges.

This Manitowoc Ice IDT0900W ice machine can be programmed with the easyTouch® display. Users can input a daily production goal on this screen or restrict operation to certain hours of the day. The system will constantly monitor the machine for potential issues, and it can alert users if it finds a problem or when it is time for cleaning.

To access the foodzone where ice is made, users can swing open the front panel and remove the distribution tube, water trough, curtain, and sensor probe. Each of these parts can be cleaned separately before they're returned to the unit, and several of the foodzone components feature AlphaSan® protection to slow mold growth and help prevent slime from forming.

Product Details

• Part of the Indigo NXT series
• Maximum daily ice production: 750 lbs.
• AHRI-certified daily ice production: 665 lbs.
• Dice ice cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Sensor probe measures ice to produce consistent results
• Ice production can be limited to business hours or set to a daily quota
• DuraTech exterior features hinged front door to foodzone
• Foodzone contains removable components to streamline cleaning
• AlphaSan antimicrobial protection is integrated into internal parts to slow slime growth
• Water-cooled condenser requires less clearance than air-cooled models
• R410A refrigerant
• Ice bin or dispenser sold separately
• 12,700 average BTU; 14,800 pear BTU

Ideal Operating Conditions

• Clearances: 8 in. on sides and top, 5 in. on back
• Ambient air temperature: 40-100 degrees F
• Water temperature: 40-90 degrees F
• Incoming water pressure: 20-80 PSI

Dimensions & Utilities

• 30 in. W x 24¹/₂ in. D x 26¹/₂ in. H
• 8.8 A, 4.04 kW
• 208-230 V/60 Hz/1 ph

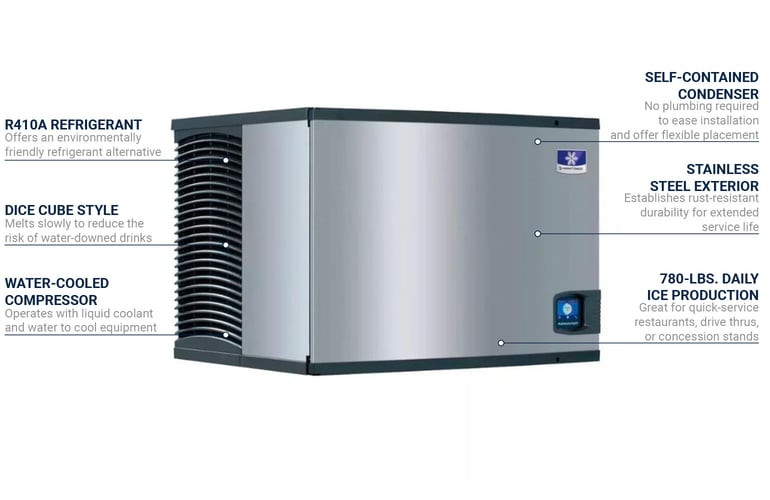

Product Features

*Free shipping on Manitowoc Ice IDT0900W within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24-1/2"D x 26-1/2"H, production capacity up to 780 lb./24 hours at 70°/50° (665 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor
