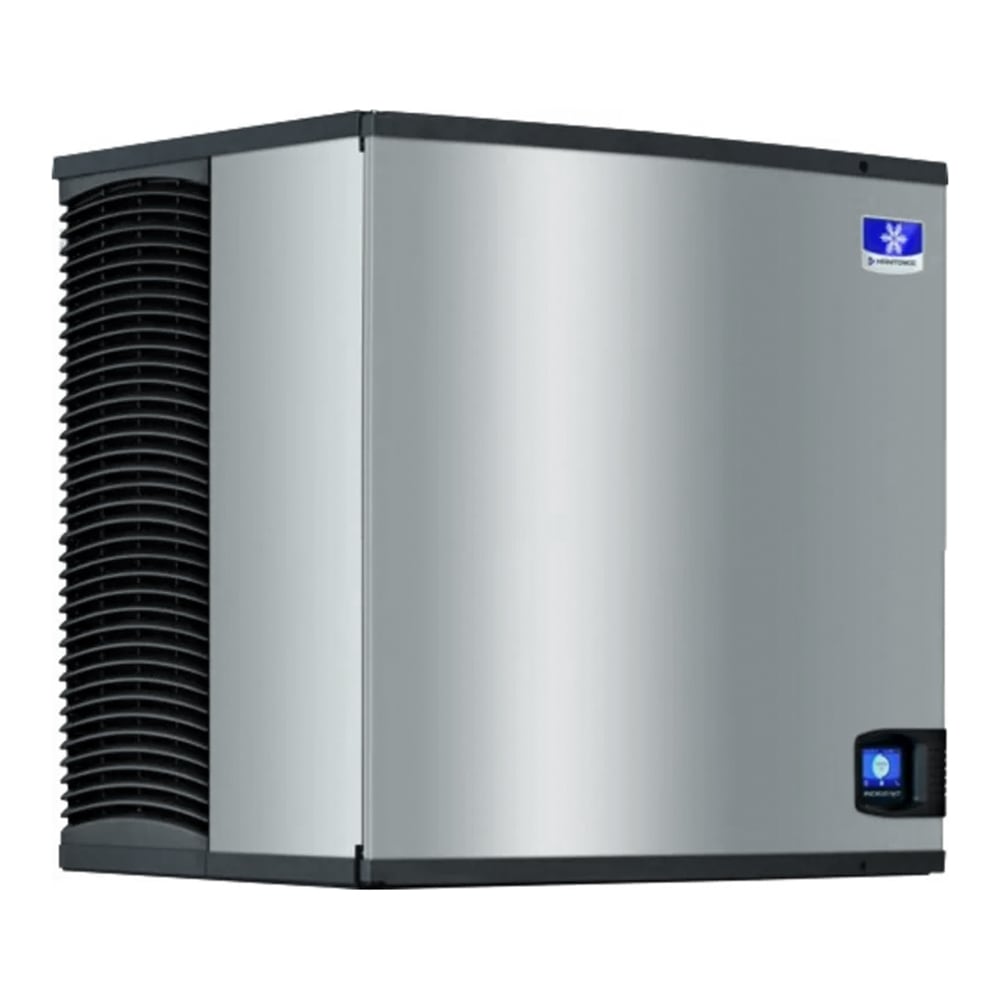

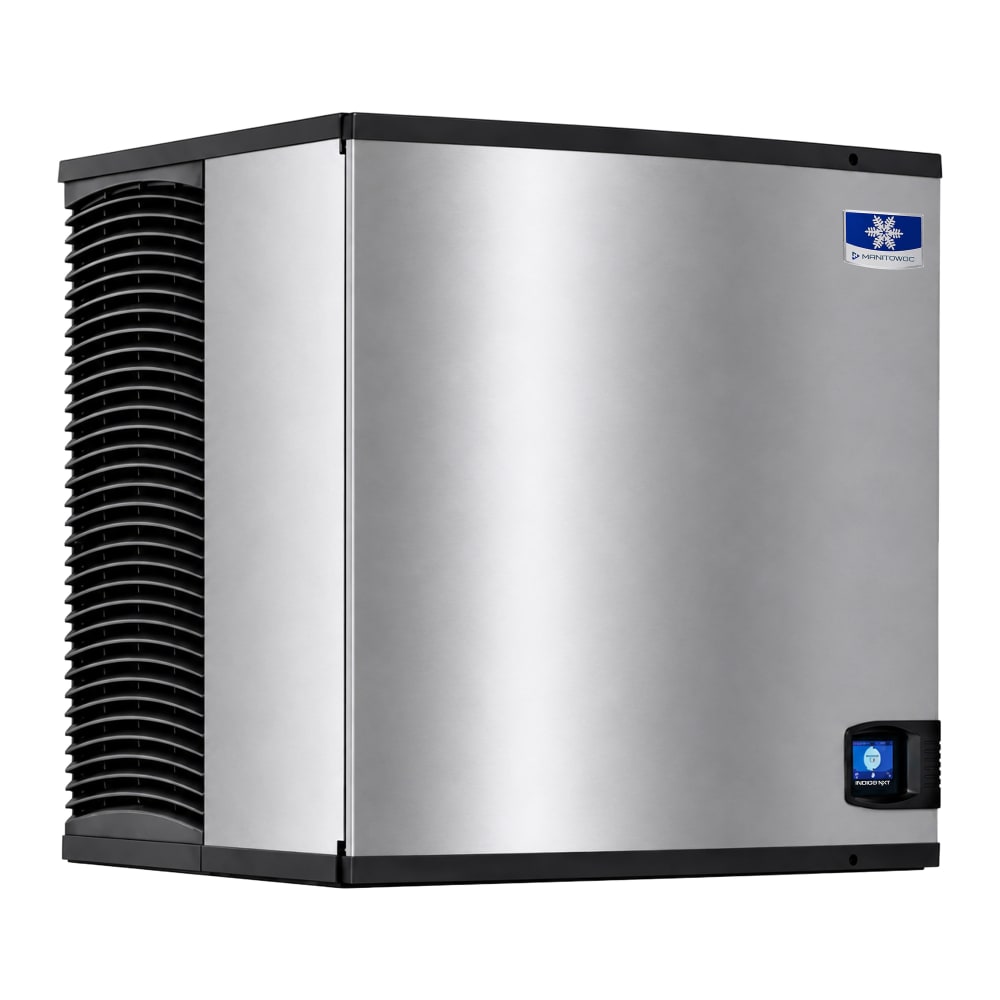

Manitowoc Ice IYT0900A 30" Indigo NXT™ Half Cube Ice Machine Head - 865 lb/24 hr, Air Cooled, 208-230v/1ph

In the span of 24 hours, the Manitowoc Ice IYT0900A Indigo NXT™ commercial ice machine head can produce 865 pounds of half-dice ice, which is ideal for restaurants with a moderate demand for ice. Its air-cooled condenser system is solid and consistent, getting the job done with minimal fuss and low water usage. The easyTouch® interface enables users to run diagnostic programs, schedule hours for the machine to be powered off, or set the daily ice production volume.

This ice maker head also features a mix of Active Sense software and hardware, and an acoustical ice sensing probe to monitor ice production, keeping cube size within expected parameters. Its DuraTech™ clear coat exterior reduces fingerprints and dirt stains while also delivering corrosion protection superior to that of stainless steel. For simplified cleaning and maintenance, important internal components can be removed from the Manitowoc Ice IYT0900A ice maker head.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Indigo NXT series
• 865-lb. maximum daily ice production
• 740-lb. AHRI-certified daily ice production
• Air-cooled system
• Produces half-dice ice, which measures ³⁄₈ in. x 1¹⁄₈ in. x ⁷⁄₈ in.
• EasyTouch icon-based touch screen operates machine
• DuraTech exterior cuts down on smudges from dirt and fingers and guards against corrosion
• Acoustical ice sensing probe maintains ice cube thickness
• Water trough, distribution tube, curtain, and sensing probes are all removable for ease of cleaning
• Intelligent diagnostics help resolve issues
• Ice bin is sold separately
• Uses R410A refrigerant
• Ambient temperature range: 40-100 degrees F
• Incoming water temperature: 40-90 degrees F
• Incoming water pressure: 20-80 PSI
• 12,700 average BTU; 14,800 peak BTU

Product Features

Dimensions & Utilities

• 30 in. W x 24¹⁄₂ in. D x 26¹⁄₂ in. H
• 11.1 A
• 208 V/60 Hz/1 ph

*Free shipping on Manitowoc Ice IYT0900A within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 26-1/2"H, production capacity up to 865 lb/24 hours at 70°/50° (750 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor

Manitowoc Ice IYT0900A Specifications

Documents

Spec Sheet

Warranty

Service Manual

Manual

Brochure
