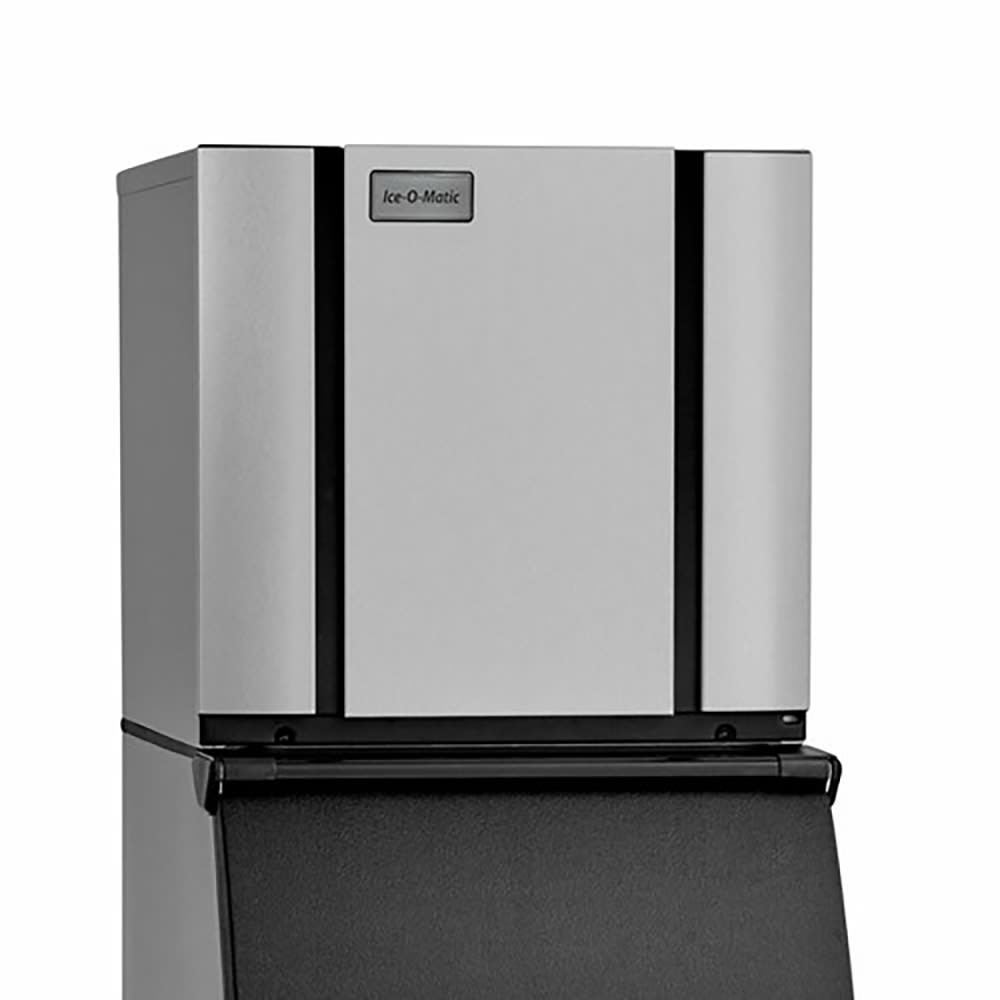

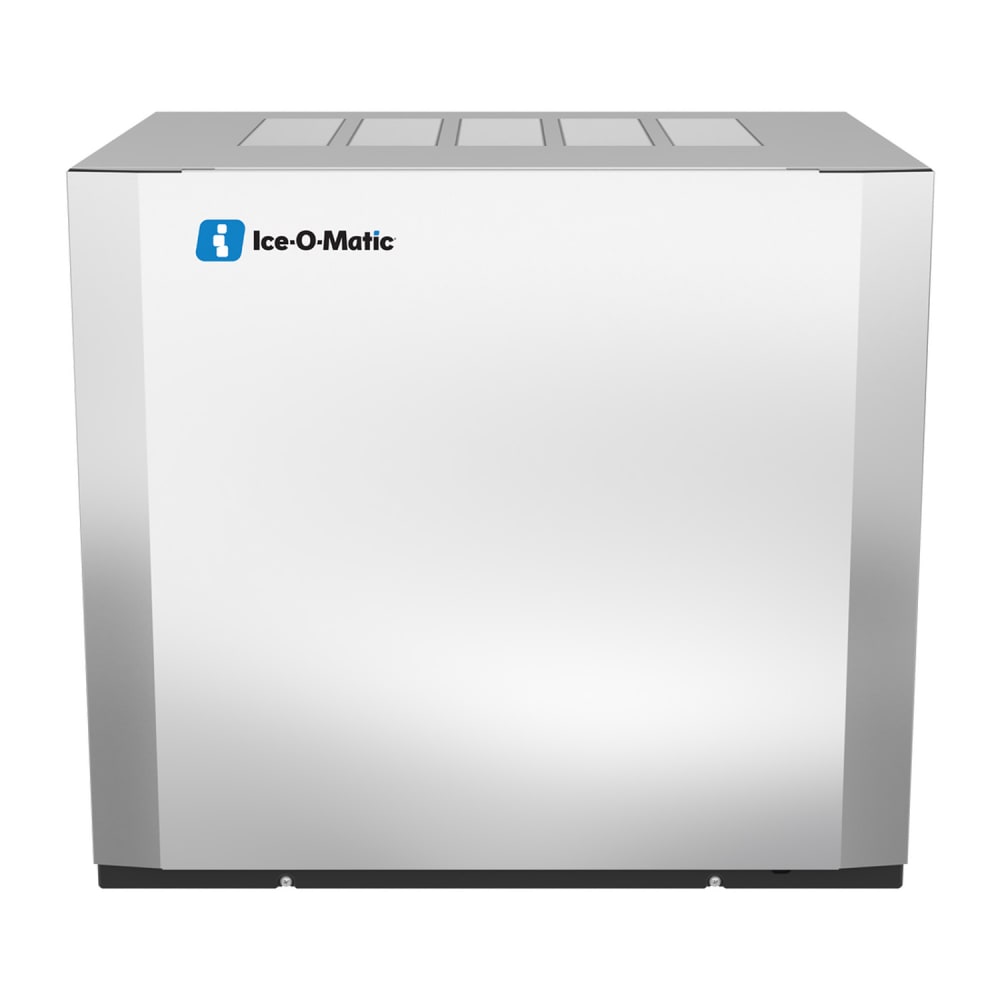

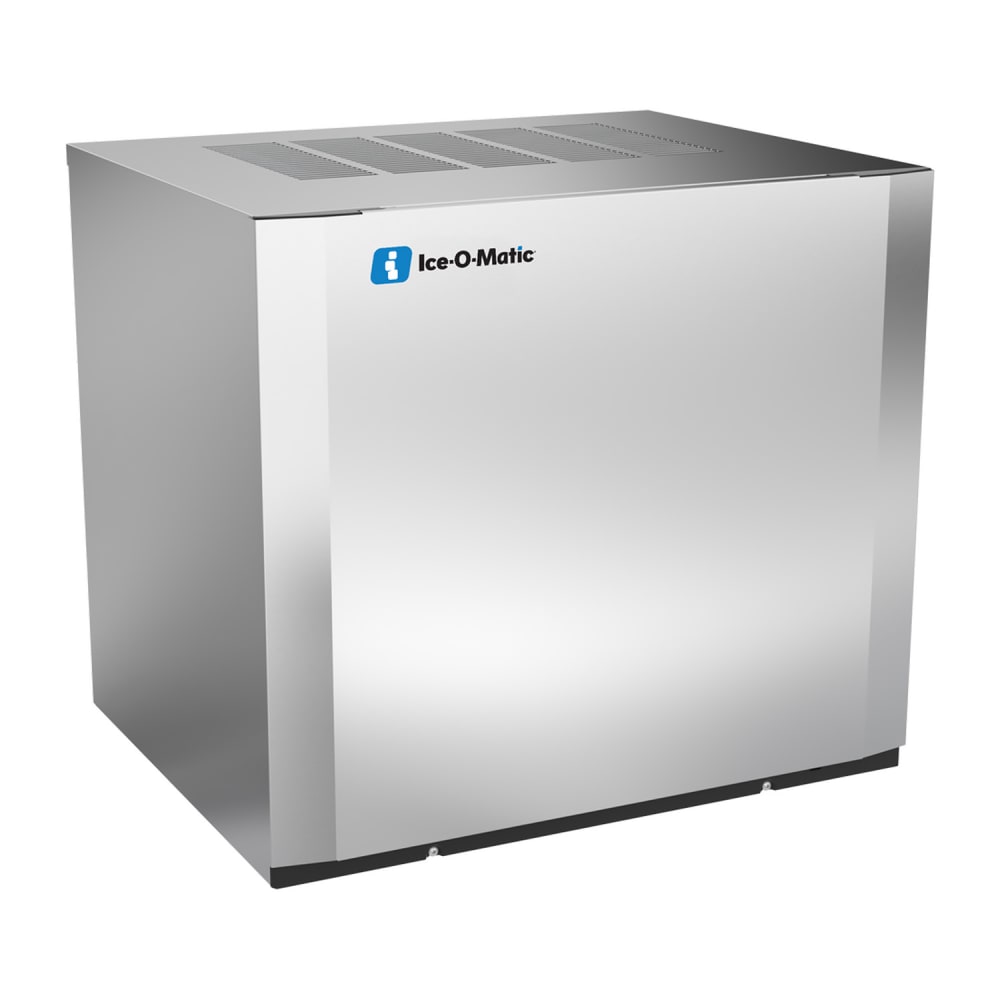

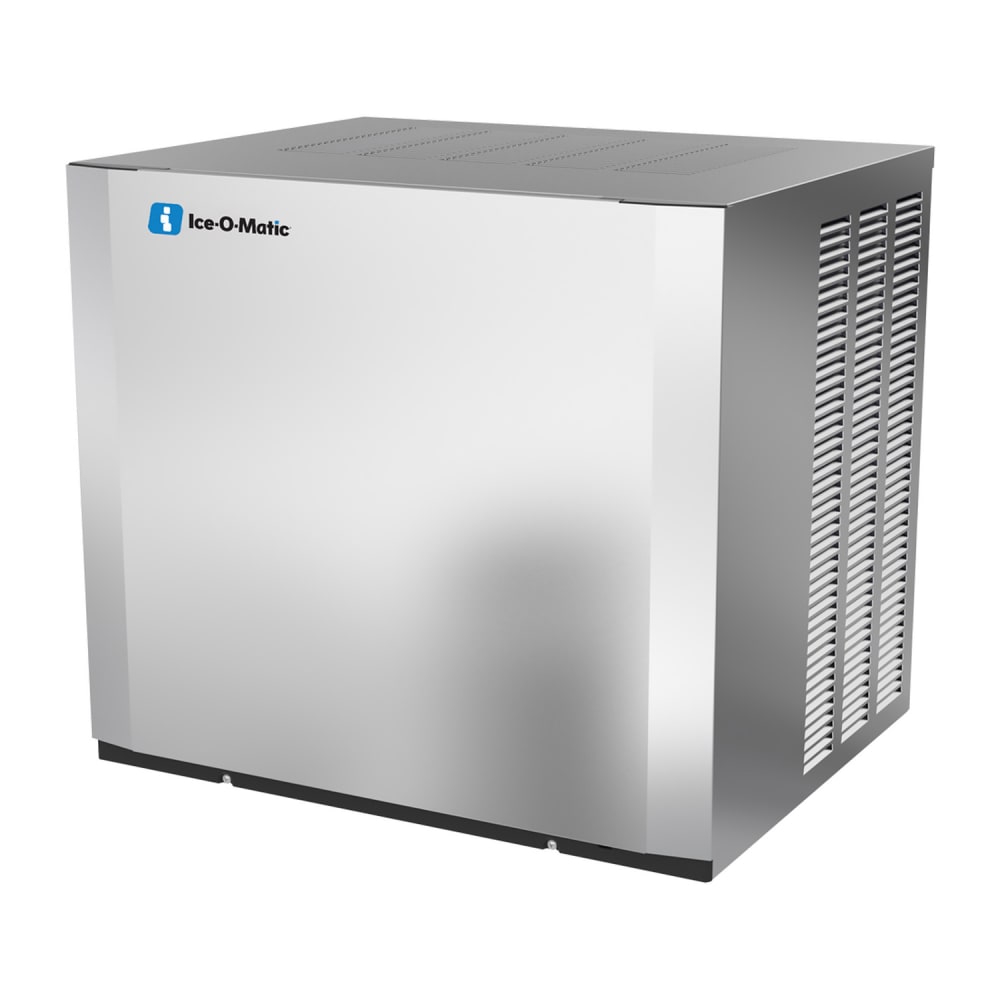

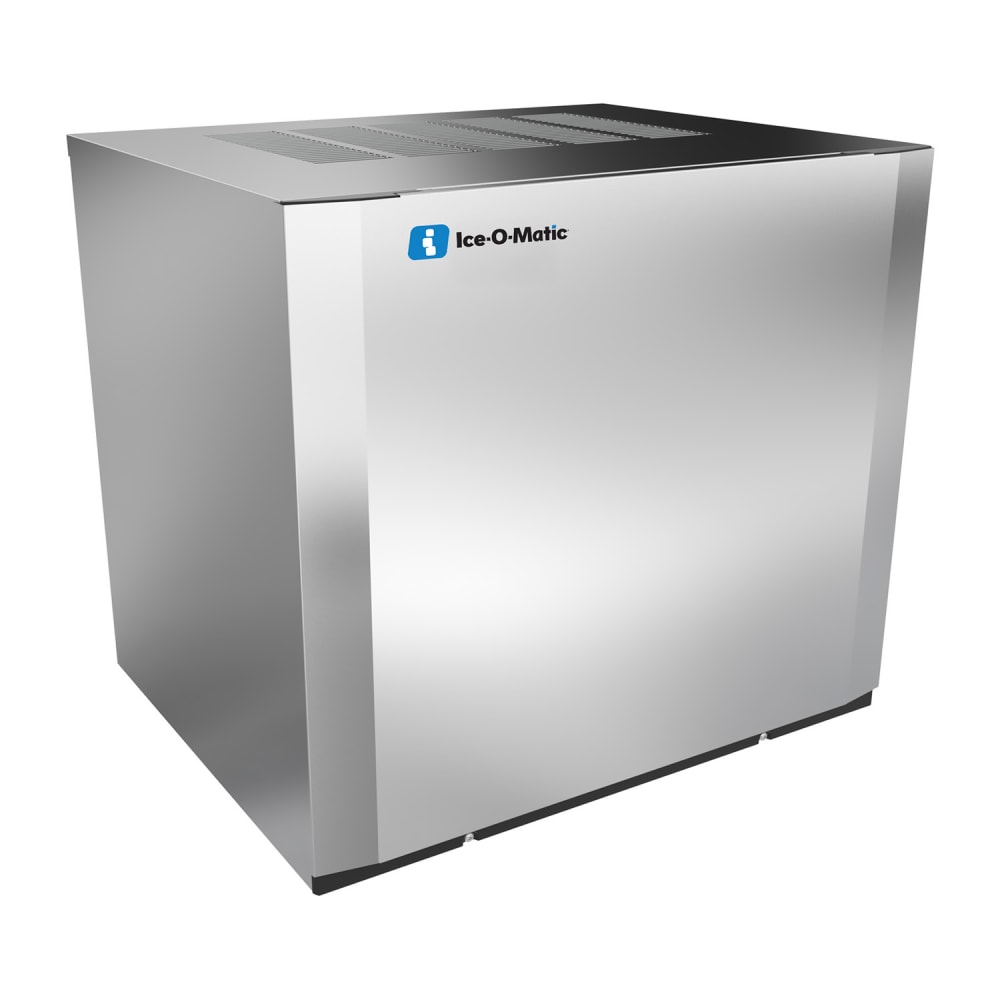

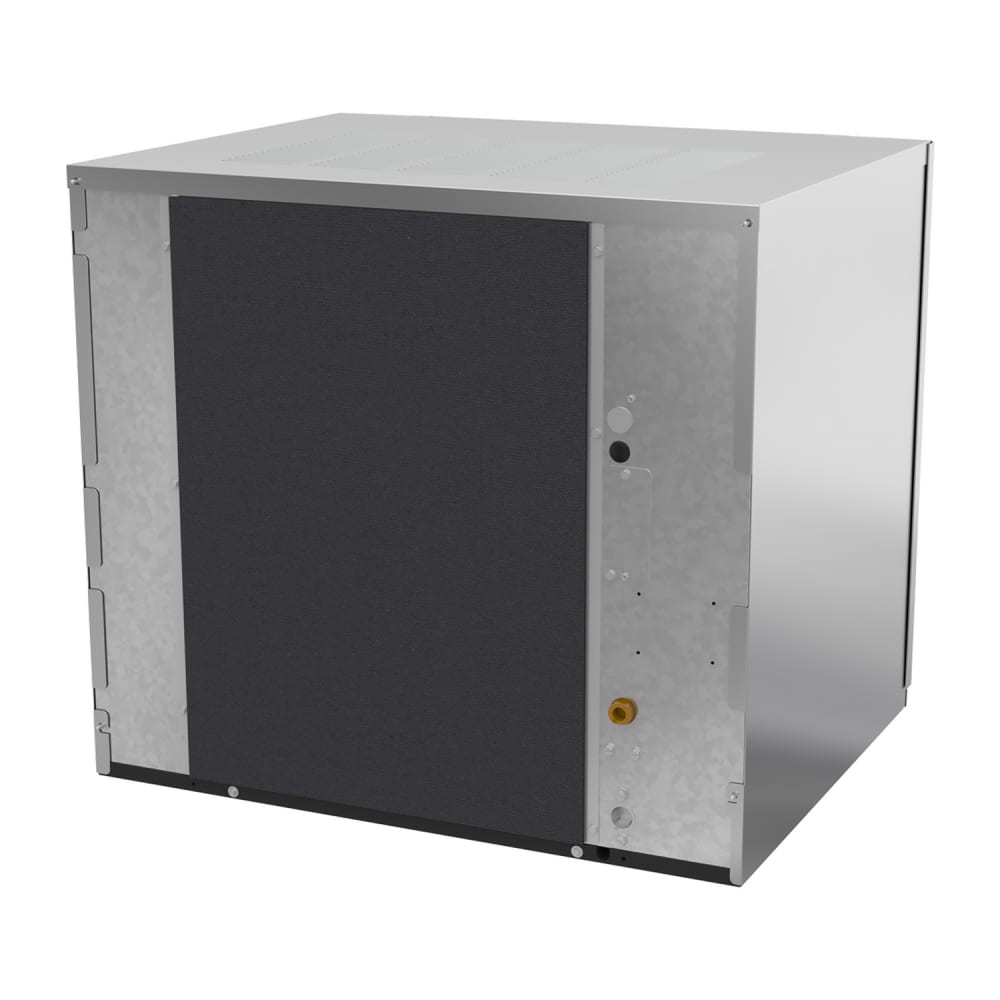

Ice-O-Matic CIM0836HA 30" Elevation Series™ Half Cube Ice Machine Head - 896 lb/24 hr, Air Cooled, 208/230v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 159-CIM0836HA • MPN: CIM0836HA
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $3,840.00

Image may not depict product color, inclusions or accessories.

Ice-O-Matic CIM0836HA Description


The Ice-O-Matic CIM0836HA Elevation Series™ ice maker has side and top air discharge, which requires 6 inches of clearance for proper flow. Constructed of BPA-free plastic, the food zone does not have crevices that could harbor bacteria, and an antimicrobial agent is built in to slow the growth of bacteria between cleanings. Major components in this area are removable and safe to clean in the dishwasher.

Half-cube ice is perfect for beverages, alcoholic drinks, and bagged applications. It cools liquids quickly but melts more quickly than full-cube ice. The Ice-O-Matic CIM0836HA ice machine head can produce 896 pounds of ice within 24 hours but produces 711 pounds on average. Its control board uses digital diagnostics and one-touch controls for sanitizing and descaling.

Product Details

  • 896-lb. ice production capacity
  • 711-lb. AHRI-certified ice production capacity
  • Uses BPA-free plastic

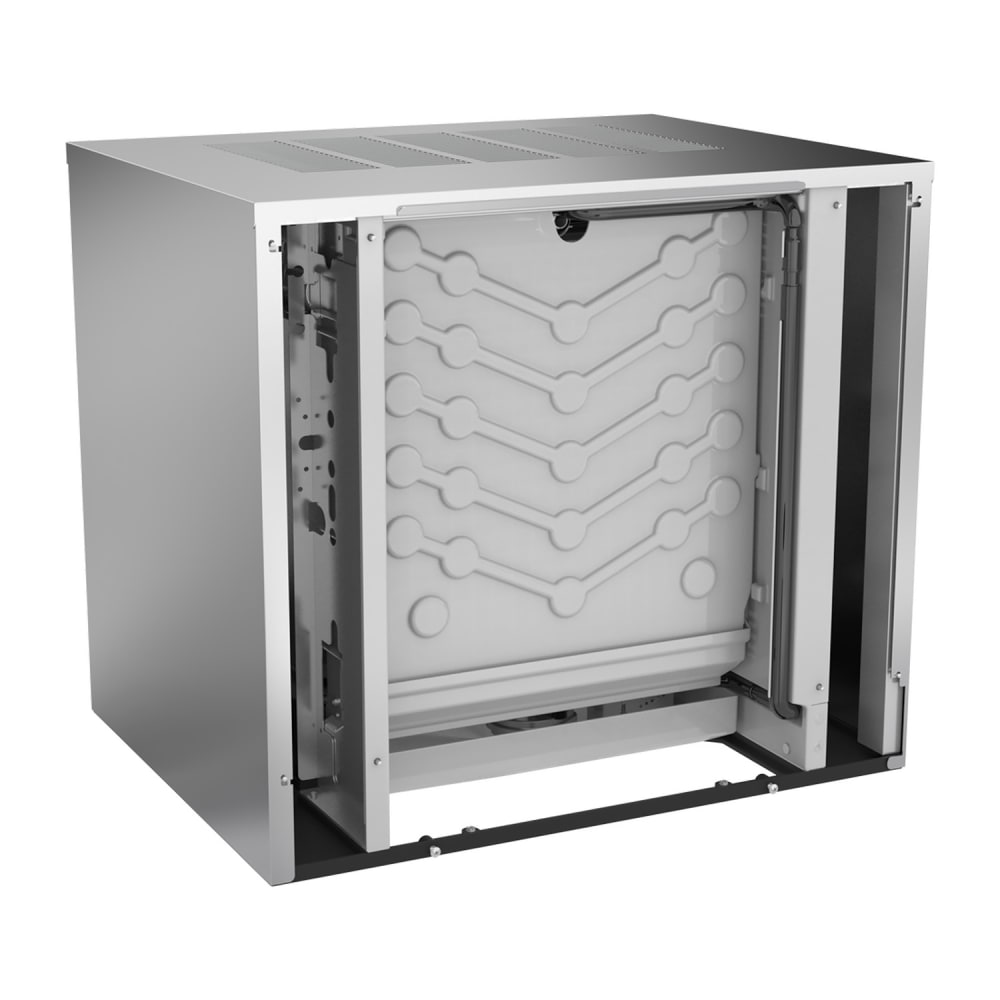

  • Food zone made of plastic does not have crevices that harbor bacteria
  • Bacteria growth is slowed with Agion® antimicrobial agent

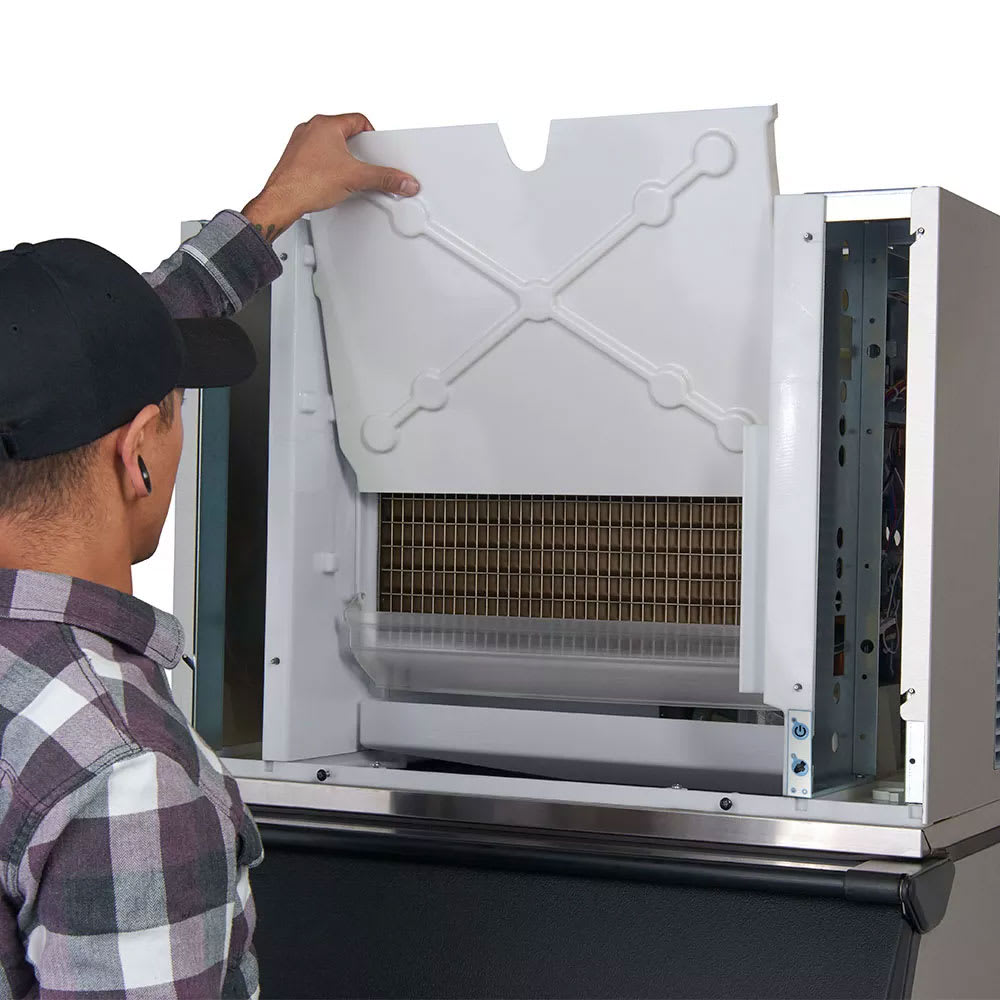

  • Removable components are safe to clean in the dismachine
  • Smart Harness™ control board uses digital diagnostics
  • 1-touch controls for sanitizing and descaling
  • Air intake and discharge from the side and top
  • 6-in. clearance is required for air intake and exhaust
  • Half-cube ice size: 0.375 in. x 0.875 in. x 0.875 in.

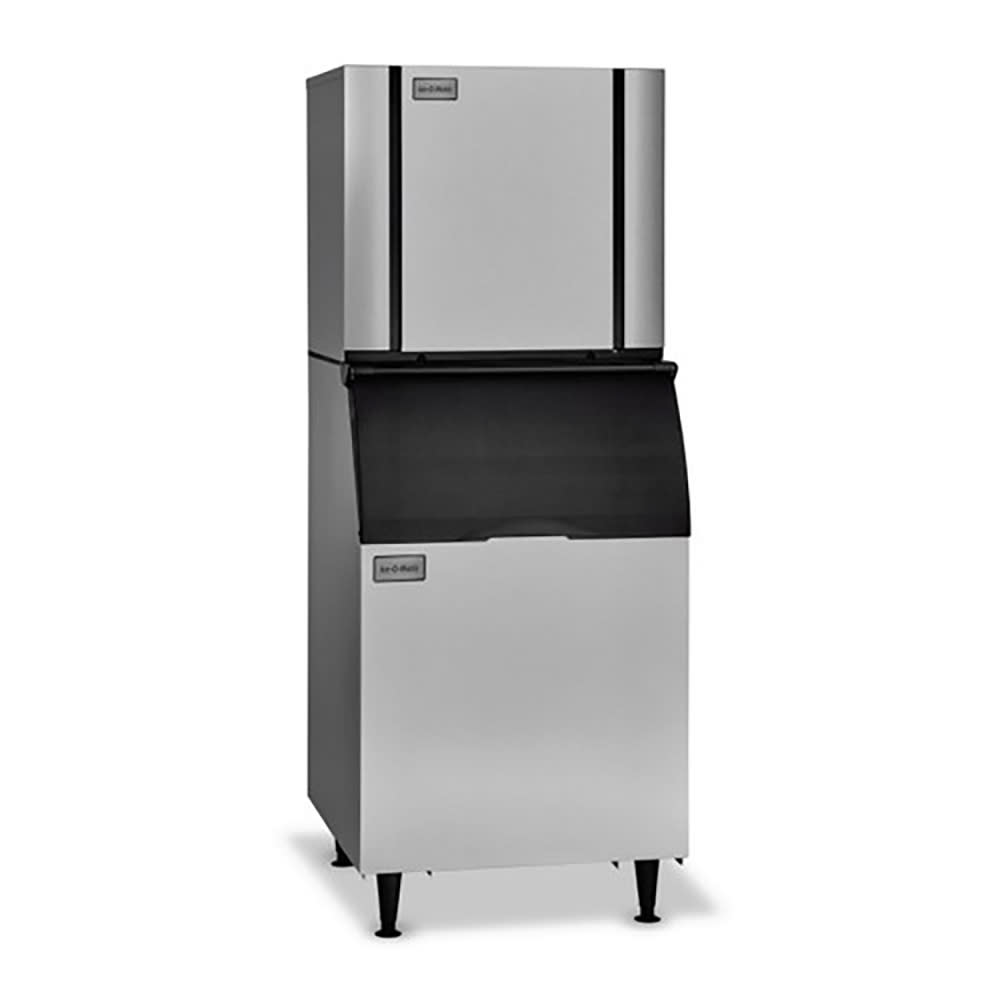

  • Can pair with the Ice-O-Matic B55PS or B700-30 ice bins to save ice (bins sold separately
  • Ambient air temperature range: 50-100 degrees F
  • Incoming water temperature range: 40-100 degrees F
  • Incoming water pressure range: 20-80 PSIG
  • Part of the Elevation series
  • CE approved; cULus listed; NSF certified

Dimensions & Utilities

  • 30.25 in. W x 24.25 in. D x 26.9 in. H
  • 5 kW, 11.8 A
  • 208-230 V/60 Hz/1 ph

Find out more from our ice machines resource article.

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 896 lb production/24 hours at 70°/50° (711 lb at 90°/70°), half-size cubes, Agion® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 11.8 amps, cULus, NSF, CE

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic CIM0836HA Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
Warranty 3-yr. Parts & Labor; 5-yr. Evaporator; 5-yr. Compressor Parts
Series Elevation Series™
Height (in) 26.9
Voltage 208/230
Phase 1
Made in USA Yes
Recommended Bins B25PP, B40PS, B55PS, B110PS, B700-30, B1000-48, B1300-48, B1325-60, B1600-60, CD40030, CD40130, IOD200, IOD250
Product Type Ice Makers & Bins
24 Hr. Production (lbs) 896
Ice Type Half Cube
Width (in) 30.25
Compressor Type Air Cooled
Depth (in) 24.25
Product Ice Machine Head
Cold Water (in) 3/8
Indirect Waste Size (in) 3/4
Amps 11.8
Production Range (lbs/day) 100-999 lb
Width (in) Range 30 - 39
Special Features Agion® Antimicrobial
Special Features Top Air Discharge
Weight 220.00
Ice-O-Matic CIM0836HA Certifications
  • UL
  • NSF
