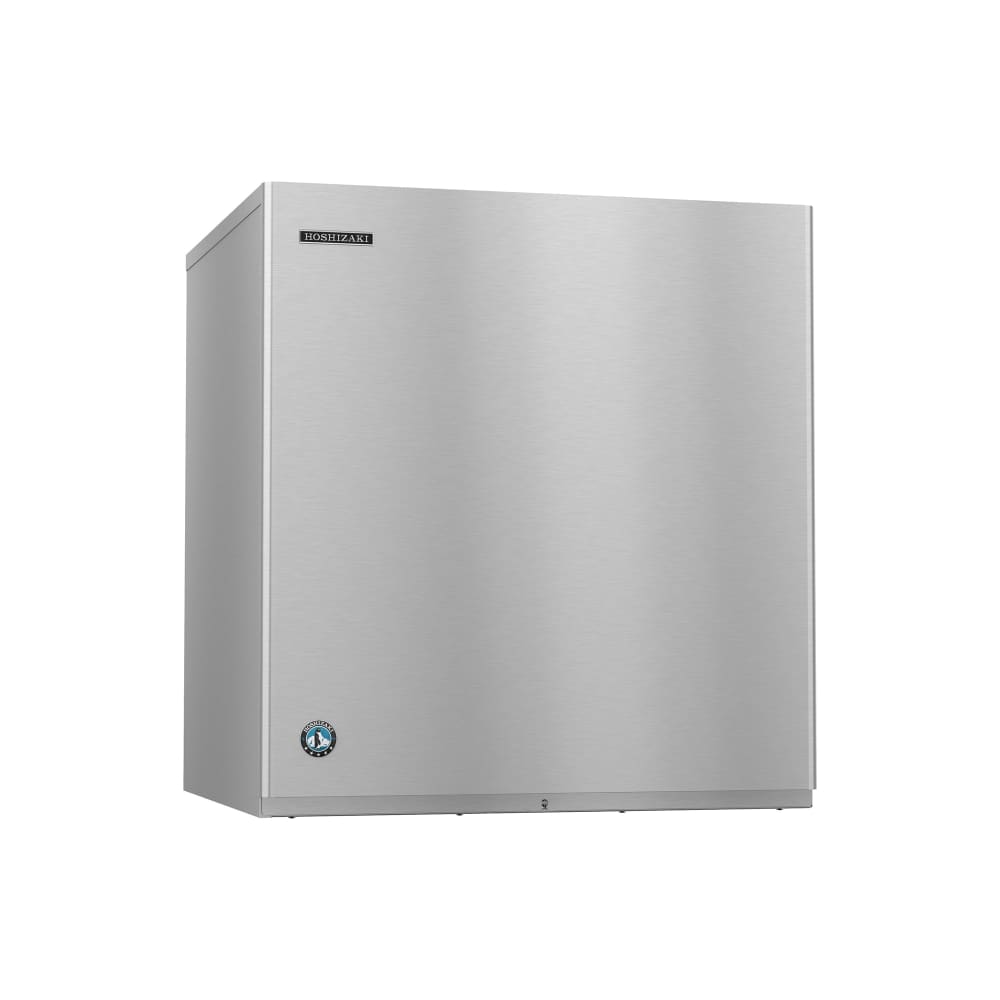

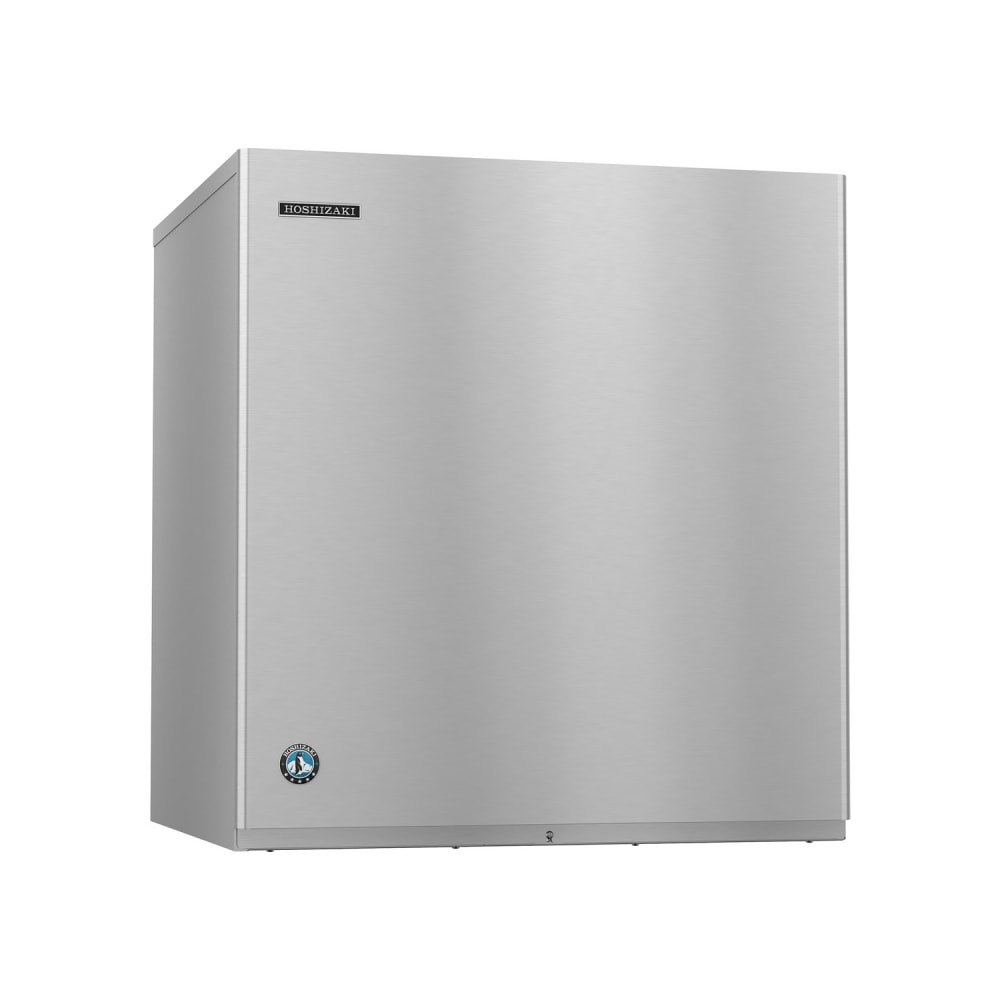

Hoshizaki KM-901MRJZ 30" Crescent Cube Ice Machine Head - 900 lb/24 hr, Remote Cooled, 208-230v/1ph

Under ideal conditions, the Hoshizaki KM901MRJZ ice machine head can produce up to 900 pounds of ice every 24 hours. It produces half-cube, crescent-shaped ice that pairs well with soft drinks. For corrosion and dent resistance, this unit has a stainless steel exterior and evaporator. To deter the growth of bacteria and limit the need for maintenance, the internal components are coated in H-Guard Plus antimicrobial. When maintenance is needed, the EverCheck™ alert system will sound to alert operators.

Part of the KM series, the Hoshizaki KM901MRJZ ice maker head relies on R404A refrigerant to maintain cool temperatures for consistent ice production. To permit proper air circulation, this unit requires a 12-inch clearance on both sides, the rear, and above the unit. Note this unit requires a "Z" series collection bin and remote compressor (both sold separately) to function.

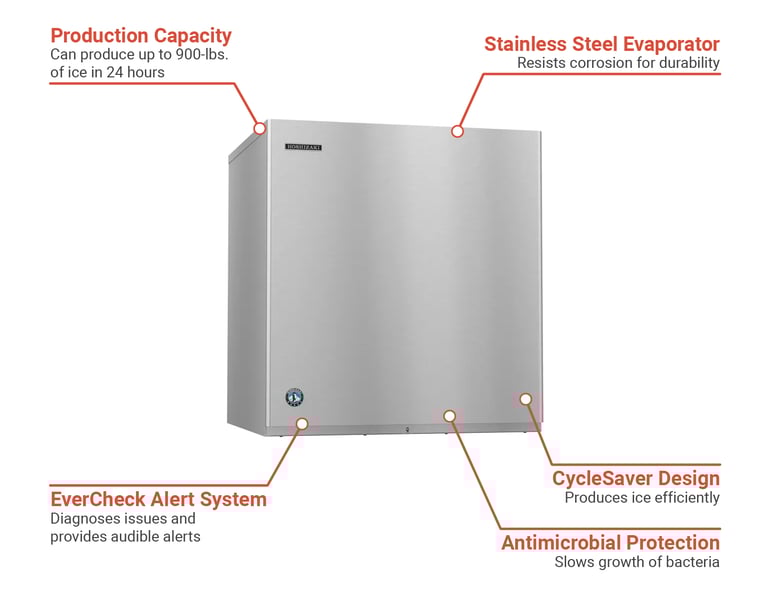

Product Details

• Part of the KM Series
• Remote, air-cooled system
• 900-lb. production per 24-hrs. at 70 degrees F ambient and 50 degrees F incoming water
• 780-lb. production per 24-hrs. at 90 degrees F ambient and 70 degrees F incoming water
• Individual crescent cube ice shape
• Crescent-cube ice size: 1¹/₈ in. W x ¹/₂ in. D x 1¹/₂ in. H
• Removable air filters
• Stainless steel exterior and evaporator
• H-GUARD Plus antimicrobial agent
• EverCheck™ alert system
• CycleSaver™ design
• R404A refrigerant
• Requires remote condenser (sold separately)
• Ice bin sold separately
• 12,500 BTU
• "Z" model ice machine must be paired with "Z" model remote condenser

Optimal Operating Conditions

• Ambient temperature holding range: 45-100 degrees F
• Water temperature holding range: 45-90 degrees F
• Water pressure: 10-113 PSIG
• Clearances: 12-in. on both sides, 12-in. in rear, and 12-in. above
• Water supply requires copper water tubing with a minimum ³/₈-in. inner diameter
• Drain needs hard pipe with a minimum ³/₄-in. inner diameter

Dimensions & Utilities

• 30 in. W x 27³/₈ in. D x 32¹/₂ in. H
• 12 A, 4.75 kW
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Hoshizaki KM-901MRJZ within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 30"W, air-cooled, remote condenser (priced separately), production capacity up to 900 lb/24 hours at 70°/50°(780 lb AHRI certified at 90°/70°), stainless steel finish, R-404A refrigerant, 208-230v/60/1-ph, 12 amps, UL, ENERGY STAR® (always pair “Z” model ice machines with “Z” model remote condenser)

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-901MRJZ Specifications

Documents

Spec Sheet

Warranty

Manual
