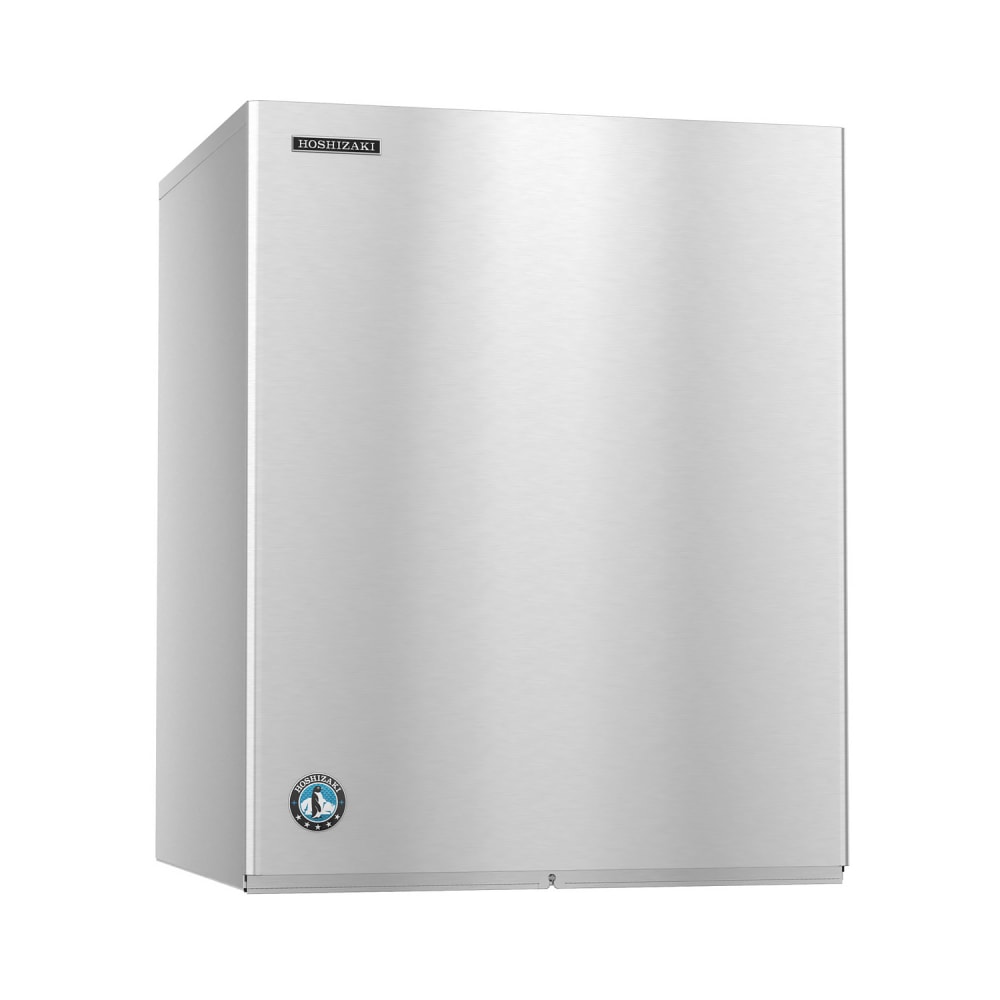

Hoshizaki KM-901MRJZ3 30" Crescent Cube Ice Machine Head - 927 lb/24 hr, Remote Cooled, 208-230v/3ph
Typically ships in 4 - 8 Business Days
$7,150.00 /Each
Contact us for details!
Selected Voltage: 208-230V, 3 Phase
| 208-230V, 3 Phase |
| 208-230V, 1 Phase |
Attention: Order by 04-01-2026 to save before the price increases!
Hoshizaki KM-901MRJZ3 Description
The Hoshizaki KM901MRJZ3 ice machine head measures 30 inches wide by 27 3⁄8 inches deep by 32 1⁄2 inches high. It has a stainless steel exterior and evaporator to resist rust and corrosion. It is designed for compatibility with a remote condenser and an ice bin, both of which are sold separately.
When the ambient temperature is 70 degrees Fahrenheit and the incoming water temperature is 50 degrees Fahrenheit, the Hoshizaki KM901MRJZ3 ice maker head can produce 927 pounds of half-cube crescent-shaped ice every 24 hours. This unit relies on eco-friendly R404A refrigerant to maintain cool temperatures. This item is equipped with H-GUARD Plus antimicrobial agent to ensure the cleanliness of its internal components.
- KM Series
- Remote, air-cooled system
- 927-lb. production per 24-hrs. at 70 degrees F ambient and 50 degrees F incoming water
- 830-lb. production per 24-hrs. at 90 degrees F ambient and 70 degrees F incoming water
- Individual crescent cube ice shape
- Crescent-cube ice size: 1 1⁄8 in. W x 1⁄2 in. D x 1 1⁄2 in. H
- Removable air filters
- Stainless steel exterior and evaporator
- H-GUARD Plus antimicrobial agent
- EverCheck™ alert system
- CycleSaver™ design
- R404A refrigerant
- Requires remote condenser (sold separately)
- Ice bin sold separately
- 12,000 BTU
- "Z" model ice machine must be paired with "Z" model remote condenser
- Ambient temperature holding range: 45-100 degrees F
- Water temperature holding range: 45-90 degrees F
- Water pressure: 10-113 PSIG
- Clearances: 12-in. on both sides, 12-in. in rear, and 12-in. above
- Water supply requires copper water tubing with a minimum 3⁄8-in. inner diameter
- Drain needs hard pipe with a minimum 3⁄4-in. inner diameter
- 30 in. W x 27 3⁄8 in. D x 32 1⁄2 in. H
- 7.1 A, 4.4 kW
- 208-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-901MRJZ3 within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 30"W, air-cooled, remote condenser (priced separately), production capacity up to 927 lb/24 hours at 70°/50°(830 lb AHRI certified at 90°/70°), stainless steel finish, R-404A refrigerant, 208-230v/60/3-ph, 7.1 amps, NSF, UL, ENERGY STAR® (always pair “Z” model ice machines with “Z” model remote condenser)
Watch a video about this product
Hoshizaki KM-901MRJZ3 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 927 |
| Compressor Type | Remote Cooled |
| Depth (in) | 27.38 |
| Height (in) | 32.5 |
| Ice Type | Crescent Cube |
| Phase | 3 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM EDGE |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 30 |
| Weight | 255.00 |
Important Prop 65 information for California residents.
- Hoshizaki KM901MRJ3
Compare to Similar Items
| Attributes |
Hoshizaki KM-901MRJZ3 Hoshizaki KM-901MRJZ3 30" Crescent Cube Ice Machine Head - 927 lb/24 hr, Remote Cooled, 208-230v/3ph Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $7,150.00 / Each | $7,319.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 4 - 8 Business Days | |
| 24 Hr. Production (lb) | 927 | 996 |
| Ice Type | Crescent Cube | Full Cube |
| Compressor Type | Remote Cooled | Remote Cooled |
| Width (in) | 30 | 30 |
| Rating | Best | Best |
| Voltage | 208/230 | 208/230 |
| Series | KM EDGE | Prodigy ELITE® |
| Refrigerant | R404A | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
