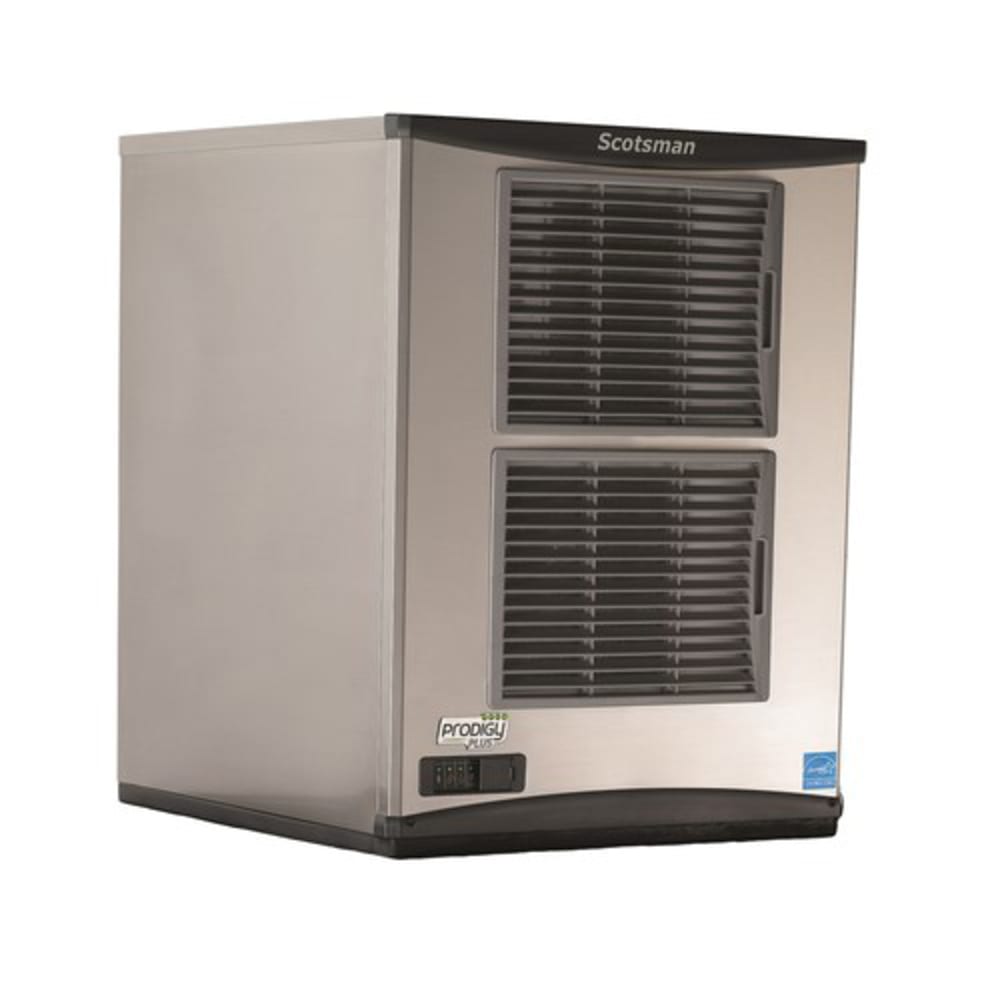

Scotsman NS0922AX-32 22" Prodigy Plus® Nugget Ice Machine Head - 956 lb/24 hr, Air Cooled, 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $19,852.00
$8,139.00 /Each
Selected Ice Type: Soft Nugget
Selected Voltage: 208-230V, 1 Phase
| 208-230V, 1 Phase |
| 115V, 1 Phase |
Scotsman NS0922AX-32 Description
A great choice for environments serving many customers, the Scotsman NS0922AX-32 ice machine head produces soft, chewy nugget ice. If operating temperatures are low enough, this unit can create 956 pounds of ice each day, but it's more likely to produce 784 pounds daily if ambient temperatures are higher. The condenser is air cooled, uses R290 refrigerant, and can be installed easily because it's self-contained, reducing the risk of cross contamination.
The Scotsman NS0922AX-32 nugget ice maker head is protected with AgION™ antimicrobial to slow the growth of bacteria and reduce the spread of germs when many employees use it. To clean the unit, employees simply press a button; its bearings require no maintenance for continued operation. This ice maker has a unit-specific QR code that can be scanned to reveal important information, such as service manuals and warranty history.
- Part of the Prodigy Plus® series
- 956-lb. maximum daily ice production
- 784-lb. AHRI-certified daily ice production
- Makes nugget ice

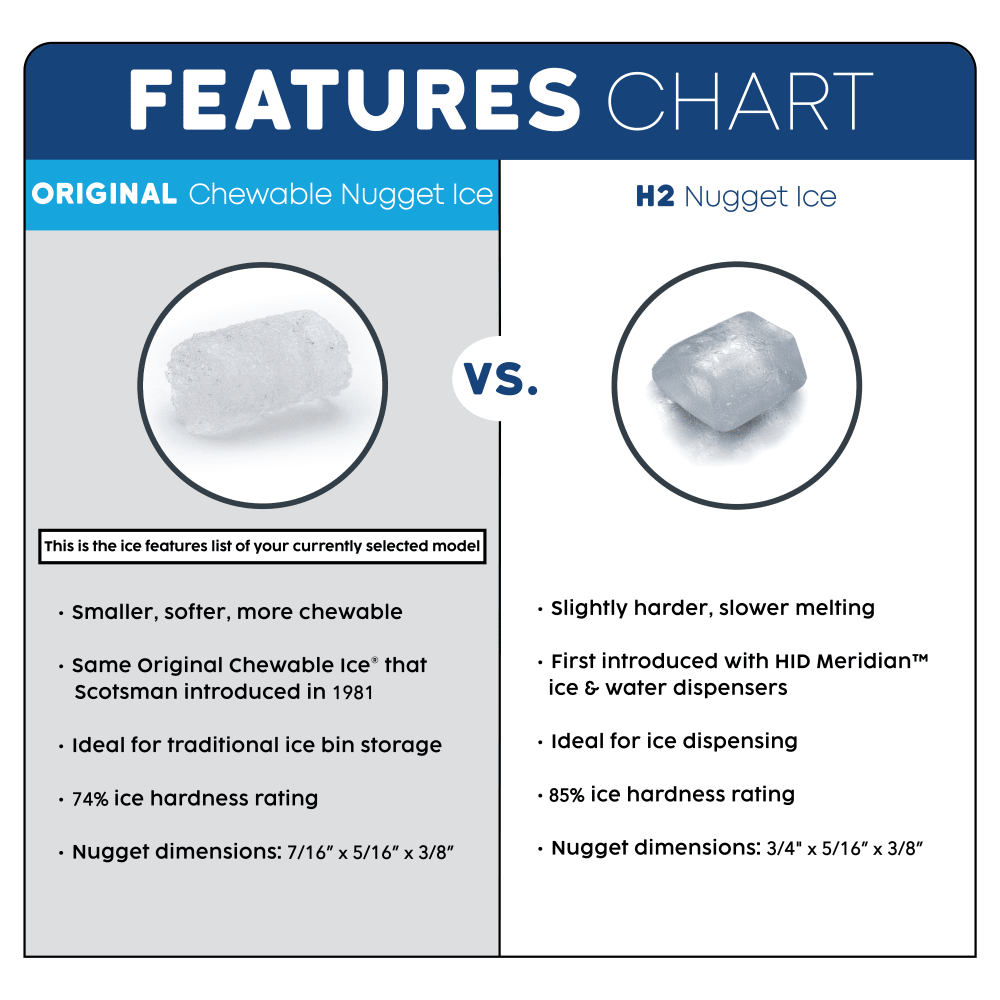

- Ice dimensions: 7⁄16 in. x 5⁄16 in. x 3⁄8 in.
- Self-contained, air-cooled condenser
- Operates with R290 refrigerant
- Unit-specific QR code displays service manuals
- Rust-resistant stainless steel auger and evaporator
- Stainless steel finish provides strength
- Cleans with 1 touch
- AgION antimicrobial agent
- Sealed, maintenance-free bearings
- AutoAlert™ indicating lights
- Ideal incoming air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 10,500-BTU heat transfer capacity
- 22 9⁄10 in. W x 24 in. D x 27 in. H
- 11.9 A
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman NS0922AX-32 within the 48 contiguous states.
From The Manufacturer
Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, air-cooled, self-contained condenser, production capacity up to 956 lb/24 hours at 70°/50° (707 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 208-230v/60/1-ph, NSF, cULus, ENERGY STAR®
Watch a video about this product
Scotsman NS0922AX-32 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 956 |
| Also Known As | NS0922A-32 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 27 |
| Ice Type | Nugget |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy Plus® |
| Special Features | Sealed, Maintenance-Free Bearings |
| Special Features | The Original Chewable Ice® |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 210.00 |
Important Prop 65 information for California residents.
- Scotsman N0922A32A
Compare to Similar Items
| Attributes |
Scotsman NS0922AX-32 Scotsman NS0922AX-32 22" Prodigy Plus® Nugget Ice Machine Head - 956 lb/24 hr, Air Cooled, 208-230v/1ph Current Item |
Hoshizaki F-1022MAK-C Hoshizaki F-1022MAK-C 22" Nugget Ice Machine Head - 865 lb/24 hr, Air Cooled, 115v/1ph |
Manitowoc Ice RNF1100A Manitowoc Ice RNF1100A 30" Nugget Ice Machine Head - 1078 lb/24 hr, Air Cooled, 208-230v/1ph |
|
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $8,139.00 / Each | $8,880.00 / Each | $7,875.00 / Each | $8,683.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | IN STOCK: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Ships in 1 Business Day |
| 24 Hr. Production (lb) | 956 | 865 | 1053 | 1078 |
| Ice Type | Nugget | Nugget | Nugget | Nugget |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 22 | 22 | 21 | 30 |
| Rating | Best | Best | Better | Best |
| Voltage | 208/230 | 115 | 208/230 | 208/230 |
| Series | Prodigy Plus® | Slim-Line | Pearl Ice® | |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R404A | R404A |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Compressor Parts | 3-year Parts & Labor 5-year Compressor Parts; 3-year Compressor Labor |
