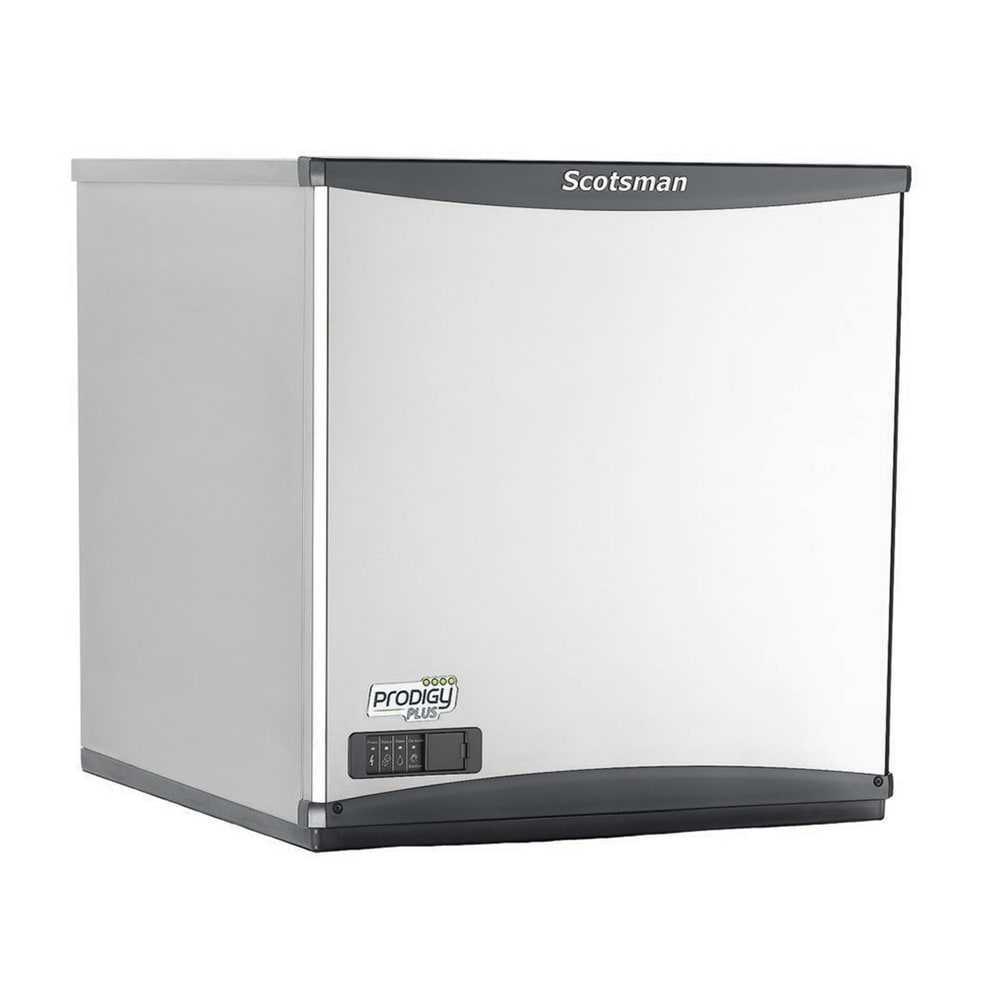

Scotsman NH0922AX-32 22" Prodigy Plus® Nugget Ice Machine Head - 862 lb/24 hr, Air Cooled, 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $19,852.00
$8,139.00 /Each
Selected Ice Type: Hard Nugget
Selected Voltage: 208-230V, 1 Phase
| 208-230V, 1 Phase |
| 115V, 1 Phase |
Scotsman NH0922AX-32 Description
This Scotsman NH0922AX-32 nugget ice machine produces 862 pounds of ice per day when the air is 70 degrees and incoming water is 50 degrees. Ice production is possible through the unit’s self-contained, air-cooled refrigeration system. Integral components, such as the evaporator, assist with circulating R290hydrocarbon refrigerant, while the auger enables effective ice dispensing. This refrigeration system is fully sealed, reducing airborne contaminants for quality ice. Operational status is simple to monitor with the AutoAlert™ indicator lights, which signals when it’s time to descale, sanitize, and more.
This Scotsman NH0922AX-32 Prodigy® Plus nugget ice machine head is 22 9⁄10 inches wide and fits most Scotsman modular bins. It’s constructed with a stainless steel finish, which offers corrosion resistance and durability. Other surface parts are protected with the AgION™ antimicrobial treatment to inhibit mold and other contaminants. The sealed, maintenance-free bearing support expands the lifespan of the design, and this nugget machine features a QR code for quick access to service manuals, cleaning guides, and warranty histories.
- Prodigy Plus series
- 8662-lb. production capacity per day
- Sealed, maintenance-free bearings
- AutoAlert indicating lights
- AgION antimicrobial protection guards on internal surfaces
- Stainless steel construction
- QR code allows quick access to service manuals, cleaning guides, and warranty history
- Air-cooled, self-contained condenser
- R290 refrigerant
- Stainless steel auger and evaporator
- Front-breathing design doesn't require side clearance
- Sealed system minimizes airborne contamination
- 22 9⁄10 in. W x 24 in. D x 27 in. H
- 11.9 A
- 208 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman NH0922AX-32 within the 48 contiguous states.
From The Manufacturer
Prodigy Plus® Ice Maker, nugget style, H2 Nugget Ice, air-cooled, self-contained condenser, production capacity up to 862 lb/24 hours at 70°/50° (695 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 208-230v/60/1-ph,NSF, cULus
Scotsman NH0922AX-32 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 862 |
| Also Known As | NH0922A-32 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 27 |
| Ice Type | Nugget |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy Plus® |

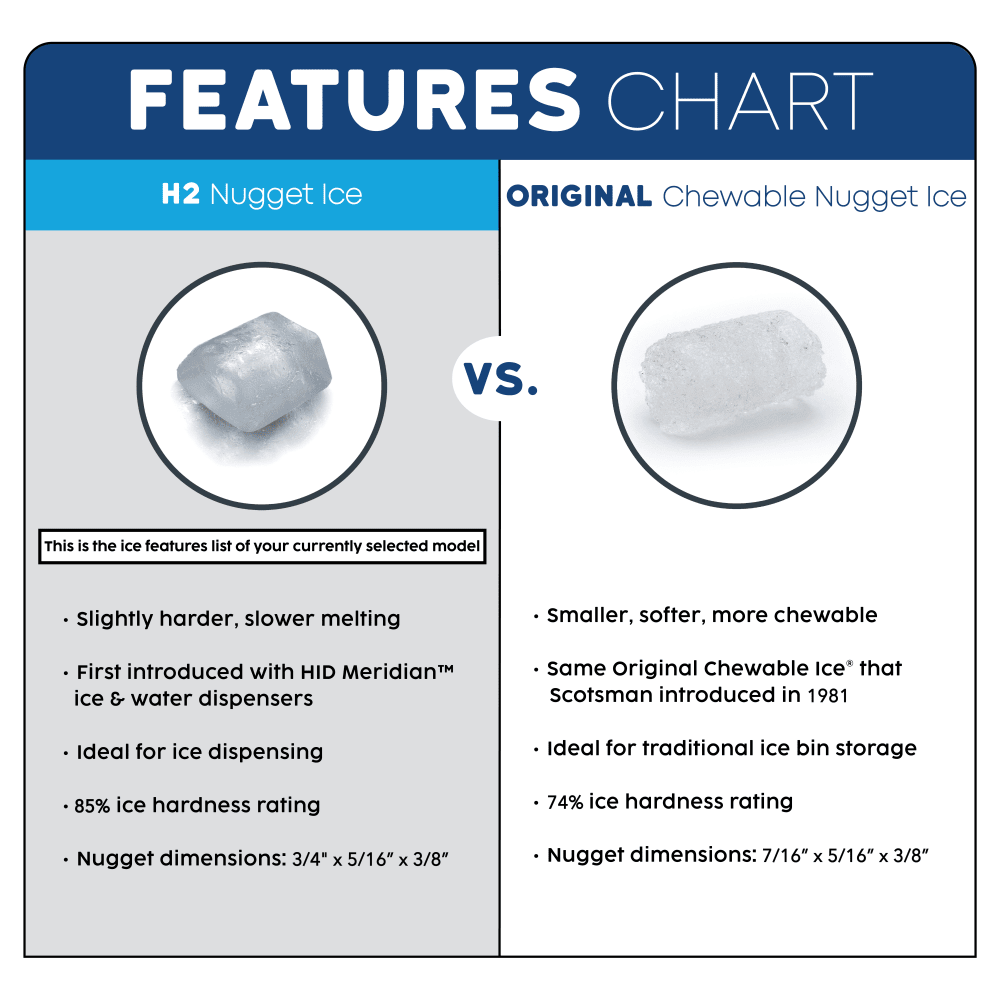

| Special Features | H2 Harder Nugget Ice |
| Special Features | Sealed, Maintenance-Free Bearings |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 210.00 |
