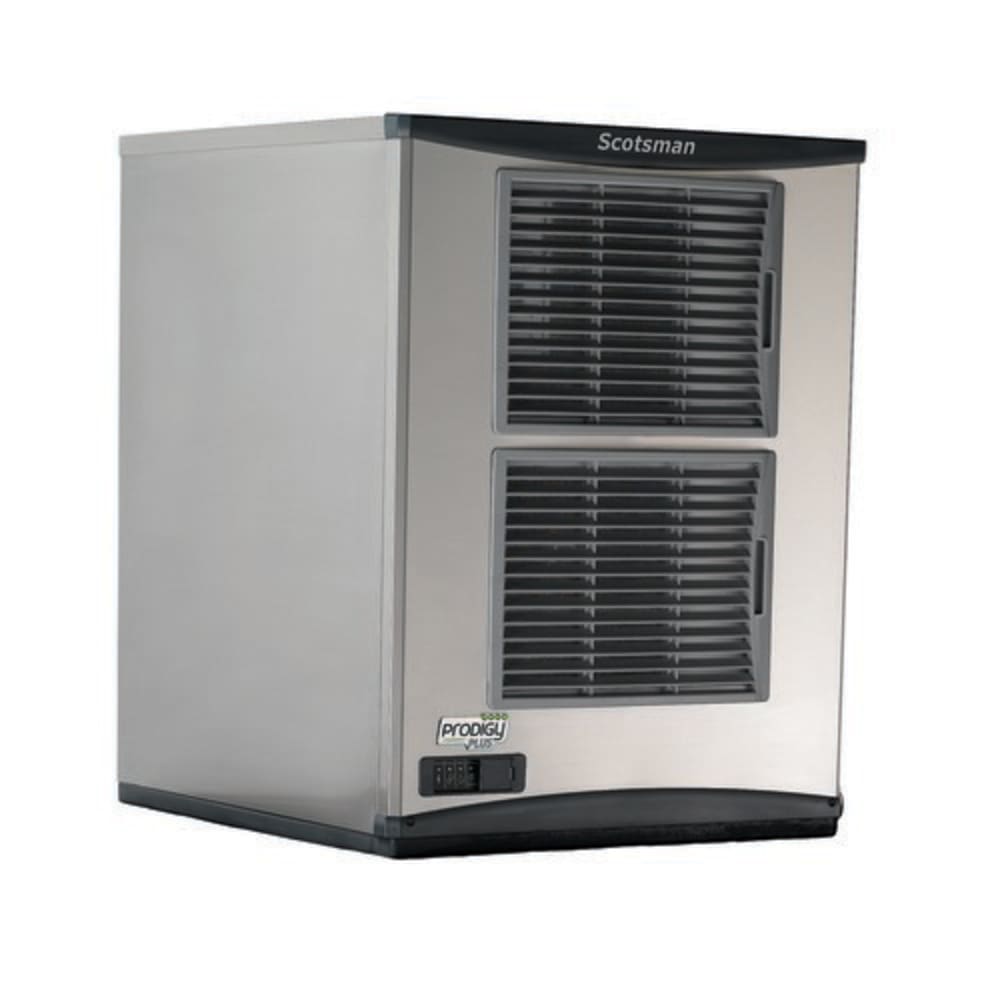

Scotsman NH0922A-1 22" Prodigy Plus® Nugget Ice Machine Head - 952 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $19,727.00
$8,088.00 /Each
Selected Ice Type: Hard Nugget
Selected Voltage: 115V, 1 Phase
| 115V, 1 Phase |
| 208-230V, 1 Phase |
Selected Compressor Type: Air Cooled
Scotsman NH0922A-1 Description
To minimize its environmental impact, the Scotsman NH0922A-1 nugget ice machine head uses R-404A refrigerant. This air-cooled machine head is part of the Prodigy Plus® series, including Prodigy Plus standard features such as a front-facing air filter that simplifies maintenance, AutoAlert™ indicator lights, and sealed, maintenance-free bearings that reduce downtime. This unit is equipped with a stainless steel auger and evaporator, resisting rust and corrosion.
Warranty information, manuals, parts lists, and more information regarding the Scotsman NH0922A-1 nugget ice machine head are available using the unit-specific QR code located on the front of the head, and staff can easily access the interior of the head using the self-aligning front panel. To provide protection between cleaning, the food zone is constructed with antimicrobial materials, inhibiting the growth of mold. In ideal conditions, this head can produce as much as 952 pounds of H2 nugget ice per day. An ice bin isn't included with this head and must be purchased separately.
- Part of the Prodigy Plus series
- Air-cooled system
- 952-lb. maximum daily ice production
- 740-lb. AHRI-certified ice production

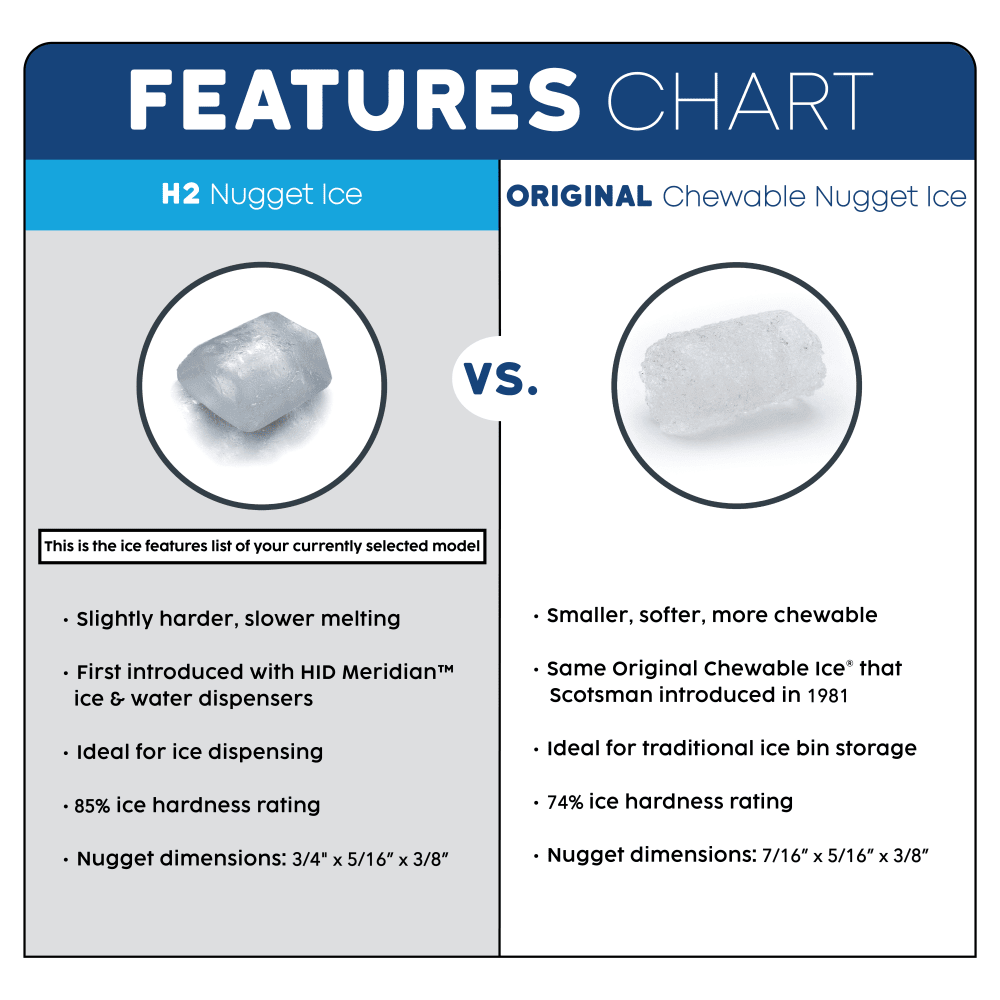

- Produces H2 nugget ice
- Nugget ice size: 3⁄4 in. x 5⁄16 in. x 3⁄8 in.
- Auger and evaporator made of durable stainless steel
- AutoAlert LED lights display common errors
- QR code printed on the unit for access to manuals and guides
- Front-located air filter
- Smart-Board™ simplifies self-diagnosis
- AgION™ guards offer antimicrobial protection
- Airborne contaminants limited by sealed refrigeration system
- Reduces environmental impact with R-404A refrigerant
- Head only, ice bin not included
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 10,500-BTU heat transfer capacity
- 22 7⁄10 in. W x 24 91⁄100 in. D x 27 in. H
- 16.7 A, 4.01 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman NH0922A-1 within the 48 contiguous states.
From The Manufacturer
Prodigy Plus® Ice Maker, nugget style, H2 Nugget Ice, air-cooled, self-contained condenser, production capacity up to 952 lb/24 hours at 70°/50° (740 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 16.7 amps, NSF, cULus, engineered and assembled in USA
Watch a video about this product
Scotsman NH0922A-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 952 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 27 |
| Ice Type | Nugget |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | Prodigy Plus® |
| Special Features | H2 Harder Nugget Ice |
| Special Features | Sealed, Maintenance-Free Bearings |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 210.00 |
