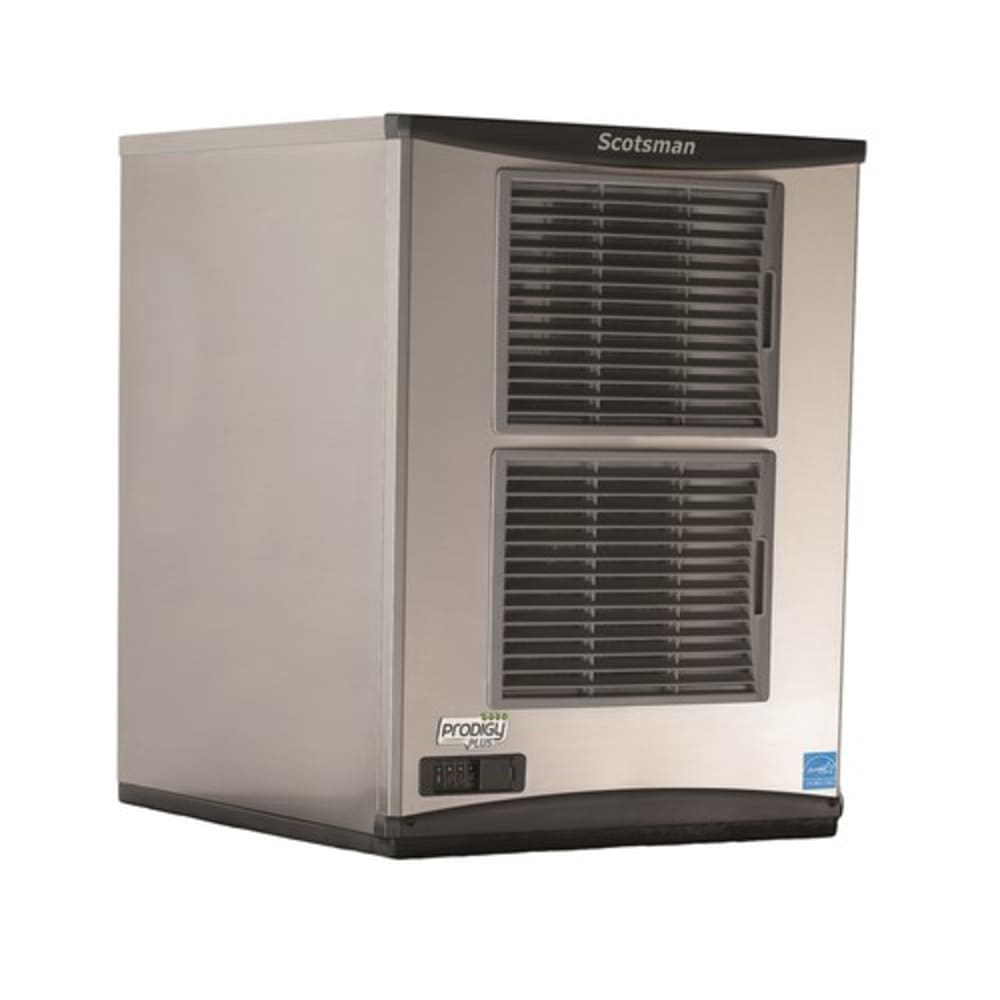

Scotsman NS0922A-1 22" Prodigy Plus® Nugget Ice Machine Head - 956 lb/24 hr, Air Cooled, 115v/1ph

The Scotsman NS0922A-1 Prodigy Plus® nugget ice machine head is designed to be paired with a dispenser or storage bin, which must be purchased separately. The machine produces as much as 956 pounds of ice at 70 degrees Fahrenheit or 784 pounds of ice at 90 degrees Fahrenheit; creating Original Chewable Ice®, which displaces the liquid to lower drink costs. The ice machine head is air cooled with fans that blow air over components to remove heat; this configuration is simple to install and maintain.

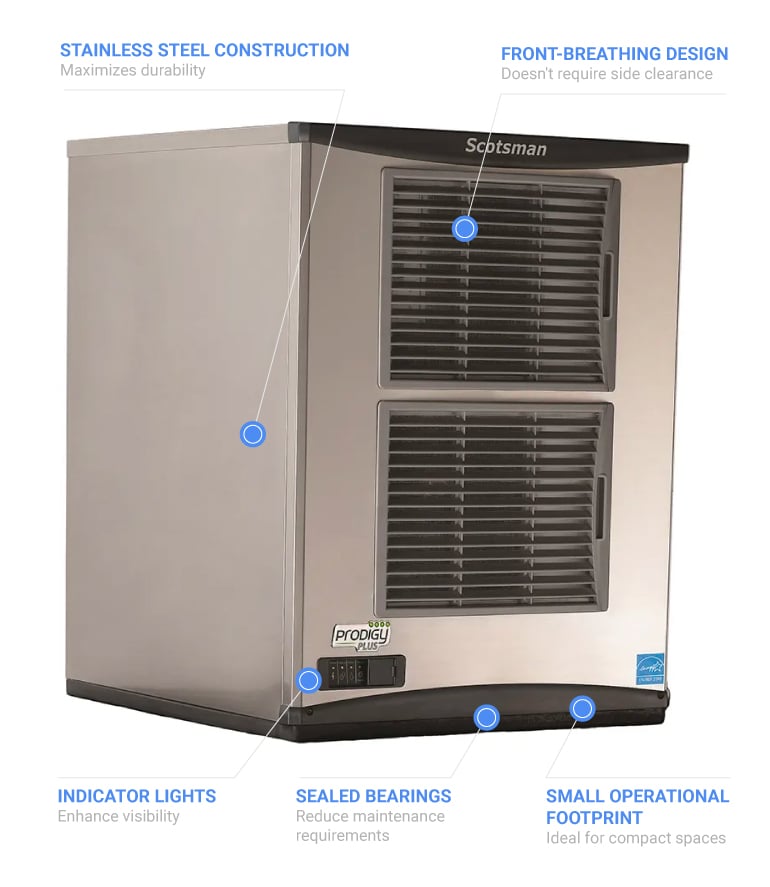

To reduce maintenance requirements and extend its service life, the Scotsman NS0922A-1 Prodigy Plus ice maker features sealed, maintenance-free bearings. For maximum durability, its evaporator and auger are made of heavy-duty stainless steel, and to enhance visibility and provide service notifications, it's designed with AutoAlert™ indicator lights. Because it measures 22 inches wide by 24 inches deep by 27 inches tall, this unit's small operational footprint accommodates compact spaces. Operators can use its machine-specific QR code to access cleaning guides, service manuals, and warranty history, and because the ice maker breathes from its front, side clearance isn't required.

Product Details

• Part of the Prodigy Plus series
• Produces chewable nugget ice
• 956-lb. maximum daily ice production
• 784-lb. AHRI-certified daily ice production
• Air cooled
• Sealed, maintenance-free bearings extend service life
• Durable stainless steel evaporator and auger
• AutoAlert indicator lights
• Compact footprint
• Unit-specific QR code for access to cleaning guides, service manuals, and warranty history
• Front-breathing configuration doesn't require side clearance
• Antimicrobial protection minimizes growth of bacteria and fungi between cleanings
• Sealed refrigeration system minimizes contamination
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG

Dimensions & Utilities

• 22 in. W x 24 in. D x 27 in. H
• 16.7 A, 3.65 kW
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Scotsman NS0922A-1 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, air-cooled, self-contained condenser, production capacity up to 956 lb/24 hours at 70°/50° (784 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 16.7 amps, NSF, cULus, ENERGY STAR®, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman NS0922A-1 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.
