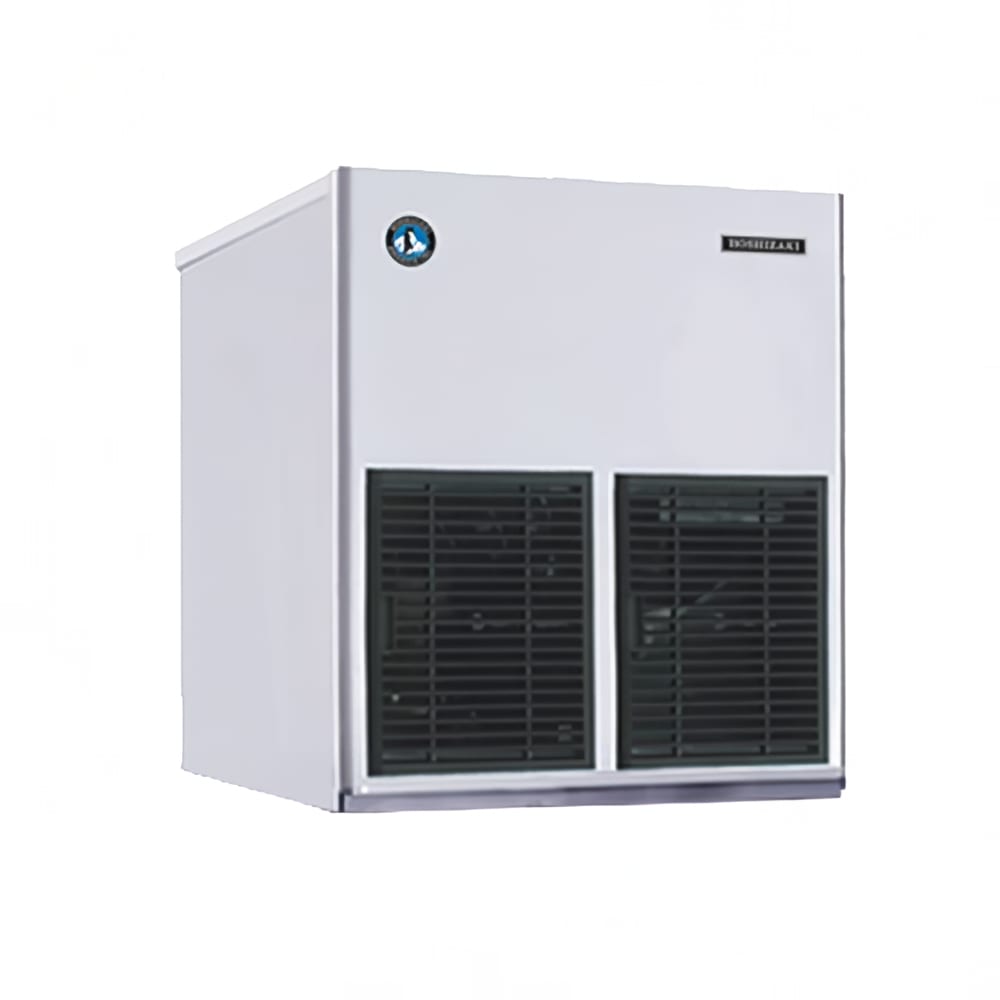

Hoshizaki F-1022MAK-C 22" Nugget Ice Machine Head - 865 lb/24 hr, Air Cooled, 115v/1ph
IN STOCK: Ships in 1 Business Day
Less Than 5 in Stock, Order Soon!
$8,880.00 /Each
Contact us for details!
Attention: Order by 04-01-2026 to save before the price increases!
Hoshizaki F-1022MAK-C Description
The Hoshizaki F-1022MAK-C ice machine head has an air-cooled condenser and can make 865 pounds of ice every 24 hours. Ideal for dispensers and soft drinks, the unit produces the nugget ice that many customers prefer. Every 2 hours, CleanCycle24® technology removes sediment from the ice. When paired with a bin (sold separately), the unit uses an infrared sensor to measure the bin’s ice level. An antimicrobial agent called H-GUARD Plus™ is built into the components to reduce bacteria growth in the Hoshizaki F-1022MAK-C ice machine head.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Air-cooled condensing unit
- 865-lb. maximum daily ice production
- Makes cubelet ice
- CleanCycle24 technology flushes ice every 2 hrs. to remove sediment
- Bin control uses an infrared beam to sense ice level in the bin and stop production when it is full
- H-GUARD Plus antimicrobial agent minimizes bacteria growth
- R290 refrigerant
- Stainless steel exterior is heavy duty and cleans quickly
- Required ambient air range: 45-100 degrees F
- Required incoming water range: 45-90 degrees F
- Ice bin sold separately
- 8,700 BTU
- 15.2 A, 4.57 kW
- 115 V/60 Hz/1 ph
- Ice dimensions: 0.75 in. x 0.75 in. x 0.375 in. x 0.5 in.
- Overall dimensions: 22 in. W x 24 in. D x 26 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki F-1022MAK-C within the 48 contiguous states.
From The Manufacturer
Slim-Line Air-Cooled Modular Cubelet Ice Machine, produces up to 865 lb of cubelet ice per 24 hours at 70°F air / 50°F water, stainless steel exterior, stainless steel auger with greaseless bearing, ultrasonic bin control, hourly flush cycle for cleaner ice, Advanced CleanCycle24™ design, R290 hydrocarbon refrigerant, ambient operating range 45–100°F, water temperature range 45–90°F, water pressure 10–113 PSIG, side-by-side installation capable (two units in 44" width), 115V/60/1 electrical connection, compatible with multiple Hoshizaki ice storage bins
Watch a video about this product
Hoshizaki F-1022MAK-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 865 |
| Also Known As | FD-1002MAJ-C |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 26 |
| Ice Type | Nugget |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Slim-Line |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 22 |
| Weight | 210.00 |
Important Prop 65 information for California residents.
- Hoshizaki F1001MAJC
Compare to Similar Items
| Attributes |
Hoshizaki F-1022MAK-C Hoshizaki F-1022MAK-C 22" Nugget Ice Machine Head - 865 lb/24 hr, Air Cooled, 115v/1ph Current Item |
Manitowoc Ice RNF1100A Manitowoc Ice RNF1100A 30" Nugget Ice Machine Head - 1078 lb/24 hr, Air Cooled, 208-230v/1ph |
||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $8,880.00 / Each | $8,139.00 / Each | $6,291.00 / Each | $8,683.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | IN STOCK: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Ships in 1 Business Day |
| 24 Hr. Production (lb) | 865 | 956 | 740 | 1078 |
| Ice Type | Nugget | Nugget | Nugget | Nugget |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 22 | 22 | 21 | 30 |
| Rating | Best | Best | Better | Best |
| Voltage | 115 | 208/230 | 115 | 208/230 |
| Series | Slim-Line | Prodigy Plus® | Pearl Ice® | |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R404A | R404A |
| Warranty | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Compressor Parts | 3-year Parts & Labor 5-year Compressor Parts; 3-year Compressor Labor |
