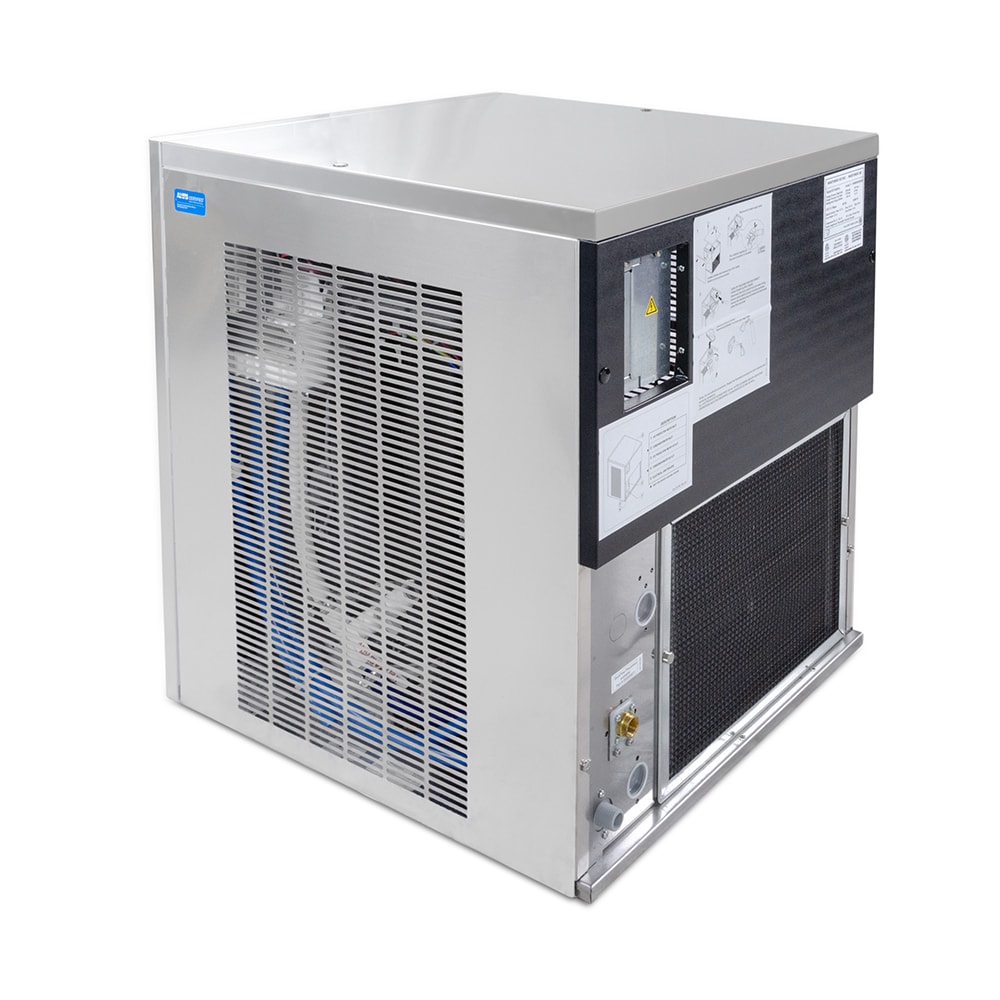

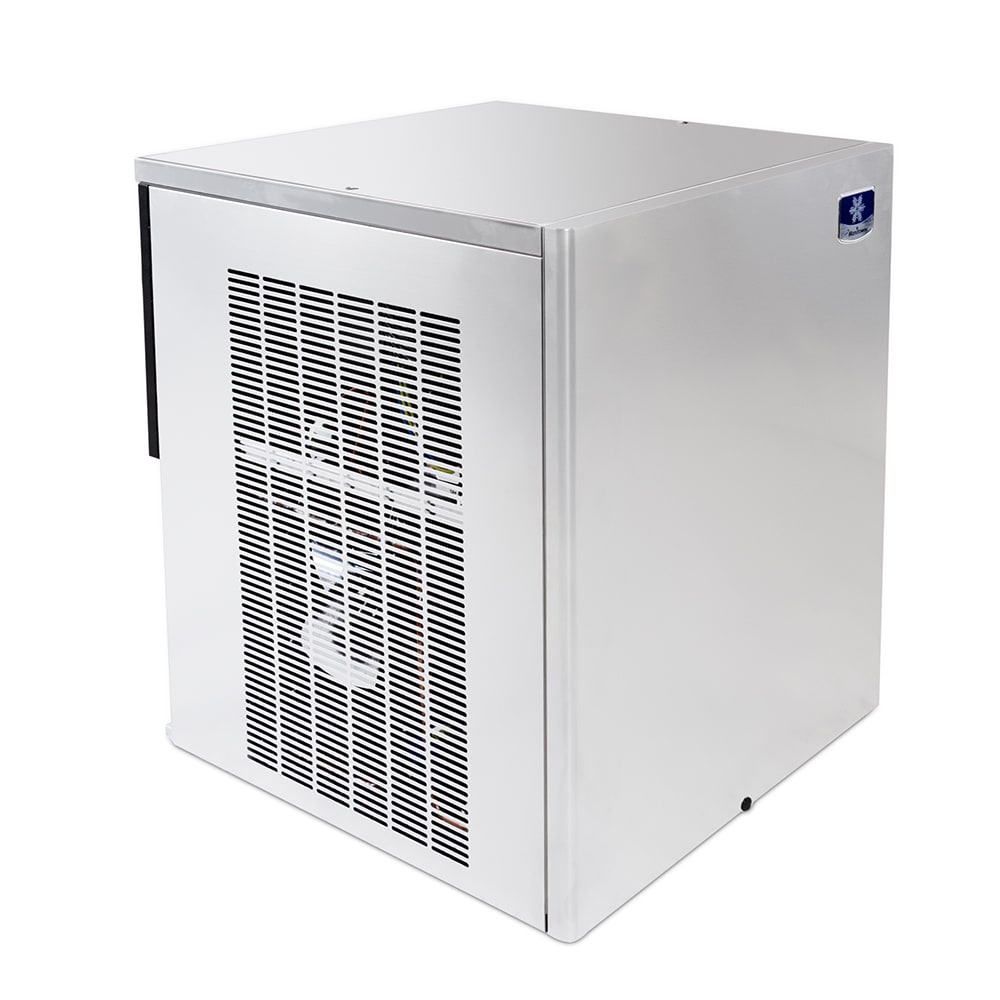

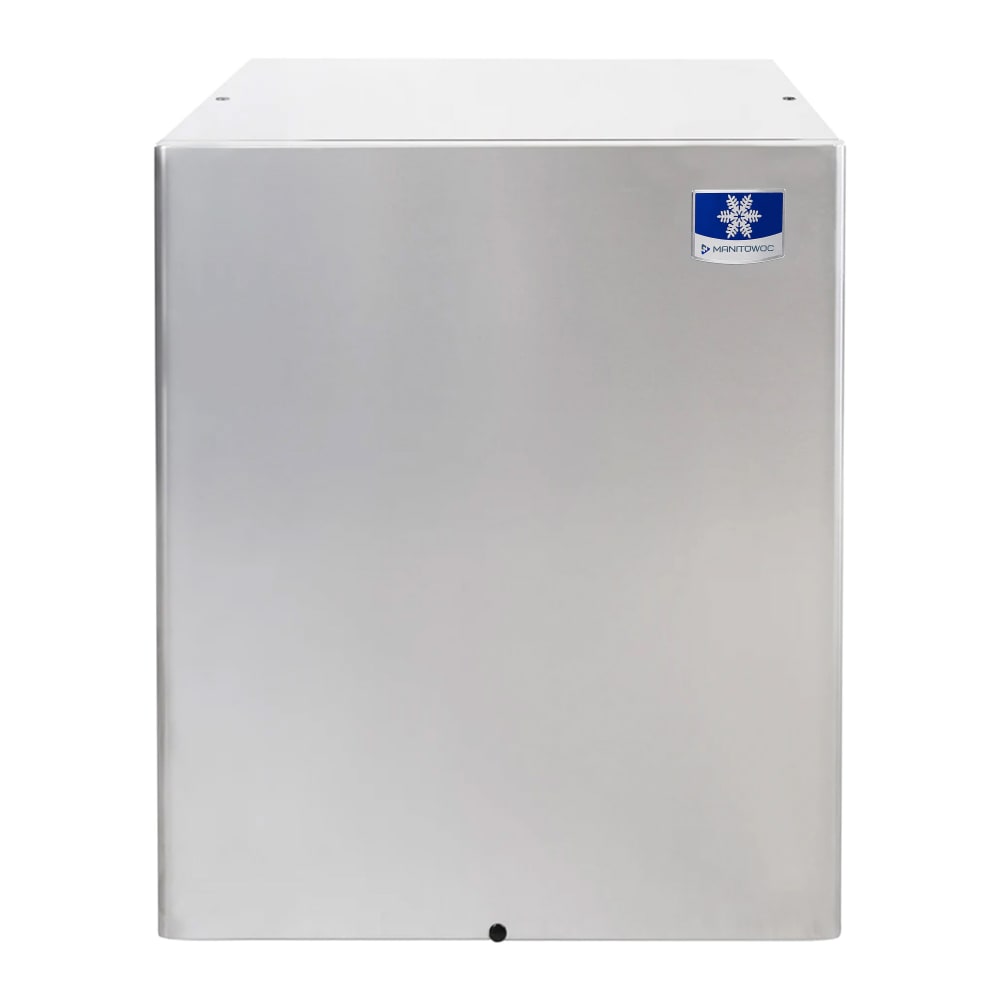

Manitowoc Ice RNF1100A 30" Nugget Ice Machine Head - 1078 lb/24 hr, Air Cooled, 208/230v/1ph
$7,574.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
Manitowoc Ice IYT0750A
30" Indigo NXT™ Half Cube Ice Machine Head - 715 lb/24 hr, Air Cooled, 208-230v/1ph
Manitowoc Ice IYT0450W
30" Indigo NXT™ Half Cube Ice Machine Head - 470 lb/24 hr, Water Cooled, 115v
Manitowoc Ice IDT1200A
30" Indigo NXT™ Full Cube Ice Machine Head - 1196 lb/24 hr, Air Cooled, 208/230v/1ph
Manitowoc Ice IYT0900A
30" Indigo NXT™ Half Cube Ice Machine Head - 865 lb/24hr, Air Cooled, 208-230v/1ph
Manitowoc Ice IDT0900A
30" Indigo NXT™ Full Cube Ice Machine Head - 851 lb/24 hr, Air Cooled, 208-230v/1ph
Manitowoc Ice IDT0450W
30" Indigo NXT™ Full Cube Ice Machine Head - 430 lb/24 hr, Water Cooled, 115v
Manitowoc Ice IYF0600C
30" Indigo NXT™ Half Cube Ice Machine Head - 634 lb/24 hr, Remote Cooled, 115v
Manitowoc Ice RNF1100A Description

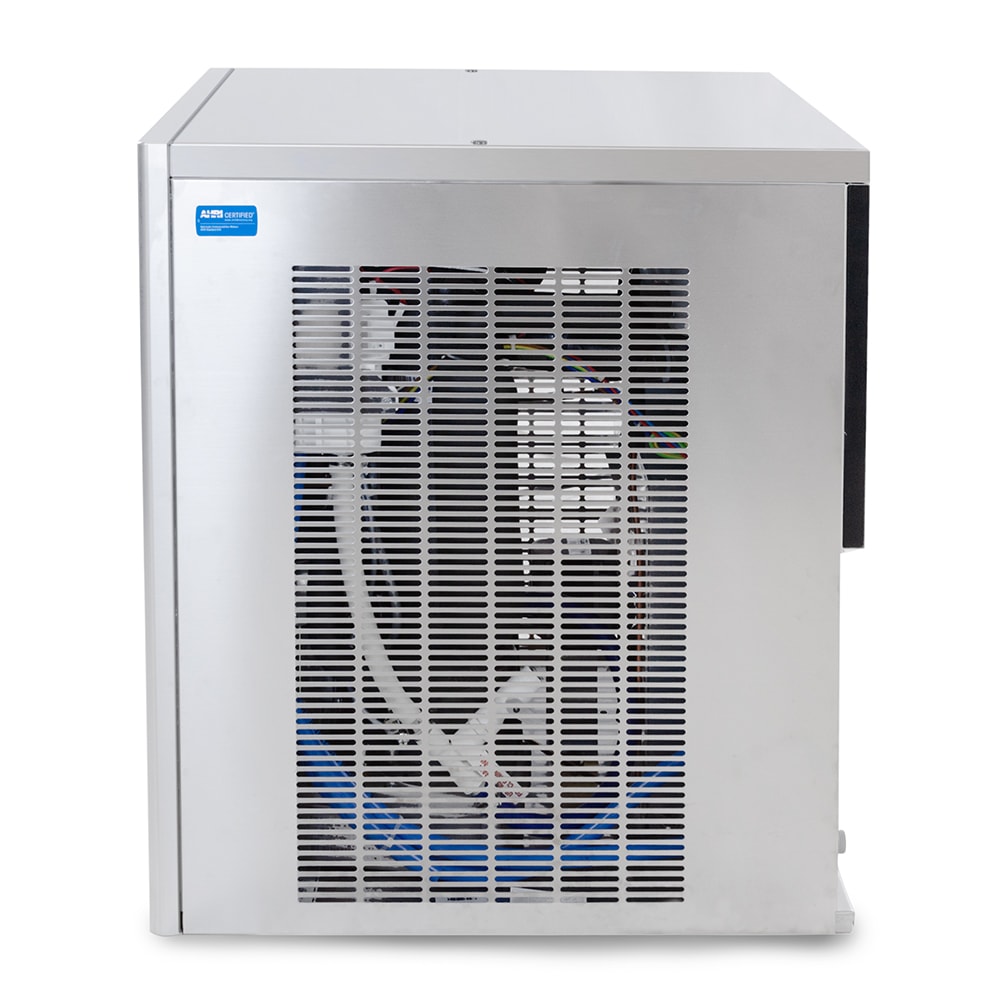

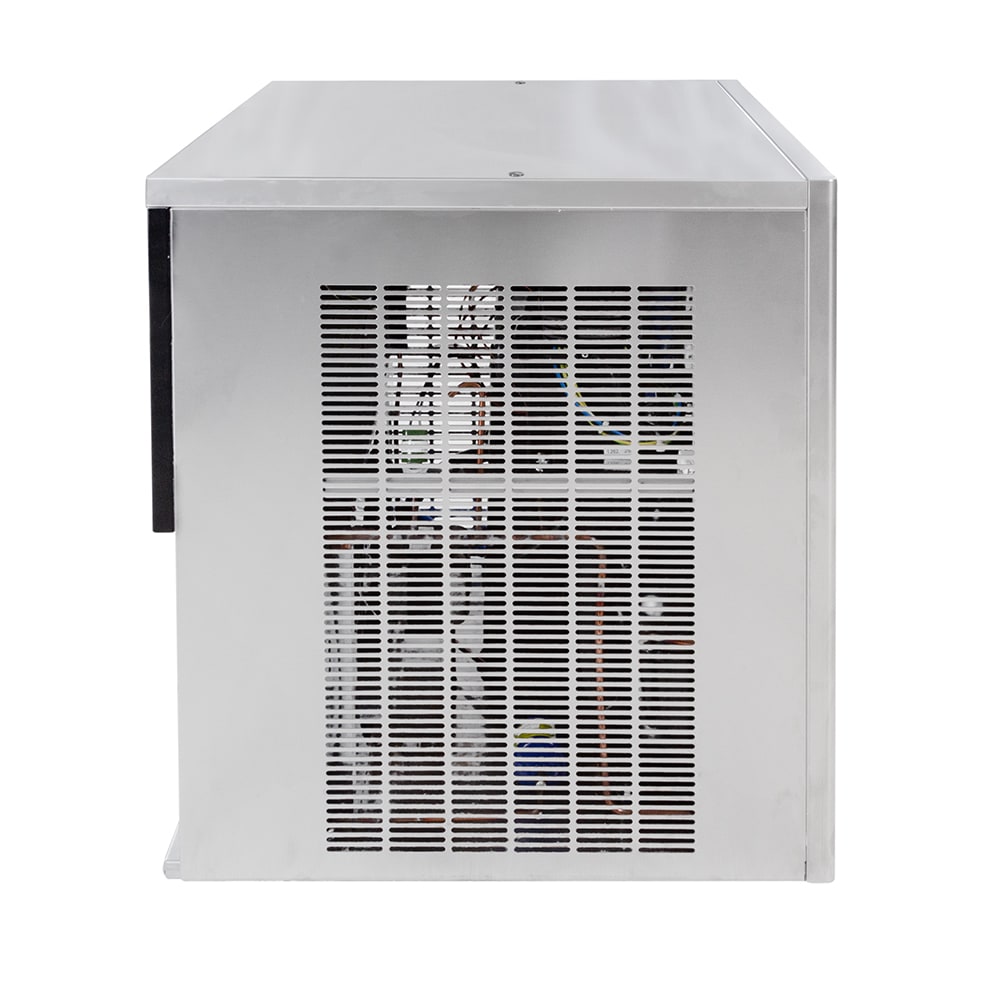

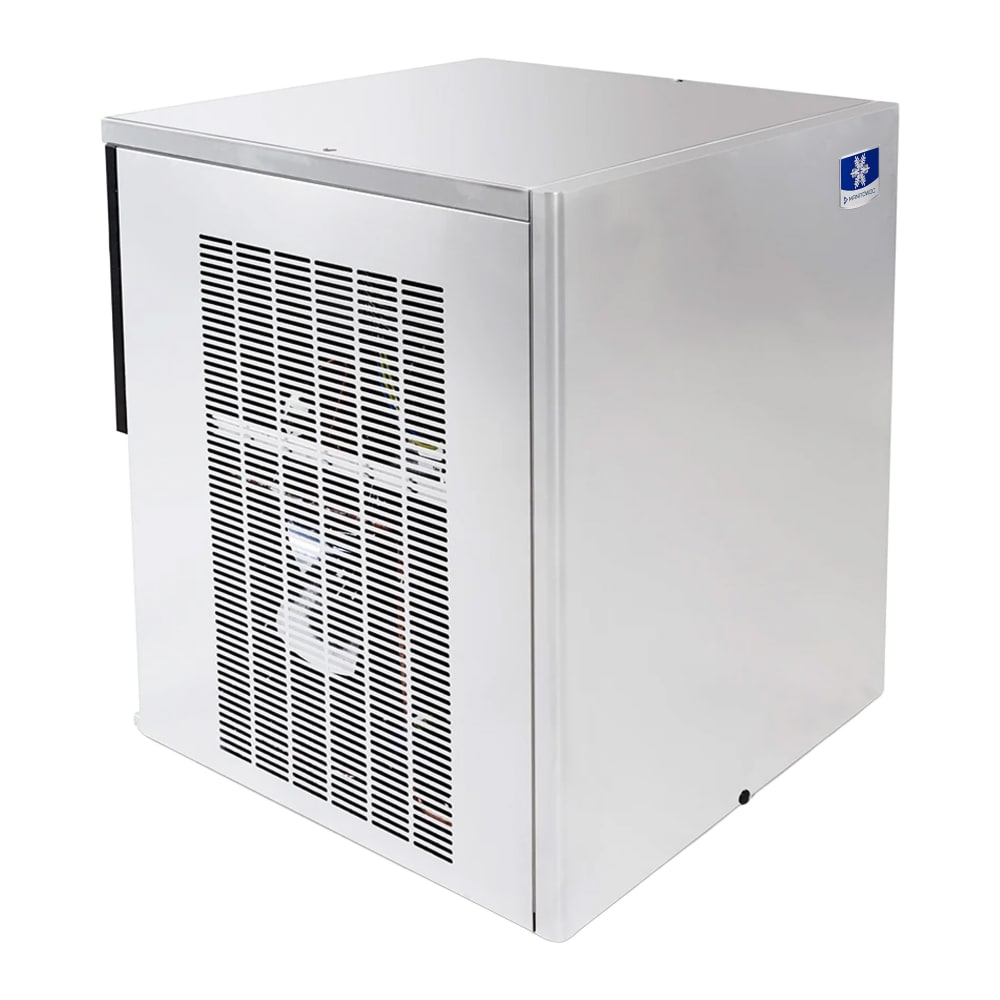

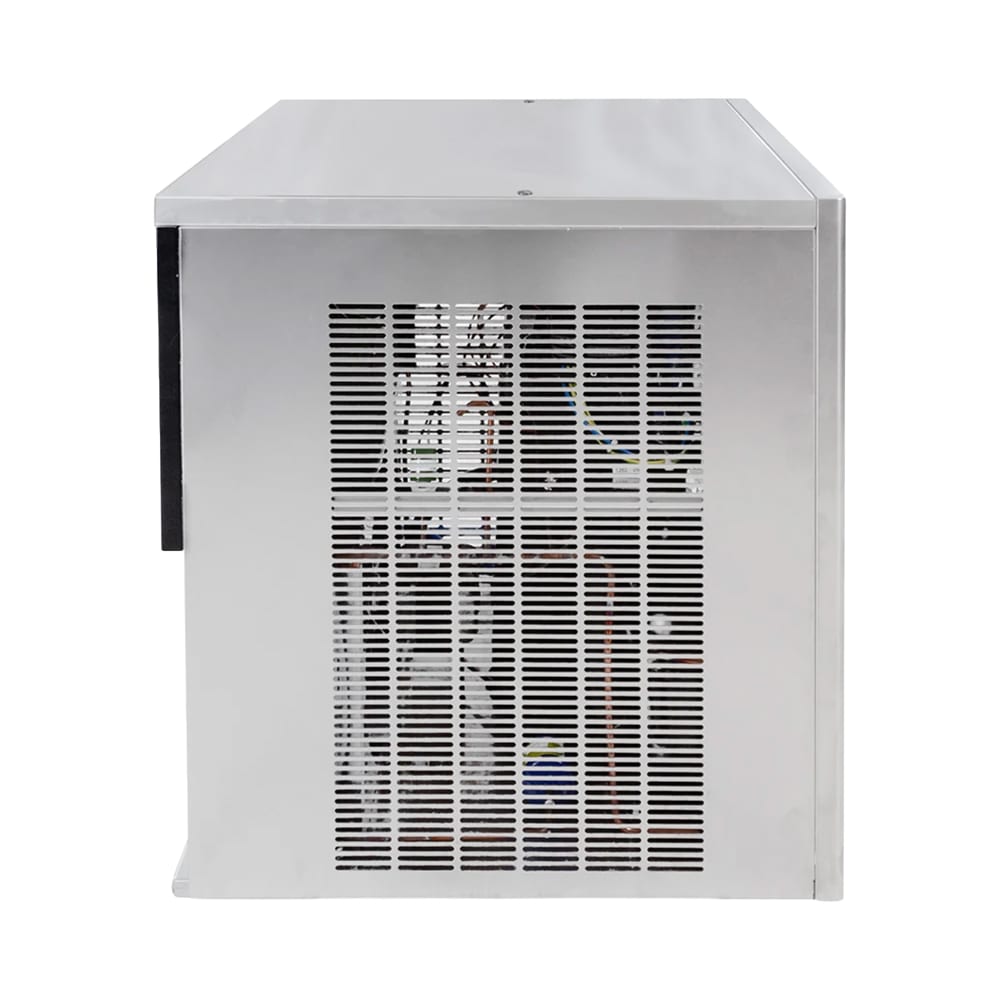

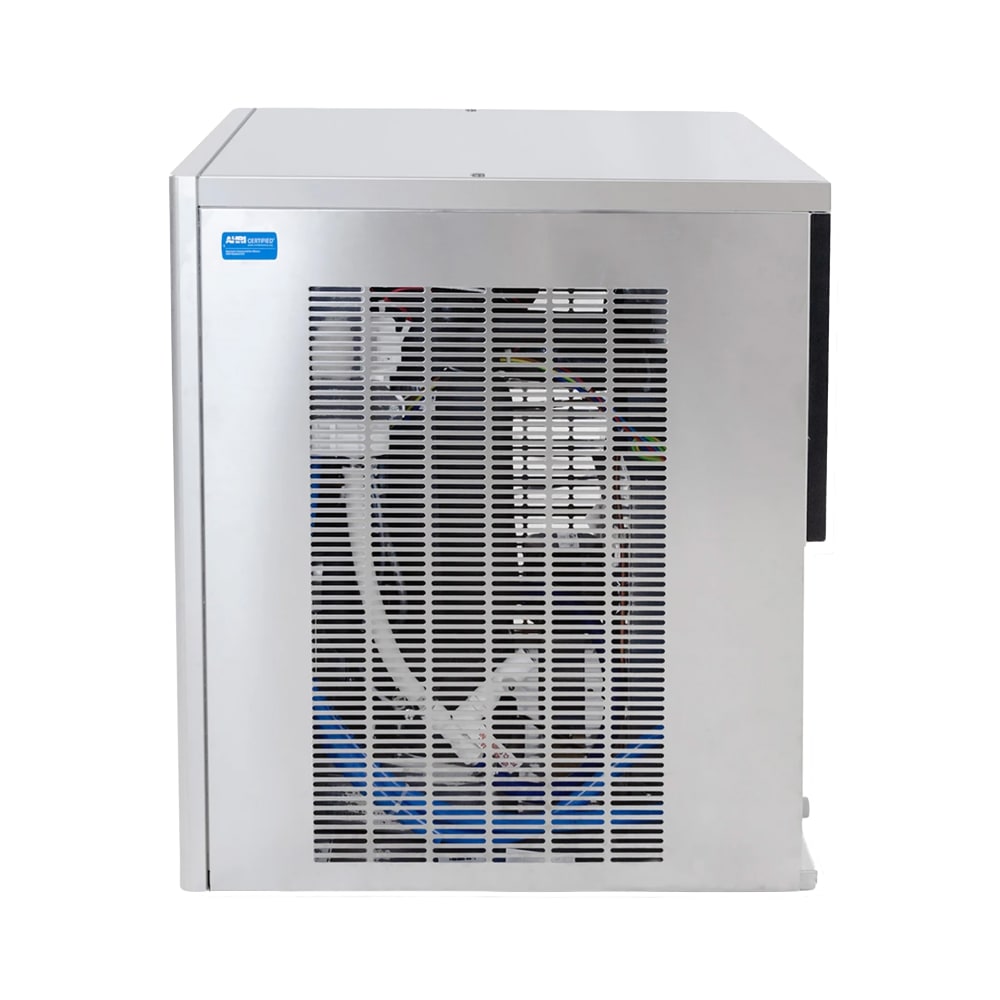

The Manitowoc RNF1100A ice machine head produces nugget ice, which is ideal for use in beverages because its compact design reduces available space for costly drinks. It can be attached to virtually any 30-inch-wide Multiplex beverage dispenser to set up a drink station, but dispensers and bins are sold separately. Running on eco-friendly R404A refrigerant, this unit has an air-cooled system that simplifies installation and maintenance. Air comes in through the rear and out the side vents.
In ideal conditions, the Manitowoc RNF1100A ice maker produces as much as 1,078 pounds of ice. If the operating temperatures are too high, it makes closer to 825 pounds of ice per day. The exterior is made of strong stainless steel to hold up against dents and scratches, and its high-load bearings require virtually no maintenance. To streamline installation, this unit is operated with a self-contained condenser.
Product Details
- 1,078-lb. maximum daily ice production
- 825-lb. AHRI-certified daily ice production
- Makes nugget ice
- Air cooled
- Self-contained condenser cools with R404A refrigerant
- Corrosion-resistant stainless steel finish
- High-load stainless steel bearings
- Durable evaporator for high-volume use

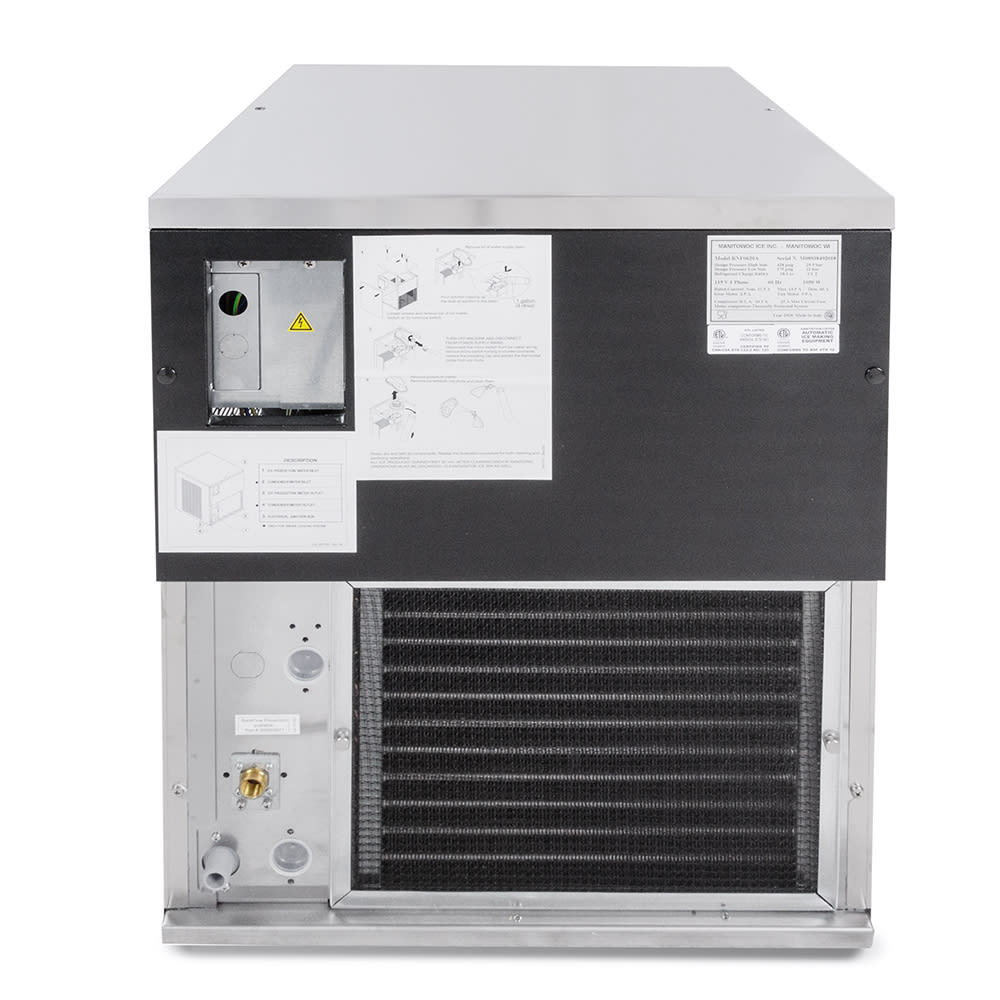

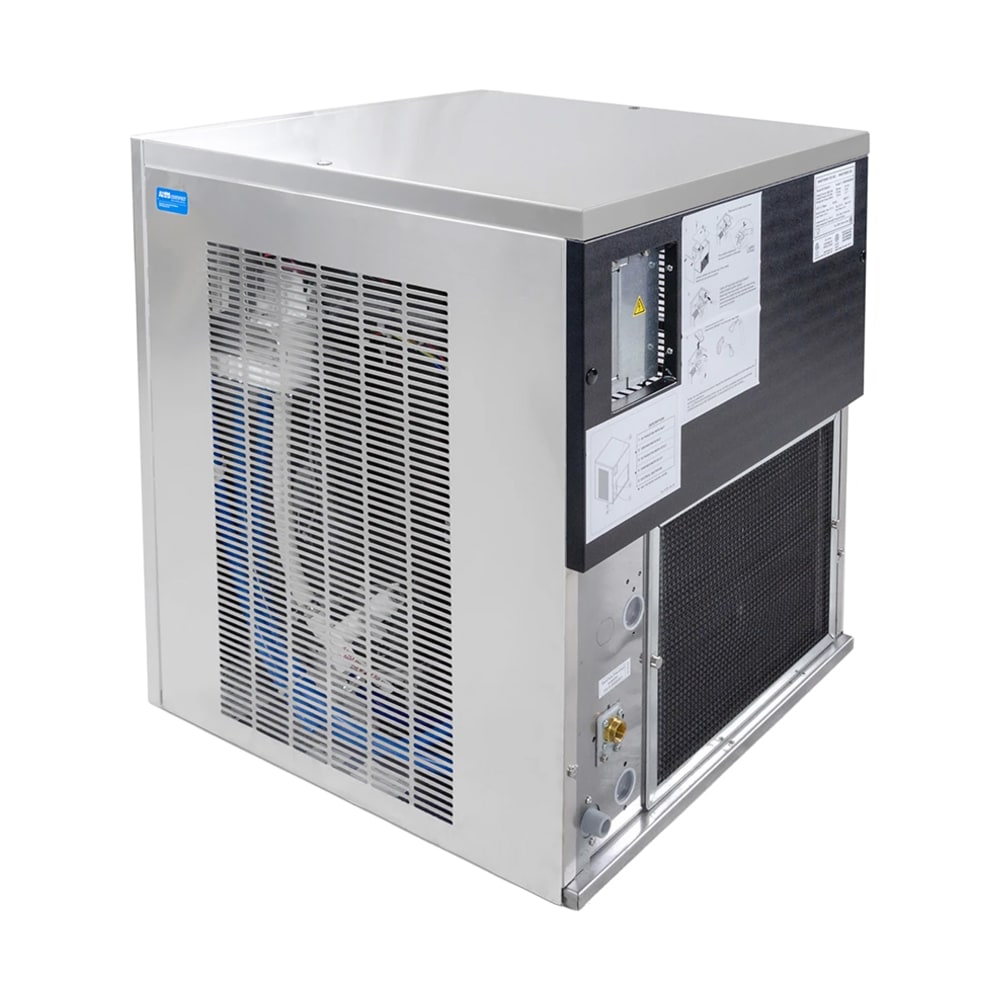

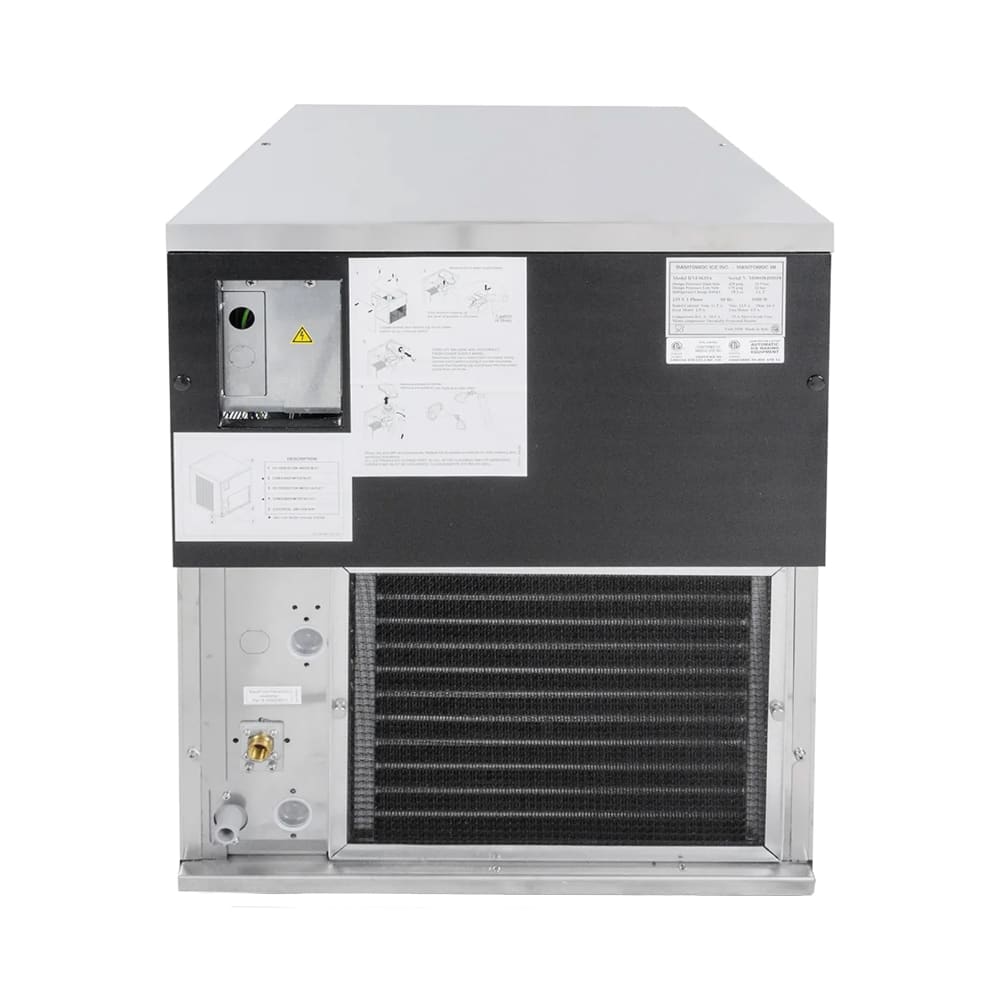

- Rear air intake
- Bin sold separately
- Ideal incoming air temperature: 50-100 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 20-70 PSI
- 7,500-BTU heat transfer capacity
Dimensions & Utilities
- 30 in. W x 23.62 in. D x 27.4 in. H
- 14.2 A, 5.41 kW, 1.5 HP
- 208-230 V/60 Hz/1 ph
Product Features
From The Manufacturer
Ice Maker, nugget style, air-cooled, self-contained condenser, 30"W x 23-5/8"D x 27-3/8"H, production capacity up to 1078 lb/24 hours at 70°/50° (825 lb AHRI certified at 90°/70°), bite size nugget, high-load stainless steel bearings, stainless steel exterior, R404A, 1-1/2 HP, NSF, cULus
*Image may not depict product color, inclusions or accessories.
Manitowoc Ice RNF1100A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 1078 |
| Amps | 14.2 |
| Compressor Type | Air Cooled |
| Depth (in) | 23.63 |
| Height (in) | 27.4 |
| Hertz | 60 |
| Ice Type | Nugget |
| Voltage | 208/230 |
| Warranty | 3-year parts, 2-year labor, 5-year compressor parts |
| Width (in) | 30 |
| Phase | 1 |
| Rating | Best |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |

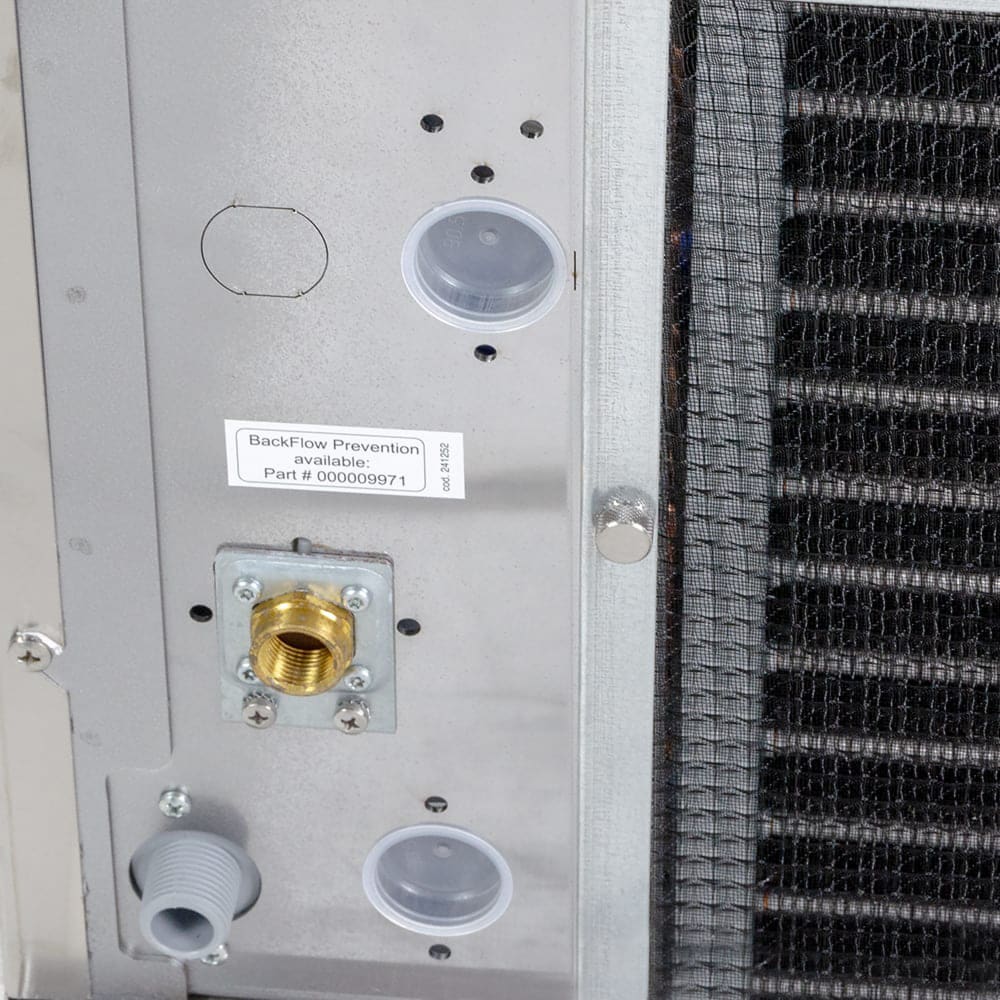

| Cold Water (in) | 3/8 |
| Indirect Waste Size (in) | 1/2 |
| Weight | 275.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Current Item: Manitowoc Ice RNF1100A 30" Nugget Ice Machine Head - 1078 lb/24 hr, Air Cooled, 208/230v/1ph |
Hoshizaki F-1002MAJ-C 22" Nugget Ice Machine Head - 890 lb/24 hr, Air Cooled, 115v |
Ice-O-Matic GEM0956A 21" Pearl Ice® Nugget Ice Machine Head - 1053 lb/24 hr, Air Cooled, 208/230v/1ph |
Scotsman NS0922A-32 22" Prodigy Plus® Nugget Ice Machine Head - 956 lb/24 hr, Air Cooled, Softer Nugget, 208-230v/1ph |
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $7,574.00 | $7,900.00 | $7,820.00 | $7,196.00 |
| Shipping | Ships Free | Ships Free | Ships Free | Ships Free |
| Lead Time | Typically ships in 4 - 6 weeks | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 1078 | 890 | 1053 | 956 |
| Ice Type | Nugget | Nugget | Nugget | Nugget |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 30 | 22 | 21 | 22.9 |
| Rating | Best | Best | Better | Best |
| Voltage | 208/230 | 115 | 208/230 | 208/230 |
| Warranty | 3-year parts, 2-year labor, 5-year compressor parts | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Compressor Parts | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
