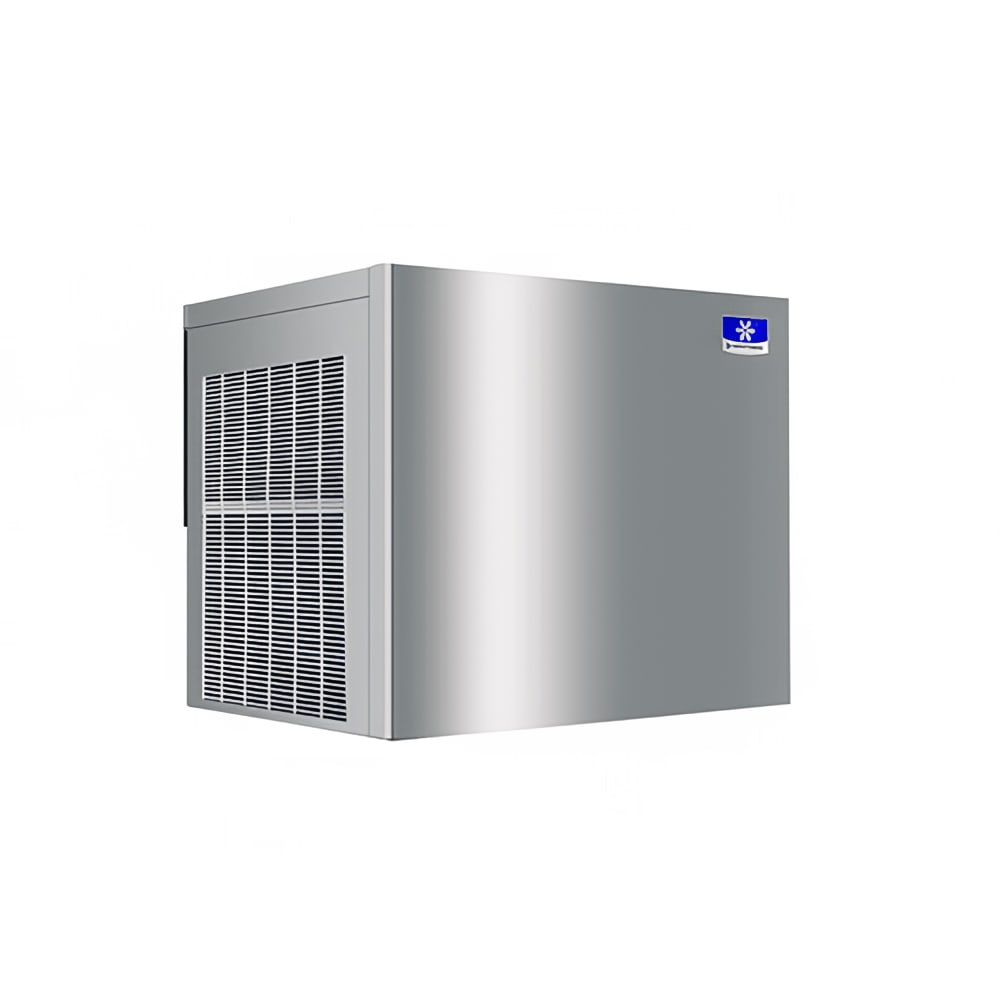

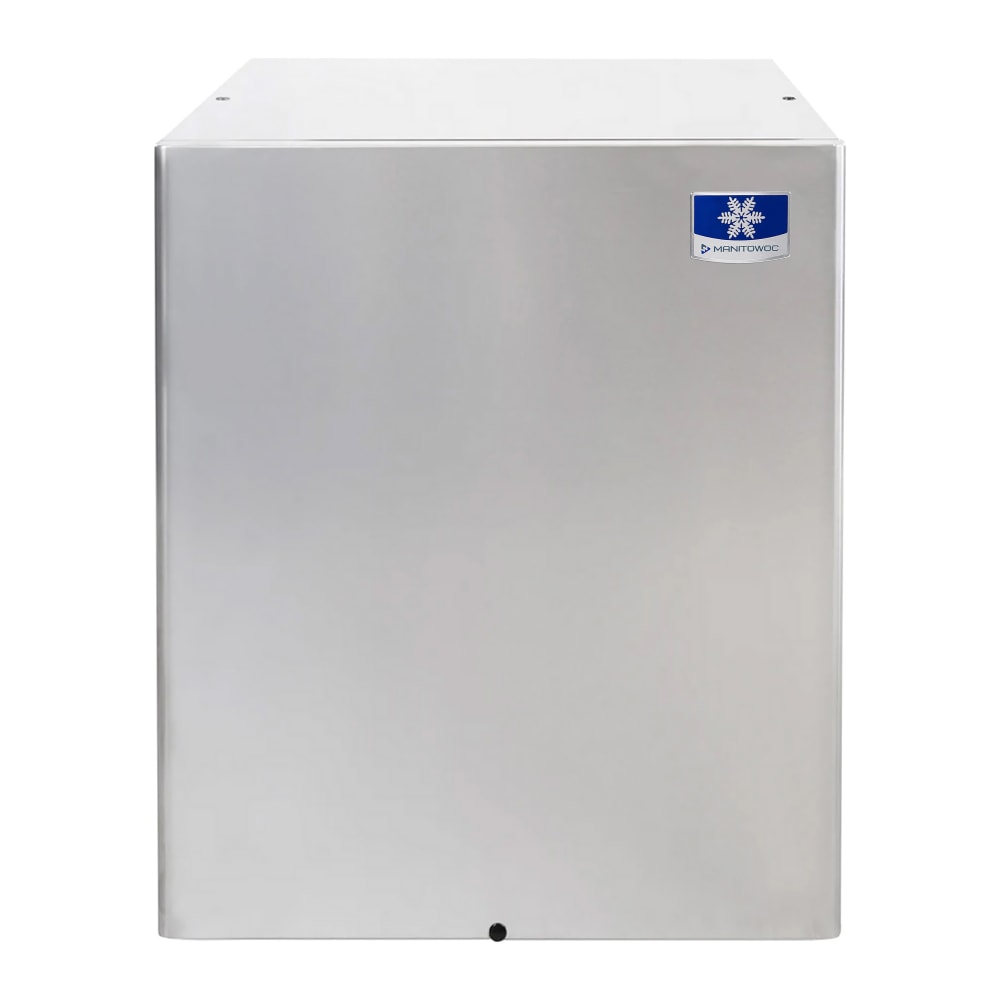

Manitowoc Ice RNF1100W 30" Nugget Ice Machine Head - 1158 lb/24 hr, Water Cooled, 208-230v/1ph
$9,206.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Manitowoc Ice RNF1100W Description

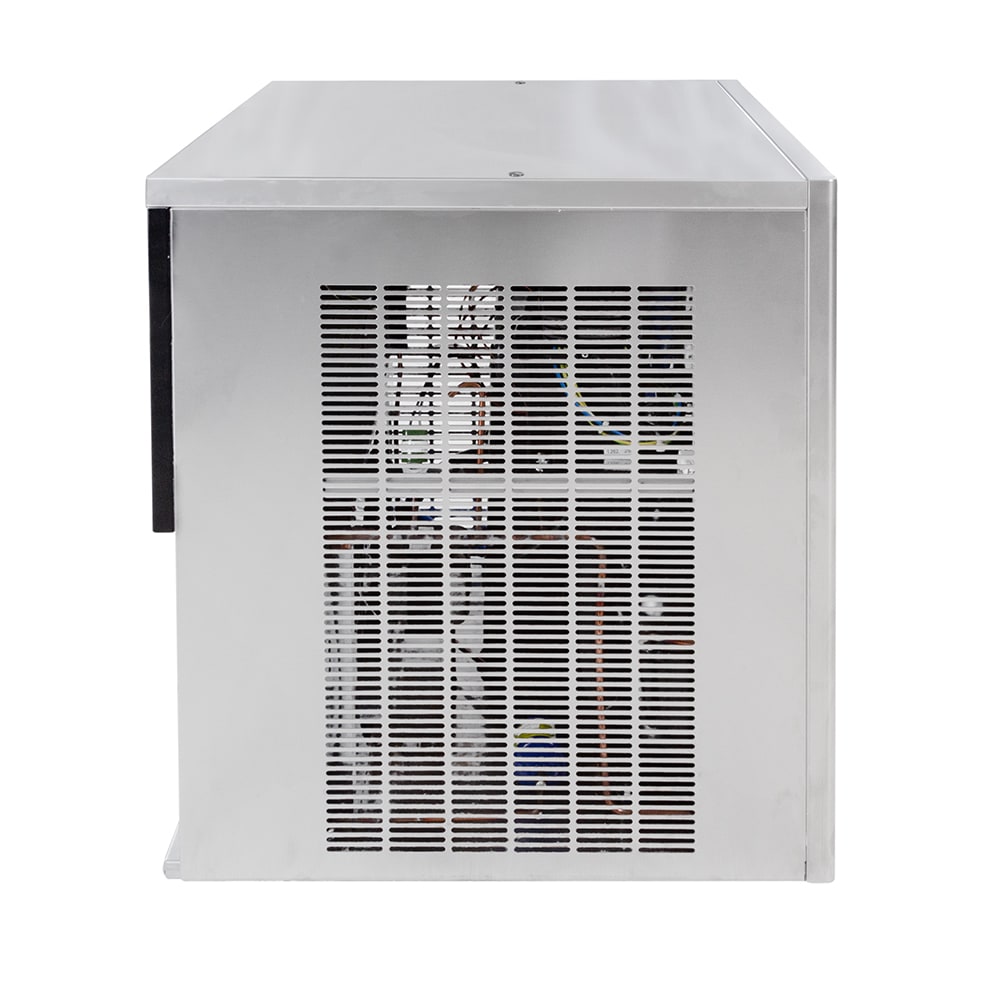

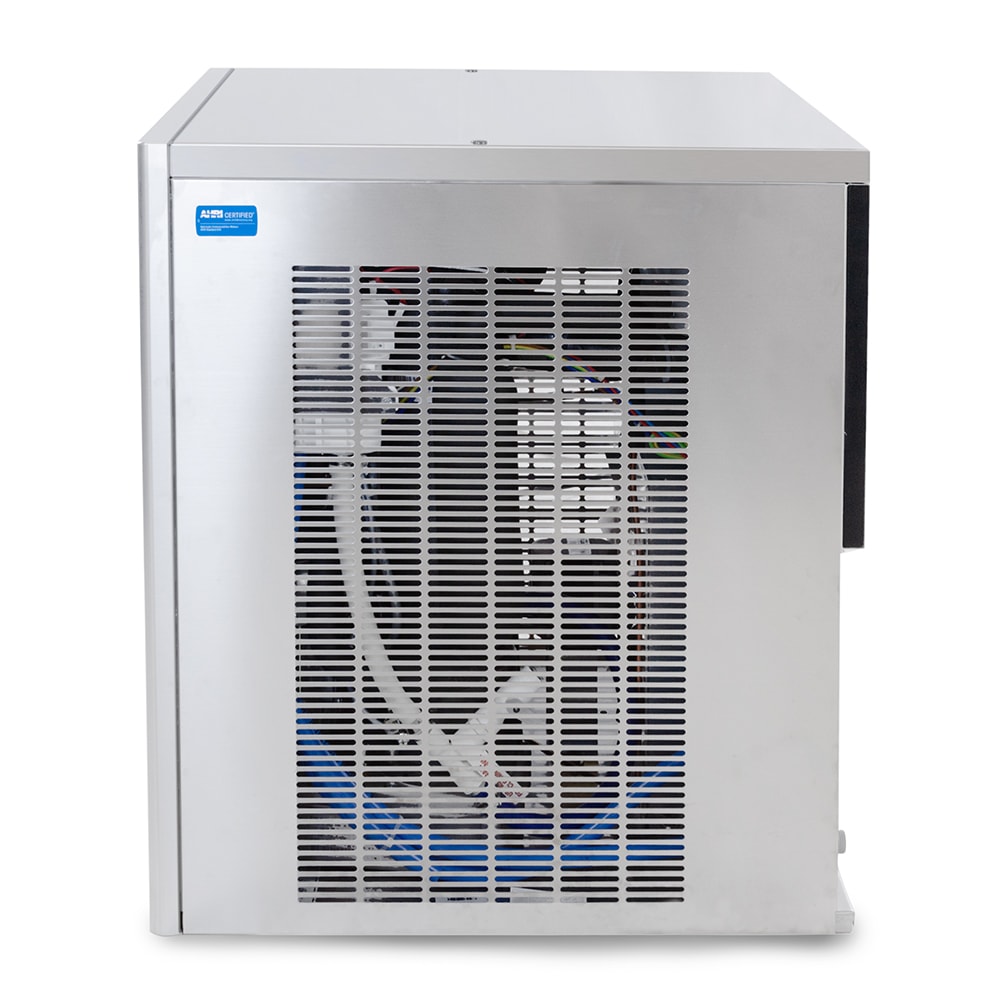

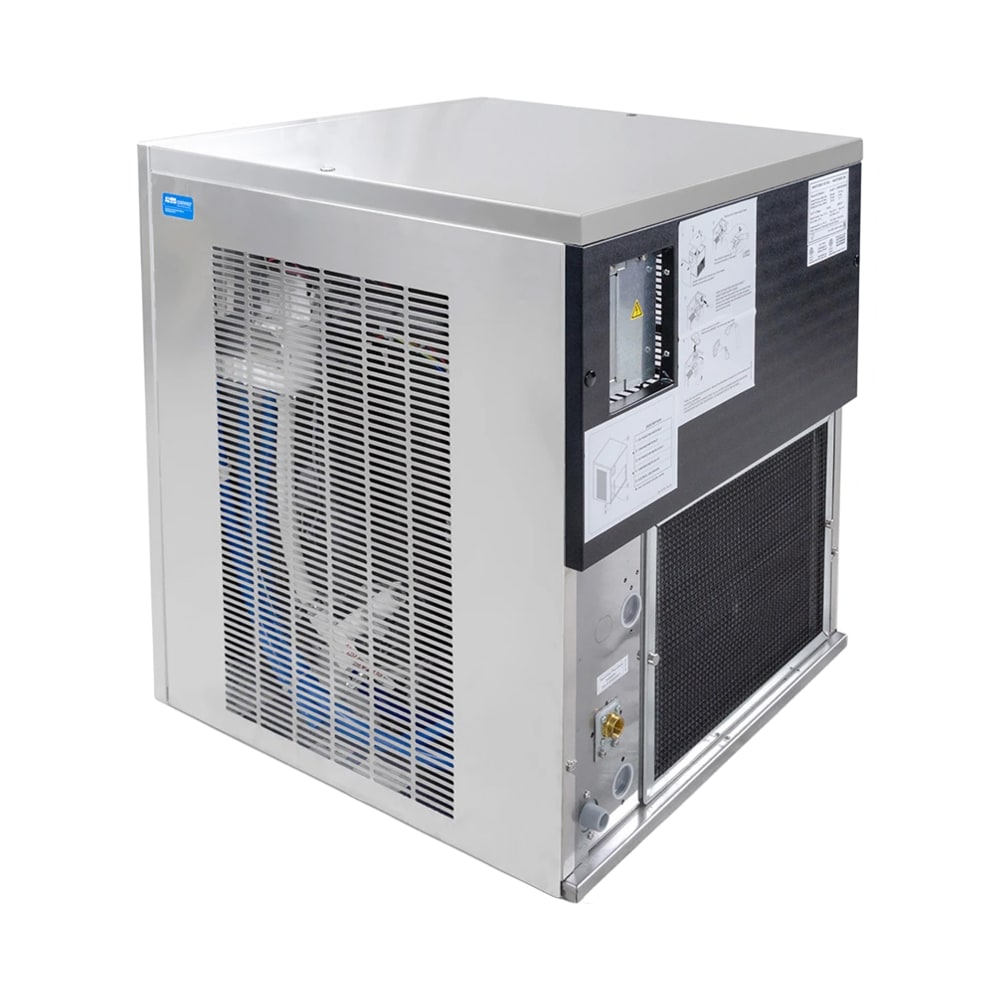

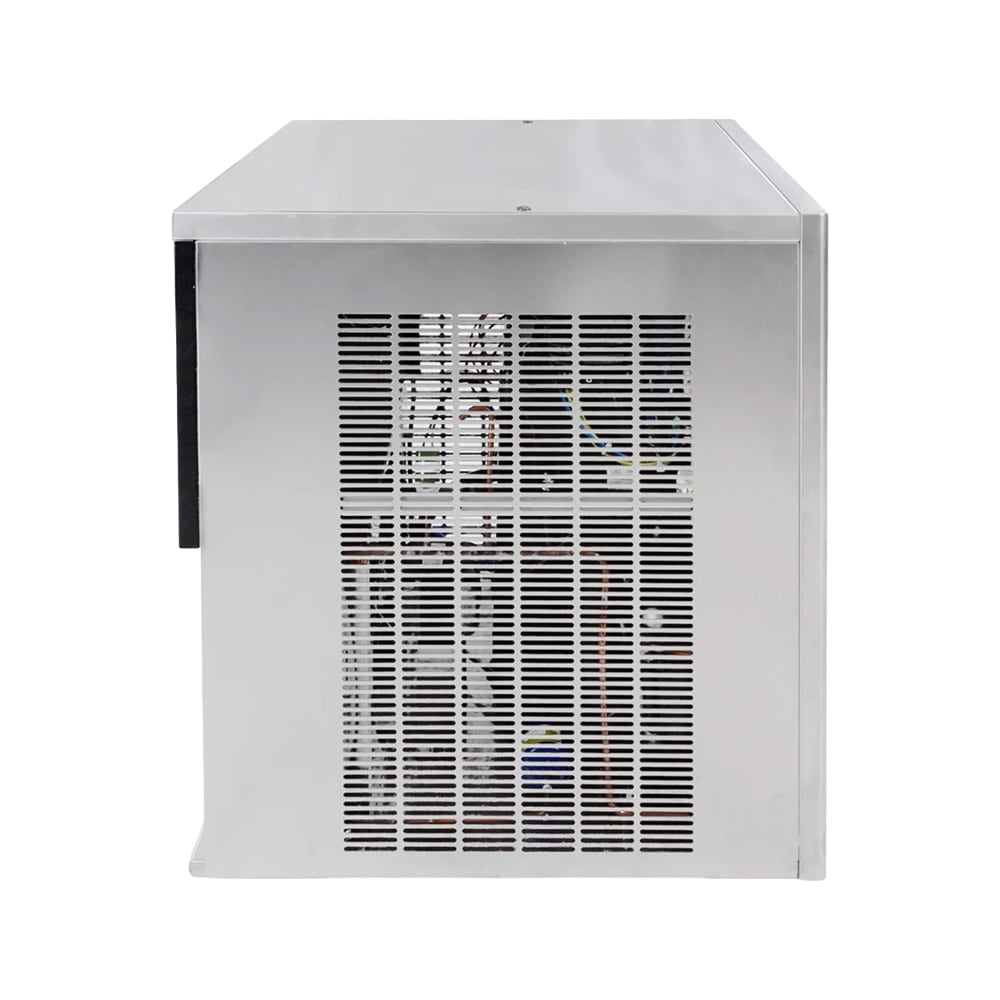

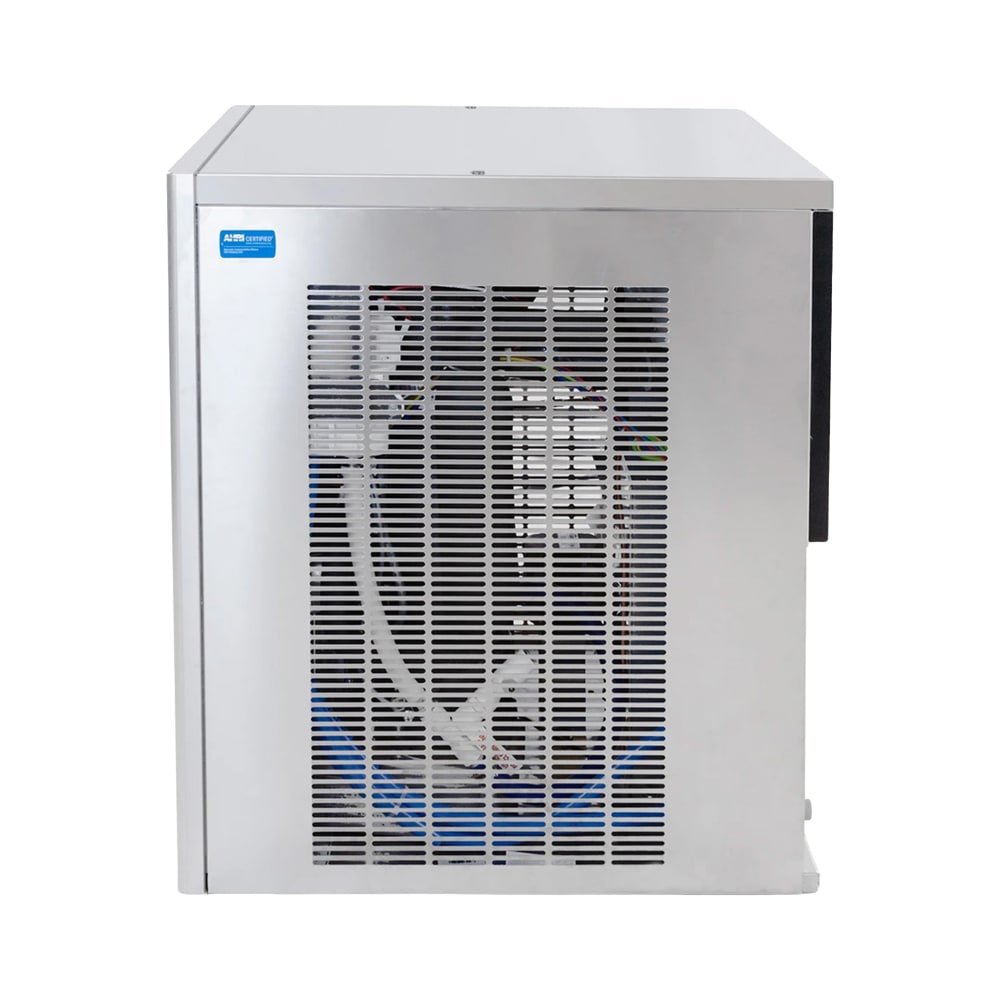

The Manitowoc RNF1100W ice machine head can make as much as 1,158 pounds of nugget ice every day. Nugget ice fits together tightly in cups, providing maximum liquid displacement, which can decrease beverage service costs. This unit has an efficient, water-cooled compressor. Designed with a stainless steel exterior, it holds up against regular wear and tear and is simple to clean. Reliability is added by the high-load bearings. It has an air intake in the back and vents on each side to expel air.
To create a drink station, the Manitowoc RNF1100W ice machine can be connected to an ice bin or virtually any 30-inch-wide Multiplex beverage dispenser, which are both sold separately. Its evaporator is designed for high-volume use, and because the condenser is self-contained, installation and maintenance are streamlined. This unit cools with environmentally friendly R404A refrigerant. Overall, this machine measures 30 inches wide by 23.62 inches deep by 27.4 inches high.
- 1,158-lb. maximum daily ice production
- 960-lb. AHRI-certified daily ice production
- Makes nugget ice
- Water cooled and self-contained
- Condenser cools with R404A refrigerant

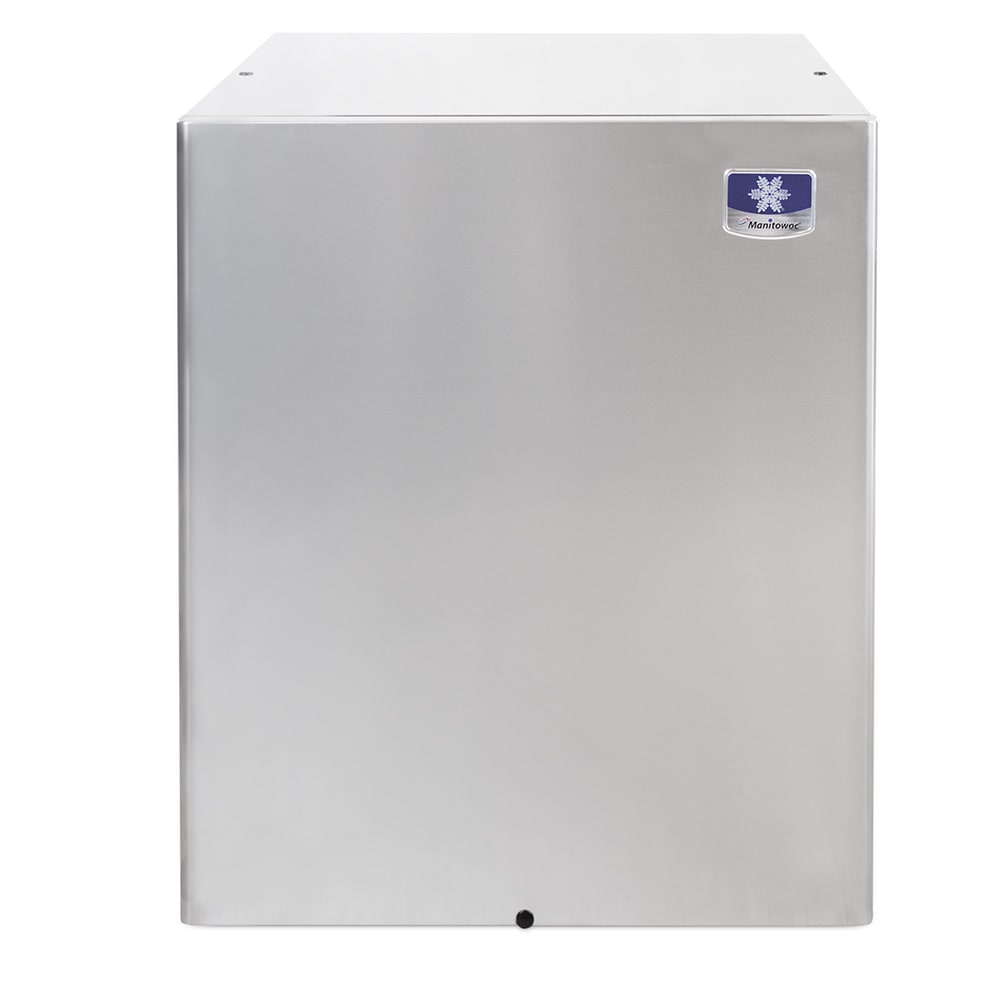

- Durable, rust-resistant stainless steel finish
- High-load bearings made of stainless steel
- Evaporator suited for high-volume use

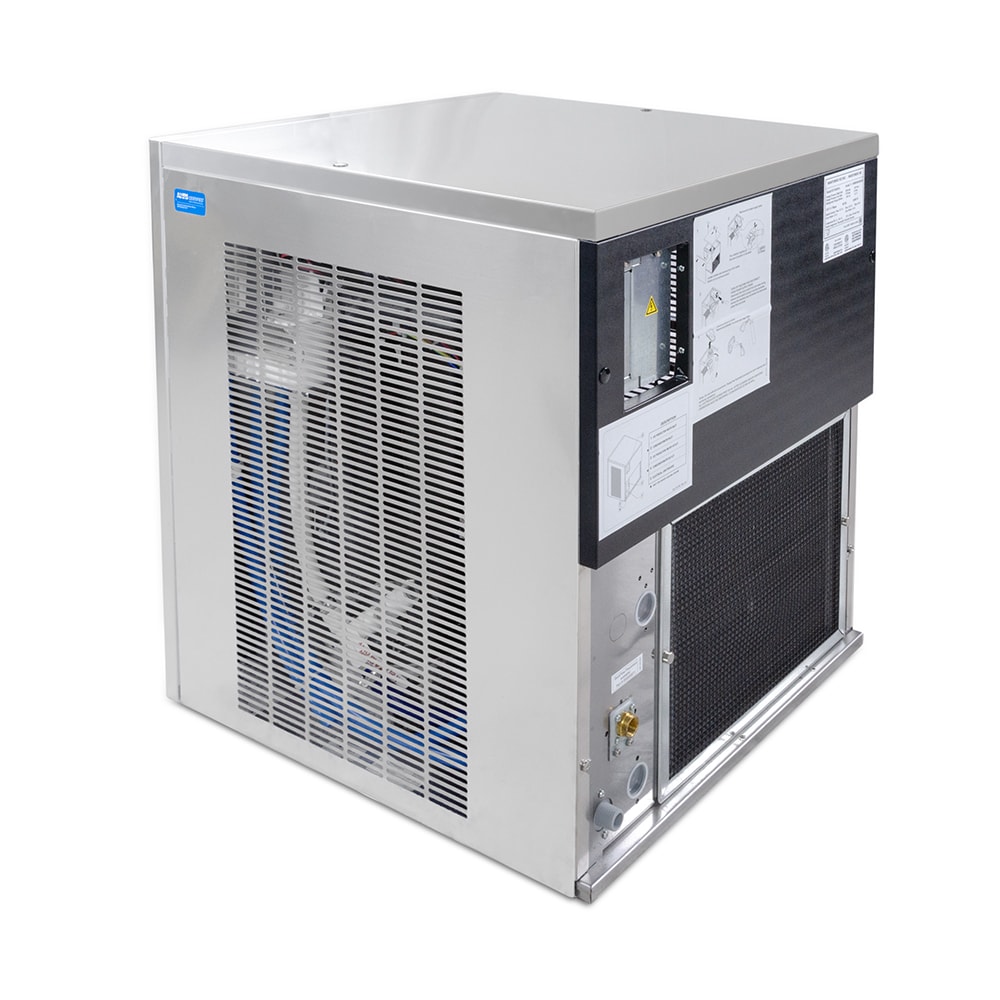

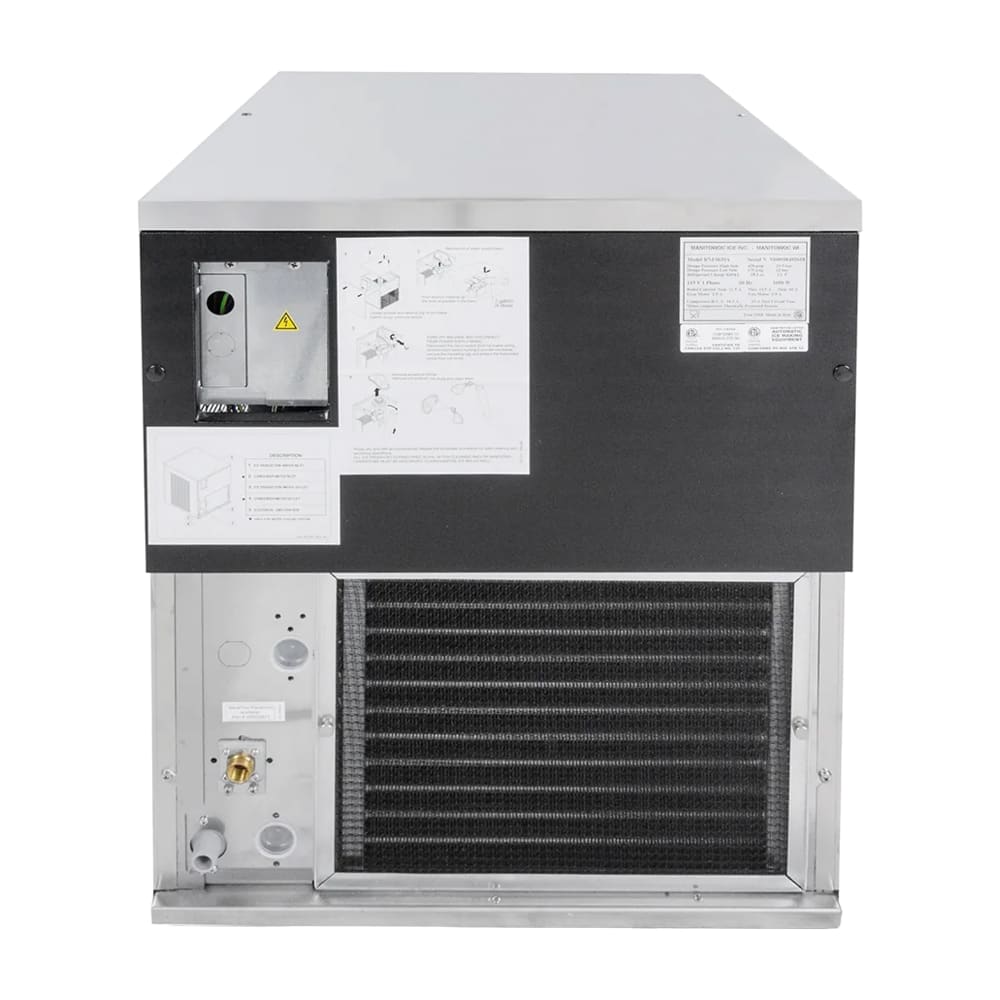

- Intakes air from rear
- Bin sold separately
- Ideal incoming air temperature: 50-100 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 20-70 PSI
- 7,500-BTU heat transfer capacity
- 30 in. W x 23.62 in. D x 27.4 in. H
- 13.7 A, 4.04 kW, 1.5 HP
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice RNF1100W within the 48 contiguous states.
From The Manufacturer
Ice Maker, nugget style, water-cooled, self-contained condenser, 30"W x 23-5/8"D x 27-3/8"H, production capacity up to 1158 lb/24 hours at 70°/50° (960 lb AHRI certified at 90°/70°), bite size nugget, high-load stainless steel bearings, stainless steel exterior, R404A, 1-1/2 HP, NSF, cULus
Manitowoc Ice RNF1100W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 1158 |
| Compressor Type | Water Cooled |
| Depth (in) | 23.63 |
| Height (in) | 27.38 |
| Ice Type | Nugget |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 275.00 |
