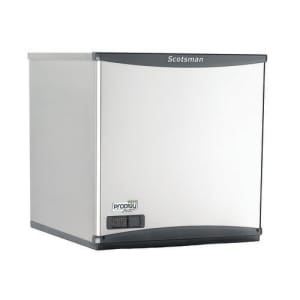

Scotsman NS0622W-1 22" Prodigy Plus® Nugget Ice Machine Head - 715 lb/24 hr, Water Cooled, Softer Nugget, 115v

Great for fast food joints, the Scotsman NS0622W-1 Prodigy Plus™ nugget ice machine head produces 715 pounds of Original Chewable Ice® in 24 hours when incoming water is 50 degrees Fahrenheit and surrounding air is 70 degrees Fahrenheit. This type of nugget ice is soft and displaces larger amounts of liquid than cubed ice, which can help save on drink costs. The unit uses R-404A refrigerant to preserve cool temperatures, and its sealed refrigeration system helps defend against airborne particulate contamination. Throughout operation, AutoAlert™ indicating lights portray status updates, and operators have a direct view of these lights as they're built into the front of the unit.

The Scotsman NS0622W-1 ice machine head's water-cooled, self-contained condenser is front-breathing and can be installed in a variety of areas because it doesn't require side clearances. It measures 22⁷/₁₀ inches wide by 24²³/₂₅ inches deep by 23 inches high overall and is designed for use with an ice storage bin, which is sold separately. The unit is finished with stainless steel, and its auger and evaporator have a corrosion-resistant stainless steel construction for durability. To preserve unit quality, an antimicrobial protection agent built into the internal surfaces hinders bacterial growth between cleanings.

Product Details

• Daily ice production: 715 lbs.
• AHRI-certified daily ice production: 581 lbs.

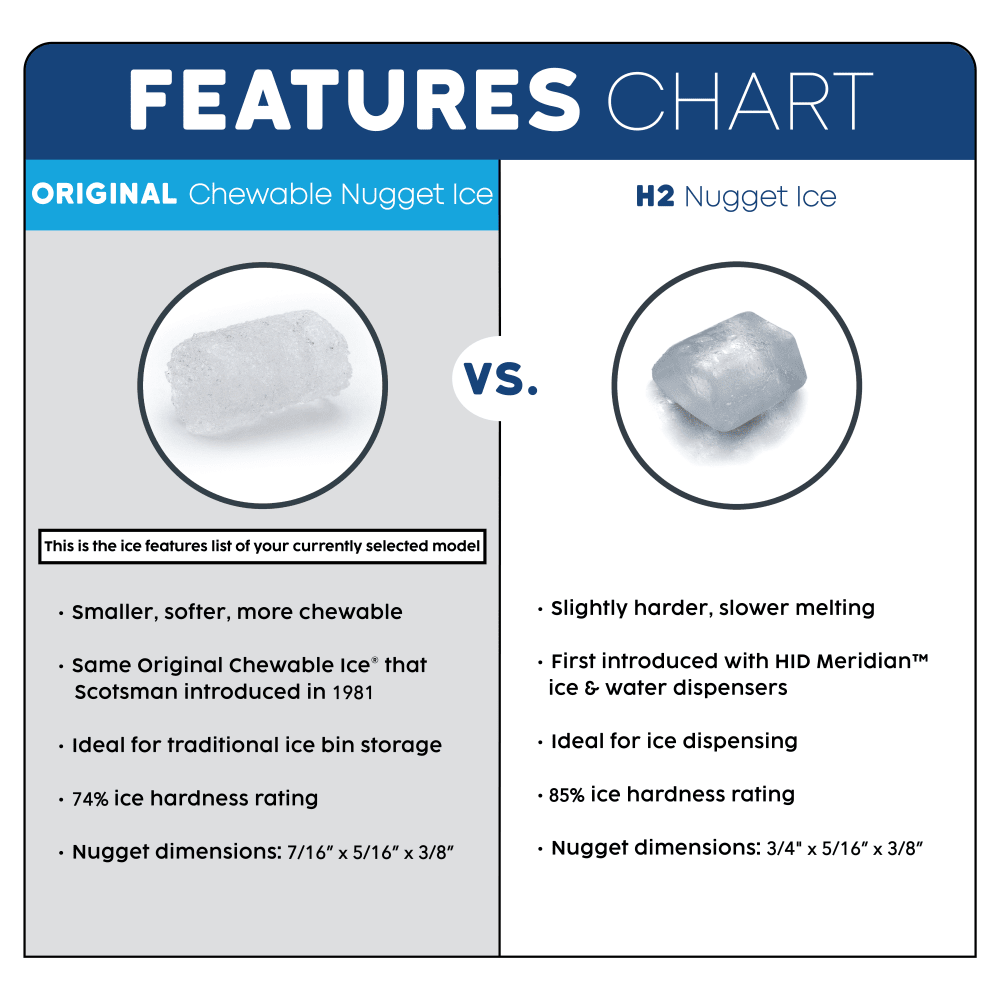

• Produces soft, chewable nugget ice

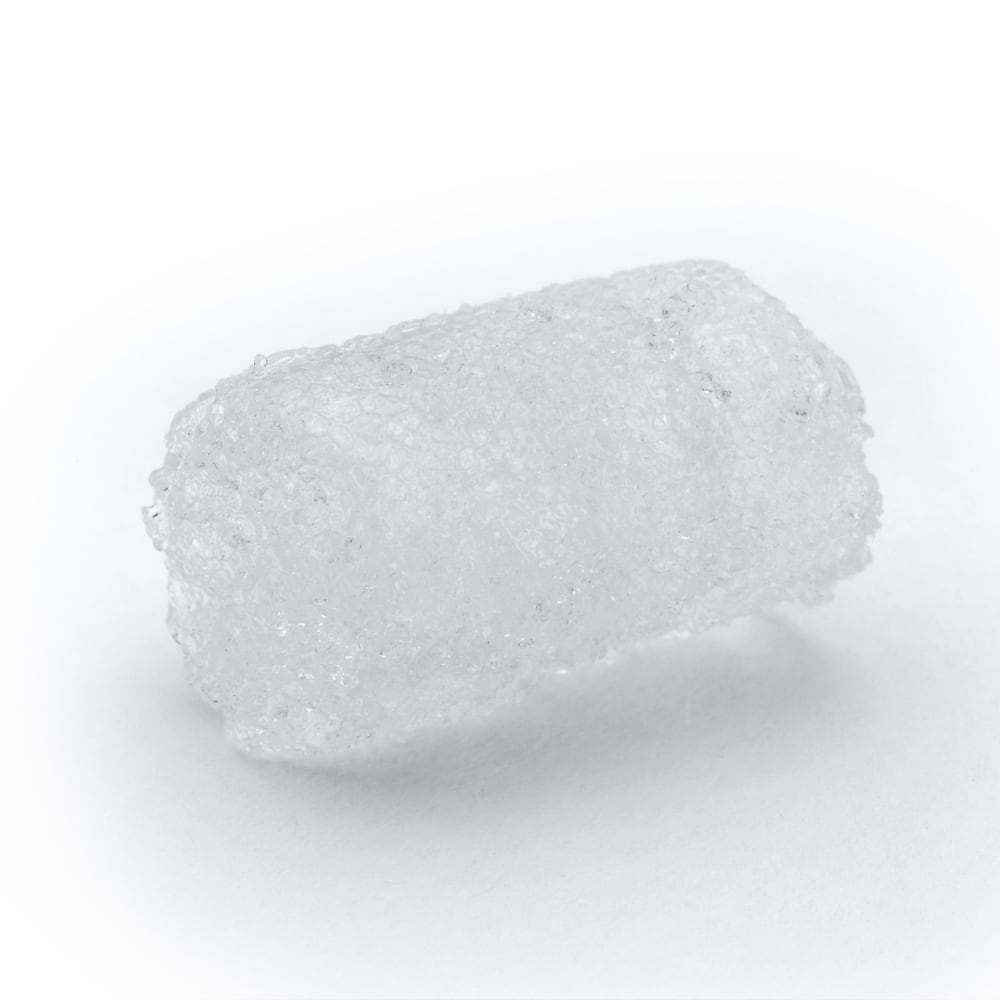

• Ice dimensions: ⁷/₁₆ in. x ⁵/₁₆ in. x ³/₈ in.
• Water-cooled, self-contained condenser is front breathing
• Sealed refrigeration system protects against contaminants
• R-404A refrigerant
• AutoAlert indicator lights built into visible location
• Stainless steel auger and evaporator
• Stainless steel finish
• AgION™ antimicrobial protection agent
• 1-touch cleaning
• Removable, front-facing air filter
• Sealed bearings are low maintenance
• QR code included
• Required operating air temperature: 50-100 degrees F
• Required operating water temperature: 40-100 degrees F
• Required operating water pressure: 20-80 PSIG
• 7,100 BTU per hour

Product Features

Dimensions & Utilities

• 22⁷/₁₀ in. W x 24²³/₂₅ in. D x 23 in. H
• 14.40 A, 3.80 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, water-cooled, self-contained condenser, production capacity up to 715 lb/24 hours at 70°/50° (581 lb AHRI certified to 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 14.4 amps, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Hardwired

Product does not come with plug and must be hardwired to operate

BPA Free

Contains no chemical Bisphenol A (BPA)

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor
