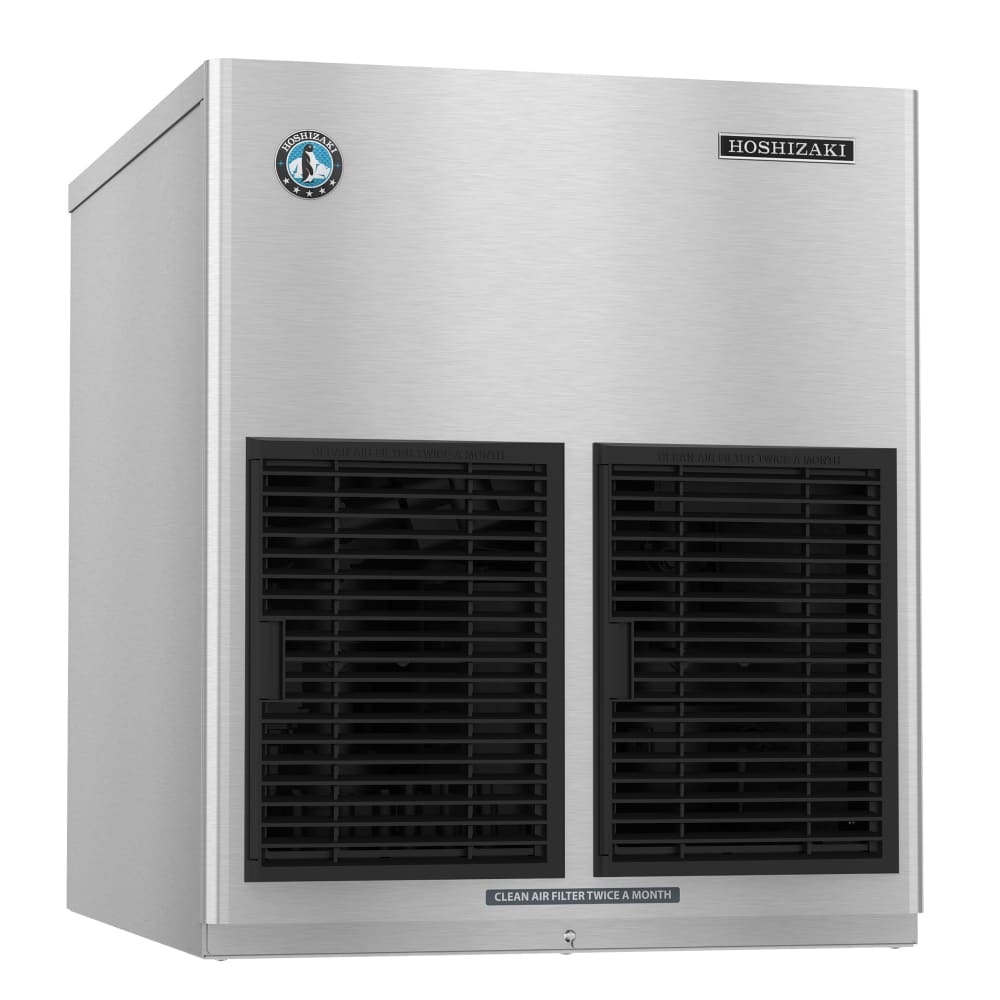

Hoshizaki F-801MWJ-C 22" Nugget Ice Machine Head - 632 lb/24 hr, Water Cooled, 115v/1ph

The Hoshizaki F-801MWJ cubelet ice machine head makes 632 pounds of ice in 24 hours if the ambient temperature is 70 degrees Fahrenheit and the water temperature is 50 degrees Fahrenheit. It makes cubelet ice that works well in soft drinks, mixed drinks, and more, since the ice takes on the flavor of whatever beverage it is put in. The CleanCycle24 technology removes sediment from the ice every hour with a 2-second flush cycle.

An infrared beam senses how full the ice bin is, and when it has reached capacity, the sensor shuts the compressor off to prevent overflows and save energy. The exterior of the unit is made of stainless steel, so the unit is durable, corrosion resistant, and easy to clean. Since the panels on the Hoshizaki F-801MWJ cubelet ice machine head are easy to remove, servicing the unit is simple. Ice storage bins are sold separately.

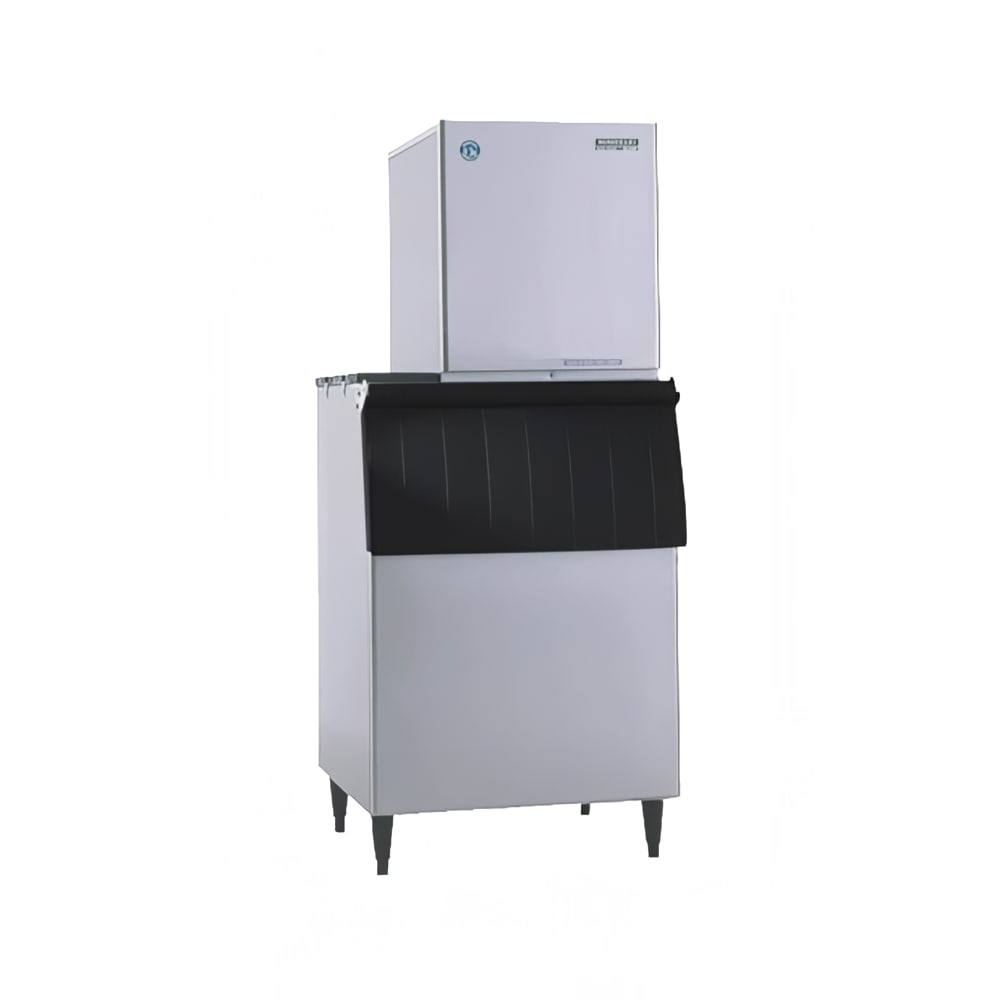

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Produces 632 lbs. of ice in 24 hrs. when operating in an ambient temperature of 70 degrees F with a water temperature of 50 degrees F
• Produces 580 lbs. of ice in 24 hrs. when operating in an ambient temperature of 90 degrees F with a water temperature of 70 degrees F
• Cubelet ice works well in mixed drinks, soft drinks, and smoothies
• CleanCycle24 feature removes sediment from the ice every hour
• Water-cooled system uses a self-contained condenser
• Maintains cold temperatures with R-404A refrigerant
• Stainless steel exterior is corrosion resistant and easy to clean
• Easy to service since all the panels are easy to remove
• Infrared sensor measures how full the storage bin is, shutting off the compressor to prevent overflow and save energy
• Ice storage bin is not included
• 6,000 BTU
• 115 V/60 Hz/1 ph, 11.5 A, 4.13 kW
• Overall Dimensions: 22 in. W x 27³⁄₈ in. D x 26 in. H

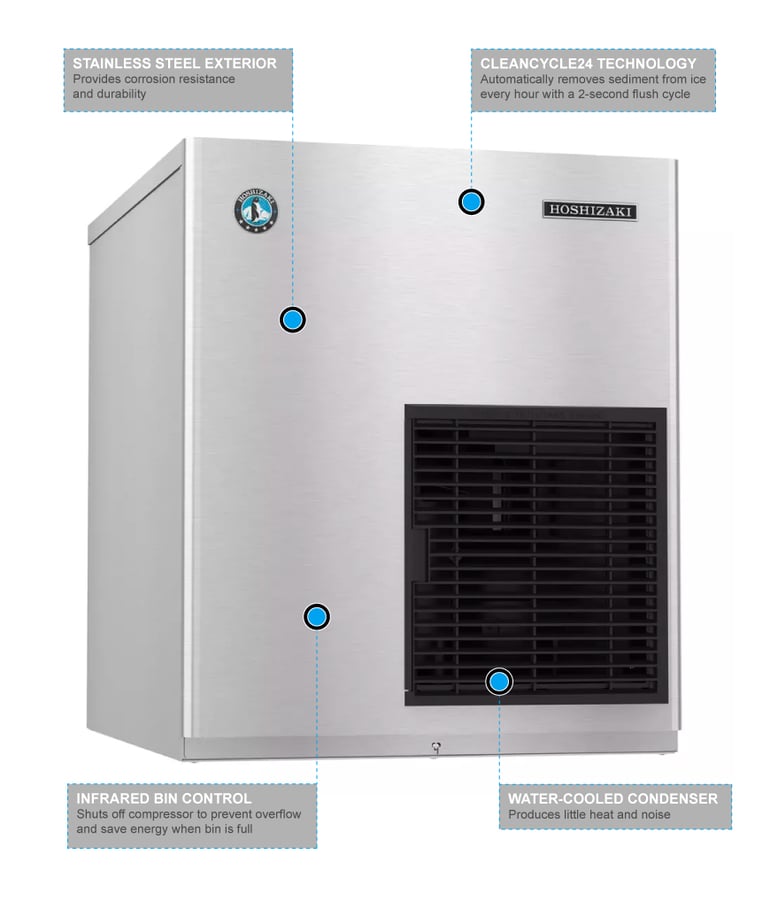

Product Features

Operation Requirements

• Ambient temperatures should stay between 45-100 degrees F
• Water temperature should stay between 45-90 degrees F
• Water pressure should be between 10-113 PSIG
• Requires a 6-in. rear and side clearance
• Requires a 24-in. top clearance for air circulation

*Free shipping on Hoshizaki F-801MWJ-C within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cubelet-Style, 22"W, water-cooled, self-contained condenser, production capacity up to 632 lb/24 hours at 70°/50° (580 lb AHRI certified at 90°/70°), stainless steel finish, compressed cubelet style ice, Advanced CleanCycle24™, R-404A refrigerant, 11.5 amps, 115v/60/1-ph, NSF, UL

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki F-801MWJ-C Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
