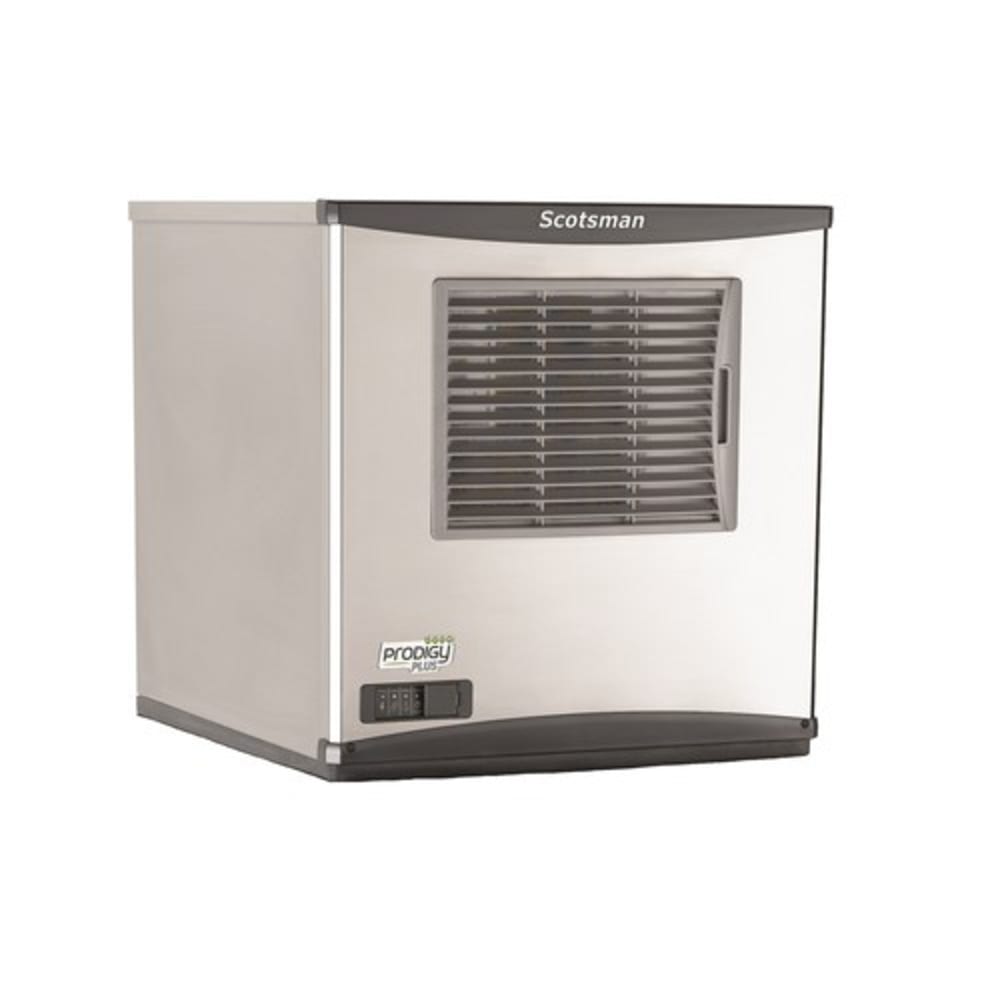

Scotsman NS0622A-1 22" Prodigy Plus® Nugget Ice Machine Head - 643 lb/24 hr, Air Cooled, 115v/1ph

For streamlined installation, the Scotsman NS0622A-1 ice machine head has an air-cooled, self-contained refrigeration system and cools with R404A refrigerant. Its sealed bearings prevent water damage and require no maintenance, extending the unit's life in a commercial setting. Made of stainless steel, the auger and evaporator resist rust and corrosion, and the ice maker has a durable stainless steel finish. Users can scan the unit-specific QR code to view warranty information and guides.

The Scotsman NS0622A-1 nugget ice machine head performs interior cleaning with the push of a button. To slow the growth of bacteria and reduce germ spread, this unit is protected by AgION™ antimicrobial. This ice maker produces 643 pounds of ice per day in ideal conditions and produces a maximum of 547 pounds daily if water and air temperatures are higher.

Product Details

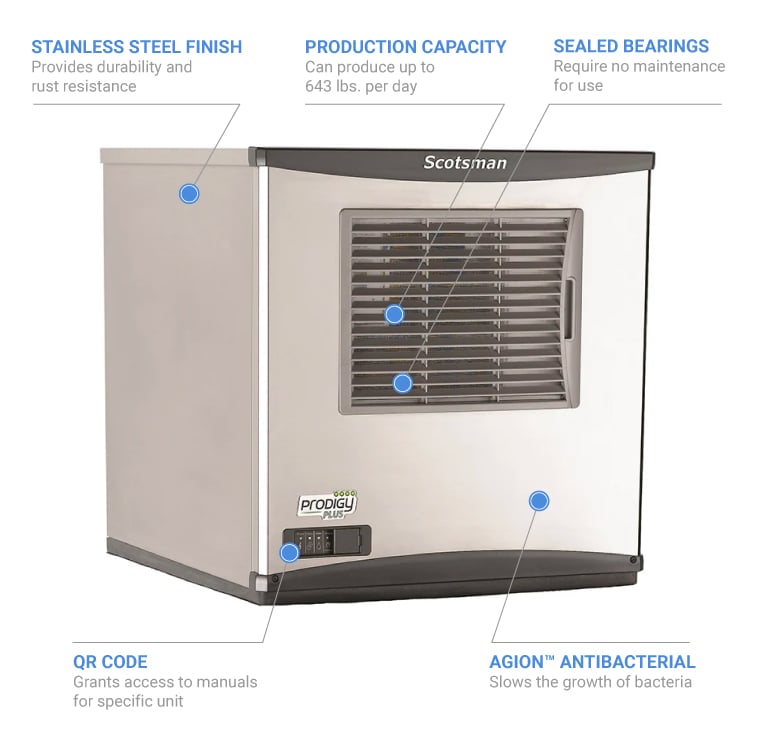

• Part of the Prodigy Plus® series
• 643-lb. maximum daily ice production
• 547-lb. AHRI-certified daily ice production
• Produces Original Chewable Ice®

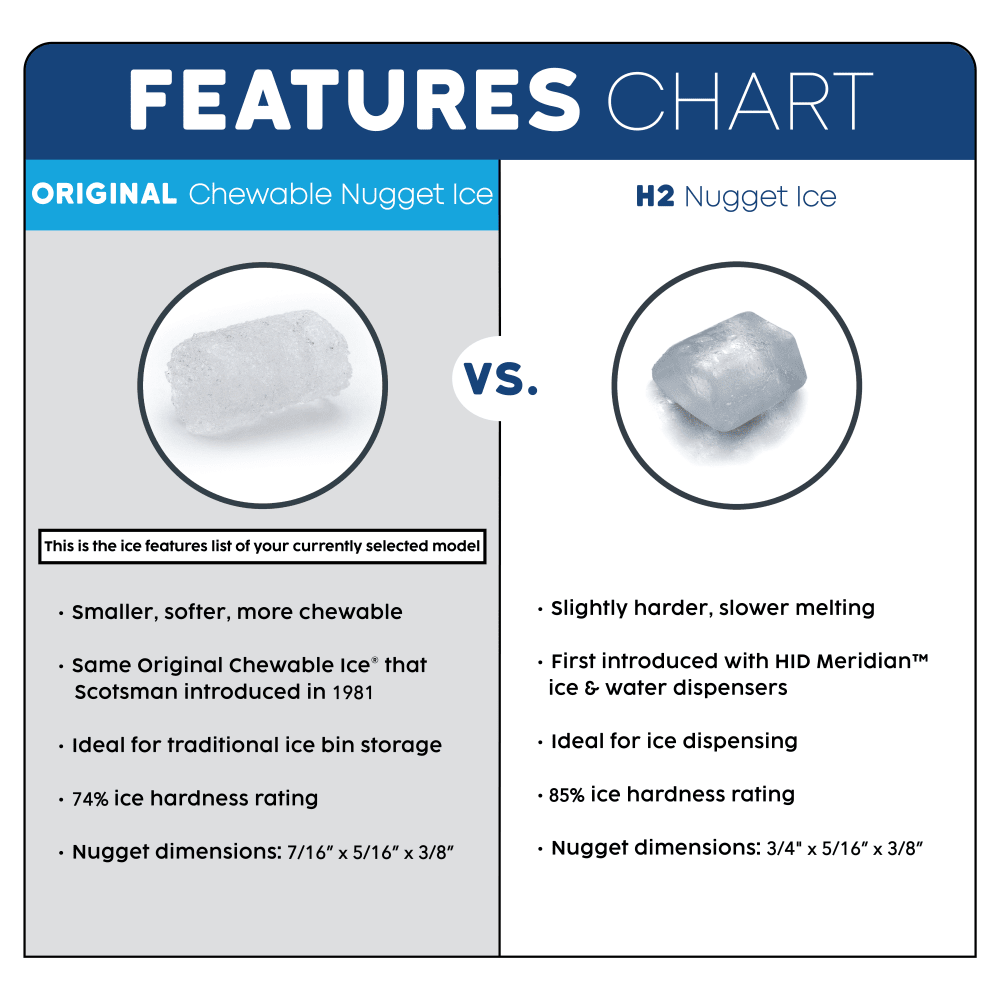

• Ice dimensions: ⁷⁄₁₆ in. x ⁵⁄₁₆ in. x ³⁄₈ in.
• Air-cooled, self-contained condenser
• Maintenance-free, sealed bearings
• AutoAlert™ indicating lights
• QR code displays warranty information when scanned
• Evaporator and auger made of stainless steel
• Corrosion-resistant stainless steel finish
• Single-touch cleaning
• AgION antimicrobial slows germ growth
• Uses R404A refrigerant
• Ideal incoming air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 7,100-BTU heat transfer capacity

Product Features

Dimensions & Utilities

• 22⁹/₁₀ in. W x 24 in. D x 23 in. H
• 16 A
• 115 V/60 Hz/1 ph

*Free shipping on Scotsman NS0622A-1 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, air-cooled, self-contained condenser, production capacity up to 643 lb/24 hours at 70°/50° (547 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 16.0 amps, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman NS0622A-1 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.
