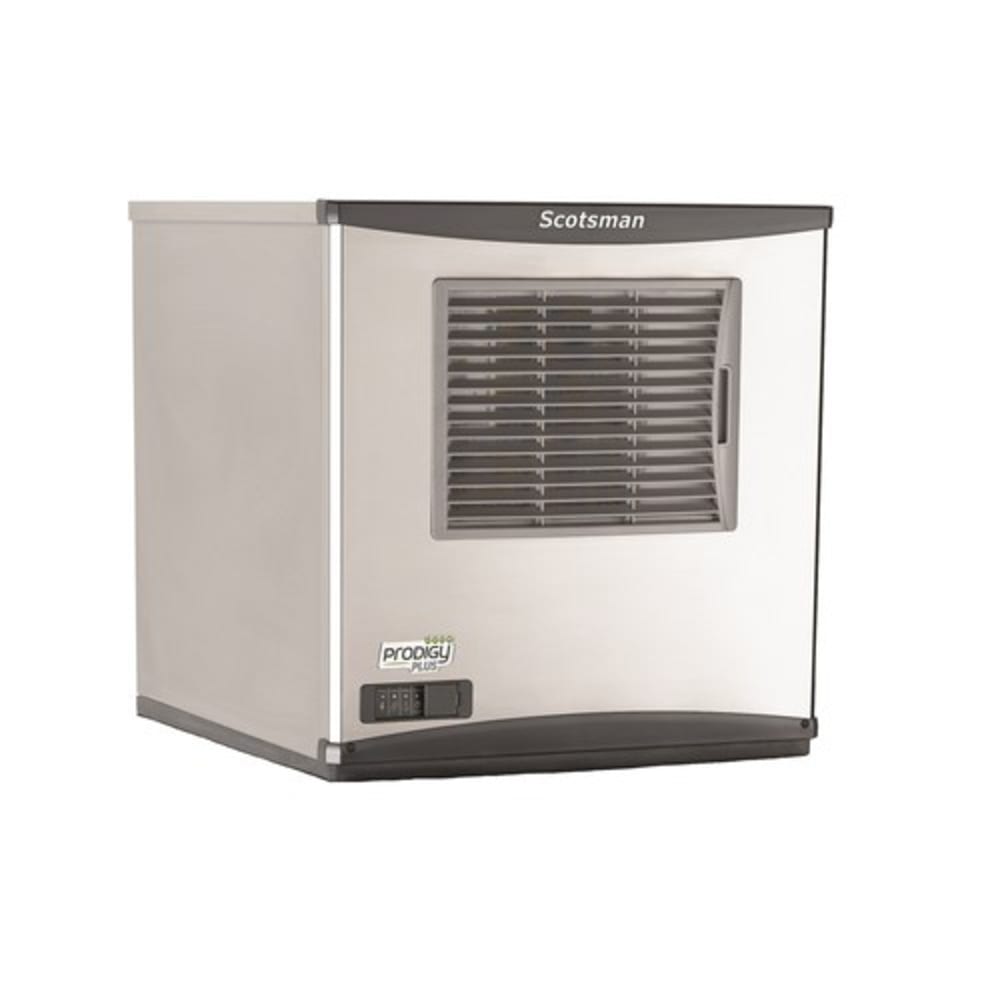

Scotsman NH0622AX-1 22" Prodigy Plus® Nugget Ice Machine Head - 644 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $15,824.00
$6,487.00 /Each
Scotsman NH0622AX-1 Description
To accommodate fast food restaurants, this Scotsman NH0622AX-1 Prodigy Plus® ice maker produces 644 pounds of H2 ice over a 24-hour period in ideal conditions. This type of nugget ice is hard and creates a greater beverage displacement than full ice cubes for increased cost savings. Its air-cooled, self-contained condenser uses R290 refrigerant and features a front-breathing design that doesn't require side clearance. To preserve ice quality, its refrigeration system is sealed to shield internal components from potential airborne contaminants.
The Scotsman NH0622AX-1 ice machine head measures 22 inches wide by 24 inches deep by 23 inches high and can be installed on an ice storage bin. To withstand high-volume use, its auger and evaporator are made of corrosion-resistant stainless steel, and the unit sports a sleek stainless steel finish. An antimicrobial protection agent molded into the unit's internal surfaces hinders bacterial growth between cleanings to maintaining a sanitary unit. AutoAlert™ indicating lights are built into a visible location at the front of the unit so operators can quickly discern operational status and maintenance or servicing needs.
- Featured in the Prodigy Plus series
- Daily ice production: 644 lbs.
- AHRI-certified daily ice production: 507 lbs.

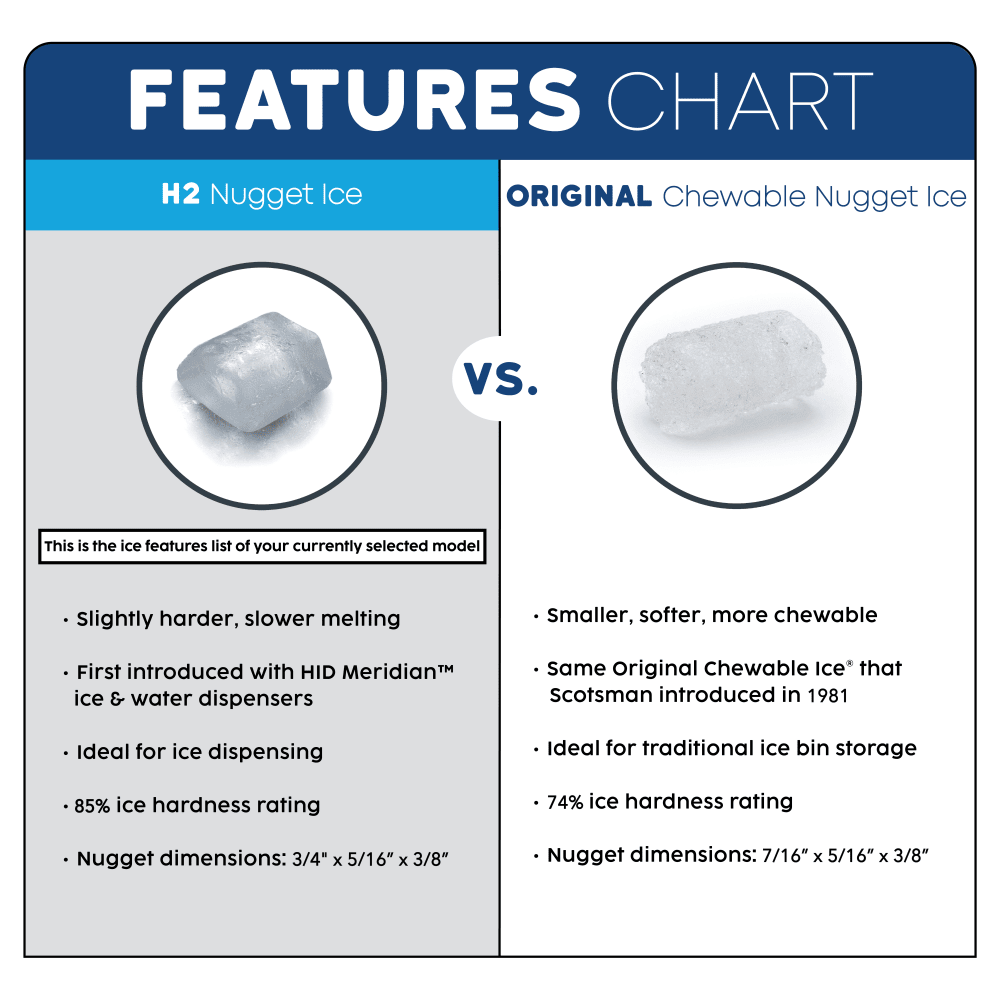

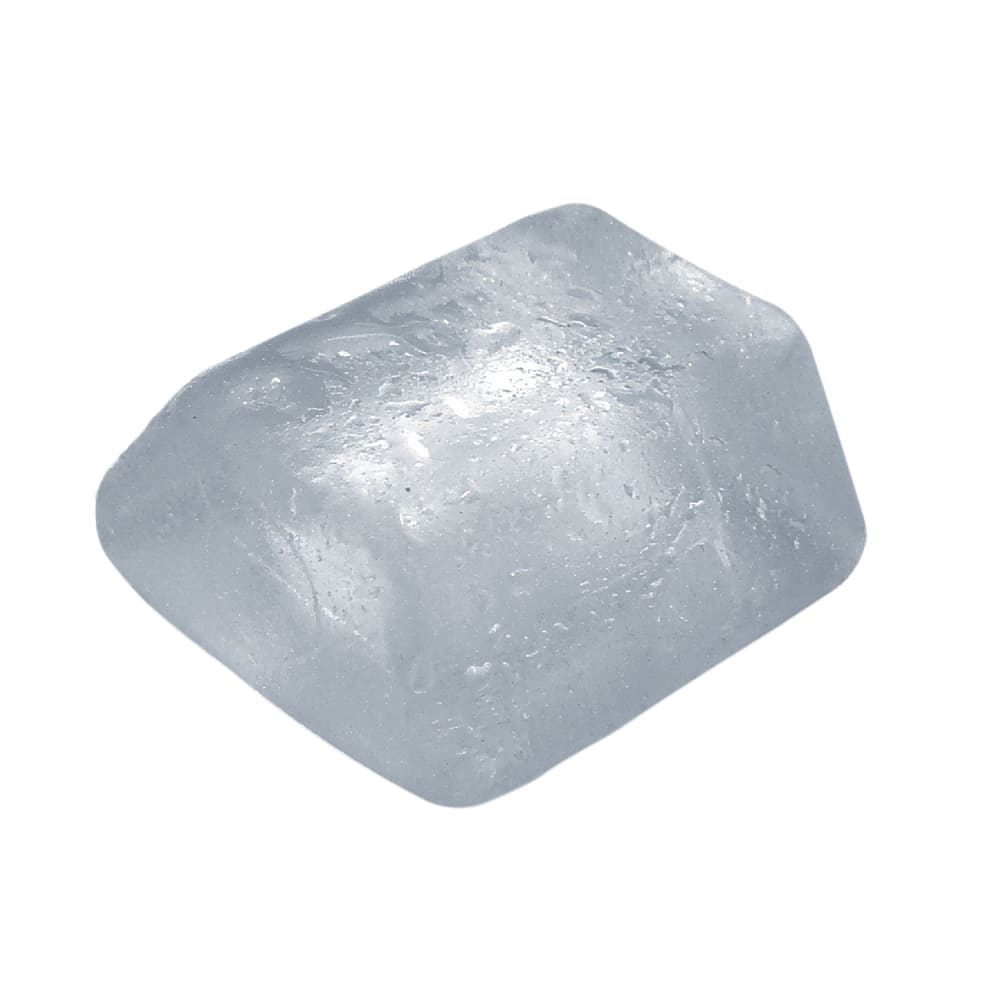

- Produces hard H2 nugget ice
- Stainless steel finish
- Self-contained, air-cooled condenser
- R290 refrigerant
- Sealed, maintenance-free bearings
- Front breathing
- Removable, front-facing air filter
- AutoAlert indicator lights
- Durable stainless steel auger and evaporator
- AgION antimicrobial protection
- 1-touch cleaning system
- QR code included
- For use with an ice bin(sold separately)
- Required operating air temperature: 50-100 degrees F
- Required operating water temperature: 40-100 degrees F
- Required operating water pressure: 20-80 PSIG
- 7,100 BTU per hour
- 22 in. W x 24 in. D x 23 in. H
- 16 A, 4.71 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman NH0622AX-1 within the 48 contiguous states.
From The Manufacturer
Prodigy Plus® Ice Maker, nugget style, H2 Nugget Ice, air-cooled, self-contained condenser, production capacity up to 644 lb/24 hours at 70°/50° (466 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 115v/60/1-ph,NSF, cULus
Watch a video about this product
Scotsman NH0622AX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 644 |
| Also Known As | NH0622A-1 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 23 |
| Ice Type | Nugget |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy Plus® |
| Special Features | H2 Harder Nugget Ice |
| Special Features | Sealed, Maintenance-Free Bearings |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Limited Parts & Labor; 5-year Limited Parts & Labor Evaporator; 5-year Limited Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 180.00 |
