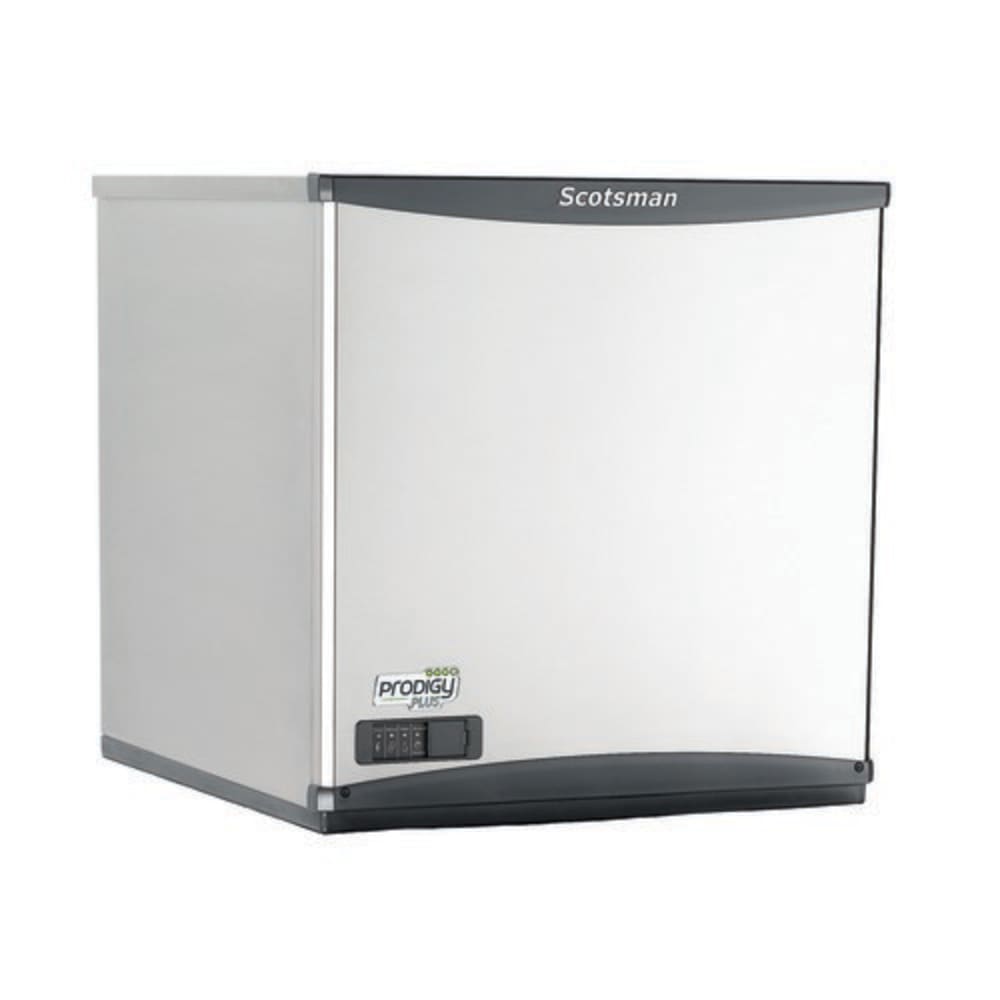

Scotsman NH0622W-1 22" Prodigy Plus® Nugget Ice Machine Head - 640 lb/24 hr, Water Cooled, 115v/1ph

The Scotsman NH0622W-1 nugget ice machine head is part of the Prodigy Plus® series and includes a front-facing air filter for improved access, AutoAlert™ indicator lights for enhanced visibility, and a self-aligning front panel permits simple access to internal parts. The exterior, evaporator, and auger are all made of stainless steel that's durable, resists rust, and won't corrode over time. It makes H² nugget ice, which is harder than original, chewable nugget ice.

In an ambient temperature varying from 70 to 90 degrees Fahrenheit and incoming water temperature between 50 and 70 degrees Fahrenheit, the Scotsman NH0622W-1 ice maker can produce 557 to 640 pounds of ice per day. For improved access to warranty information, manuals, and other machine documents, a unit-specific QR code is included on the front of the head. To enhance the quality of ice and reduce cleaning time, the food zone is made with antimicrobial protection, inhibiting the growth of bacteria and mold.

Product Details

• Part of the Prodigy Plus series
• Water cooled
• 640-lb. maximum daily ice production
• 557-lb. AHRI-certified daily ice production

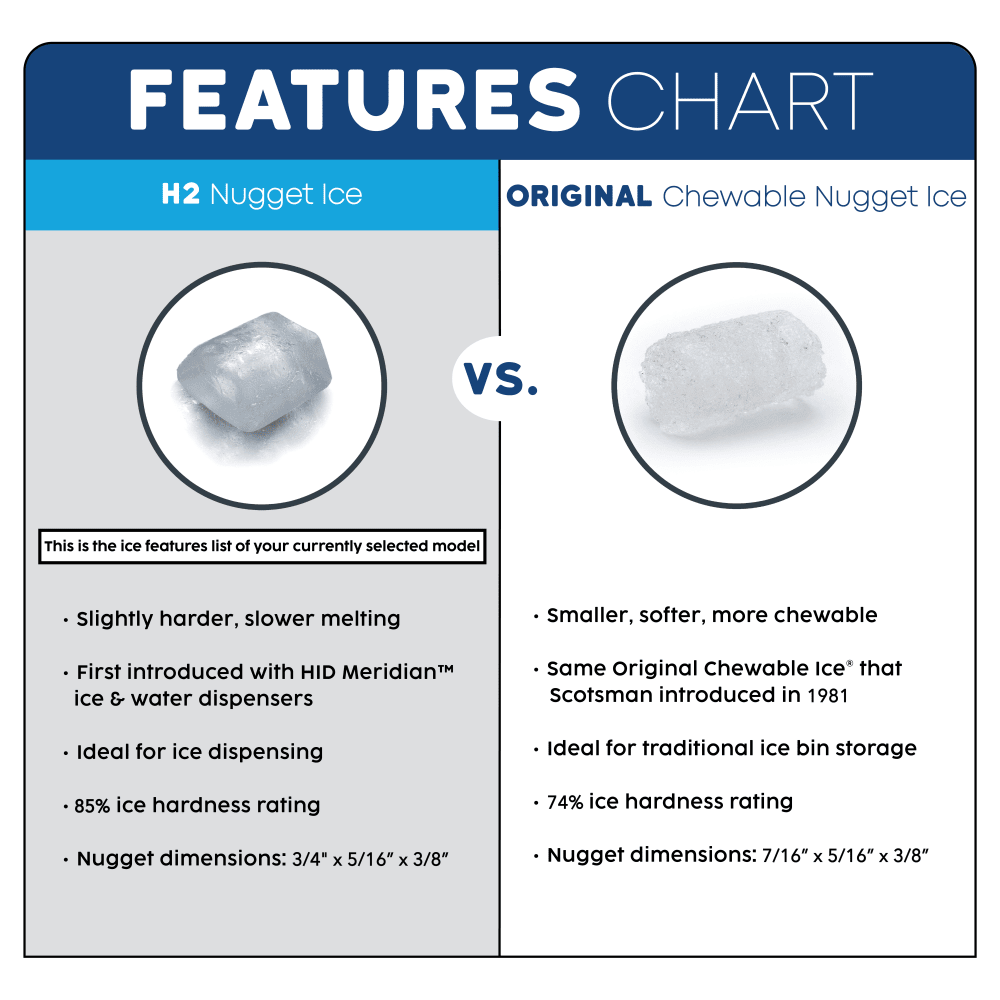

• Produces H² nugget ice
• Nugget ice size: ³/₄ in. x ⁵/₁₆ in. x ³/₈ in.
• Stainless steel finish

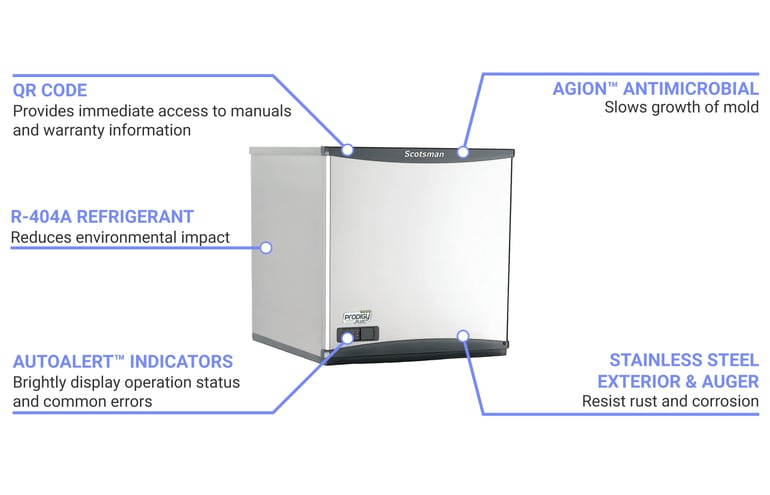

• AutoAlert indicator lights for increased visibility
• Model-specific QR code provides access to manuals, care instructions, and warranty history
• Front-facing air filter for improved access
• Self-aligning front panel simplifies access
• Smart-Board™ expands diagnostic capabilities
• Antimicrobial protection with AgION™ guards
• Sealed refrigeration system prevents airborne contaminates from getting inside
• R-404A refrigerant reduces environmental impact
• Ice bin sold separately

Product Features

Operating Requirements

• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 7,100-BTU heat transfer capacity

Dimensions & Utilities

• 22⁷/₁₀ in. W x 24²³/₂₅ in. D x 23 in. H
• 14.4 A, 3.8 kW
• 115 V/60 Hz/1 ph

*Free shipping on Scotsman NH0622W-1 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, nugget style, H2 Nugget Ice, water-cooled, self-contained condenser, production capacity up to 640 lb/24 hours at 70°/50° (557 lb AHRI certified to 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 14.4 amps, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman NH0622W-1 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
