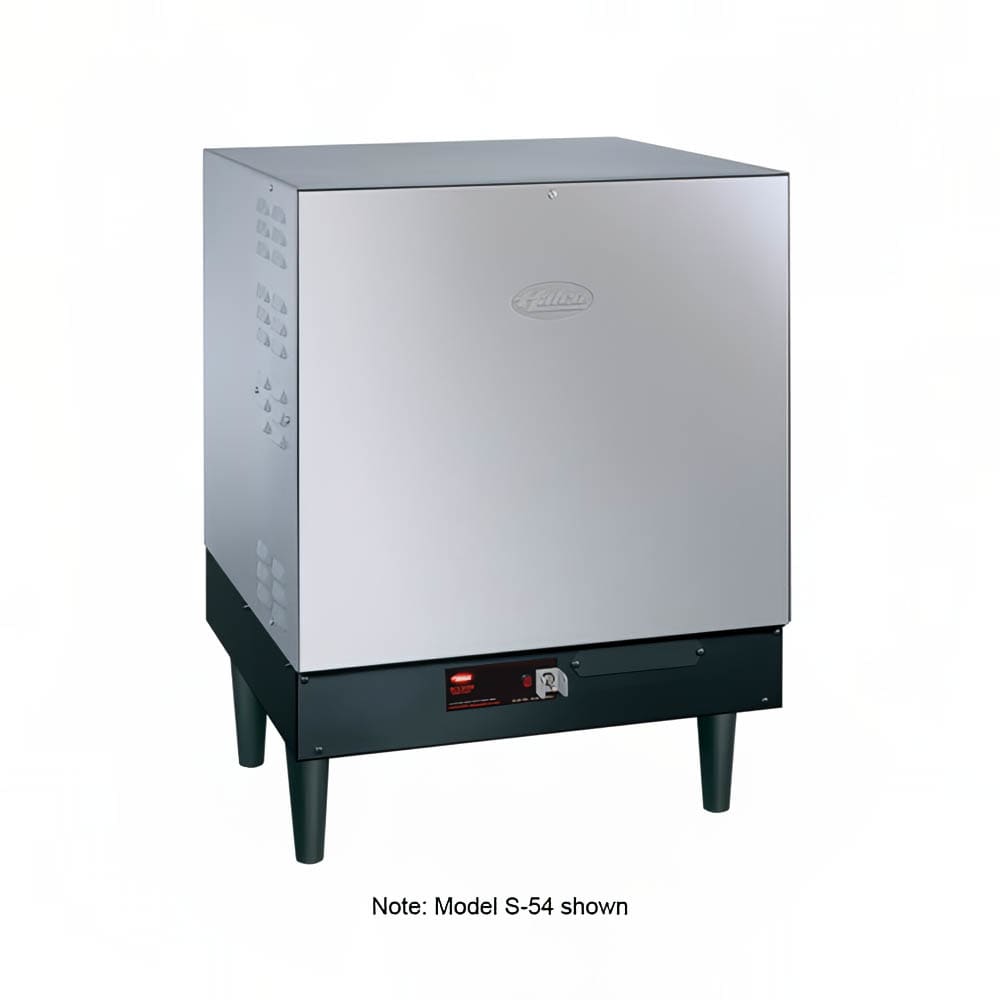

Hatco S-9 Imperial Booster Water Heater, 16 Gallon, 9 kW, 240v/3ph
Retail Price: $6,671.00
$3,669.05 /Each
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 480V, 3 Phase |
Hatco S-9 Description
Finished with a hammertone coating, the Hatco S-9 Imperial booster heater has a corrosion-resistant, durable exterior. Its stainless steel cover offers access to the interior from the front, so the unit can be serviced without being moved. Operators control the heater from the front with a power switch and can monitor it with the pilot light. The preset thermostat is adjustable, accommodating both high- and low-temperature warewashers. For component protection, a high-temperature limit switch cuts off the power if the temperature gets too hot.
This Hatco S-9 water booster heater has a 16-gallon storage capacity. On the inside, the tank is covered in Castone®, preventing corrosion buildup, and on the outside, fiberglass insulation holds heat inside the tank to increase efficiency. Both the elements and thermostat are submerged in water to speed up recovery times, and if the water level falls too low, the elements turn off to prevent burnout.
- 16-gal. capacity
- Maximum 90 GPH at 40-degree-F rise
- Maximum 52 GPH at 70-degree-F rise
- Thermostat can be adjusted to accommodate high- or low-temp dishmachines
- Power switch
- Pilot light
- 2 temperature/pressure gauges
- High-temperature limit protects internal components from heat damage
- Tank is lined in Castone, which is non-toxic and non-corrosive
- Elements have a low-water cut-off feature
- Fiberglass insulation helps confine heat to the tank
- Pressure reduction valve
- Temperature and pressure relief valve
- 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H
- 33 A, 9 kW
- 240 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-9 within the 48 contiguous states.
From The Manufacturer
Hatco S-9 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 90 |
| 70F Recovery (gph) | 52 |
| Amps | 33 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 9 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 0 - 10 |
| Width (in) | 23.5 |
| Weight | 200.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco S-9 Hatco S-9 Imperial Booster Water Heater, 16 Gallon, 9 kW, 240v/3ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $3,669.05 / Each | $3,669.05 / Each | $3,669.05 / Each | $3,669.05 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Heavy Duty | Heavy Duty | Heavy Duty | Heavy Duty |
| 40F Recovery (gph) | 90 | 90 | 90 | 90 |
| 70F Recovery (gph) | 52 | 52 | 52 | 52 |
| Capacity (gallons) | 16 | 16 | 16 | 16 |
| Width (in) | 23.5 | 23.5 | 23.5 | 23.5 |
| Watts | 0 - 10 | 0 - 10 | 0 - 10 | 0 - 10 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 240 | 208 | 208 | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
