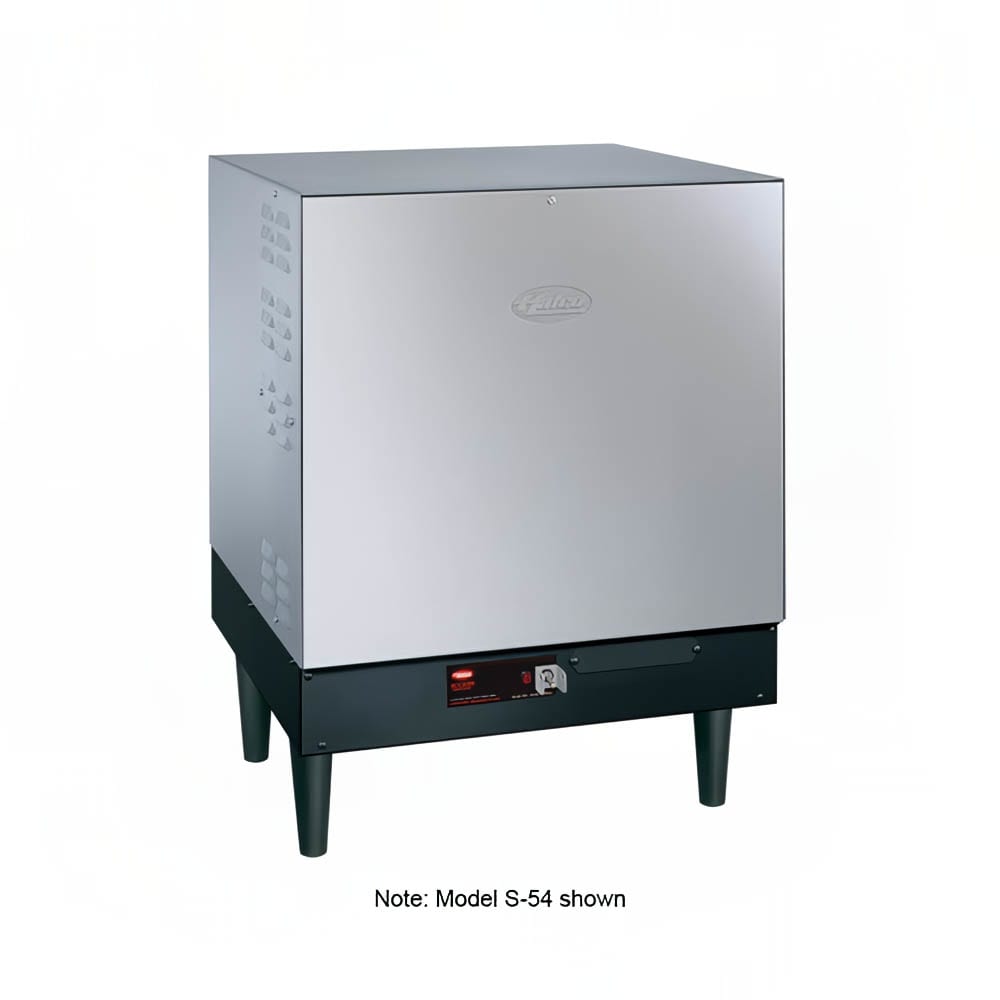

Hatco S-9 Imperial Booster Water Heater, 16 Gallon, 9 kW, 240v/1ph
Retail Price: $6,671.00
$3,669.05 /Each
Selected Voltage: 240V, 1 Phase
| 240V, 1 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Hatco S-9 Description
Designed to be hooked up to a dishmachine, the Hatco S-9 Imperial booster heater raises water temperatures for the final, sanitizing rinse. Its thermostat is preset to 180 degrees Fahrenheit, great for high-temp machines, but this level can be adjusted to 140 degrees to accommodate low-temp dishmachines. If the internal temperature ever grows too high or the heating elements are exposed to air, the heater automatically shuts off, preventing irreversible damage.
With a hammertone finish, stainless steel cover, and Castone®-lined tank, this Hatco S-9 water booster heater is protected against corrosion. This design helps the unit endure water constantly running through it in a commercial environment. For operator safety, the temperature and pressure are tracked with gauges, and a relief valve and pressure reduction valve help ensure they stay at the correct level.
- 16-gal. capacity
- Maximum 90 GPH at 40-degree-F rise
- Maximum 52 GPH at 70-degree-F rise
- Preset, adjustable thermostat
- Pilot indicator light
- On/off switch
- Castone®-lined tank is resistant to corrosion
- Fiberglass surrounds the tank and keeps heat inside
- Elements are immersed in the tank water
- Elements stop heating if the water gets too low or temperature gets too high
- 2 temperature/pressure gauges
- Temperature/pressure relief valve
- Pressure reduction valve
- 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H
- 38 A, 9 kW
- 240 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-9 within the 48 contiguous states.
From The Manufacturer
Hatco S-9 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 90 |
| 70F Recovery (gph) | 52 |
| Amps | 38 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 9 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 0 - 10 |
| Width (in) | 23.5 |
| Weight | 200.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco S-9 Hatco S-9 Imperial Booster Water Heater, 16 Gallon, 9 kW, 240v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $3,669.05 / Each | $3,669.05 / Each | $3,669.05 / Each | $3,669.05 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Heavy Duty | Heavy Duty | Heavy Duty | Heavy Duty |
| 40F Recovery (gph) | 90 | 90 | 90 | 90 |
| 70F Recovery (gph) | 52 | 52 | 52 | 52 |
| Capacity (gallons) | 16 | 16 | 16 | 16 |
| Width (in) | 23.5 | 23.5 | 23.5 | 23.5 |
| Watts | 0 - 10 | 0 - 10 | 0 - 10 | 0 - 10 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 240 | 480 | 208 | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
