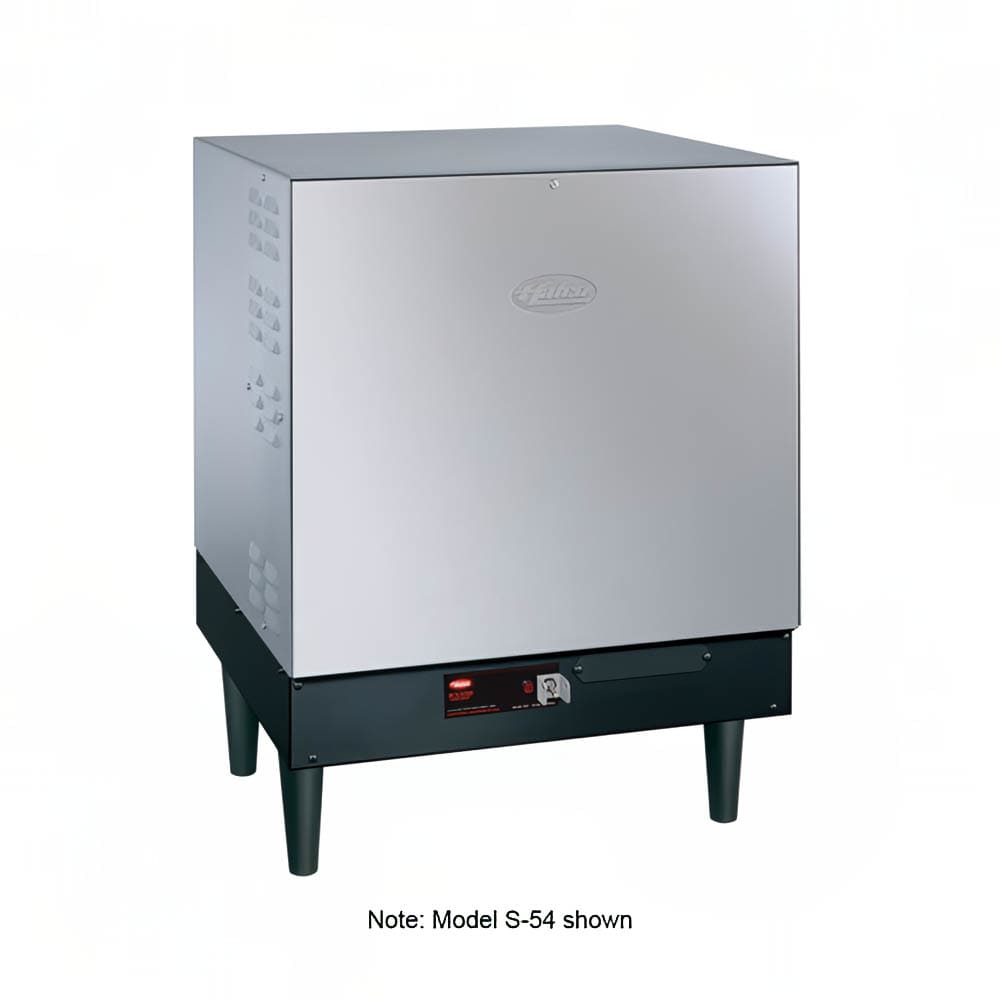

Hatco S-9 Imperial Booster Water Heater, 16 Gallon, 9 kW, 208v/3ph
Retail Price: $6,671.00
$3,669.05 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Hatco S-9 Description
The Hatco S-9 Imperial booster heater supplies dishwashers with the hot water needed for the final sanitizing cycle. In an hour, it can raise 90 gallons of water by 40 degrees Fahrenheit, bringing it to the 180-degree point needed for high-temp dishmachines, and because its thermostat is adjustable, this unit can be used with low-temp dishmachines as well. Users can control the unit from the front, which offers access to its thermostat adjustment screw, high-temp limit switch, power switch, and pilot light.
This Hatco S-9 water booster heater's exterior is constructed of durable, hammertone-coated metal and stainless steel for its front service-access cover. The interior holds a 16-gallon-capacity tank that is lined in Castone® for corrosion protection. Fiberglass insulation surrounds the tank, keeping heat away from the electronics, and if the internal temperature gets too high, the unit shuts down automatically to prevent permanent damage.
- Maximum 90 GPH at 40-degree-F rise
- Maximum 52 GPH at 70-degree-F rise
- Adjustable thermostat is preset to 180 degrees F
- Power switch
- Pilot indicator light
- Temperature and pressure gauges
- 16-gal. tank
- Fiberglass insulation and heat trap keep heat inside the tank
- Castone® lining is non-toxic and corrosion resistant
- Low-water cut-off function protects elements from burnout
- High-temperature limit protects unit from overheating
- Temperature/pressure relief valve
- Pressure reduction valve
- 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H
- 38 A, 9 kW
- 208 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-9 within the 48 contiguous states.
From The Manufacturer
Hatco S-9 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 90 |
| 70F Recovery (gph) | 52 |
| Amps | 38 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 9 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 0 - 10 |
| Width (in) | 23.5 |
| Weight | 200.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco S-9 Hatco S-9 Imperial Booster Water Heater, 16 Gallon, 9 kW, 208v/3ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $3,669.05 / Each | $3,669.05 / Each | $3,669.05 / Each | $3,669.05 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Heavy Duty | Heavy Duty | Heavy Duty | Heavy Duty |
| 40F Recovery (gph) | 90 | 90 | 90 | 90 |
| 70F Recovery (gph) | 52 | 52 | 52 | 52 |
| Capacity (gallons) | 16 | 16 | 16 | 16 |
| Width (in) | 23.5 | 23.5 | 23.5 | 23.5 |
| Watts | 0 - 10 | 0 - 10 | 0 - 10 | 0 - 10 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 208 | 480 | 240 | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
