Hatco S-9 Imperial Booster Water Heater, 16 Gallon, 9 kW, 208v/1ph
Retail Price: $6,671.00
$3,669.05 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Hatco S-9 Description
The Hatco S-9 Imperial booster heater is designed to raise the water temperature in dishwashing applications to a safe level for sanitizing. It is made of durable metal with a hammertone powder coating. Its front panel is constructed of stainless steel, which can be wiped clean, and offers internal maintenance access. Through the panel, users can adjust the thermostat or reset the high-temperature limit switch. Also located on the front, the unit's controls include an on/off toggle switch and a pilot light. This front-facing design enables the unit to be placed directly beside other equipment.
The Hatco S-9 water booster heater has a 16-gallon storage tank lined in Castone® for durability and insulated with fiberglass for heat retention. Designed to be fully submerged in water, the tank’s elements only turn on when the water is at the appropriate level. Otherwise, they switch off, preventing burnout.
- Maximum 90 GPH at 40-degree-F rise
- Maximum 52 GPH at 70-degree-F rise
- Immersed thermostat can be adjusted as needed
- Metal-sheathed elements with a pilot light
- On/off toggle switch
- Powder-coated hammertone exterior finish
- 16-gal. fiberglass-insulated tank
- Castone liner reduces the amount of scale and corrosion buildup
- 2 temperature/pressure gauges
- Temperature/pressure relief valve and pressure reduction valve for safety
- Low-water cut-off feature and high-temperature limit protect elements and other components from heat damage
- 12,800 average BTU; 13,700 peak BTU
- 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H
- 43 A, 9 kW
- 208 V/60 Hz/1 ph

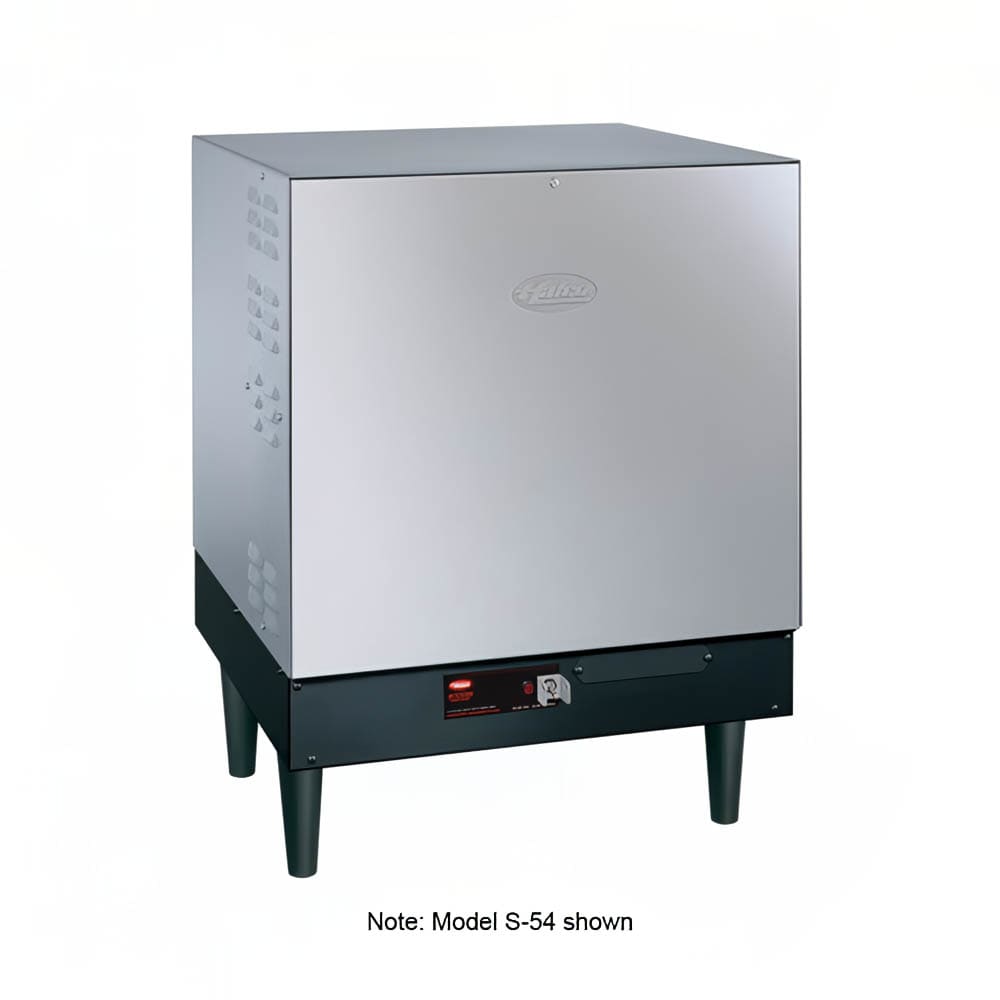

*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-9 within the 48 contiguous states.
From The Manufacturer
Hatco S-9 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 90 |
| 70F Recovery (gph) | 52 |
| Amps | 43 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 9 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 0 - 10 |
| Width (in) | 23.5 |
| Weight | 200.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco S-9 Hatco S-9 Imperial Booster Water Heater, 16 Gallon, 9 kW, 208v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $3,669.05 / Each | $3,669.05 / Each | $3,669.05 / Each | $3,669.05 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Heavy Duty | Heavy Duty | Heavy Duty | Heavy Duty |
| 40F Recovery (gph) | 90 | 90 | 90 | 90 |
| 70F Recovery (gph) | 52 | 52 | 52 | 52 |
| Capacity (gallons) | 16 | 16 | 16 | 16 |
| Width (in) | 23.5 | 23.5 | 23.5 | 23.5 |
| Watts | 0 - 10 | 0 - 10 | 0 - 10 | 0 - 10 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 208 | 240 | 208 | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
