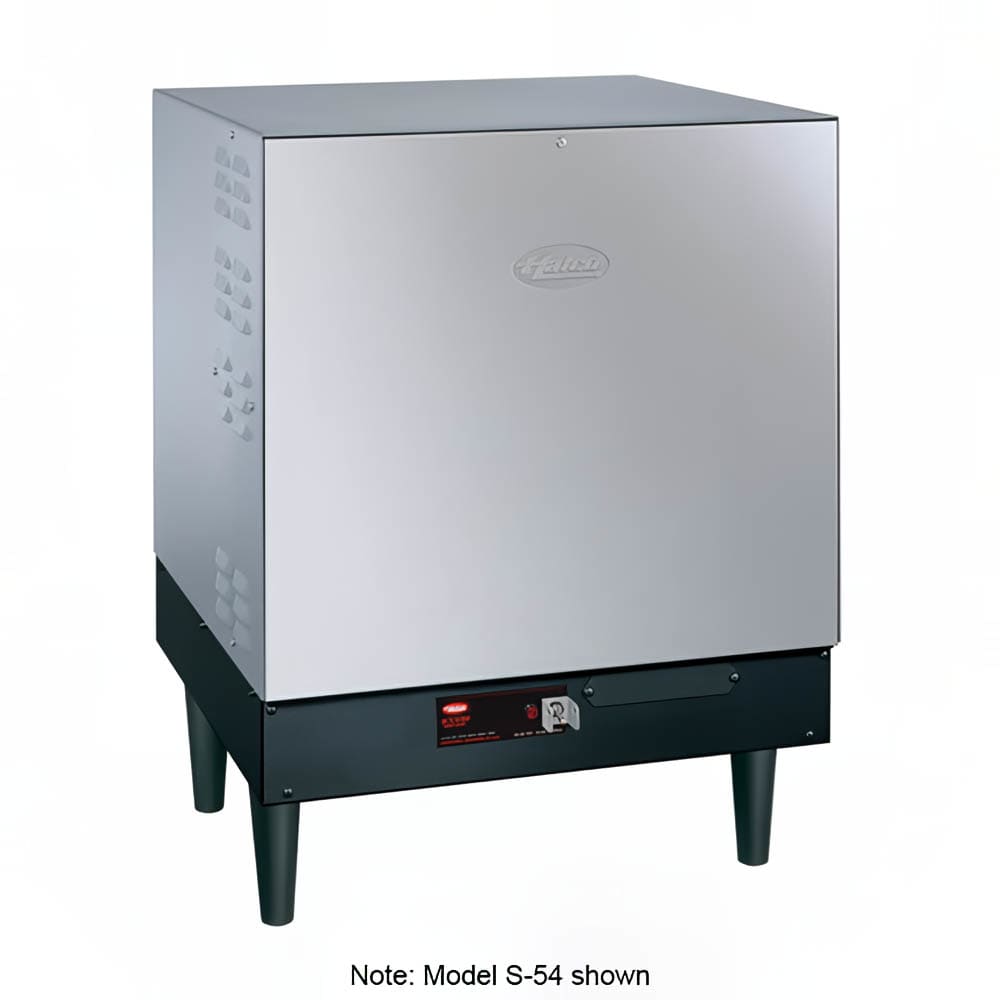

Hatco S-24 Imperial Booster Water Heater, 16 Gallon, 24 kW, 208v/3ph

The Hatco S-24 Imperial water heater warms water to 180 degrees Fahrenheit for the final dishwashing cycle. It can heat 241 gallons per hour on a 40-degree-Fahrenheit rise and 138 gallons per hour on a 70-degree-Fahrenheit rise. To keep operation straightforward, the unit is operated with just a single on/off switch, while a pilot light indicates when the booster is actively heating up water. For checking the temperature and pressure levels, the machine has two gauges.

For longevity, a high-temperature limit and low-water cut-off stop operation if needed, protecting the internal components from damage. However, if they require maintenance, parts are accessible through the front cover. This Hatco S-24 booster heater features fiberglass insulation and a heat trap to prevent heat loss and ensure energy efficiency. Finished in powder-coated hammertone, the booster heater has enough durability to hold up in a commercial kitchen.

Product Details

• Part of the Imperial series
• 140-degree-F and 180-degree-F temperature settings
• Maximum 241 GPH at 40-degree-F rise
• Maximum 138 GPH at 70-degree-F rise
• 16-gal. storage capacity
• Water tank is lined with Castone to prevent corrosion and scale buildup
• Built-in heat trap and fiberglass insulation increase energy efficiency
• Interior is accessible from the front for efficient servicing
• Immersion thermostat has a high-temperature limit switch to prevent overheating
• Low-water cut-off prevents heating element burnout
• Front panel is stainless steel
• Body is finished in powder-coated hammertone
• Straightforward operation with an on/off toggle switch
• 2 gauges provide readouts for temperature and pressure
• Temperature/pressure relief valve and pressure reduction valve
• Completely pre-wired and pre-plumbed to streamline first-time setup

Dimensions & Utilities

• 28⁵³/₁₀₀ in. W x 22³/₄ in. D x 31³/₁₀₀ in. H
• 67.7 A, 24 kW
• 208 V/60 Hz/3 ph

*Free shipping on Hatco S-24 within the 48 contiguous states.

From The Manufacturer

Imperial Booster Heater, Electric, 16-gallon storage capacity, 24-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/3ph

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts
