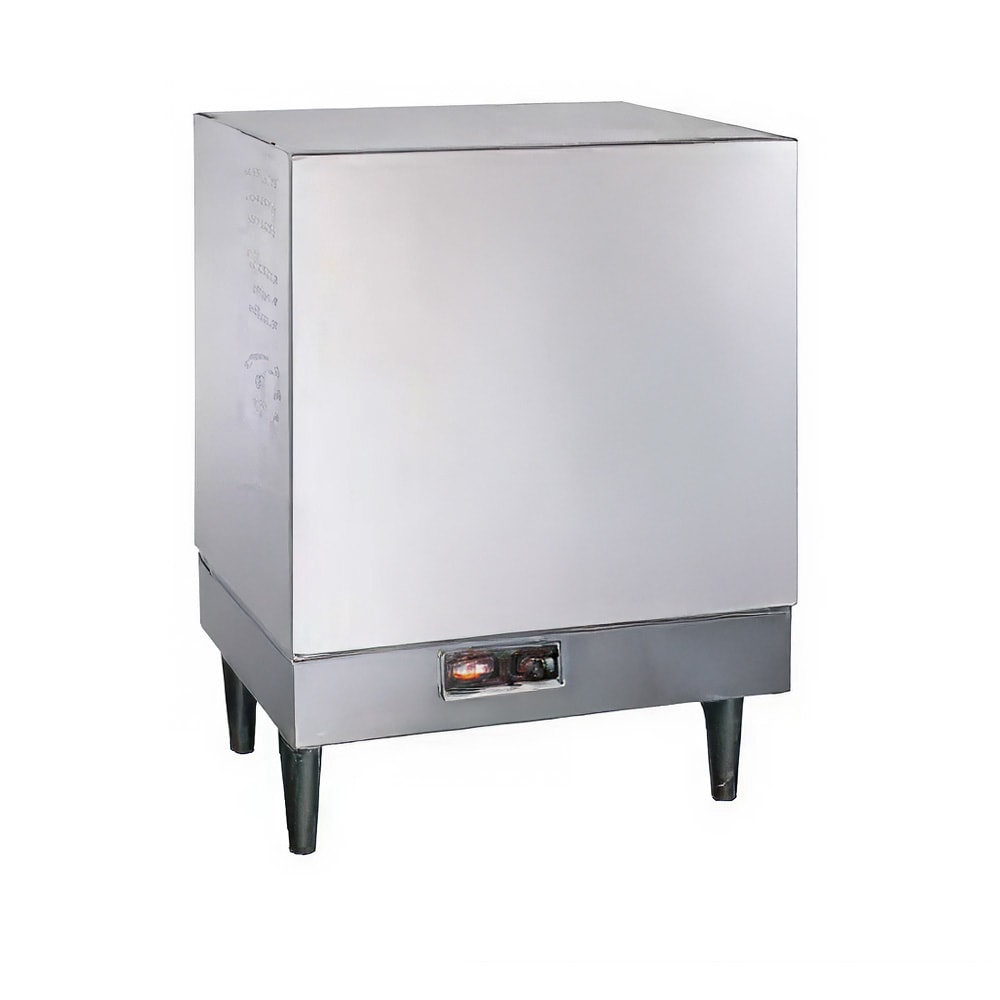

Hatco S-15 Imperial Booster Water Heater, 16 Gallon, 15 kW, 480v/3ph
Retail Price: $7,111.00
$3,911.05 /Each
Selected Voltage: 480V, 3 Phase
| 480V, 3 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Hatco S-15 Description
Designed with a stainless steel front and powder-coated hammertone finish, the Hatco S-15 Imperial water heater's exterior provides durability and corrosion resistance. Its 6-inch legs keep it off the floor and away from potential spills, and its cover provides fast access to the interior. Operators can efficiently activate the unit with the power switch, monitor it with the pilot light, or change its thermostat settings from the front. This design enables the unit to be placed beside a dishwasher or other equipment without trouble.
This Hatco S-15 water booster heater provides 180-degree-Fahrenheit water, which is great for the sanitizing cycle of a high-temperature dishmachine. However, its thermostat can also be changed to the 140 degrees needed for low-temperature machines. Its maximum hourly production is 151 gallons each hour, but the actual amount it produces depends on how big the difference is between the water supply temperature and the thermostat's goal.
- Part of the Imperial series
- Maximum 151 GPH at 40-degree-F rise
- Maximum 86 GPH at 70-degree-F rise
- Hammertone finish with a stainless steel front cover
- Cover swings open, enabling access to internal parts
- Low-water cut-off and high-temperature switch ensure the unit is operating properly
- Temperature/pressure relief valve and pressure reducing valve for safety
- 2 temperature/pressure gauges
- On/off toggle switch
- Pilot indicator light
- Thermostat can be set to provide 180-degree-F water or 140-degree-F water
- Durable, metal-sheathed element
- 16-gal.-capacity water tank
- Castone® liner reduces the amount of scale buildup
- Fiberglass insulation around the tank increases efficiency
- Factory plumbed and wired to shorten installation process
- 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H
- 18.1 A, 15 kW
- 480 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-15 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 15-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 480v/60/3ph
Hatco S-15 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 151 |
| 70F Recovery (gph) | 86 |
| Amps | 18.1 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 15 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 480 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 23.5 |
| Weight | 200.00 |
