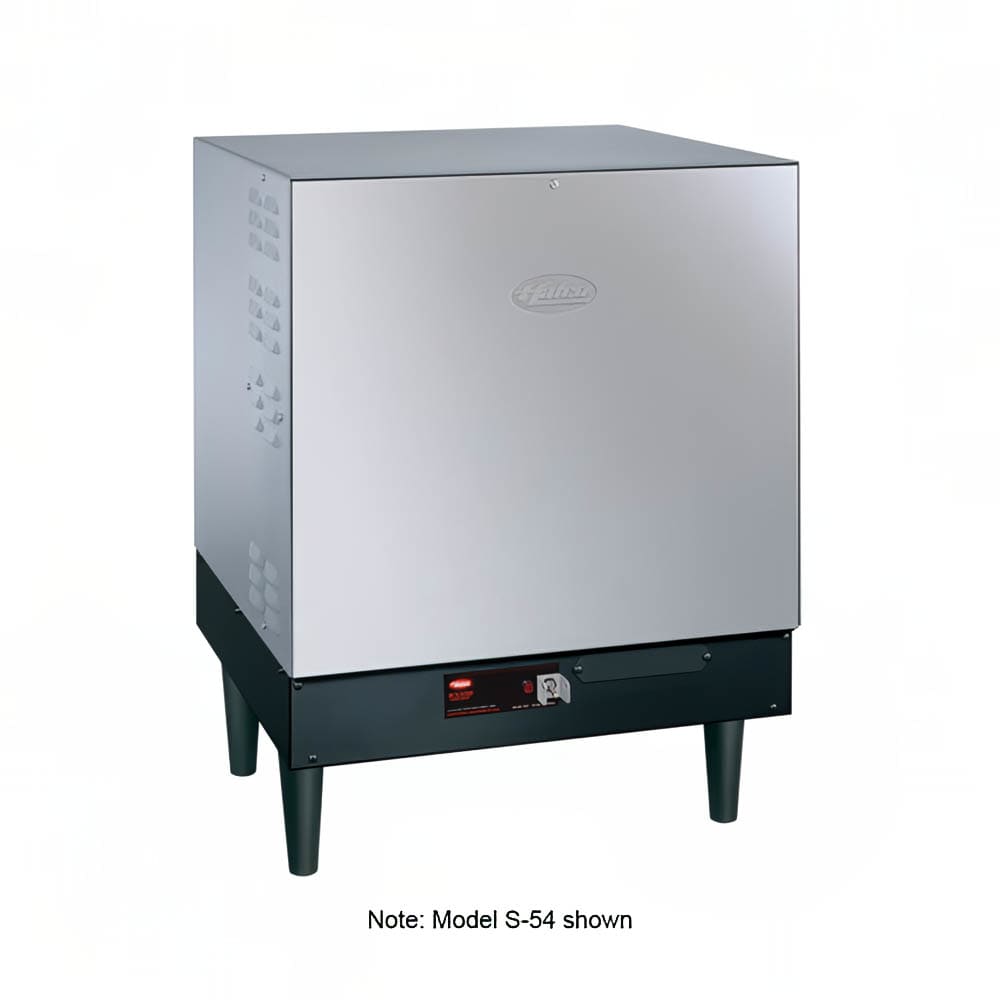

Hatco S-15 Imperial Booster Water Heater, 16 Gallon, 15 kW, 208v/1ph
Retail Price: $7,111.00
$3,911.05 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Hatco S-15 Description
The Hatco S-15 Imperial water heater attaches to a water line and dishwasher with 3⁄4-inch NPT connections. As water runs through it, it heats the water by either 40 or 70 degrees Fahrenheit, raising it to the 180-degree threshold needed for the final rinse cycle. Its water tank has a 16-gallon capacity, and if its water level falls below the elements, the unit stops heating to avoid element burnout. Immersed in water, the thermostat quickly responds to temperature changes and reaches the desired temperature. If the heat level in the tank exceeds safe levels, the unit shuts off, preventing permanent damage.
When components need maintenance or repair, users can quickly reach them through the front panel. This convenient design means the Hatco S-15 water booster heater can be placed right beside other equipment without problems. Built with a hammertone finish and stainless steel front, the unit is durable and stands on 6-inch legs, keeping it away from potential messes on the floor.
- Part of the Imperial series
- Maximum 151 GPH at 40-degree-F rise
- Maximum 86 GPH at 70-degree-F rise
- Powder-coated hammertone exterior and stainless steel cover
- Cover provides access to interior parts from the front
- Preset thermostat, pre-wired electronics, and pre-plumbed tank
- Thermostat has 140-degree-F setting for low-temperature dishwashers
- 16-gal.-capacity water tank
- Castone® tank liner adds corrosion resistance
- Fiberglass insulation increases warm-up speed and efficiency
- Heating elements only operate if enough water is in the tank
- Elements are sheathed in metal for durability
- Pilot light shows when elements are on
- On/off toggle switch
- High-temperature limit ensures safe internal temperatures
- Pressure/temperature relief valve and pressure reducing valve ensure proper pressure levels
- Gauges for monitoring temperature and pressure
- 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H
- 72 A, 15 kW
- 208 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-15 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 15-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/1ph
Hatco S-15 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 151 |
| 70F Recovery (gph) | 86 |
| Amps | 72 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 15 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 23.5 |
| Weight | 200.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco S-15 Hatco S-15 Imperial Booster Water Heater, 16 Gallon, 15 kW, 208v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $3,911.05 / Each | $3,911.05 / Each | $3,911.05 / Each | $3,911.05 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Heavy Duty | Heavy Duty | Heavy Duty | Heavy Duty |
| 40F Recovery (gph) | 151 | 151 | 151 | 151 |
| 70F Recovery (gph) | 86 | 86 | 86 | 86 |
| Capacity (gallons) | 16 | 16 | 16 | 16 |
| Width (in) | 23.5 | 23.5 | 23.5 | 23.5 |
| Watts | 11 - 20 | 11 - 20 | 11 - 20 | 11 - 20 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 208 | 208 | 480 | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
