Hatco S-15 Imperial Booster Water Heater, 16 Gallon, 15 kW, 240v/3ph
Retail Price: $7,111.00
$3,911.05 /Each
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 480V, 3 Phase |
Hatco S-15 Description

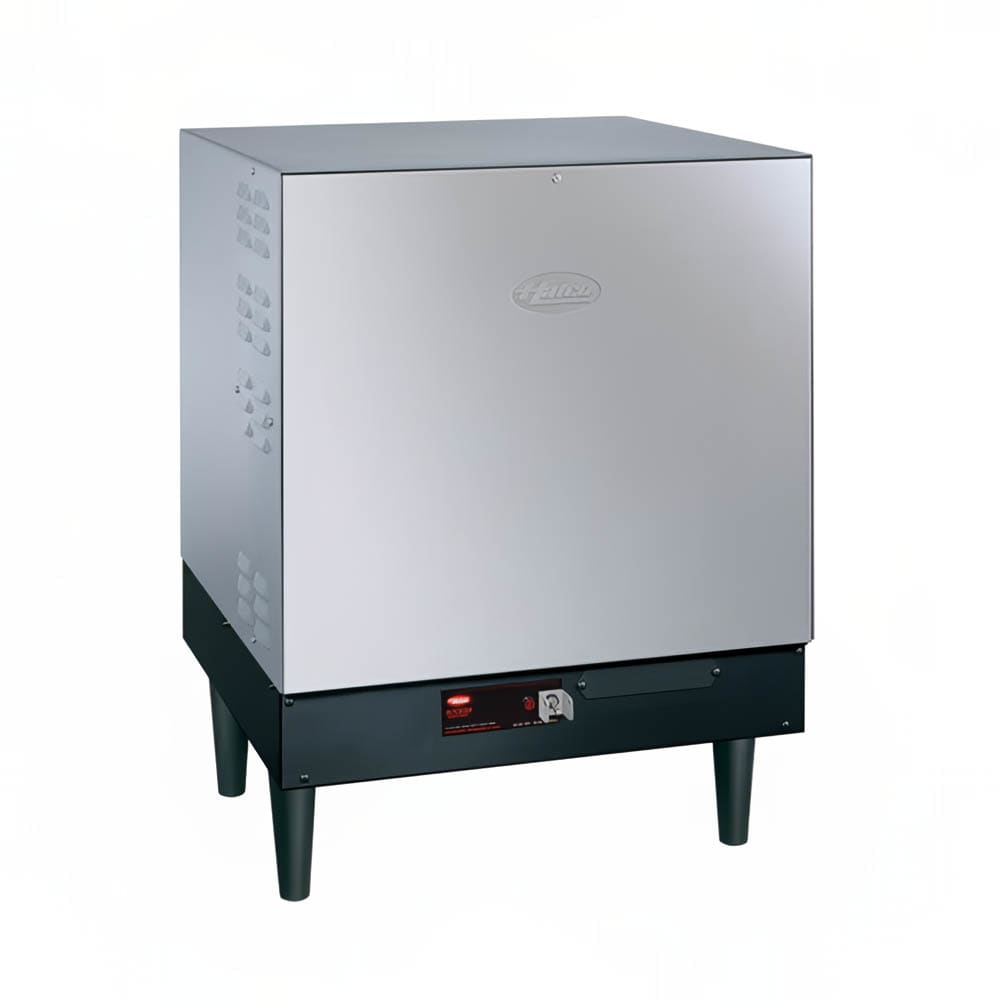

To add strength, the Hatco S-15 Imperial water heater has a hammertone finish and stainless steel front. The unit stands on 6-inch legs that raise it off the floor to prevent overheating. For convenience, internal components are located behind the front cover, meaning this heater can be installed beside a warewasher without blocking the service area.
This Hatco S-15 water booster heater features a large, 16-gallon tank, and for durability, that tank is covered in heat-trapping fiberglass on the outside and lined with corrosion-resistant Castone® on the inside. Elements quickly heat up the water at a maximum rate of 151 gallons per hour, though this value depends on how much of a boost the water needs to reach 180 degrees Fahrenheit. If the water needs a high 70-degree boost, the unit can only heat 86 gallons each hour.
- Part of the Imperial series
- Maximum 151 GPH at 40-degree-F rise
- Maximum 86 GPH at 70-degree-F rise
- Corrosion-resistant, powder-coated hammertone construction
- Front cover is made of sturdy stainless steel
- Cover provides fast access to the interior for servicing
- Pre-plumbed and pre-wired design is straightforward to install
- 16-gal. tank with calibrated immersion thermostat
- 140-degree-F setting accommodates low-temperature warewashers
- Castone tank lining increases durability and prevents rusting
- Fiberglass insulation keeps heat from seeping out of the tank
- High-temperature switch and low-water cut-off prevent overheating and internal damage
- Metal-sheathed elements with a pilot indicator light
- 2 temperature/pressure gauges and 1 temperature/pressure relief valve
- Pressure reducing valve
- On/off toggle switch
- 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H
- 36.1 A, 15 kW
- 240 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-15 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 15-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 240v/60/3ph
Hatco S-15 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 151 |
| 70F Recovery (gph) | 86 |
| Amps | 36.1 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 15 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 23.5 |
| Weight | 200.00 |
