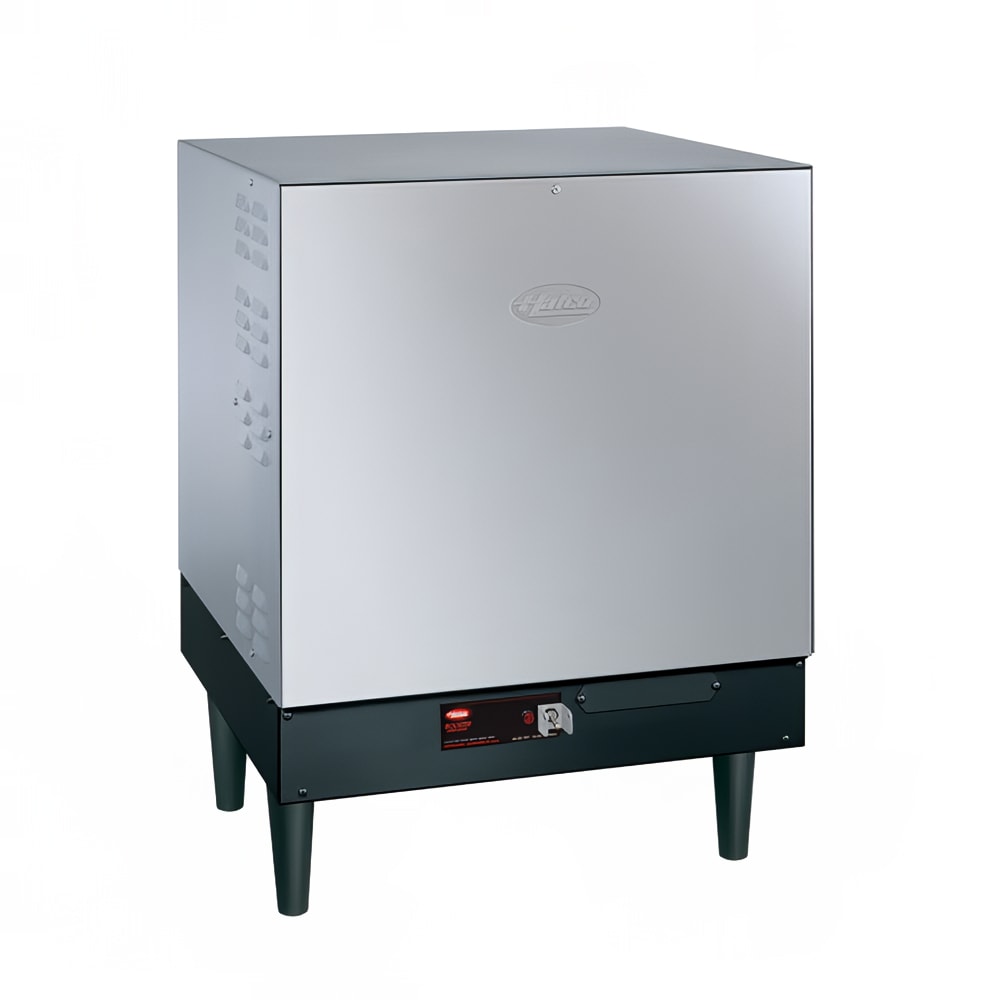

Hatco S-15 Booster Heater w/ 16 Gallon Storage Capacity, 15 kW, 208v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 042-S152083 • MPN: S-15-208-3-QS
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $4,451.00
$2,448.05 / Each

Selected Voltage: 208V, 3 Phase

Image may not depict product color, inclusions or accessories.

Hatco S-15 Description


The Hatco S-15-208-3-QS Imperial booster heater can heat water up to 180 degrees Fahrenheit to properly sanitize dishes. The temperature can also be set to 140 degrees Fahrenheit for use in low-temp dishwashers. It has a heavy-duty stainless steel front with hammertone steel and a powder coating for a cohesive look. The fiberglass insulation and built-in heat trap retain heat to ensure water stays at the ideal temperature.

The Hatco S-15-208-3-QS Imperial booster heater can hold 16 gallons and can dispense 573 gallons per hour. Its tank has a Castone® lining to resist corrosion. Burnouts are prevented by the low-water cut-off feature that shuts off the heating elements when water levels are too high. The pressure-reducing valve stabilizes pressure levels. There are two temperature and pressure gauges that enable the operator to keep track of the levels.

Product Details

  • Heats water up to 180 degrees F for proper dish sanitation
  • Water temperature can be set at 140 degrees F for low-temp dishwashers
  • 16-gal. tank capacity
  • Can produce 573 gal. of water per hour
  • Castone tank lining resists corrosion
  • Heat trap and fiberglass insulation prevent heat loss
  • Durable stainless steel front and powder-coated hammertone steel sides are heavy duty
  • Easily access internal components from the front
  • Temperature and pressure gauges help users monitor the unit
  • On/Off switch
  • Pilot indicator light shows when the power is turned on
  • 208 V/60 Hz/3 ph, 41.7 A, 15 kW
  • Overall Dimensions: 2812 in. W x 2234 in. D x 31 in. H
  • cULus and CE listed; NSF certified
  • Made in the U.S.

Safety Features

  • Low-water cut-off feature turns off the heating elements when water levels are low to stop burnouts
  • High temp limit switch shuts the unit off if temperature is too high
  • Water is released when the pressure is too high by the temperature/pressure relief valve
  • Pressure-reducing valve stabilizes the pressure level

Imperial Booster Heater, Electric, 16-gallon storage capacity, 15-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 6" legs, 208v/60/3 -ph, NSF, cUL, UL

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Hatco S-15 Specifications

PDF Spec Sheet
Manufacturer Hatco
40F Recovery 151 gph
70F Recovery 86 gph
Category Water Booster Heaters
Heat Electric
KW 15
Width (in) 23.5
Width (in) Range 21 - 30 in
Hertz 60
Voltage 208
Phase 3
Product Booster Heater
Product Type Dishwashing Equipment & Supplies
Weight 200.00
Hatco S-15 Certifications
  • UL
  • NSF
