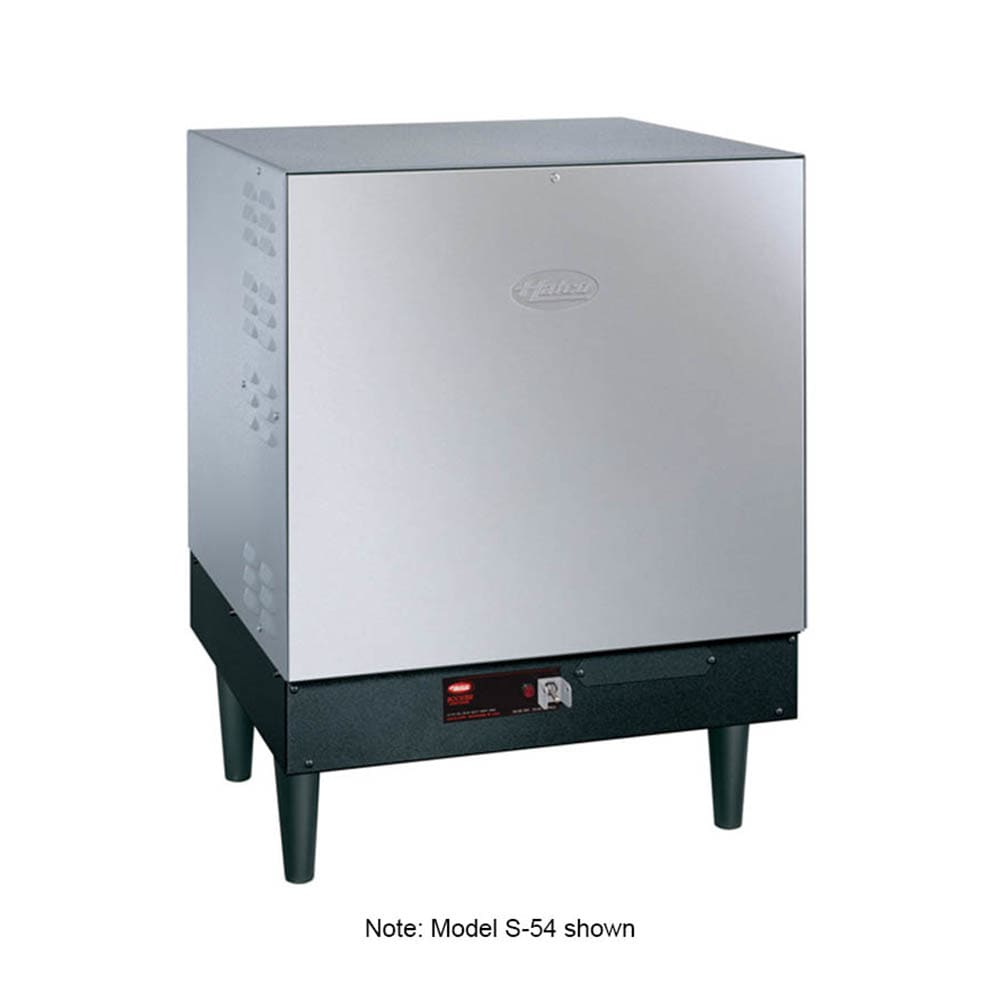

Hatco S-13 Imperial Booster Water Heater, 16 Gallon, 13 1/2 kW, 240v/3ph
Retail Price: $7,061.00
$3,883.55 /Each
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 480V, 3 Phase |
Hatco S-13 Description
Designed to provide hot water for the final rinse cycle, the Hatco S-13 Imperial water heater can be attached to a high- or low-temperature dishwasher. Its thermostat is adjustable, so it can provide water heated to either 140 or 180 degrees Fahrenheit. For fast recovery, the elements and thermostat probe are immersed in the water and respond quickly to changes in temperature. Safety features include a low-water cut-off, which prevents element burnout, and a high-temperature limit, which prevents internal heat damage.
Built for daily use, this Hatco S-13 water booster heater has a powder-coated hammertone exterior and a Castone®-lined tank—both of which are corrosion resistant. The tank's concrete-like liner also prevents limescale from collecting on the sides, extending the life of the unit. If the booster needs servicing, its components are conveniently accessible behind the front cover.
- Part of the Imperial series
- Maximum 135 GPH at 40-degree-F rise
- Maximum 77 GPH at 70-degree-F rise
- Powder-coated hammertone finish
- Front stainless steel cover is removable for component access
- Pre-wired electronics, preset thermostat, and pre-plumbed tank
- Thermostat is adjustable to 140 degrees F for low-temperature warewashers
- 16-gal. tank capacity
- Corrosion-resistant Castone liner
- Dense fiberglass insulation
- Metal-sheathed heating elements have low-water cut-off
- High-temperature safety limit prevents irreversible damage
- Pilot light
- Power switch
- 2 gauges for temperature and pressure
- Pressure relief valve and pressure reducing valve
- 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H
- 33 A, 13.5 kW
- 240 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-13 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 13.5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 240v/60/3ph
Hatco S-13 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 135 |
| 70F Recovery (gph) | 77 |
| Amps | 33 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 13.5 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 23.5 |
| Weight | 200.00 |
