Hatco S-13 Imperial Booster Water Heater, 16 Gallon, 13 1/2 kW, 208v/3ph
Estimated Backorder Until 4/21/2025
Retail Price: $6,536.00
$3,594.80 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Hatco S-13 Description
Great for low- and high-temperature dishwashers, the Hatco S-13 Imperial water heater's thermostat can be adjusted to 140 or 180 degrees Fahrenheit, depending on what is needed. Both the elements and the thermostat are immersed in water, providing fast heat-up and response times. To preserve the elements, they only run when enough water is in the tank, and to protect internal components, the elements shut off if temperatures get too high.
This Hatco S-13 water booster heater has a 16-gallon-capacity tank, and surrounded by a layer of fiberglass, the tank holds heat in to increase energy efficiency. Coated with Castone®, the tank's interior resists corrosion and limescale buildup, while the durable exterior has a stainless steel front and hammertone finish. Plastic legs raise the unit off the floor to protect it from spills and to reduce the risk of overheating.
Product Details
- Part of the Imperial series
- Maximum 135 GPH at 40-degree-F rise
- Maximum 77 GPH at 70-degree-F rise
- Hammertone powder-coated finish for corrosion resistance
- Removable stainless steel front panel provides interior access
- 16-gal. tank is lined in Castone for corrosion protection
- Fiberglass insulation keeps heat inside tank
- Heating elements are sheathed in metal
- High-temperature limit shuts off elements if needed
- Low-water cut-off ensures enough water is in the tank before heating
- Calibrated thermostat maintains tank temperature of 180 degrees F
- Thermostat has a 140-degree-F and 180-degree-F setting
- Pilot indicator light
- On/off switch
- Pre-wired and pre-plumbed design speeds up installation
- Pressure/temperature gauges and relief valve
- Pressure reducing valve for safety
Dimensions & Utilities
- 2853/100 in. W x 223/4 in. D x 313/100 in. H
- 38 A, 13.5 kW
- 208 V/60 Hz/3 ph
*Free shipping on Hatco S-13 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 13.5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/3ph

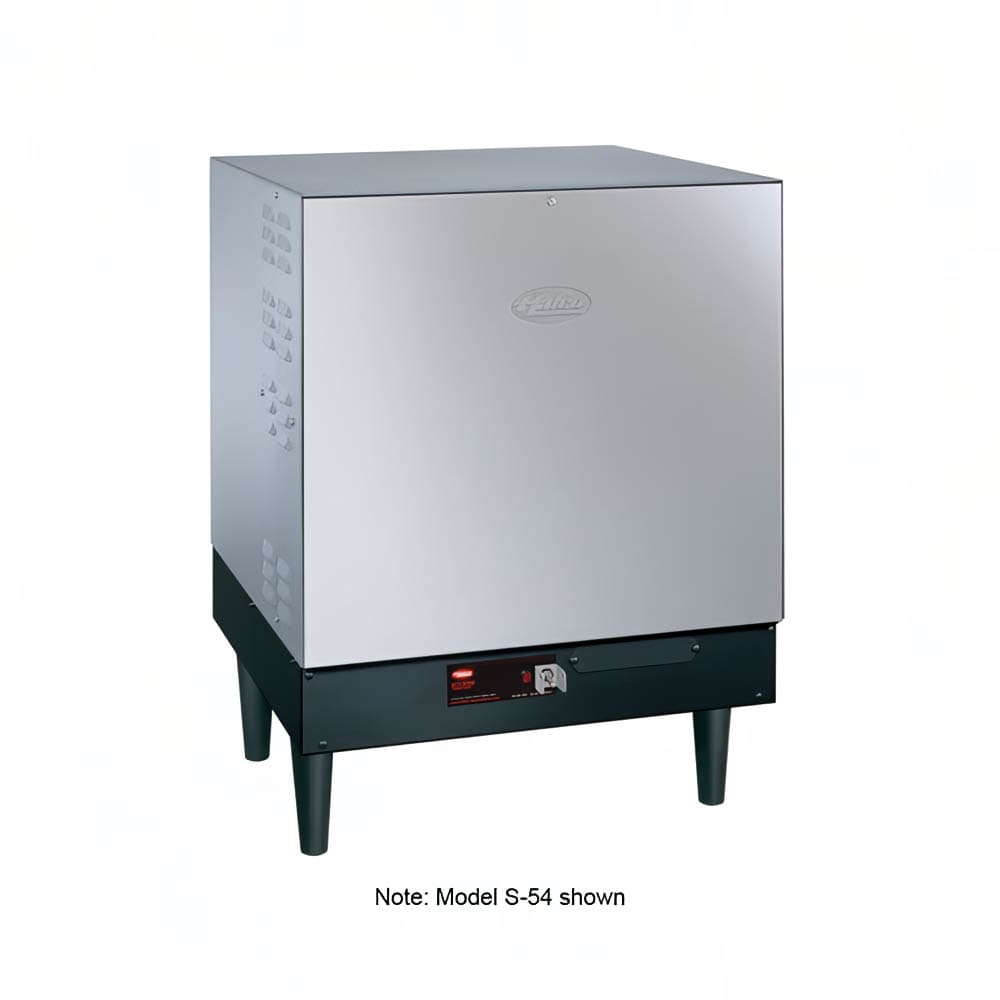

*Image may not depict product color, inclusions or accessories.
Hatco S-13 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 135 |
| 70F Recovery (gph) | 77 |
| Amps | 38 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 13.5 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 23.5 |
| Weight | 200.00 |
Important Prop 65 information for California residents.
- Hatco S-13
- Hatco S-13
- Hatco S-13
- Hatco S-13
Hatco S-13 Accessories
Other Products From This Line
Compare to Similar Items
| Attributes |
Current Item: Hatco S-13 Imperial Booster Water Heater, 16 Gallon, 13 1/2 kW, 208v/3ph |
Hatco S-13 Imperial Booster Water Heater, 16 Gallon, 13 1/2 kW, 480v/3ph |
Hatco S-13 Imperial Booster Water Heater, 16 Gallon, 13 1/2 kW, 240v/3ph |
Hatco S-13 Imperial Booster Water Heater, 16 Gallon, 13 1/2 kW, 240v/1ph |
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $3,594.80 | $3,594.80 | $3,594.80 | $3,594.80 |
| Shipping | Ships Free | Ships Free | Ships Free | Ships Free |
| Lead Time | Estimated Backorder Until 4/21/2025 | Estimated Backorder Until 4/21/2025 | Estimated Backorder Until 4/21/2025 | Estimated Backorder Until 4/21/2025 |
| Usage Level | Heavy Duty | Heavy Duty | Heavy Duty | Heavy Duty |
| 40F Recovery (gph) | 135 | 135 | 135 | 135 |
| 70F Recovery (gph) | 77 | 77 | 77 | 77 |
| Capacity (gallons) | 16 | 16 | 16 | 16 |
| Width (in) | 23.5 | 23.5 | 23.5 | 23.5 |
| Watts | 11 - 20 | 11 - 20 | 11 - 20 | 11 - 20 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 208 | 480 | 240 | 240 |
| Gas Type | ||||
| Part Type | ||||
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
