Hatco S-12 Imperial Booster Water Heater, 16 Gallon, 12 kW, 480v/3ph
Retail Price: $6,526.00
$3,589.30 /Each
Selected Voltage: 480V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Hatco S-12 Description
The Hatco S-12 Imperial water booster heater warms water to 180 degrees Fahrenheit for high-temperature dishmachines, but it can also be adjusted to accommodate low-temperature machines. Straightforward to operate, the unit is controlled by an on/off switch and can be monitored with the pilot light. It has a 120 GPH recovery rate and can hold 16 gallons of hot water in the tank, while a relief valve and pressure reduction valve ensure the unit runs safely at all times.
Built for commercial use, this Hatco S-12 Imperial booster water heater has a hammertone finish and a stainless steel front. Its tank is lined in Castone® to reduce the amount of scale buildup over time, and if the water flow gets interrupted, a low-water cut-off prevents the elements from activating. These elements run straight through the tank for fast heating, and to ensure they last a long time, they are sheathed in metal.
Product Details
- Part of the Imperial series
- Provides a hot water supply for a commercial dishmachine
- 180-degree-F and 140-degree-F settings
- Maximum 120 GPH at 40-degree-F rise
- Maximum 69 GPH at 70-degree-F rise
- Fiberglass insulation increases heat retention and efficiency
- Powder-coated hammertone body with a stainless steel front
- Front panel grants access to interior components
- Metal-sheathed heating elements
- Low-water cut-off feature reduces risk of element burnout
- Castone liner reduces the amount of limescale buildup in the tank
- 16-gal. tank
- Pre-plumbed and pre-wired
- On/off switch and pilot light
- Preset thermostat with a high-temperature limit
- Relief valve and pressure reducing valve
- Temperature/pressure gauges for monitoring operation
Dimensions & Utilities
- 2853/100 in. W x 223/4 in. D x 313/100 in. H
- 14.5 A, 12 kW
- 480 V/60 Hz/3 ph
*Free shipping on Hatco S-12 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 12-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 480v/60/3ph

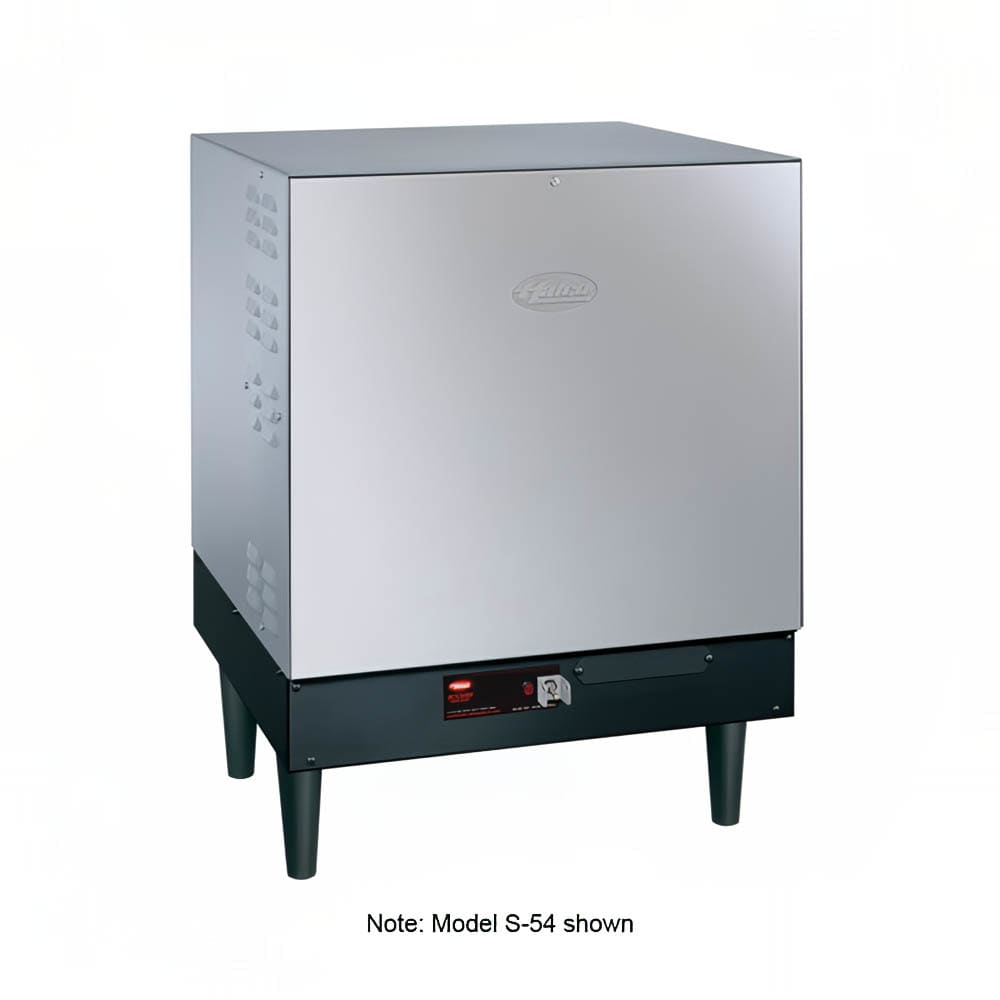

*Image may not depict product color, inclusions or accessories.
Hatco S-12 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 120 |
| 70F Recovery (gph) | 69 |
| Amps | 14.5 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 12 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 480 |
| Watts | 11 - 20 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Width (in) | 23.5 |
| Weight | 200.00 |
