Hatco S-12 Imperial Booster Water Heater, 16 Gallon, 12 kW, 208v/1ph
Retail Price: $7,046.00
$3,875.30 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Hatco S-12 Description
The Hatco S-12 Imperial booster water heater provides 120 gallons of sanitizing water per hour and stores 16 gallons. Although its water reaches the standard temperature of 180 degrees Fahrenheit, the thermostat can be adjusted to a 140-degree-Fahrenheit setting to accommodate low-temperature dishwashers. In the tank, heat is maintained by fiberglass insulation, a built-in heat trap, a temperature valve, and a pressure-reducing valve.
The Hatco S-12 imperial booster water heater can be serviced conveniently from the front. This pre-wired and pre-plumbed unit is protected by a high-temperature limit switch and a low-water cut-off, preventing heating elements from burning out. The pilot indicator light informs operators when service is needed. To ensure this booster operates at maximum capabilities, two gauges can be used to monitor temperatures.
- 16-gal. capacity
- Water sanitizes at 180 degrees F
- Maximum 120 GPH at 40-degree-F rise
- Maximum 69 GPH at 70-degree-F rise
- Calibrated immersion thermostat can be adjusted
- Built-in heat trap prevents heat loss
- Simple on/off switch operation
- Pilot indicator light informs users of potential malfunctions
- Low-water cut-off prevents burnout
- High-temperature limit control switch for safety
- 2 temperature gauges for monitoring
- Temperature-relief valve
- Pressure-reducing valve
- Pre-plumbed and pre-wired for quick installation
- Corrosion-resistant, Castone®-lined tank
- Heat-trapping, fiberglass insulation
- Durable, stainless steel front panel
- Powder-coated, silver hammertone body
- 3⁄4-in. NPT pipe
- Fittings for water inlet and outlet
- 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H
- 58 A, 12 kW
- 208 V/60 Hz/1 ph

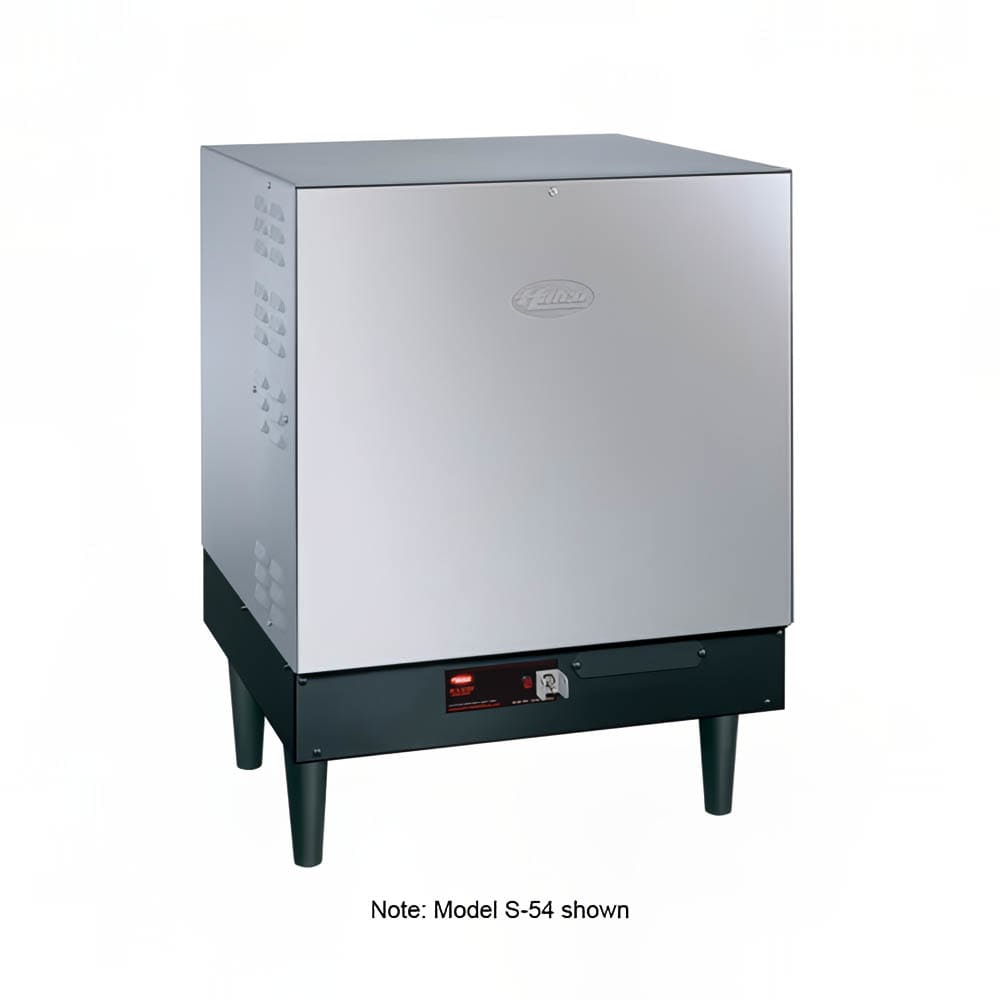

*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-12 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 12-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/1ph
Hatco S-12 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 120 |
| 70F Recovery (gph) | 69 |
| Amps | 58 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 12 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 23.5 |
| Weight | 200.00 |
