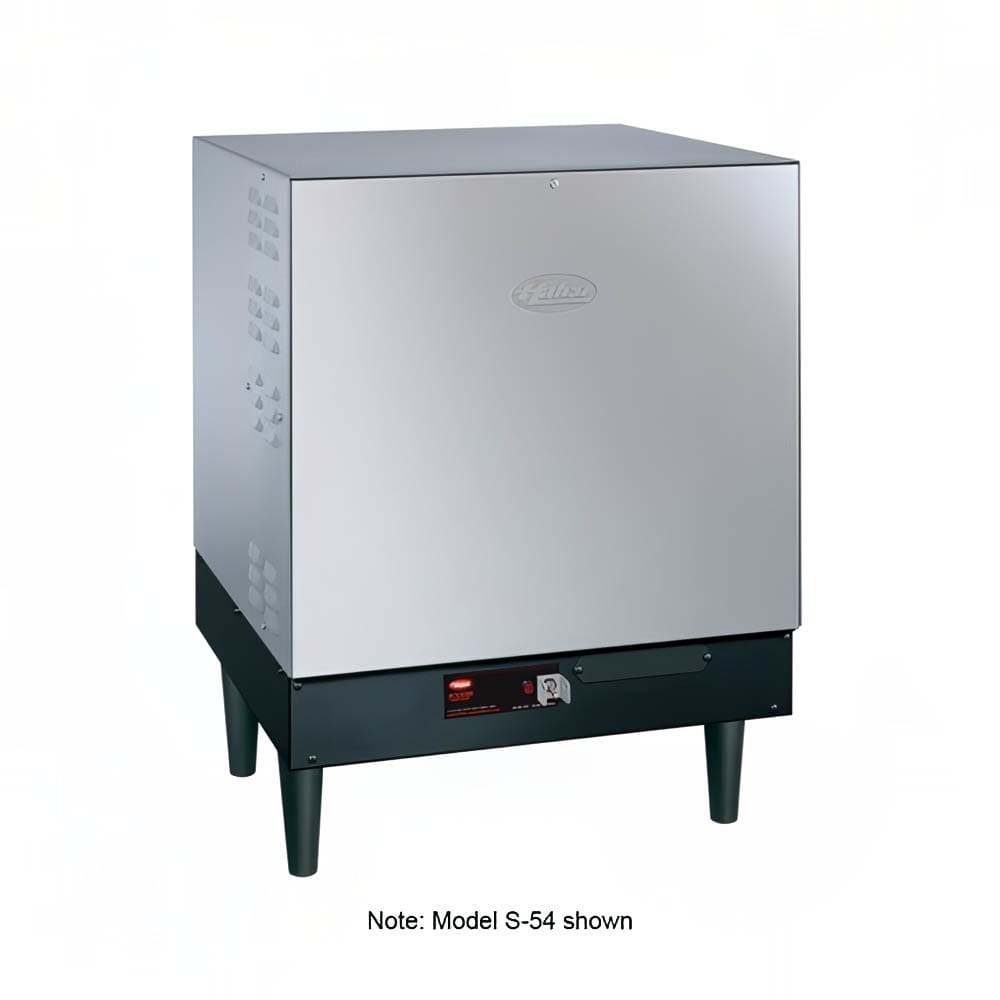

Hatco S-12 Imperial Booster Water Heater, 16 Gallon, 12 kW, 240v/1ph
Retail Price: $7,046.00
$3,875.30 /Each
Selected Voltage: 240V, 1 Phase
| 240V, 1 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Hatco S-12 Description
Supervised with a calibrated immersion thermostat, two temperature gauges, and a pilot indicator light, the Hatco S-12 imperial booster water heater heats water to 180 degrees Fahrenheit. This is the required temperature for sanitizing dishes, air-drying them for instant use. The silver powder-coated, hammertone-finished body prevents dents and dings, and the front panel is made of durable stainless steel. For low-temperature dish machines, this unit can be adjusted to 140 degrees Fahrenheit.
The Hatco S-12 imperial booster water heater includes fiberglass insulation and a built-in heat trap to prevent heat from seeping out. With a temperature-relief valve, a pressure-reducing valve, and a simple on/off switch, this unit is user friendly. For safety purposes, it includes a high-temperature limit switch and turns off when the water level is too low, preventing element burnout.
- 16-gal. capacity
- Heats water to 180 degrees F
- 140-degree-F option for low-temperature dish machines
- Maximum 120 GPH at 40-degree-F rise
- Maximum 69 GPH at 70-degree-F rise
- Operation ceases when the water is too low
- High-temperature limit control switch
- Built-in heat trap keeps heat inside
- Calibrated immersion thermostat
- 2 pressure gauges
- Temperature-relief valve
- Pressure-reducing valve
- Pilot indicator light
- On/off switch operation
- Serviceable from the front
- Castone®-lined tank prevents limestone accumulation
- Stainless steel front panel
- Powder-coated, silver hammertone body
- Insulated with fiberglass
- 6-in. legs
- 3⁄4-in. NPT pipe
- Fittings for water inlet and outlet
- 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H
- 50 A, 12 kW
- 240 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-12 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 12-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 240v/60/1ph
Hatco S-12 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 120 |
| 70F Recovery (gph) | 69 |
| Amps | 50 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 12 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 23.5 |
| Weight | 200.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco S-12 Hatco S-12 Imperial Booster Water Heater, 16 Gallon, 12 kW, 240v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $3,875.30 / Each | $3,875.30 / Each | $3,875.30 / Each | $3,875.30 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Heavy Duty | Heavy Duty | Heavy Duty | Heavy Duty |
| 40F Recovery (gph) | 120 | 120 | 120 | 120 |
| 70F Recovery (gph) | 69 | 69 | 69 | 69 |
| Capacity (gallons) | 16 | 16 | 16 | 16 |
| Width (in) | 23.5 | 23.5 | 23.5 | 23.5 |
| Watts | 11 - 20 | 11 - 20 | 11 - 20 | 11 - 20 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 240 | 240 | 480 | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
