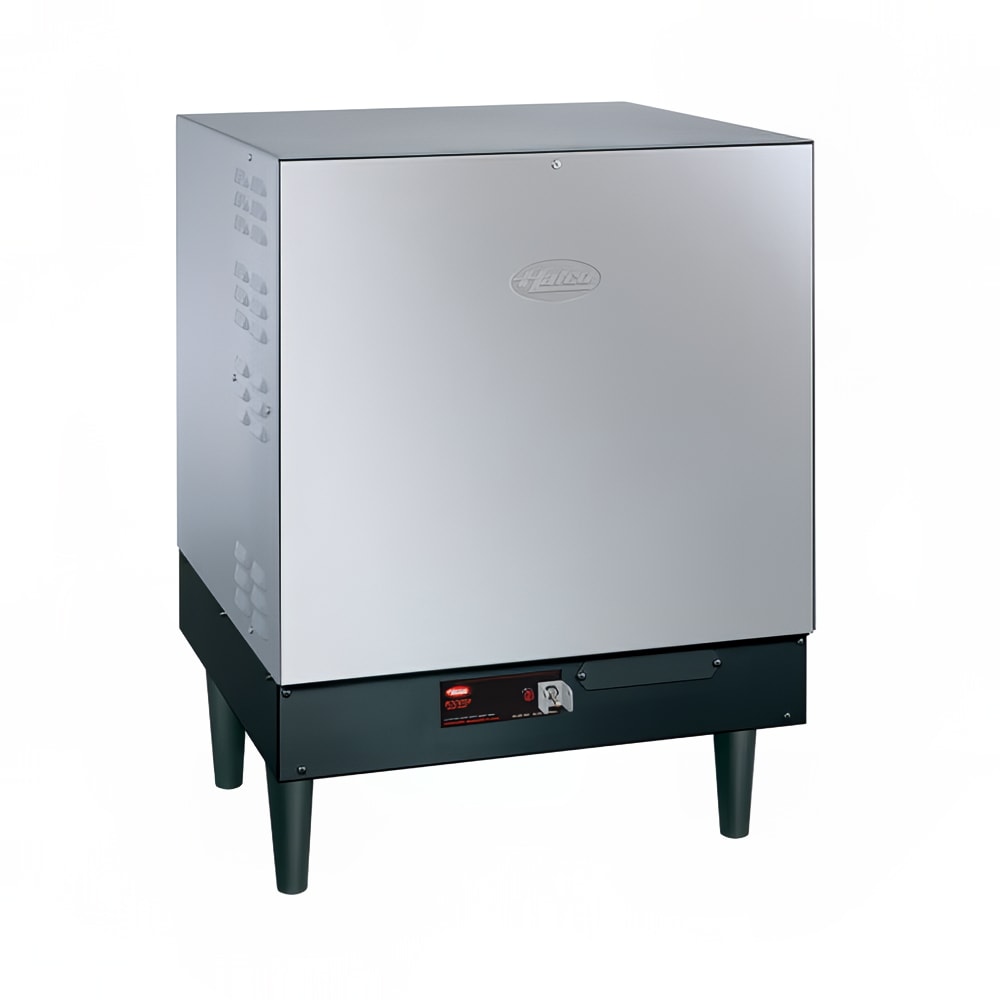

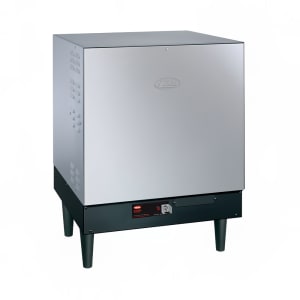

Hatco S-12 Imperial Booster Water Heater, 16 Gallon, 12 kW, 208v/3ph
Retail Price: $6,526.00
$3,589.30 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Hatco S-12 Description
In an hour, the Hatco S-12 imperial booster water heater can provide 120 gallons of sanitizing, 180-degree-Fahrenheit water. These temperatures—kept hot inside the tank by fiberglass insulation and a built-in heat trap—can air-dry dishes instantly. The temperature-relief valve and pressure-reducing valve are included for optimal unit operation. To protect the unit and the operator, this booster features a low-water cut-off feature and a high-temperature limit.
The body of the Hatco S-12 imperial booster water heater is finished with powder-coated, silver hammertone to resist dings and scratches. The front panel is made of stainless steel that wipes clean. Users can monitor the pilot indicator light and two temperature gauges to ensure the booster is running efficiently. This unit has been pre-plumbed and pre-wired at the factory for quick installation.
Product Details
- 16-gal. capacity
- Heats water to the sanitization threshold of 180 degrees F
- Maximum 120 GPH at 40-degree-F rise
- Maximum 69 GPH at 70-degree-F rise
- Silver hammertone, powder-coated body resists dents and abrasions
- Stainless steel front panel is built for durability
- Heat trap and fiberglass insulation minimize heat loss
- Calibrated immersion thermostat
- 2 temperature gauges
- Temperature-relief valve
- Pressure-reducing valve
- Pilot indicator light
- Shuts off when the water is too low or the temperature is too high, for unit protection
- Adjustable to 140 degrees F for low-temperature dish machines
- Front-accessed service area
- On/off switch operation
- Pre-plumbed and pre-wired at the factory
- 3⁄4-in. NPT pipe
- Fittings for water inlet and outlet
Dimensions & Utilities
- 2853/100 in. W x 223/4 in. D x 313/100 in. H
- 33 A, 12 kW
- 208 V/60 Hz/3 ph
Product Features
*Free shipping on Hatco S-12 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 12-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 6" legs, 208v/60/3-ph, NSF, cUL, UL
*Image may not depict product color, inclusions or accessories.
Watch a video about this product
Hatco S-12 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 120 |
| 70F Recovery (gph) | 69 |
| Amps | 33 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 12 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 208 |
| Watts | 11 - 20 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Width (in) | 23.5 |
| Weight | 200.00 |
