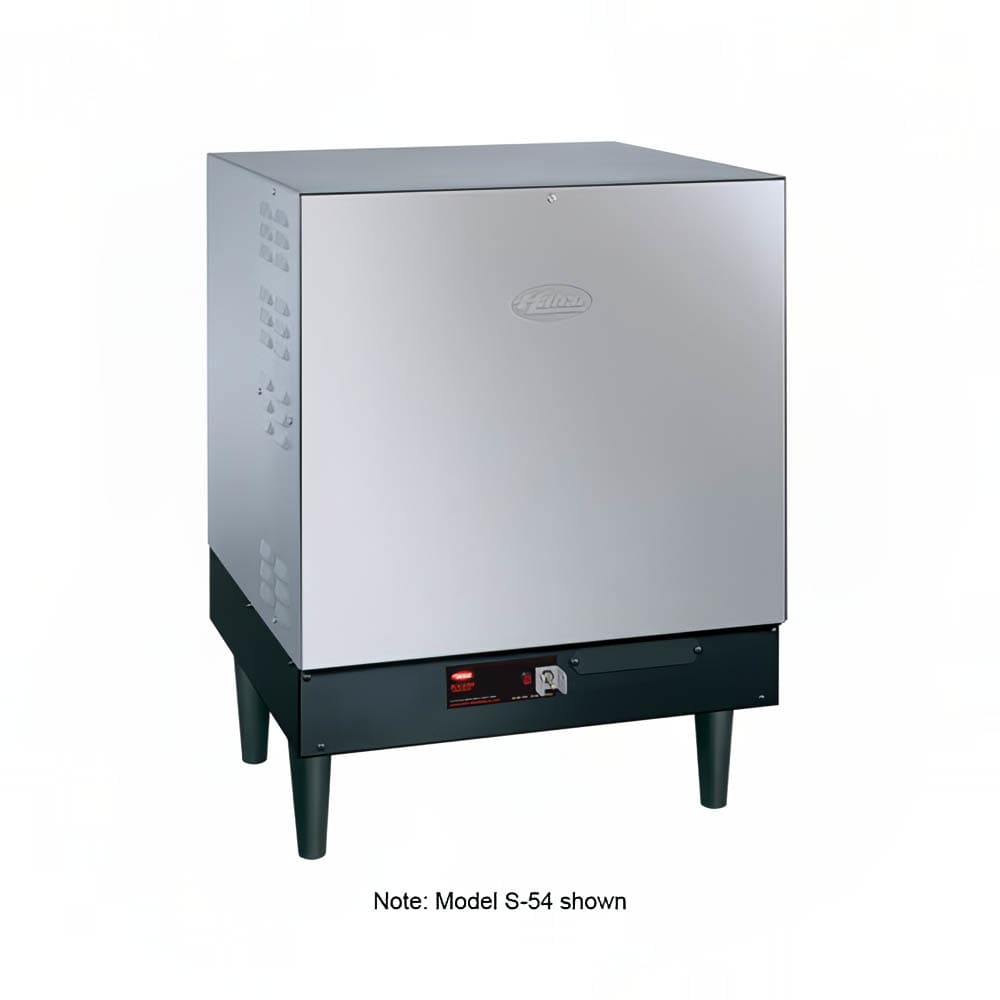

Hatco S-12 Imperial Booster Water Heater, 16 Gallon, 12 kW, 240v/3ph
Retail Price: $7,046.00
$3,875.30 /Each
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 480V, 3 Phase |
Hatco S-12 Description
The Hatco S-12 imperial booster water heater maintains 180-degree-Fahrenheit tank temperatures with a built-in heat trap and fiberglass insulation. Its thermostat can be set to 140 degrees Fahrenheit for low-temperature dishwashers. Made of stainless steel and finished in powder-coated hammertone, this unit is durable and simple to clean. Temperatures can be monitored using the calibrated immersion thermostat.
For safety purposes, the Hatco S-12 imperial booster water heater includes a low-water shut-off feature and a high-temperature limit control switch. As it runs, operators can monitor it with a pilot indicator light and two pressure gauges. For user-control, this booster includes a temperature-relief valve and a pressure-reducing valve. This unit has quick installation and can produce 120 gallons of hot water hourly with a storage capacity of 16 gallons.
- 16-gal. capacity
- Water reaches 180 degrees F for sanitizing or 140 degrees F for low-temp dishwashers
- Maximum 120 GPH at 40-degree-F rise
- Maximum 69 GPH at 70-degree-F rise
- 2 pressure gauges
- Pressure-reducing valve
- Temperature-relief valve
- Pilot indicator light
- On/off switch
- Calibrated immersion thermostat
- Pre-plumbed and pre-wired for simple installation
- Low-water cut-off
- High-temperature limit control
- Built-in heat trap minimizes heat loss
- Insulated with fiberglass
- Durable, stainless steel front panel
- Silver powder-coated hammertone body finish
- 3⁄4-in. NPT pipe
- Fittings for water inlet and outlet
- 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H
- 29 A, 12 kW
- 240 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-12 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 12-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 240v/60/3ph
Hatco S-12 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 120 |
| 70F Recovery (gph) | 69 |
| Amps | 29 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 12 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 23.5 |
| Weight | 200.00 |
