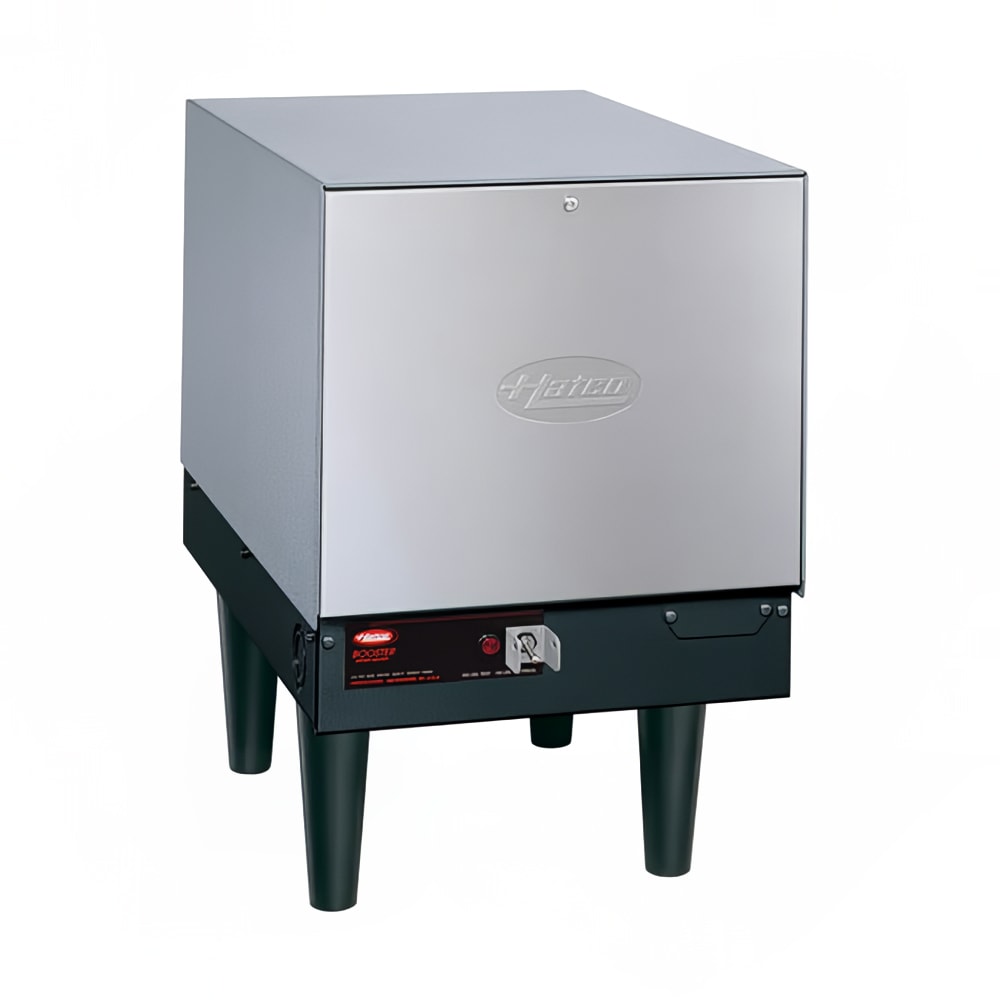

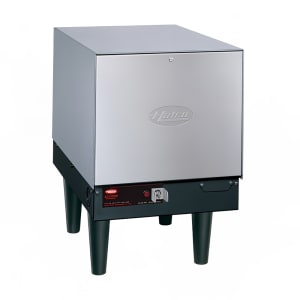

Hatco C-9 Compact Booster Water Heater, 6 Gallon, 9 kW, 480v/3ph

Because it reaches temperatures of 180 degrees Fahrenheit, the Hatco C-9 compact booster water heater features a high-temperature limit control and a low-water cut-off for safety. In case maintenance is needed, the stainless steel front panel swings open, enabling access to probes and elements. To ensure this unit is operating effectively, a temperature relief valve and pressure reducing valve are included, while the pilot indicator light helps users know if something should be changed.

Equipped with a silver powder-coated hammertone body, the Hatco C-9 compact booster water heater can be installed with the included 6-inch plastic legs or with slide brackets that are sold separately. This factory pre-plumbed and pre-wired unit is straightforward to set up, and during operation, it can be monitored using the two temperature and pressure gauges. Lined with Castone®, this tank prevents limestone and corrosion from forming and is insulated with fiberglass to minimize heat loss.

Product Details

• 6-gal. capacity
• Heats water to the sanitation temperature of 180 degrees F
• Maximum 90 GPH at 40-degree-F rise
• Maximum 52 GPH at 70-degree-F rise
• Insulated with fiberglass to minimize heat loss
• Tank lined with Castone to prevent scale buildup
• Silver powder-coated hammertone body
• Stainless steel swinging front panel gives access to probes and elements
• 6-in. plastic legs
• Slide brackets available (not included)
• 2 pressure gauges
• Temperature relief valve and pressure reducing valve
• Pilot indicator light
• Low-water cut-off prevents elements from burning out
• High-temperature limit control
• Calibrated immersion thermostat
• Pre-wired and pre-plumbed at factory
• ³⁄₄-in. NPT pipe
• Fittings for water inlet and outlet
• On/off switch

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 16.3 A, 9 kW
• 480 V/60 Hz/3 ph

*Free shipping on Hatco C-9 within the 48 contiguous states.

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 9-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 480v/60/3ph

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco C-9 Specifications

Wisconsin-based Hatco has been a pioneer in the food warming and holding market since 1950. The brand also offers light cooking equipment and dishwasher boosters that keep dishwashing machines up to proper sanitizing temperatures, helping operations stay safe and efficient.
