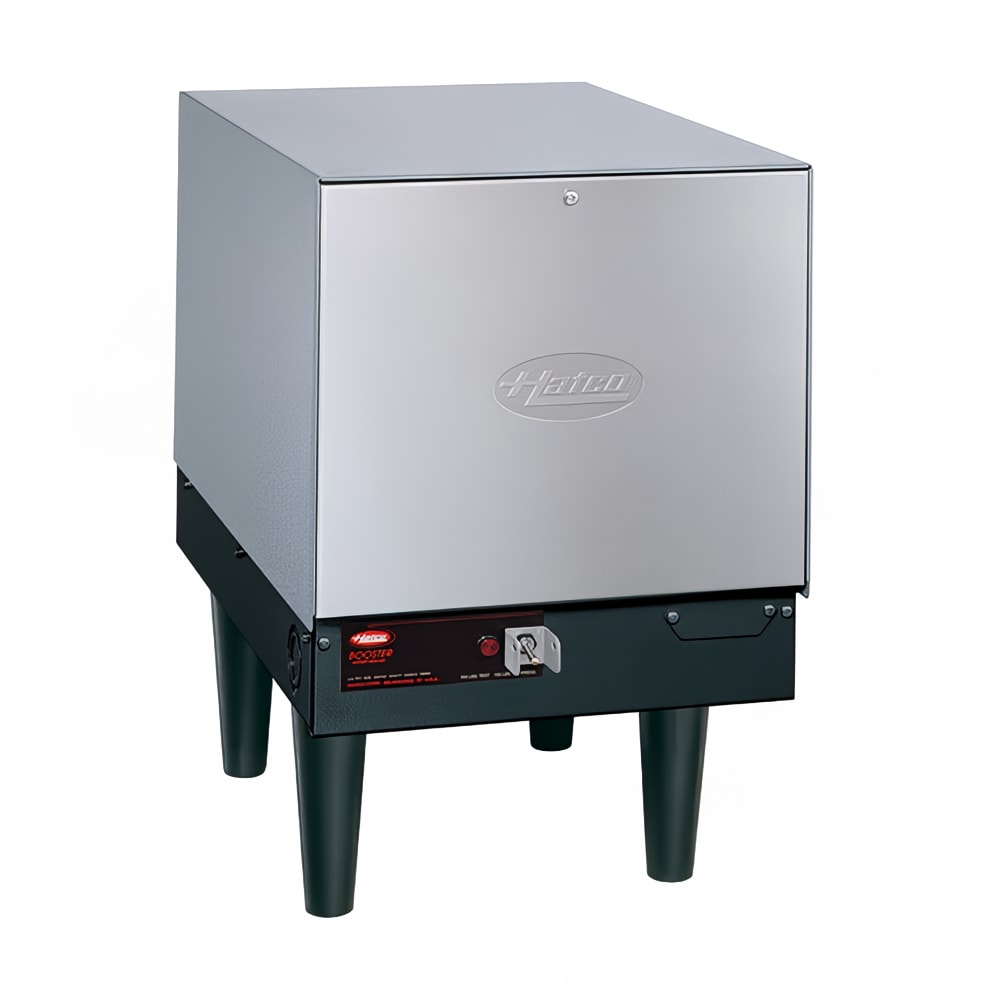

Hatco C-9 240-1-QS Compact Booster Heater, 6-Gallon, 9 KW, 240 Volts, 1 Phase

KaTom #: 042-C92401 • MPN: C-9 240-1-QS
free-shipping
quick-ship

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $2,716.00
$1,493.80 / Each

Hatco C-9 240-1-QS Description

Hatco C-9 240-1 booster heater's 6-gallon tank is lined with Castone, a long-wearing substance similar to concrete that protects the tank from corrosion and resists the buildup of limescale from hard water. The exterior of the equipment is protected with a stainless steel front panel and a powder-coated, hammertone body to resist scratching and damage. The interior of the booster heater is lined in fiberglass insulation, preventing heat from being lost into the ambient air, and a built-in heat trap keeps heat from escaping through the cold water inlet.

This booster heater provides a temperature rise of 40 degrees Fahrenheit to 90-gallon-per-hour water and a 70 degree Fahrenheit rise to 52-gallon-per-hour water, making it appropriate for providing 180 degree Fahrenheit sanitizing water to high-temperature commercial dishwashers. The Hatco C-9 240-1 is protected from overheating by a high-limit switch and from dangerous pressure buildup by a pressure-relief valve

Product Details

  • Hatco Compact series booster heater
  • Designed to provide 180 degree F water for the final rinse cycle of high-temperature dish machines
  • Gives a 40 degree F rise to 90 gph water and a 70 degree rise to 52 gph water
  • Castone-lined 6-gal. tank is shielded from corrosion and limescale buildup for a long, trouble-free life
  • Stainless steel front panels and powder-coated hammertone front give heat a long, damage-resistant life
  • Temperature and pressure gauges let users monitor for the correct water conditions to ensure equipment is working properly
  • Pilot light signals when element is heating
  • Pressure reducing valve supplies the correct incoming water pressure
  • Tank is fiberglass-insulated for energy efficiency
  • Unit is pre-wired and pre-plumbed to help make installation quick and simple
  • Front panel swings away from unit to reveal critical electrical components to give service technicians access for repair
  • Overall Dimensions: 13.06 in. W x 26 in D x 19.78 in. H
  • 240 V/60 Hz/1-ph, 9kW, 37.5 A
  • cULus and CE Listed; NSF Certified

Integrated Safety Features

  • Pressure relief valve prevents dangerous pressure buildup in tank
  • Low-water cutoff prevents elements from running dry to avoid burnout
  • High-limit switch prevents unit from overheating

Compact Booster Heater, Electric, 6-gallon storage capacity, electric operation, 9-KW, stainless steel front, Castone tank, 240 volts, 1 phase. Same Day Shipping on orders recieved before noon (based on availability). NOTE: Water supply in excess of 3.0 grains of hardness per gallon (GPG) must be treated and softened before being used; water containing over 3.0 GPG will decrease the efficiency and reduce the operating life of the unit. Please be advised that product failure caused by liming or sediment buildup is covered under warranty ONLY with proper usage of Hatco water treatment system.

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Hatco C-9 240-1-QS Specifications

PDF Spec Sheet
Manufacturer Hatco
40F Recovery 90 gph
70F Recovery 52 gph
Category Water Booster Heaters
Heat Electric
KW 9
Voltage 240/1
Width (in) 13
Weight 118.00
Hatco C-9 240-1-QS Certifications
  • NSF
