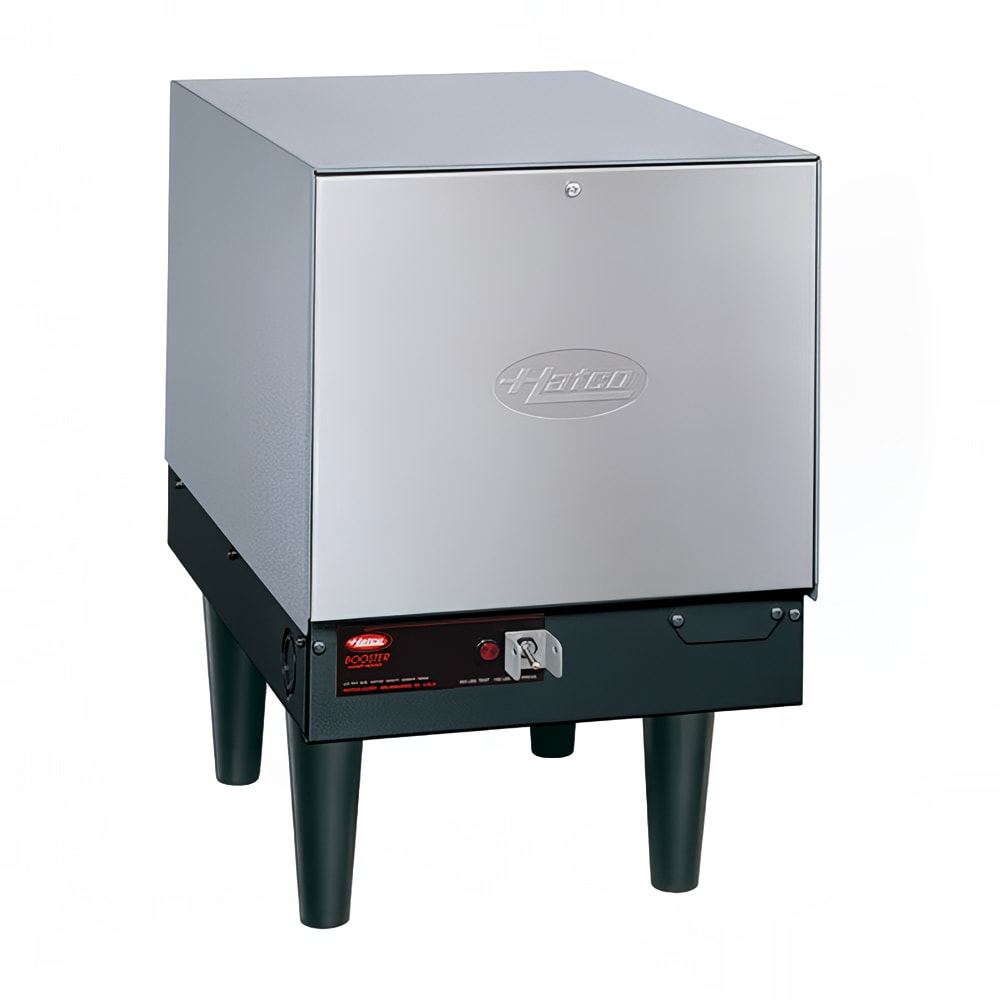

Hatco C-7 Compact Booster Water Heater, 6 Gallon, 7 kW, 240v/3ph

The Hatco C-7 compact booster water heater features user-friendly operation with a straightforward on/off switch, a temperature relief valve, a pressure reducing valve, and a pilot indicator light. For quick servicing, the elements and probes are accessible behind the swinging stainless steel front panel. Water in this unit reaches the required temperature of 180 degrees Fahrenheit for thorough sanitation in the kitchen, and this booster has been pre-wired and pre-plumbed in the factory to speed up installation.

Monitored with two gauges, the temperature in the Hatco C-7 compact booster water heater is maintained by a calibrated thermostat and fiberglass insulation. The hammertone body has a silver powder coating, while the tank is lined with limestone-resistant Castone®. This unit comes with 6-inch plastic legs for placement near the dishwasher. For safety purposes, this booster includes a low-water cut-off feature and a high-temperature limit control.

Product Details

• Maximum 70 GPH at 40-degree-F rise
• Maximum 40 GPH at 70-degree-F rise
• Produces 180-degree-F water temperatures for sanitization
• 6-gal. capacity
• Castone-lined tank stops limestone buildup
• Stainless steel front panel
• Front panel swings for quick control access
• Fiberglass insulation traps heat
• Silver powder-coated hammertone body
• 6-in. plastic legs
• Slide mounting brackets available if indicated (not included)
• Calibrated immersion thermostat
• Factory pre-plumbed and pre-wired
• High-temperature limit prevents heat damage to internal components
• Low-water cut-off prevents element burnout
• Temperature pressure valve
• Pressure reducing valve
• Pilot indicator light
• 2 temperature gauges
• ³⁄₄-in. NPT pipe
• Fittings for water inlet and outlet
• On/off switch

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 25.2 A, 7 kW
• 240 V/60 Hz/3 ph

Product Features

*Free shipping on Hatco C-7 within the 48 contiguous states.

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 7-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 240v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco C-7 Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
