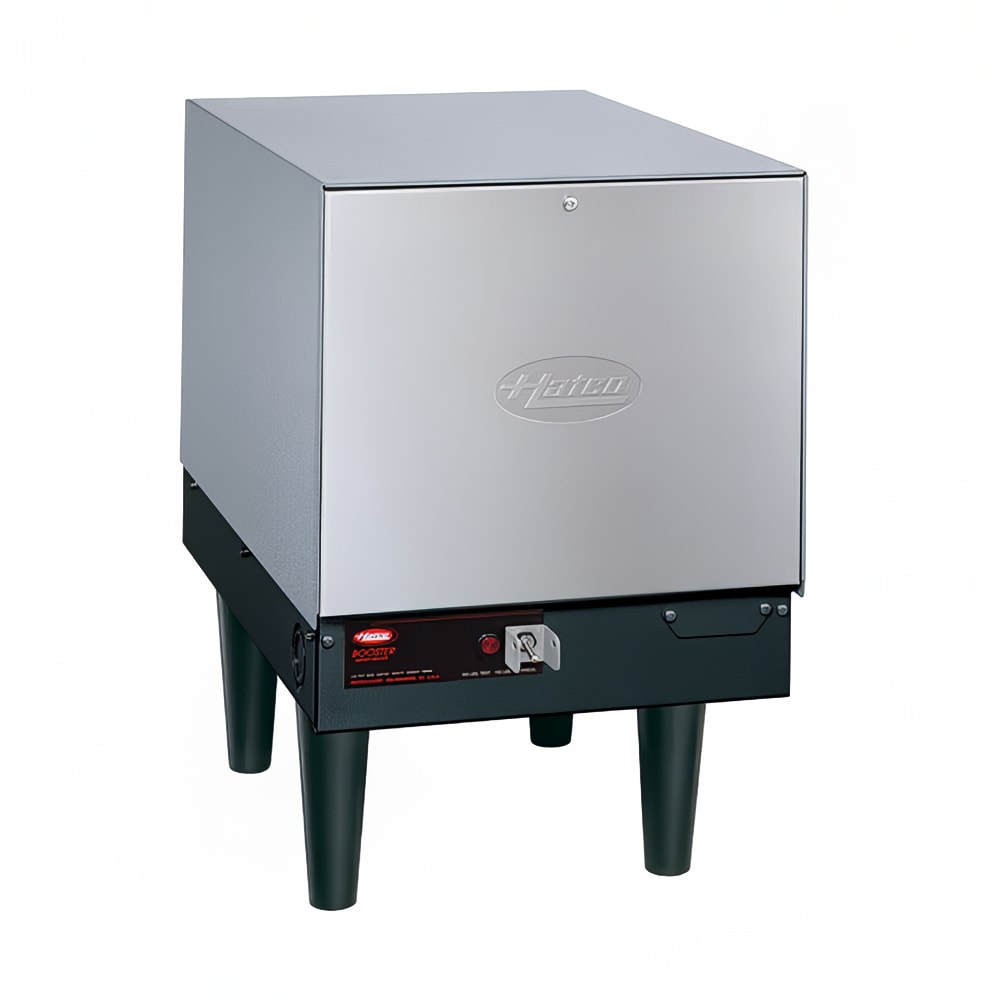

Hatco C-7 Compact Booster Heater, 6 Gallon, 7 KW, 208v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 042-C72083 • MPN: C-7-208-3-QS
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $2,871.00
$1,579.05 / Each

Selected Voltage: 208V, 3 Phase

Image may not depict product color, inclusions or accessories.

Hatco C-7 Description

Hatco

The Hatco C-7 compact booster heater heats water to 180 degrees Fahrenheit for the sanitizing cycle in a dishmachine. Depending on the temperature rise needed, the unit can produce 40 to 70 gallons per hour. To keep the system running smoothly, the pressure-reducing valve regulates and stabilizes flow pressure. If the pressure gets too high, the relief valve lowers the pressure by releasing water from the tank. The tank in this Hatco C-7 compact booster heater has a 6-gallon storage capacity, and heat loss is minimized by fiberglass insulation. The unit is elevated off the floor by 6-inch plastic legs that resist corrosion and most dents and scratches.

Product Details

  • Provides sanitizing water for a warewasher at the required 180 degrees F temperature
  • 70 GPH with 40-degree F rise
  • 40 GPH with 70-degree F rise
  • 6-gal. storage capacity
  • Castone® lining in the tank enhances strength
  • Fiberglass insulation keeps heat inside the tank
  • Pilot indicator by the on/off switch illuminates during operation
  • Pressure-reducing valve regulates and stabilizes flow pressure
  • Temperature/pressure relief valve releases water to lower the pressure when it exceeds the ideal level
  • Low-water cut-off shuts down heating element power if water is low, eliminating the risk of element burnout
  • Swing-away front panel design enables access to components for system servicing
  • Stainless steel front panel construction adds durability and corrosion resistance
  • Body uses a powder coating to increase the strength
  • 6-in. legs are made of plastic to resist corrosion, bending, and breaking
  • 208 V/60 Hz/3 ph, 29.1 A, 7 kW
  • Overall dimensions: 13.06 in. W x 26 in. D x 19.78 in. H
  • CE and cULus listed; NSF certified
  • Made in the U.S.

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 7-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 208v/60/3-ph, NSF, cUL, UL

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Hatco C-7 Specifications

PDF Spec Sheet
Manufacturer Hatco
40F Recovery 70 gph
70F Recovery 40 gph
Heat Electric
KW 7
Width (in) 13
Width (in) Range 10 - 15 in
Voltage 208
Phase 3
Hertz 60
Product Type Dishwashing Supplies
Product Booster Heater
Weight 118.00
Hatco C-7 Certifications
  • NSF
