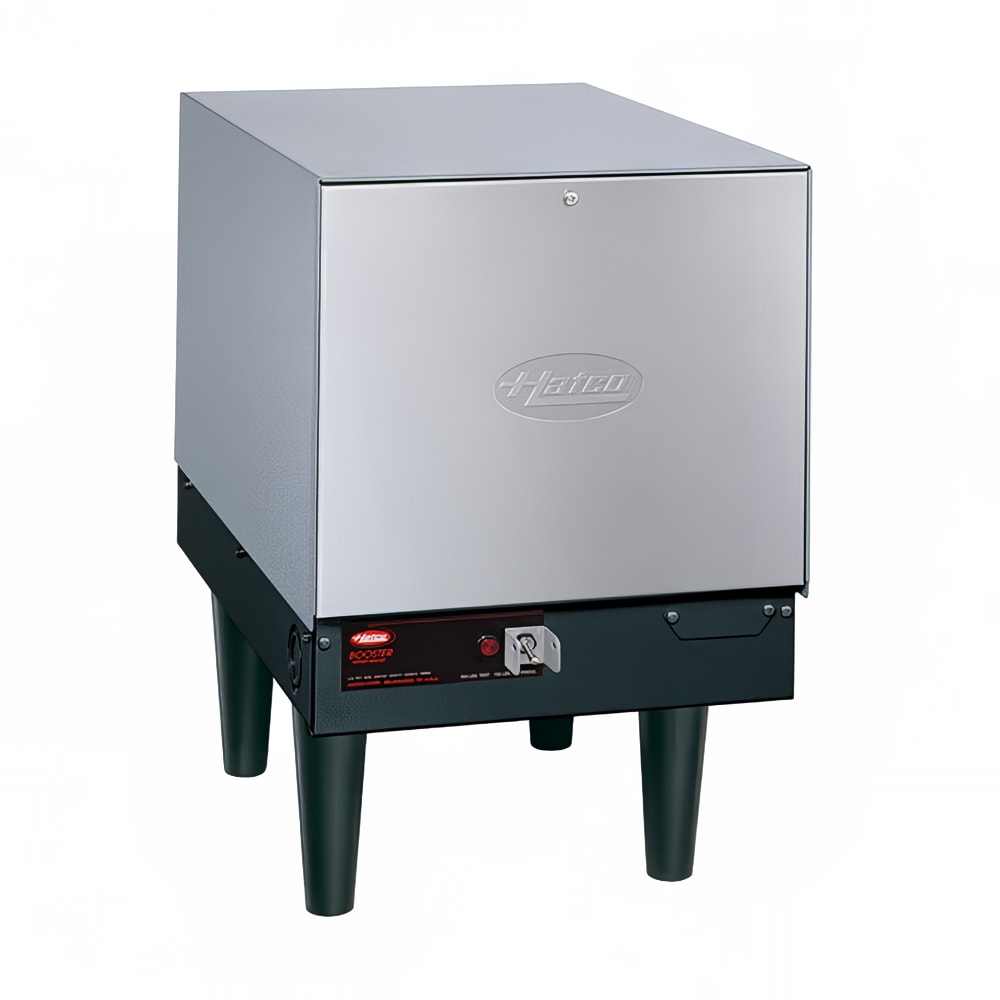

Hatco C-7 Compact Booster Heater, 6 Gallon, 7 KW, 208v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 042-C72081 • MPN: C-7-208-1-QS
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $2,871.00
$1,579.05 / Each

Selected Voltage: 208V, 1 Phase

Image may not depict product color, inclusions or accessories.

Hatco C-7 Description


The Hatco C-7 compact booster heater ensures that warewashers have access to water that is 180 degrees Fahrenheit, which properly sanitizes and flash dries dishes and flatware. With a 40-degree Fahrenheit rise, it provides 70 gallons per hour, and with a 70-degree Fahrenheit rise, it provides 40 gallons per hour. The tank is lined with Castone®, a cement-like substance that increases durability, and has a 6-gallon storage capacity. Fiberglass insulation retains heat inside the tank to save energy.

When the unit is on, the pilot indicator light with an on/off switch lights up. A pressure-reducing valve regulates and stabilizes flow pressure. If the pressure is high, the relief valve lowers it by releasing excess water in the Hatco C-7 compact booster heater. To keep the element safe from burnout, low-water cut-off function shuts off power to the heating element when the water is low. The stainless steel panel has a swing-away design for convenient service access.

Product Details

  • Provides 180 degrees F sanitizing water to the dishwasher
  • 70 GPH with 40-degree F rise
  • 40 GPH with 70-degree F rise
  • 6-gal. storage tank capacity
  • Castone-lined tank has lasting durability for frequent use
  • Fiberglass insulation traps heat in the tank
  • On/off switch has a pilot indicator light that illuminates when operating
  • Pressure-reducing valve keeps flow pressure regulated and stabilized
  • Temperature/pressure relief valve lowers pressure in the tank by releasing water
  • Low-water cut-off turns off element power when the water level is too low, keeping it safe from burnout
  • Swing-away design on the front panel lets the operator quickly access and service the components
  • Heavy-duty stainless steel construction of the front panel is corrosion resistant
  • Body is powder coated to resist corrosion and most dents and scratches
  • 6-in. plastic legs keep the components elevated
  • 208 V/60 Hz/1 ph, 33.7 A, 7 kW
  • Overall dimensions: 13.06 in. W x 26 in. D x 19.78 in. H
  • CE and cULus listed; NSF certified
  • Made in the U.S.

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 7-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 208v/60/1-ph, NSF, cUL, UL

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Hatco C-7 Specifications

PDF Spec Sheet
Manufacturer Hatco
40F Recovery 70 gph
70F Recovery 40 gph
Heat Electric
KW 7
Width (in) 13
Width (in) Range 10 - 15 in
Voltage 208
Phase 1
Hertz 60
Weight 118.00
Hatco C-7 Certifications
  • UL
  • NSF
