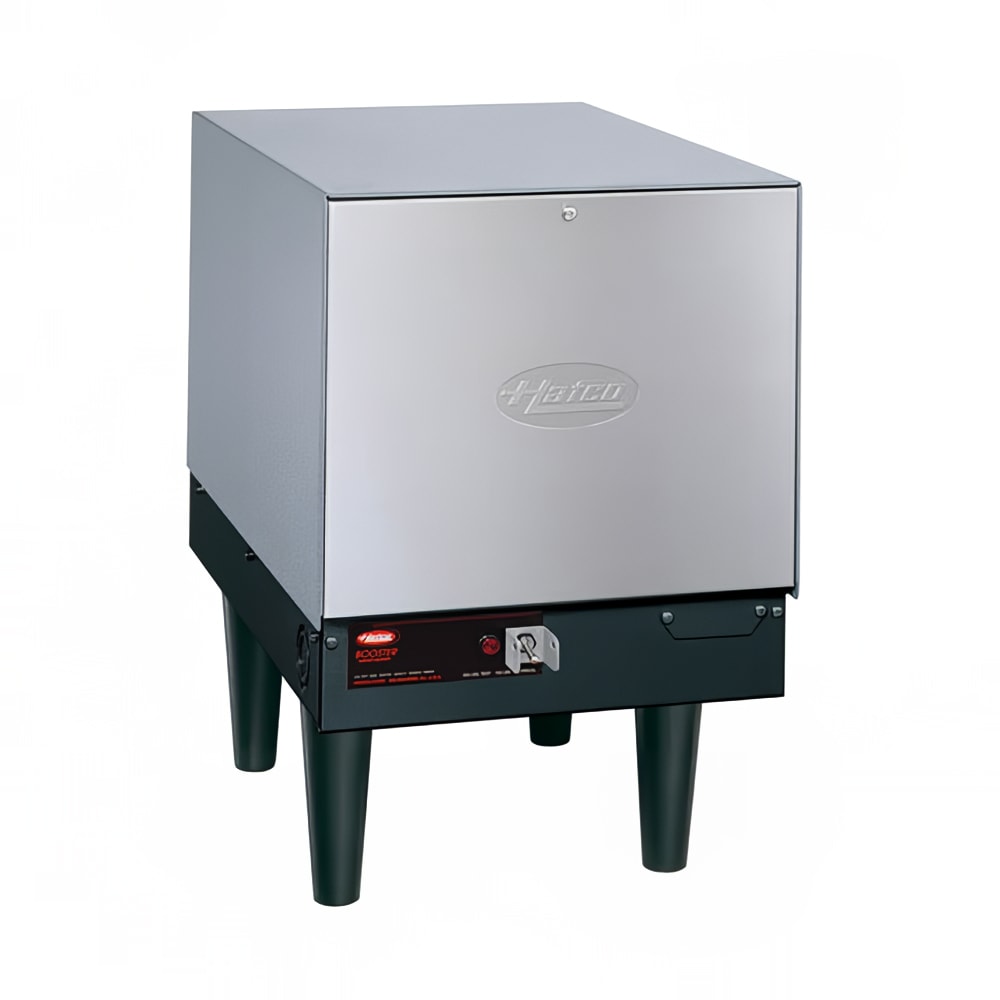

Hatco C-6 Compact Booster Water Heater, 6 Gallon, 6 kW, 480v/3ph

The Hatco C-6 compact booster water heater is fiberglass insulated, ensuring that heat in the tank does not leak out. Regulated by the calibrated immersion thermostat, the temperature level can be viewed on the two included temperature gauges, while the pilot indicator light informs the user that the unit is operating at peak efficiency. Made of silver powder-coated hammertone, this unit is resistant to dings and dents, and its Castone® liner protects the water tank against corrosion.

Operated by the pressure relief valve and the pressure reducing valve, the Hatco C-6 compact booster water heater is turned off and on by the click of a switch. For maintenance, the swinging front panel reveals the control fuses and transformer for quick access to probes and elements. Using the included 6-inch legs, this unit can stand on its own near a dish pit or can be mounted under the dish table with slide brackets that are sold separately. This unit operates safely with a low-water cut-off and a high-temperature limit control.

Product Details

• Maximum 60 GPH at 40-degree-F rise
• Maximum 34 GPH at 70-degree-F rise
• Provides 180-degree-F water for sanitizing and flash-drying
• 6-gal. storage capacity
• Low-water cut-off protects elements from burnout
• High-temperature limit control
• Pilot indicator light ensures unit is operating correctly
• Pressure reducing valve
• 2 temperature gauges
• Pressure relief valve
• Powder-coated hammertone construction
• Front panel made of durable stainless steel
• Panel enables access to elements and probes
• Insulated with fiberglass to minimize heat loss
• Castone-lined tank protects interior against limestone and corrosion
• On/off switch
• 6-in. plastic legs
• Fittings for water inlet and outlet
• ³⁄₄-in. NPT pipe
• Available slide mounting brackets (not included)

Dimensions & Utilities

• 13¹/₁₆ in. W x 26 in. D x 19³⁹/₅₀ in. H
• 10.8 A, 6 kW
• 480 V/60 Hz/3 ph

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 6-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 480v/60/3ph

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco C-6 Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure

Certifications
